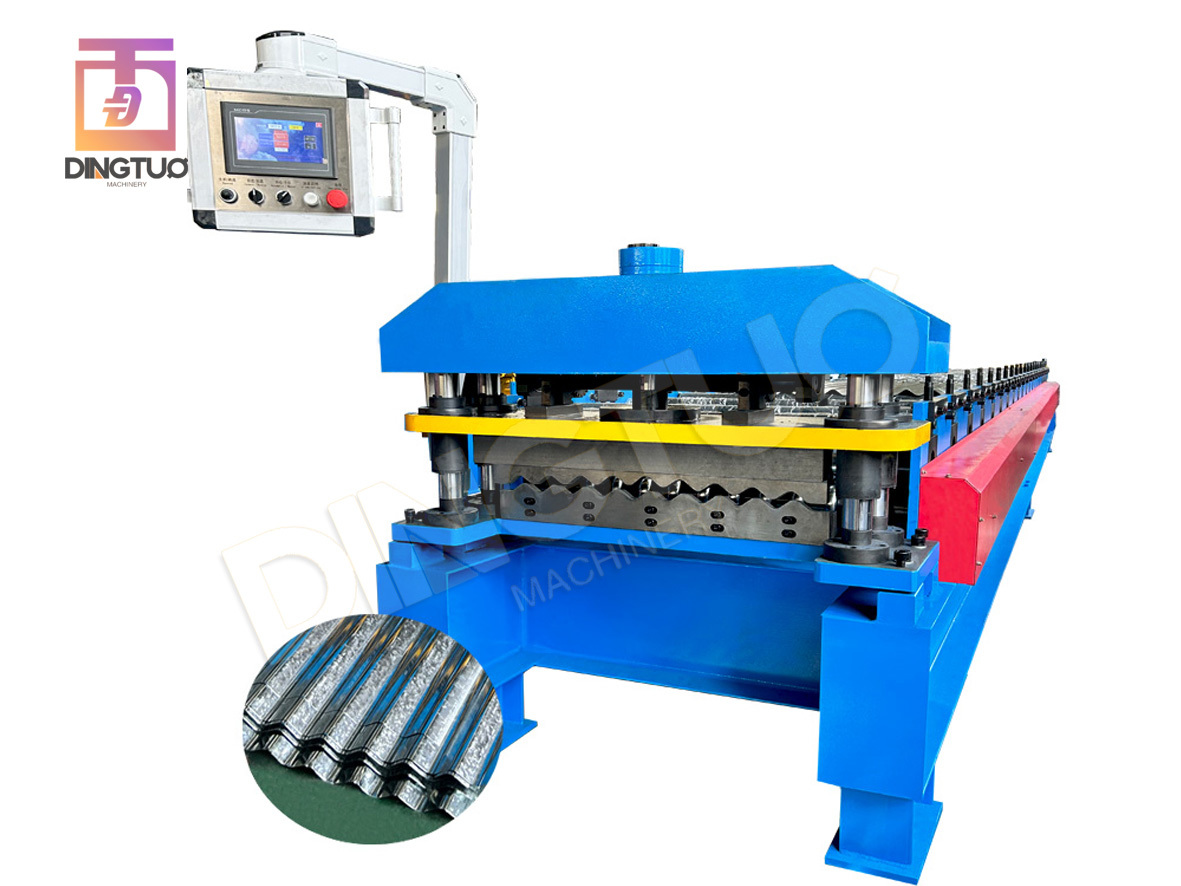

760 Galvanized Steel Metal Corrugated Sheet Profile Roof Forming Machine
Product category:
Tel/Whatsapp:
760 Galvanized Steel Metal Corrugated Sheet Profile Roof Forming Machine
RELATED PRODUCTS

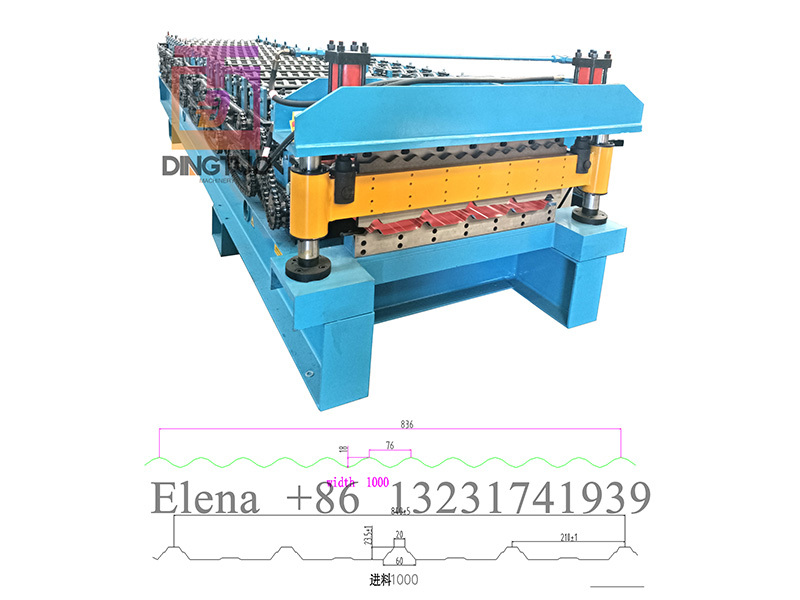

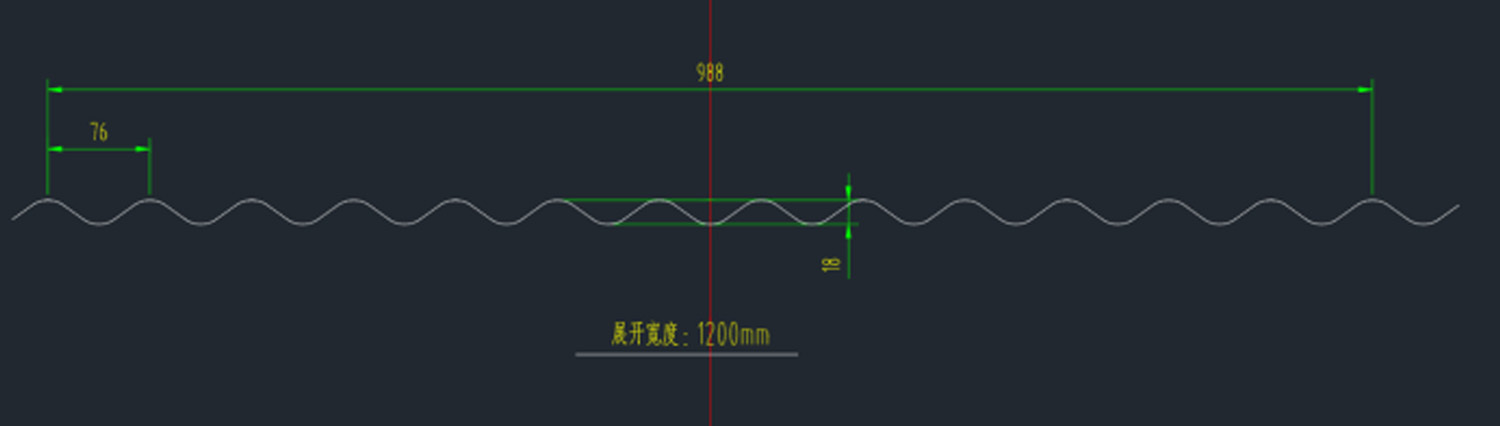

Profile Drawing

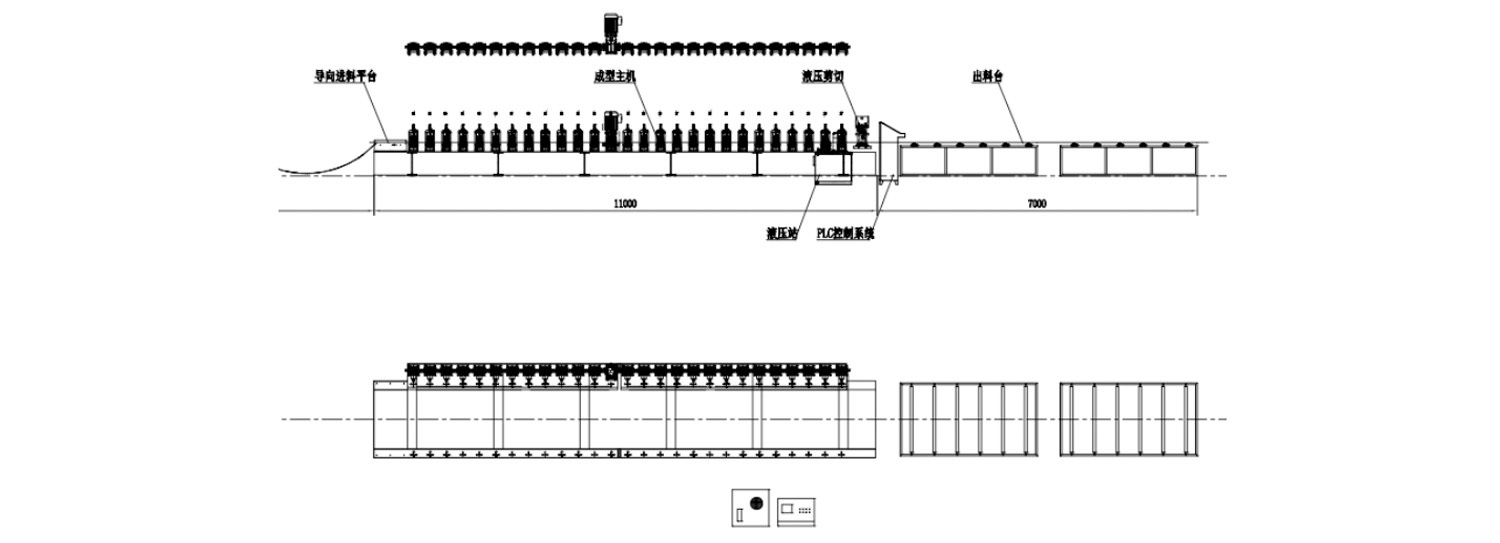

Machine Outlet
| NO. | Description | Quantity (set) |
| 1 | 5T decoiler | 1 |
| 2 | Feeding Platform | 1 |
| 3 | Forming System | 1 |
| 4 | Gear boxes transmission system | 1 |
| 5 | Hydraulic cutting system | 1 |
| 6 | Hydraulic pump station | 1 |
| 7 | Electric Control Cabinet | 1 |
| 8 | Run Out Table | 1 |
| 9 | Spare parts and tools | 1 |
Machine Parameters
Note:
◆If the plate with a coating,the coating should be consistent with coating inspection standards of the relevant color-coated,should not have skin off,so as not to effect quality of roll forming.
◆If the material is galvanized steel,the galvanized should be consistent with the relevant testing standards of the galvanized steel,should not have zinc layer off,so as not to effect the quality of roll forming.
| No | Item | Parameter |
| 1 | Raw material | PPGI /GI/ Aluminum |
| 2 | Thickness | 0.17-0.8 mm |
| 3 | Feeding width/coil width | 1000 mm / 1200 mm |
| 4 | Useful width | 836 mm / 988 mm |
| 5 | Machine stands | 90 model cast iron machine stands |
| 6 | Forming Speed | 35 m/min |
| 7 | Forming station | 18 stations Formed in steps, perfect size effects. |
| 8 | Total Power | 7.5 kw (main motor power) + 5.5KW(hydraulic pump station motor power) |
| 9 | Mill bed material | 350H beams welded |
| 10 | Voltage | 380 V , 50HZ, 3 Phases |
| 11 | Diameter of shaft | 70mm diameter solid shafts |
| 12 | Cutting type | 4 pillar guides stop cutting |
| 13 | Forming Shaft | 45# steel with quenched and tempered |
| 14 | Forming Roller | 45# steel with hard chrome coating process |
| 15 | Cutting Blade | Cr12 with hard treatment |
| 16 | Transmission | X140 gear boxes transmission |
| 17 | PLC | Mitsubishi Brand，Japan |
| 18 | Touch Screen/Frequency Inverter | Mitsubishi Brand，Japan |
| 19 | Main driving motor brand | Guomao brand |
| 20 | Encoder | OMRON Brand with aluminum bracket |
| 21 | Host Machine rough size | L10 m*W1.5m*H1.5m |
| 22 | Host Machine rough weight | 10 tons |
| 23 | Machine with anchor bolts | Have , height 150mm |
5 Tons Decoiler Parameter
● Steel coil inner diameter, φ490㎜——530㎜.
● Steel coil external diameter, maxφ1200 ㎜.
● Steel coil width 0--1250 ㎜.
● Bearing weight : 5T.
Spare Parts (Free To Send It You Dear)
| ACCESSORIES(SPARE PARTS ) | |||
| No. | Name | Quantity | Country |
| 1 | Rely | several | China |
| 2 | Encoder | 1pcs | China |
| 3 | Encoder wheels | 2pcs | China |
| 4 | bearings | 2pcs | China |
| 5 | Travelling Buttons | 2pcs | China |
| 6 | Switch buttons | 3pcs | China |
| 7 | The electromagnetic valve | 1pcs | China |
| 8 | Oil tubes | 2pcs | China |
| 9 | Gears | 2pcs | China |
| 10 | Chains | 2meters | China |
| 11 | circlip | Several | China |
| 12 | Tool Box | 1 Set | China |
Package
1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded in one 20 ft container.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
