High intelligence high speed MF3005 C 80 to C 310 2.5mm LGSF And Floor Joist Machine
LGSF / FLOOR JOIST MACHINE RELATED PRODUCTS

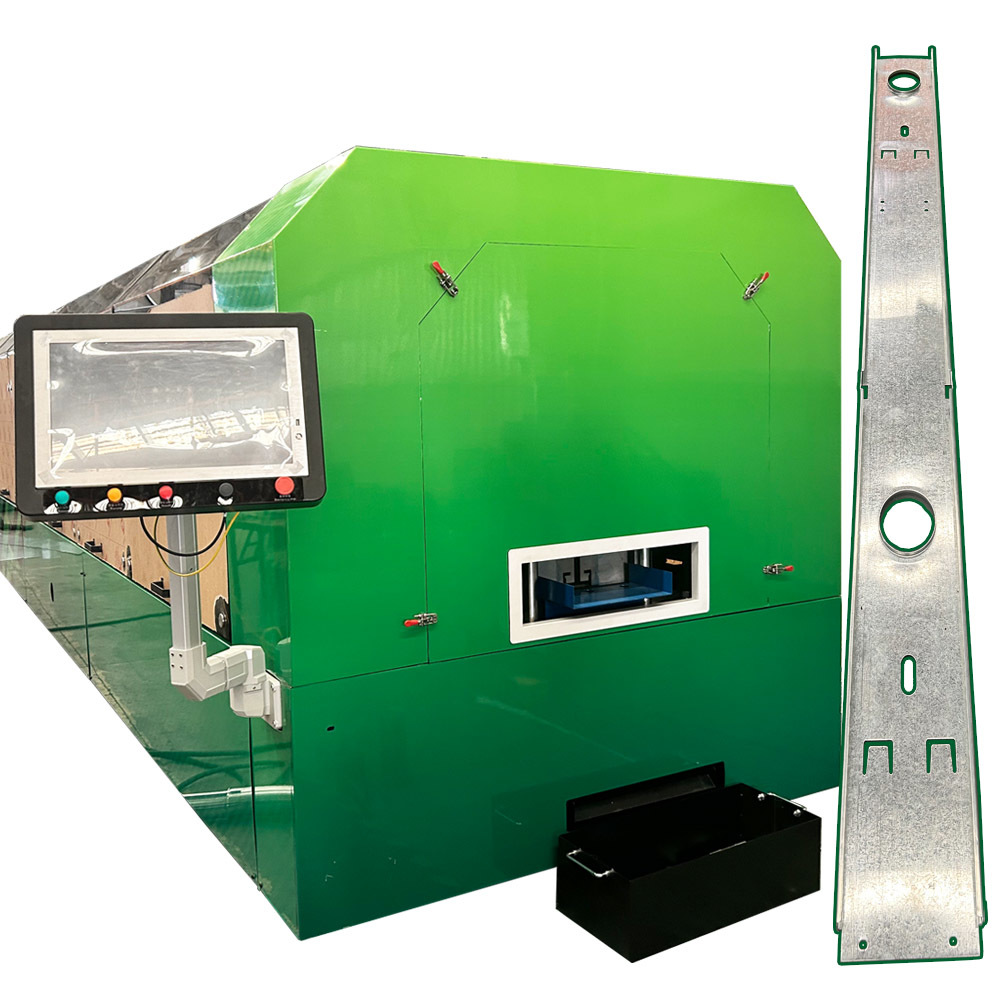

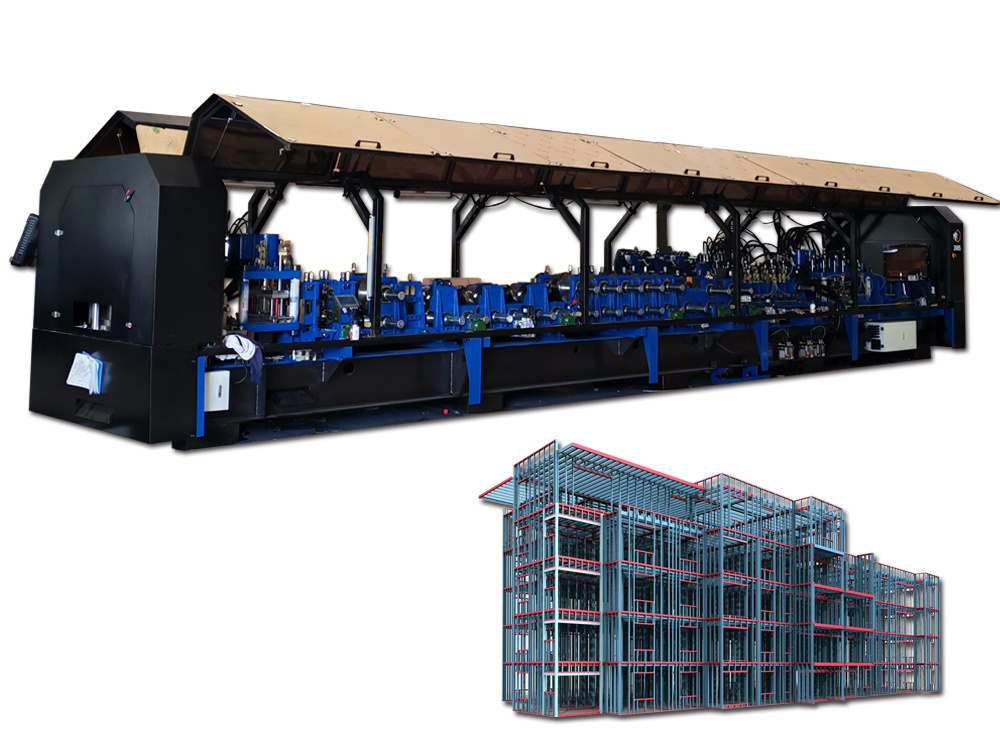

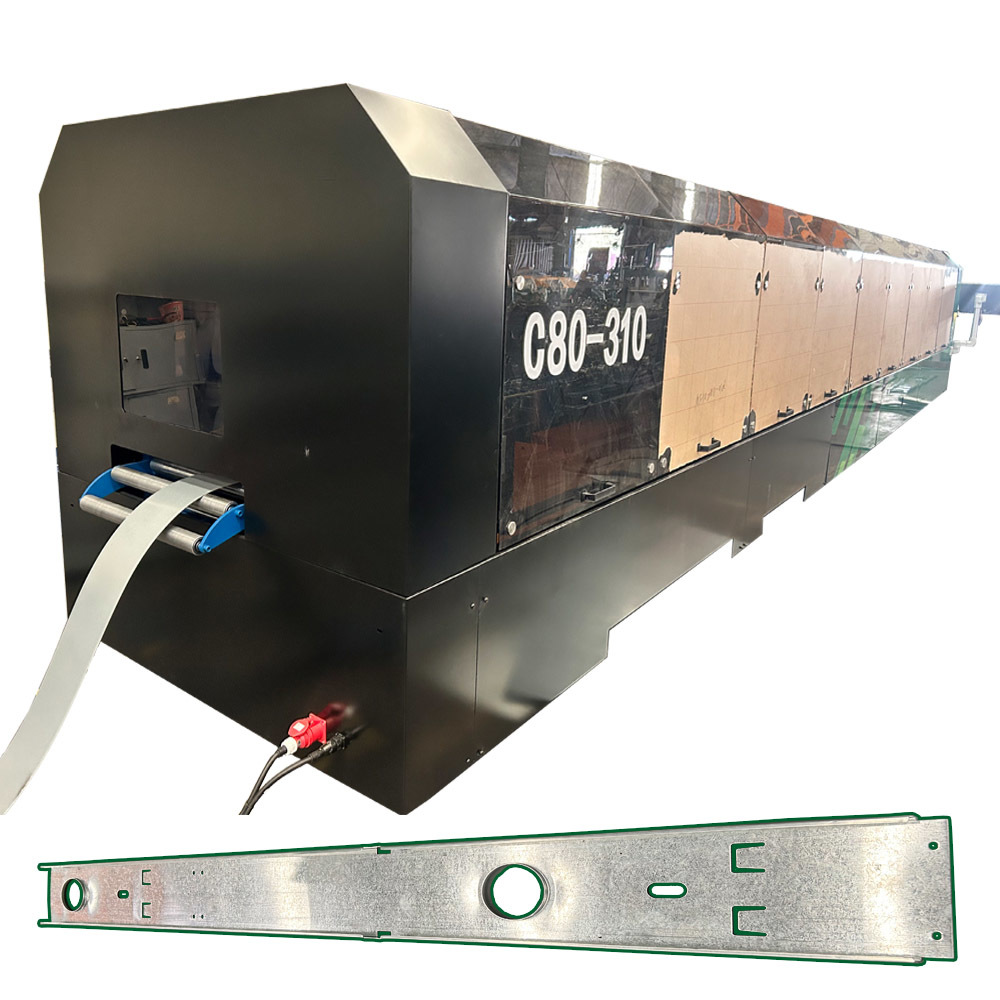

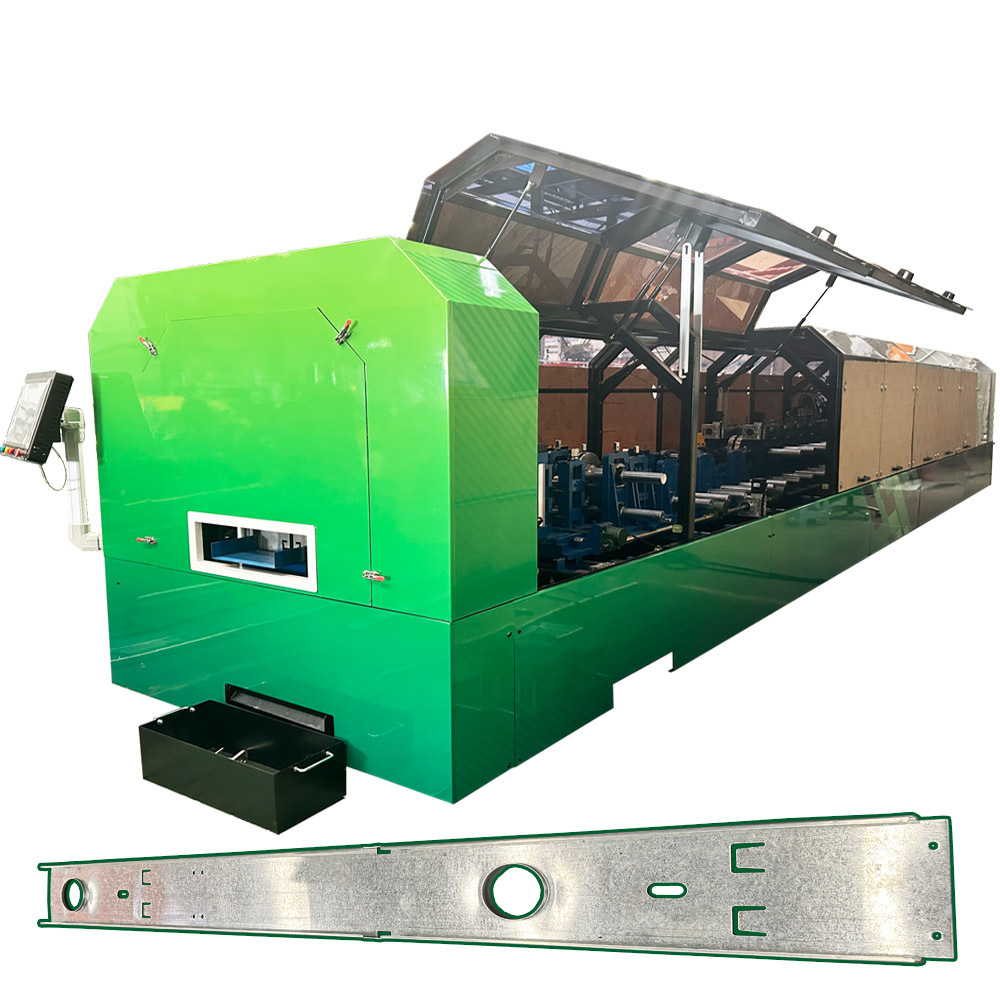

MF3005 C80 TO C310 LGSF AND FLOOR JOIST MACHINE

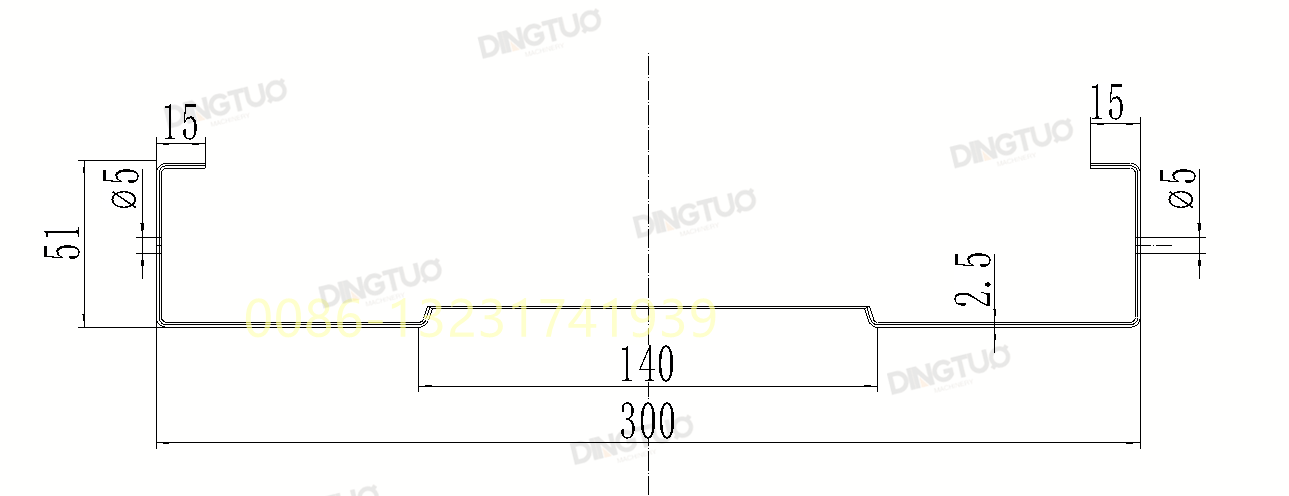

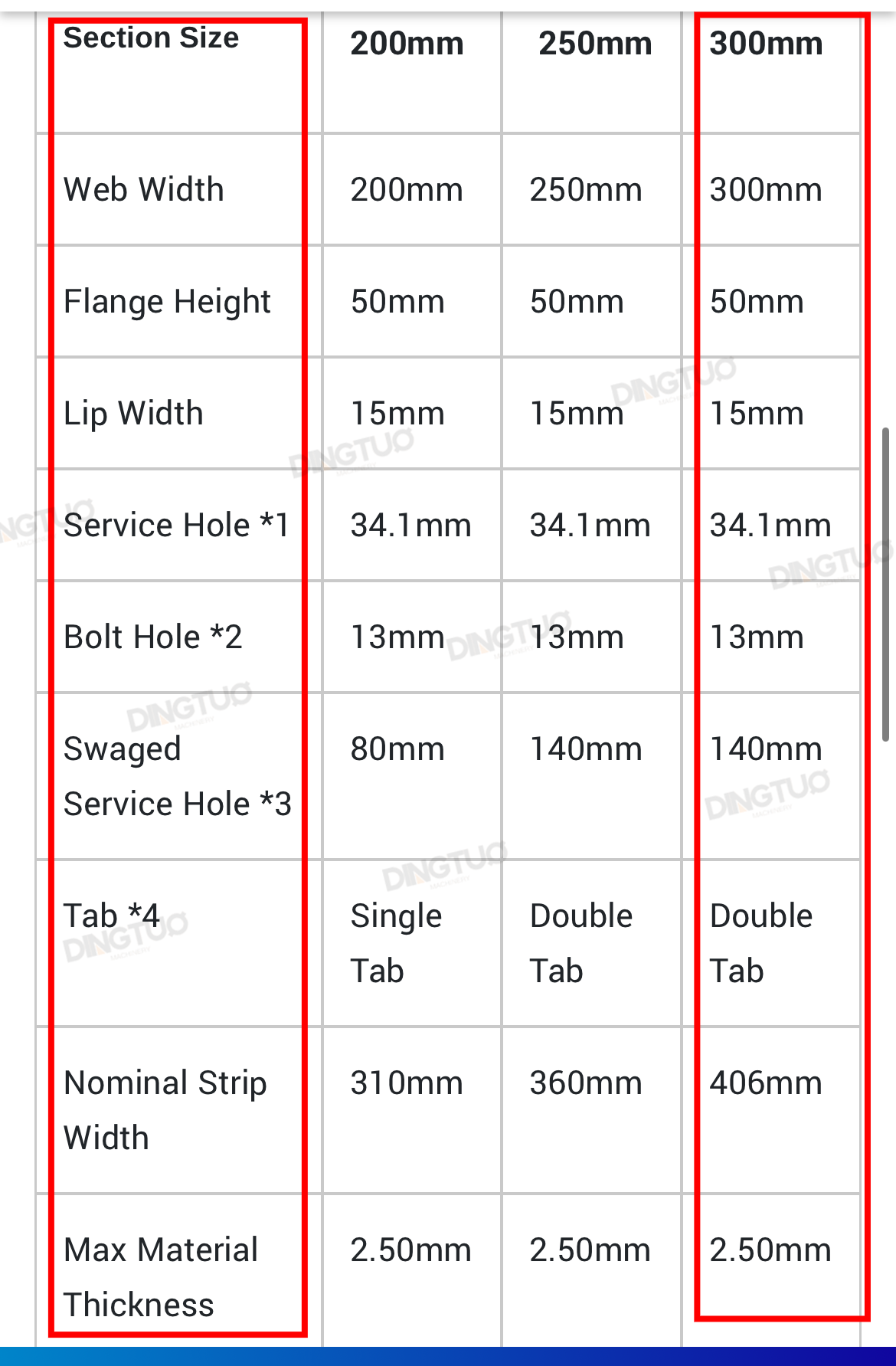

LGSF PARAMETER :
1. Roll-forming width is adjustable between 89 and 305 mm. This agreement includes standard dies: 89 to 305. Custom sizes are available upon request and subject to additional fees.
2. Waist height: 51 mm adjustable .
3. Small side: 10 to 20 mm.
4. Plate thickness: 1 to 2.5 mm (adjustable).
5. material : Q235,Q345,G550 galvanized steel ......
LGSF MACHINE ADVANTAGES:
Popularity: Light gauge steel frame (LGSF) machinery has gained significant traction globally due to its adaptability to modern construction demands, offering cost-effective, sustainable, and time-efficient solutions for residential, commercial, and industrial projects. Its rising adoption aligns with the shift toward green building practices and prefabricated construction.
Architectural Functionality: LGSF systems enable precise engineering of lightweight yet high-strength frameworks, supporting flexible design configurations and excellent seismic resistance. They are ideal for energy-efficient structures, with compatibility for insulation and cladding, while minimizing material waste.
Necessity of Equipment: Specialized LGSF machines are indipensable for manufacturing cold-formed steel components with precision, ensuring structural integrity and compliance with safety standards. These systems enhance production speed, reduce labor costs, and streamline workflows, making them critical for scaling modern construction projects sustainably.
MULTIPLE 80-310 LGSF AND FLOOR JOIST MACHINE COMPONENTS
1: 6 T HYDRAULIC DECOILER
2. FEEDING PLATFORM : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE
3. STANDARD PUNCHING UNIT : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE
The standard punching moulds included :
- flange cut；
- Web bolt hole 13*17；
- Service hole-L 165；
- Double web tab ;
- Dimple hole M4.8;
- Service hole 40*80；
- Triple web hole；
- Web notch;
- Lip notch;
- End truss;
- Swage;
- Flaring hole;
- Offline end flange
3. FORMING AND CUTTING UNIT : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE
THICKNESS AND WEB SIZE ADJUSTABLE AUTOMATICALLY
4. HYDRAULIC PUMP STATION SYSTEM AND ELECTRIC CONTROL SYSTEM
Dual accumulators ensure high-speed 48m/min , stable operation and punching performance.
High-power servo motors and a high-power oil pump station ensure high-speed 48m/min , stable operation and punching performance.
Twenty years of technical experience in the light steel keel equipment industry ensures high-quality, stable operation.
Machine computer program + computer remote program + machine electronic control program + design software are all independently developed to ensure the quality of equipment software and hardware and provide customers with the most powerful service support.

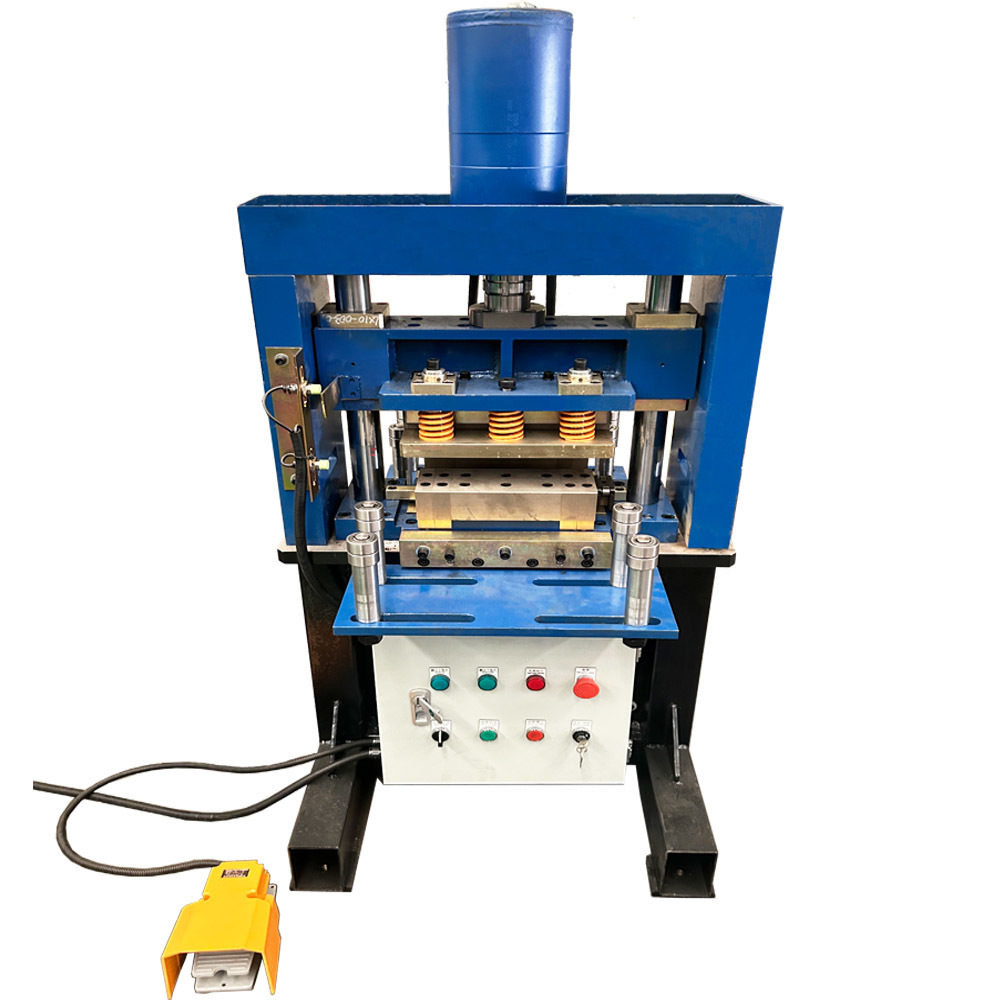

5. OFFLINE END FLANGE DEVICE
6. RUN OUT TABLE
we can send you run out table production files and you can do it by yourself.
6. SPARE PARTS
some free spare parts will be sent with machine together.
connect Elena to purchase important necessary spare parts .
