High intelligence high speed MF2000 C 75 to C 200 1.6mm light gauge steel frame roll forming machine with remote control system
Key words:
Product category:
Tel/Whatsapp:

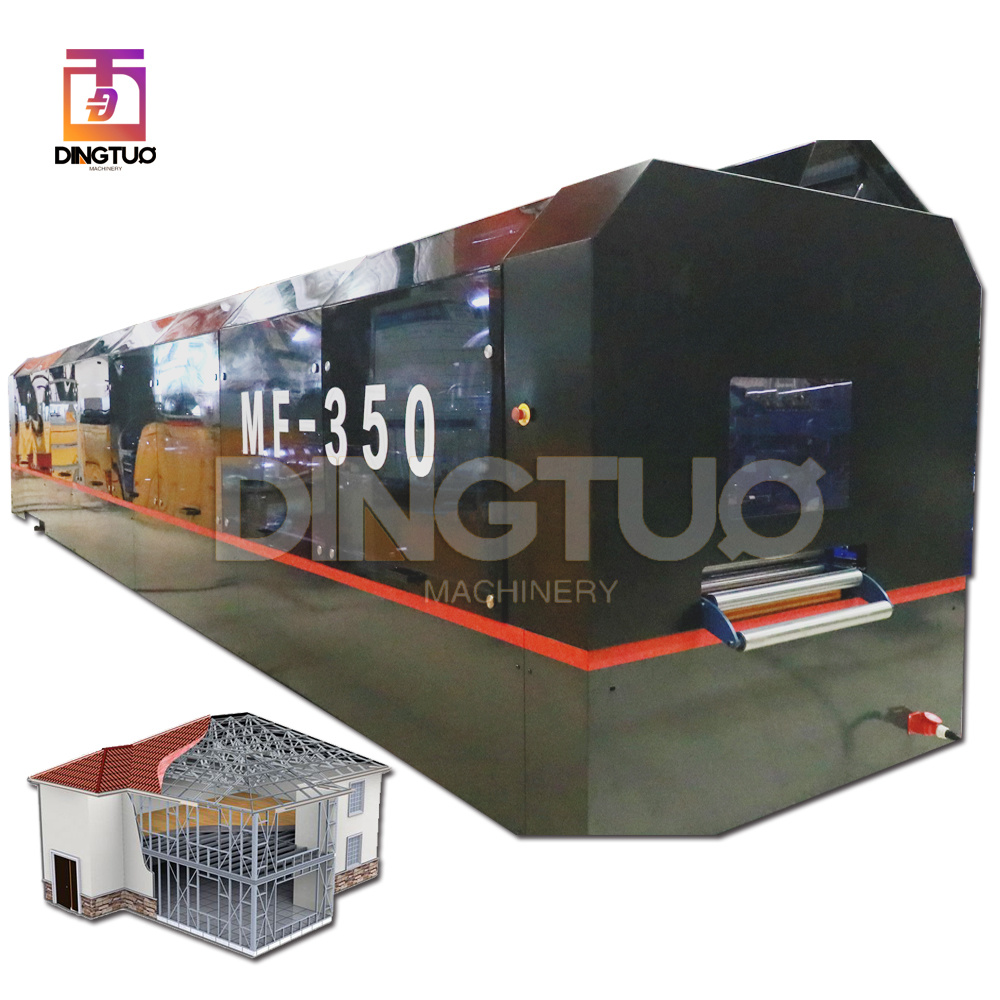

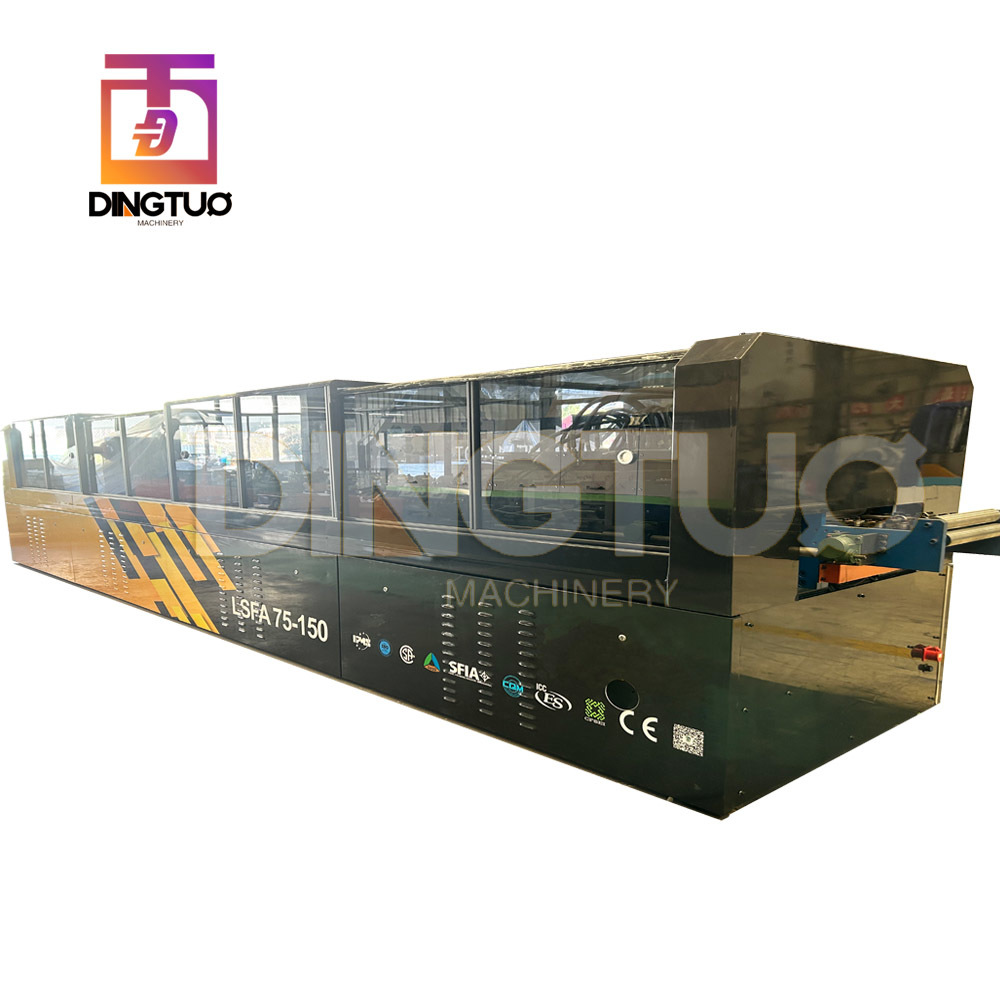

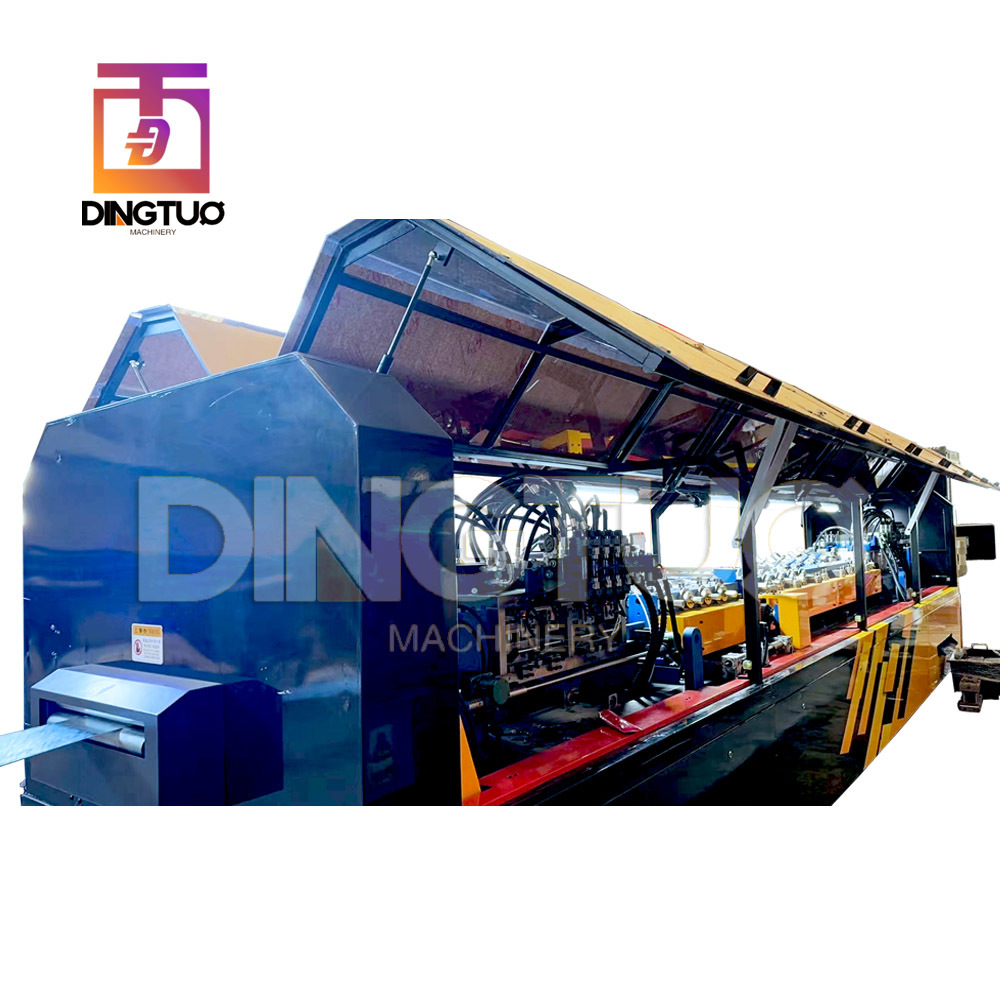

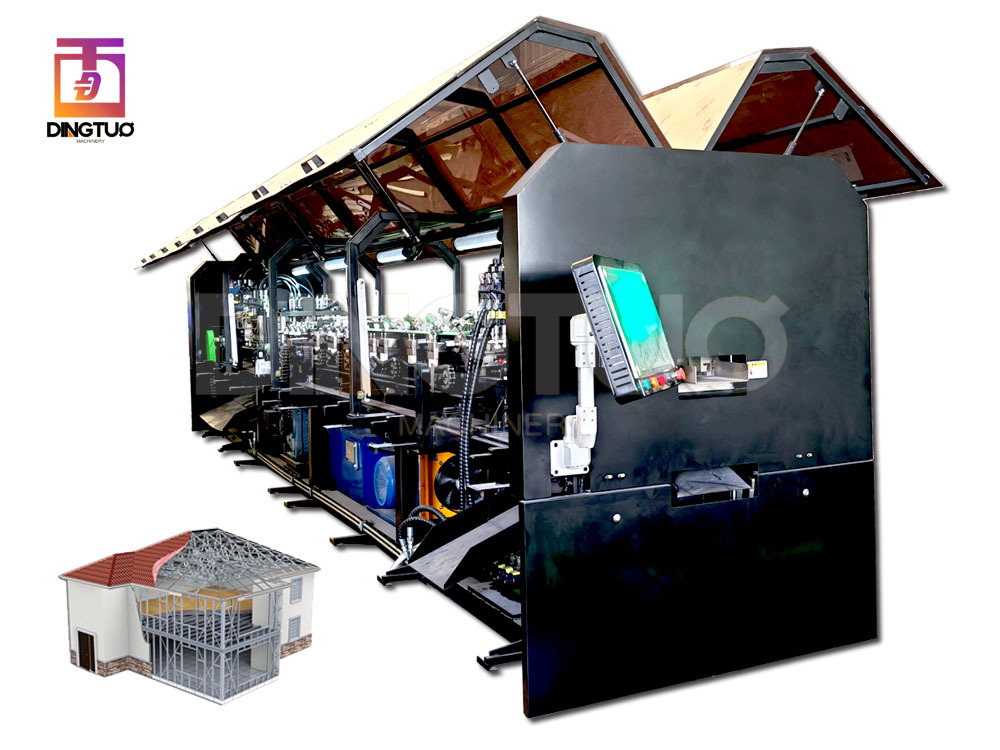

High intelligence high speed MF2000 C 75 to C 200 1.6mm light gauge steel frame roll forming machine with remote control system

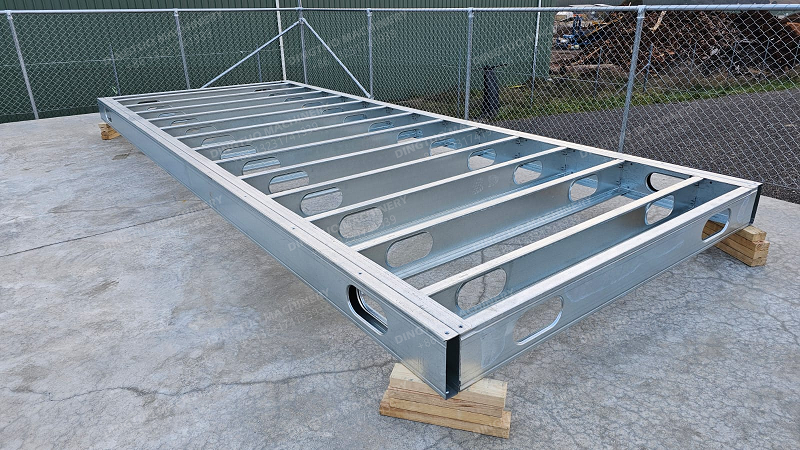

LGSF / FLOOR JOIST MACHINE RELATED PRODUCTS

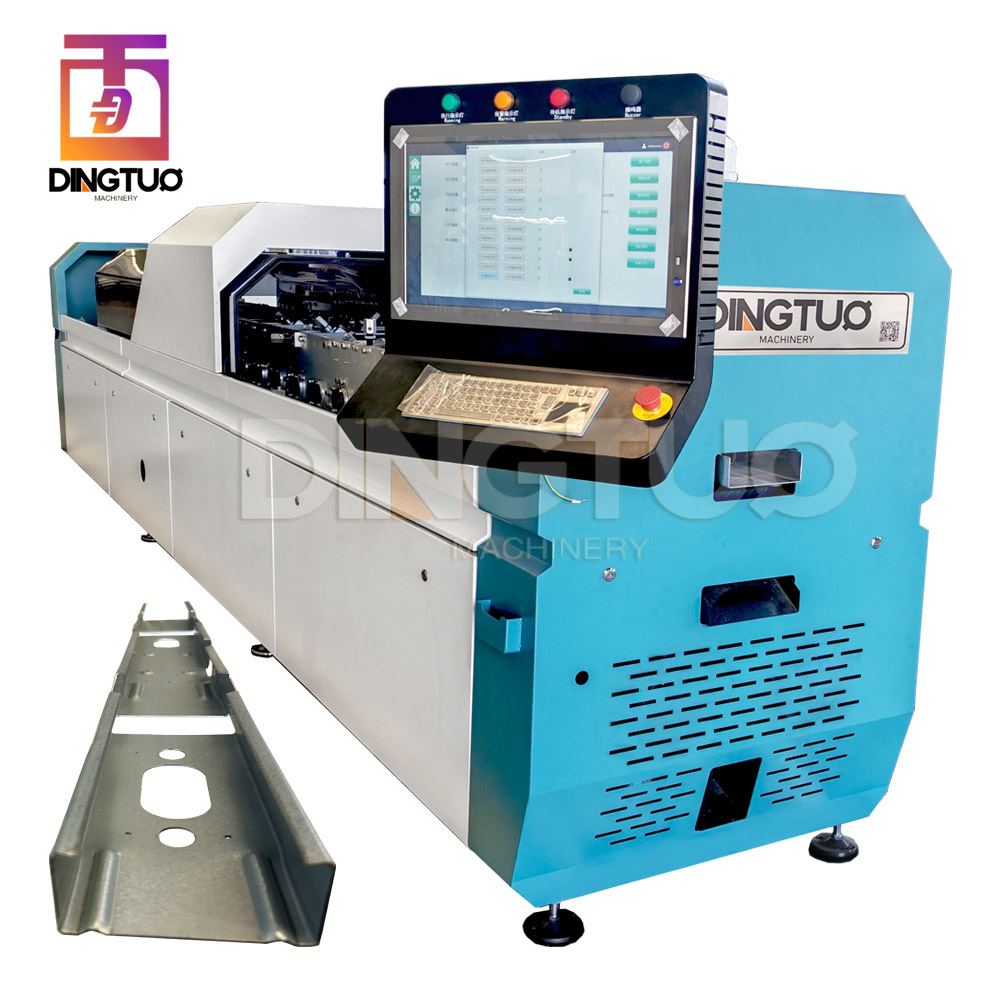

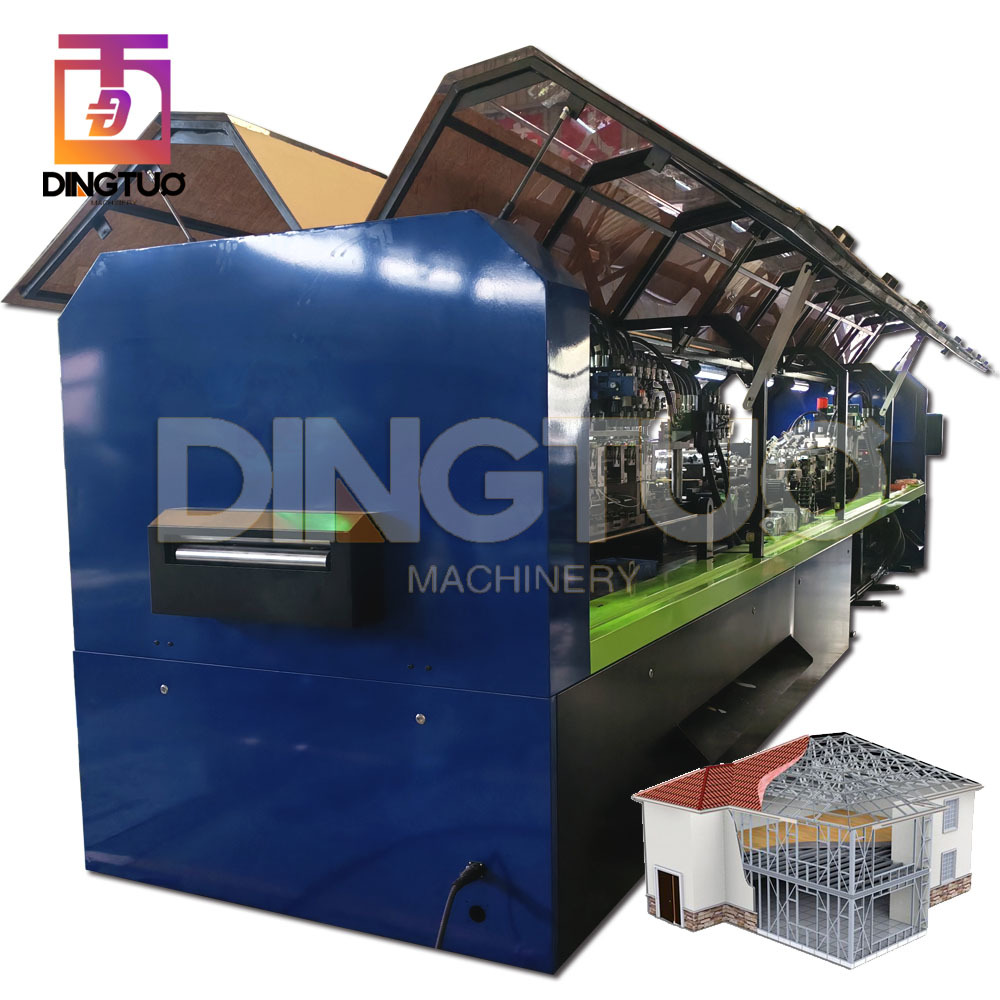

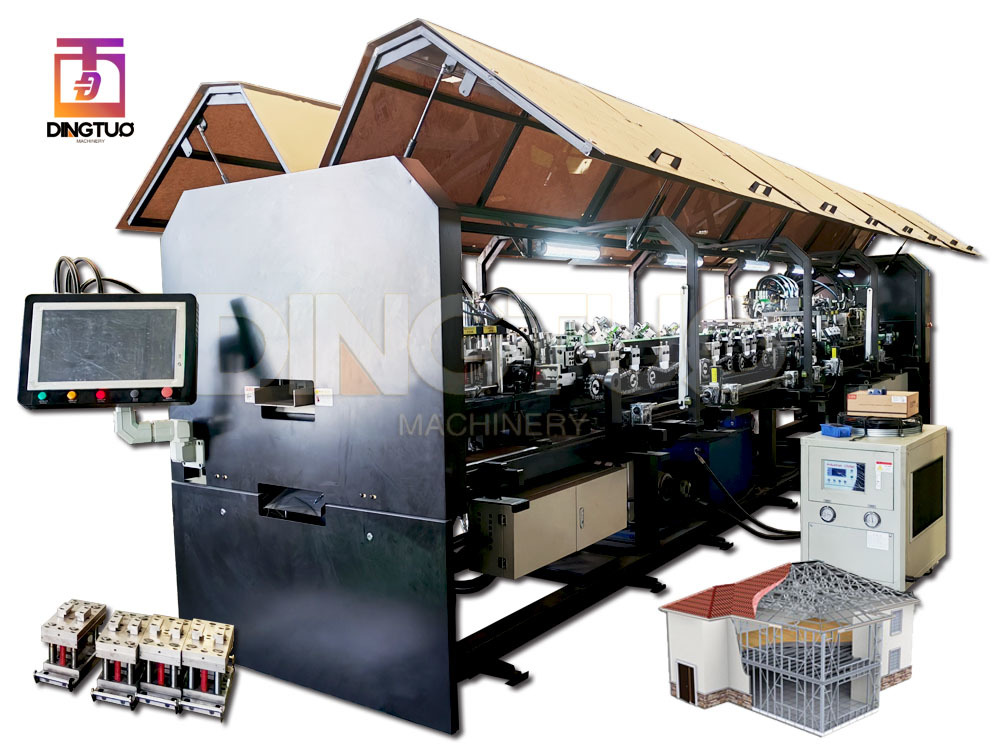

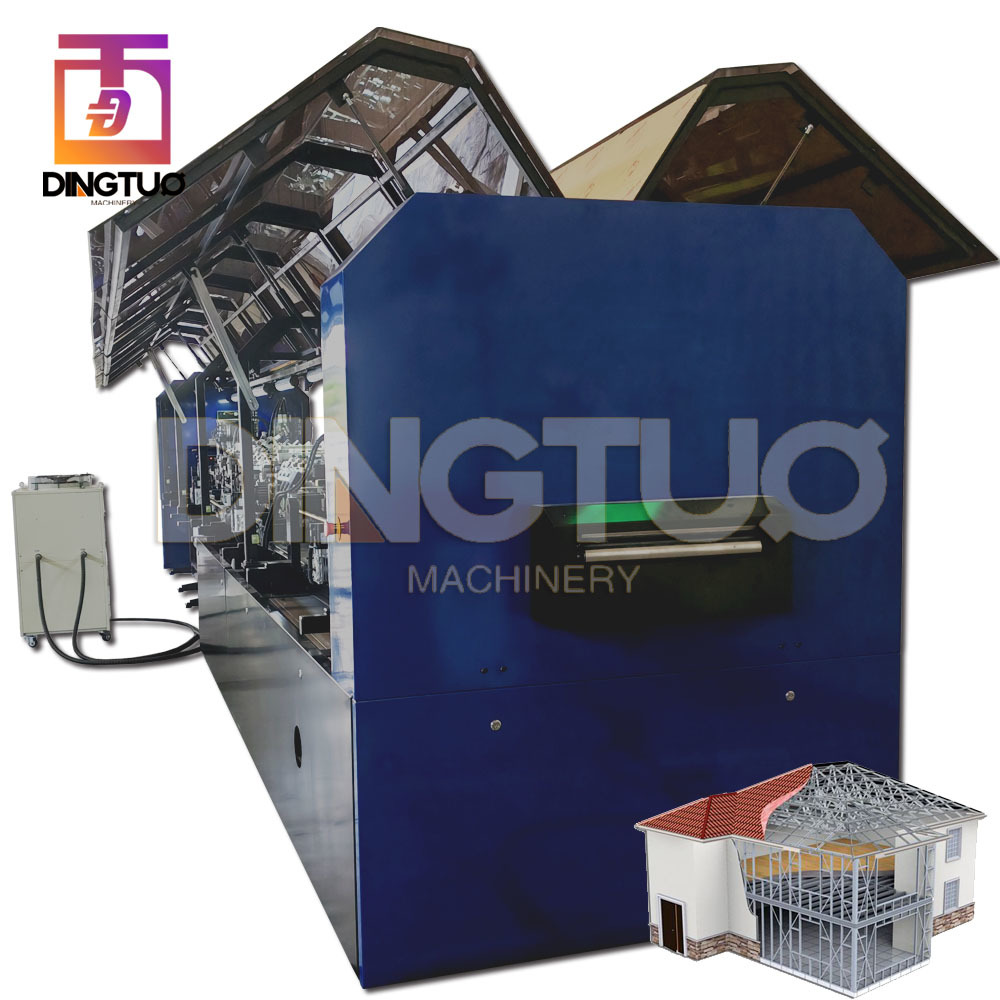

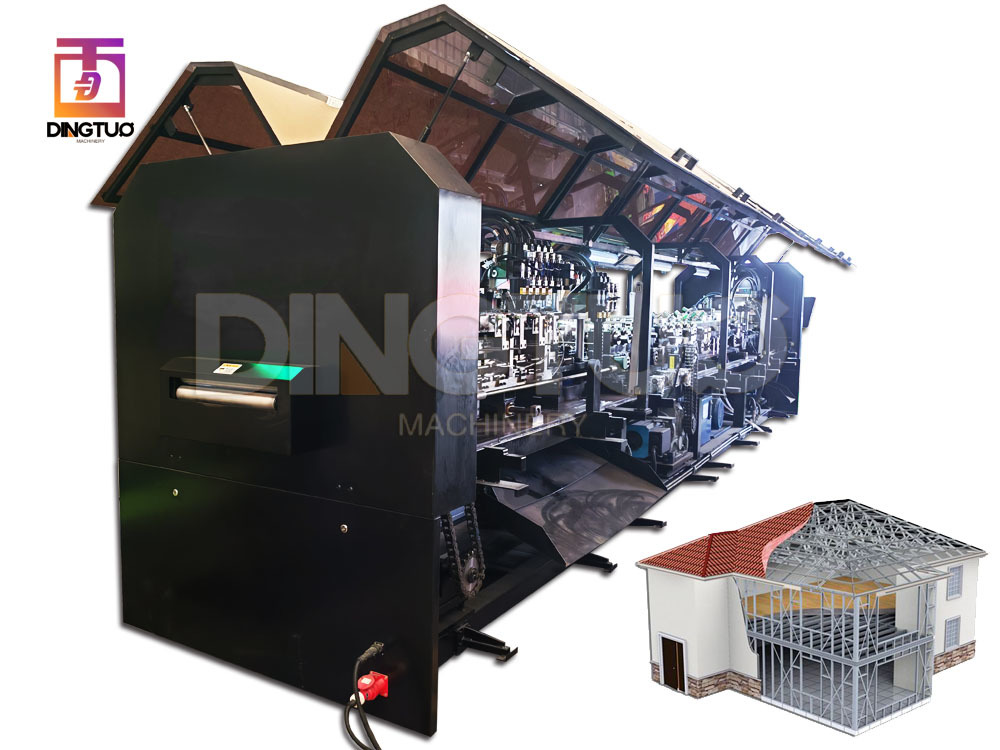

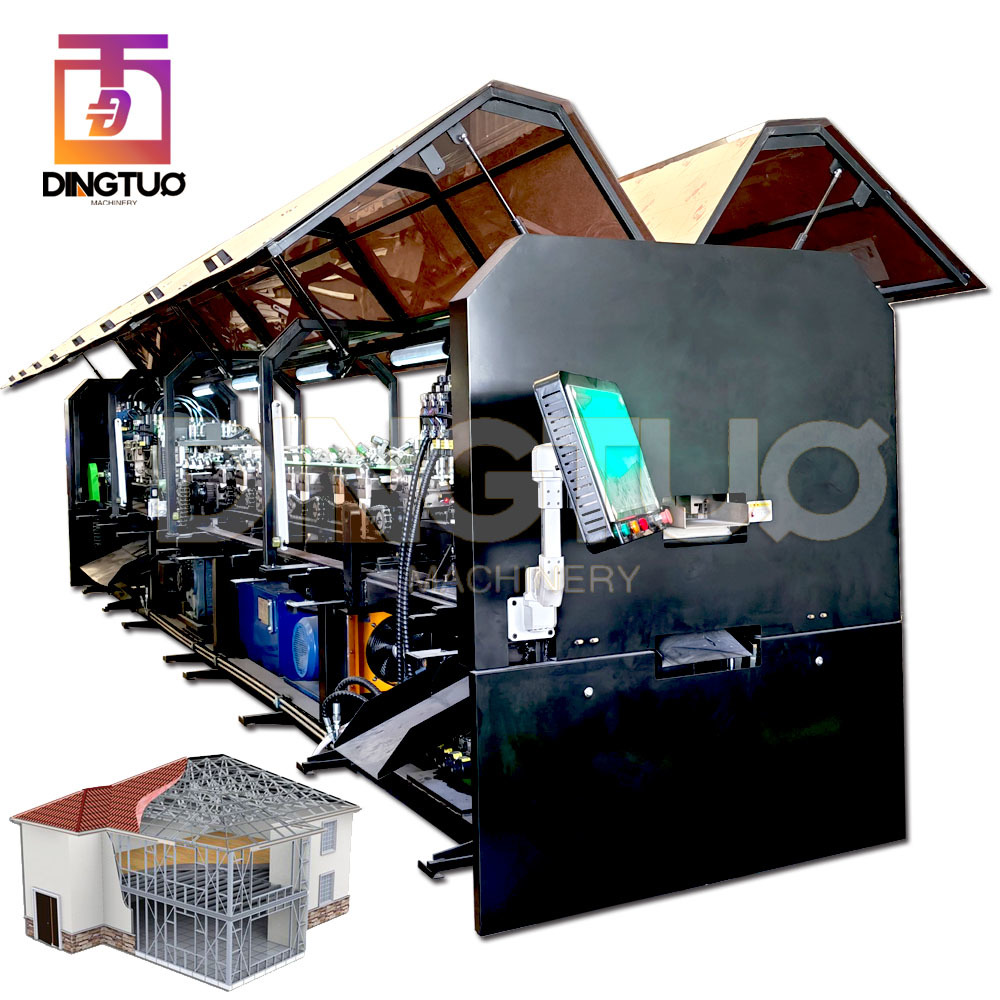

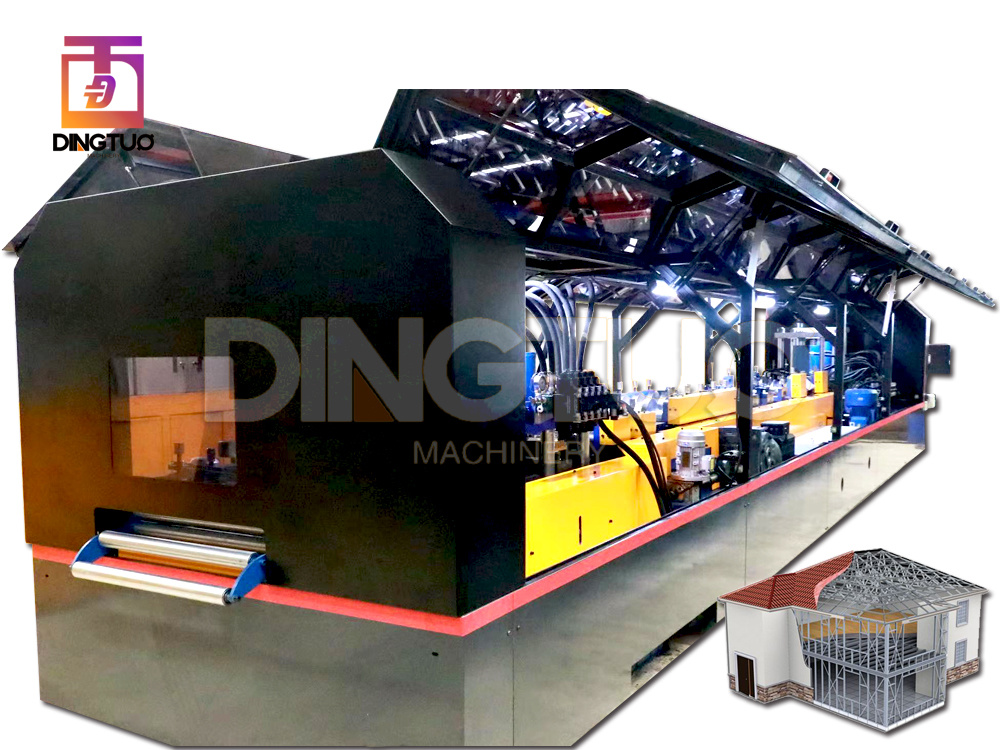

MF2000 C75 TO C200 LIGHT GAUGE STEEL FRAME MACHINE
LGSF PARAMETER :
1. Roll-forming width is adjustable between 75 and 200 mm. This agreement includes standard dies: 75 to 92 mm & 126 to 143 mm. Custom sizes are available upon request and subject to additional fees.
2. Waist height: 41 mm.
3. Small side: 8 to 15 mm.
4. Plate thickness: 0.75 to 1.6 mm (adjustable).
5. material : Q235,Q345,G550 galvanized steel ......
LGSF MACHINE ADVANTAGES:

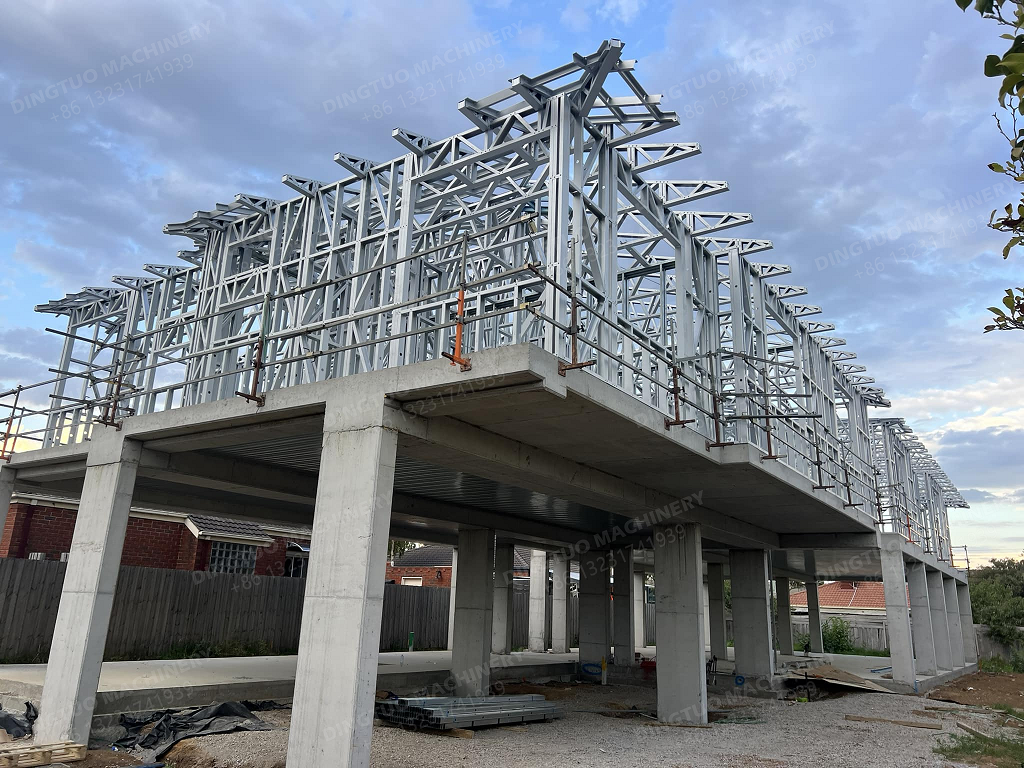

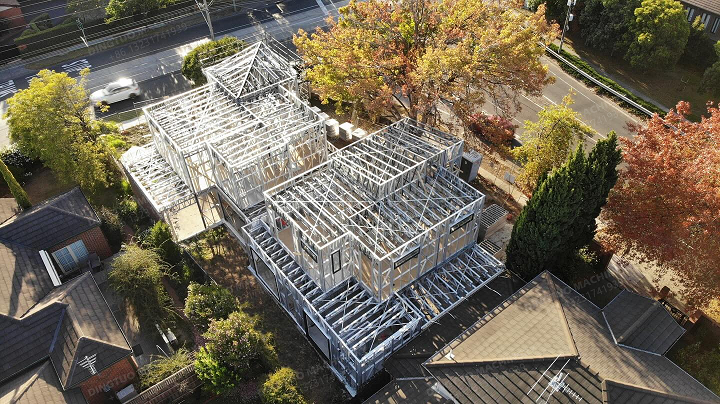

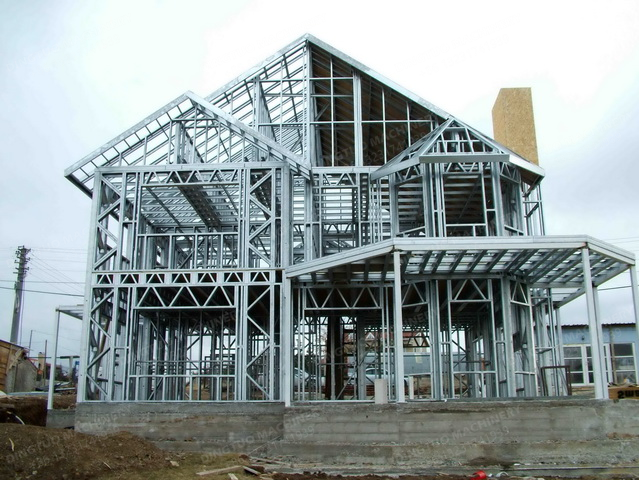

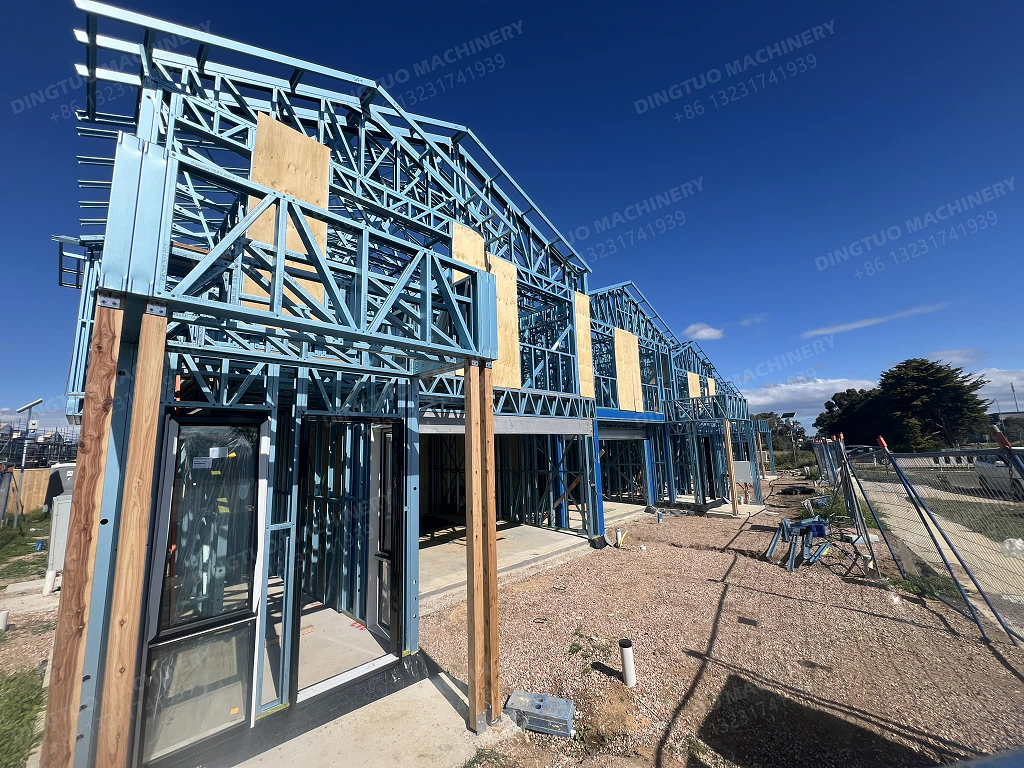

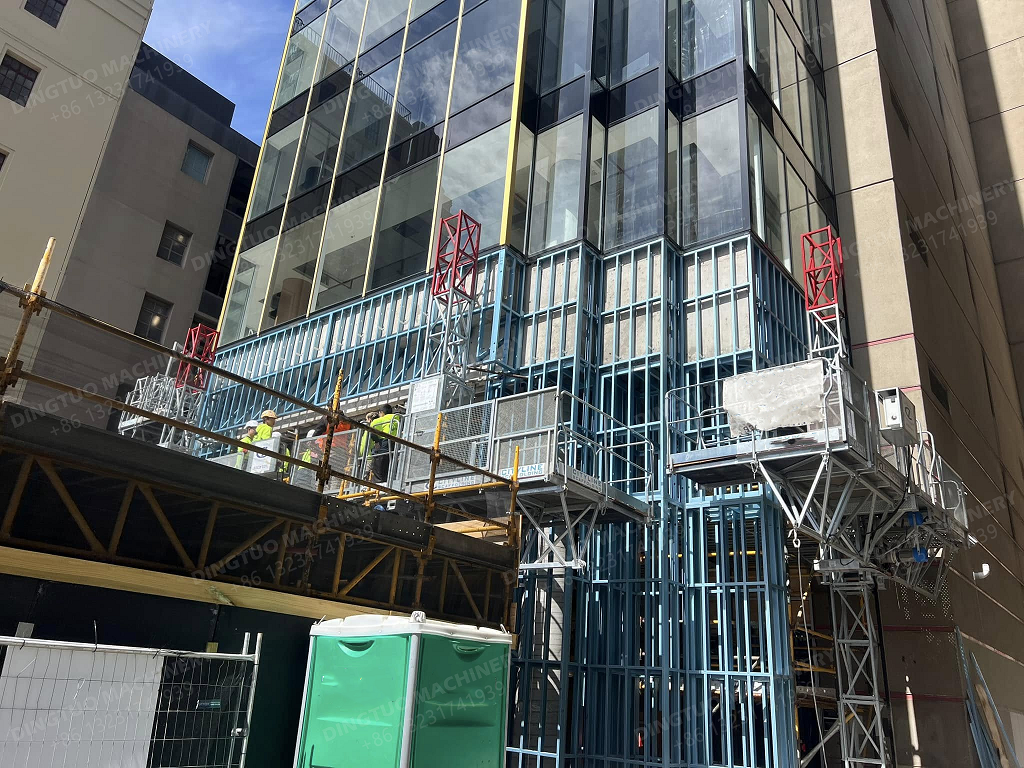

Popularity: Light gauge steel frame (LGSF) machinery has gained significant traction globally due to its adaptability to modern construction demands, offering cost-effective, sustainable, and time-efficient solutions for residential, commercial, and industrial projects. Its rising adoption aligns with the shift toward green building practices and prefabricated construction.

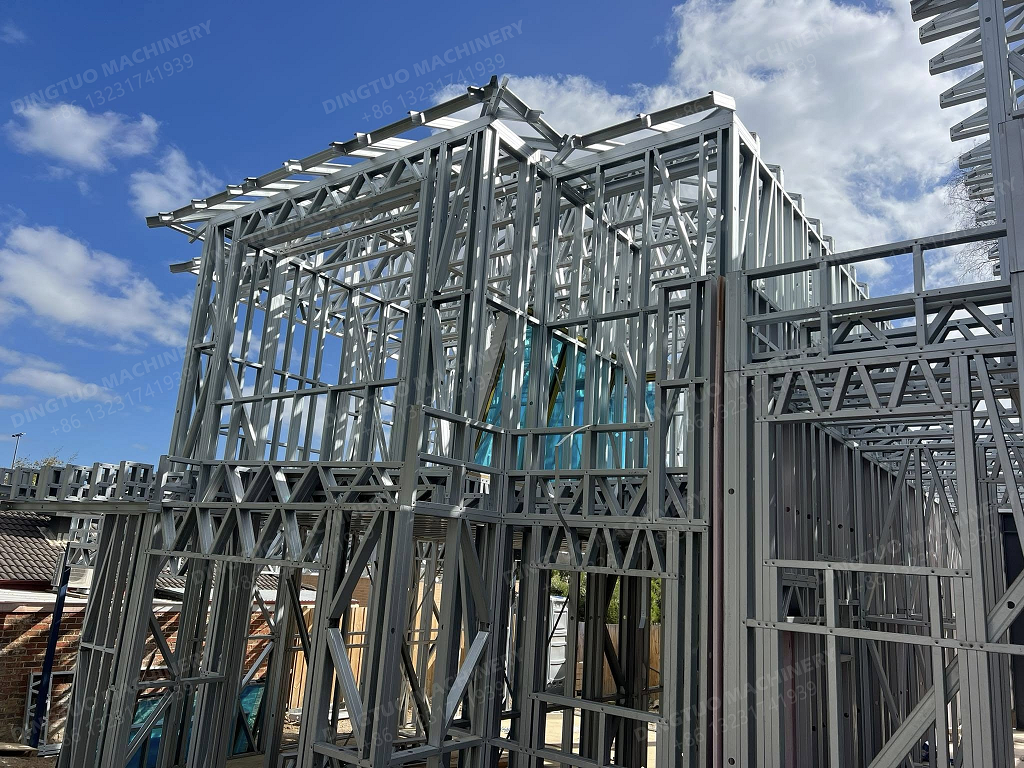

Architectural Functionality: LGSF systems enable precise engineering of lightweight yet high-strength frameworks, supporting flexible design configurations and excellent seismic resistance. They are ideal for energy-efficient structures, with compatibility for insulation and cladding, while minimizing material waste.
Necessity of Equipment: Specialized LGSF machines are indipensable for manufacturing cold-formed steel components with precision, ensuring structural integrity and compliance with safety standards. These systems enhance production speed, reduce labor costs, and streamline workflows, making them critical for scaling modern construction projects sustainably.
MULTIPLE 75-200 LGSF MACHINE COMPONENTS

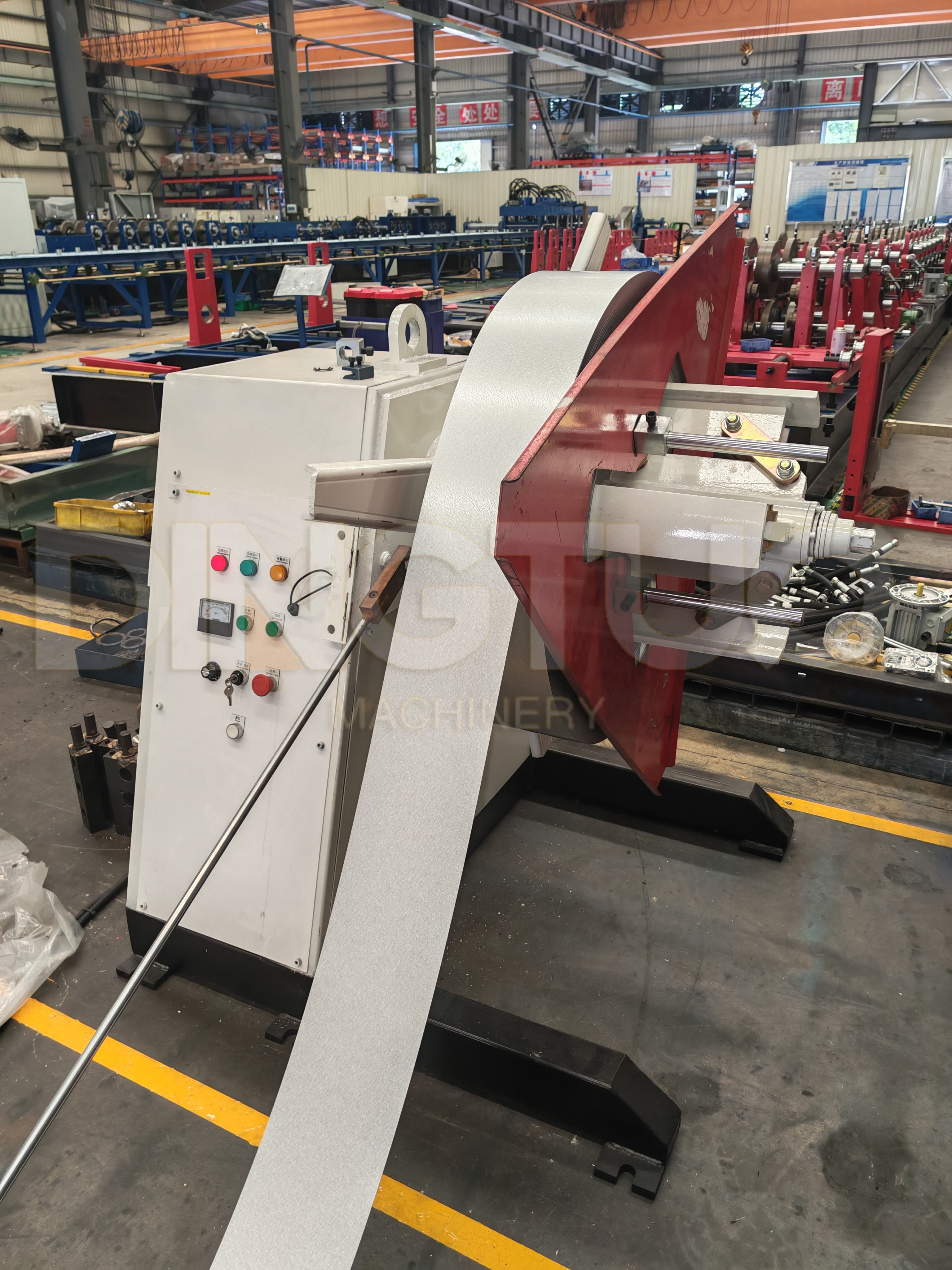

1: 5 T ELECTRIC HIGH QUALITY DECOILER

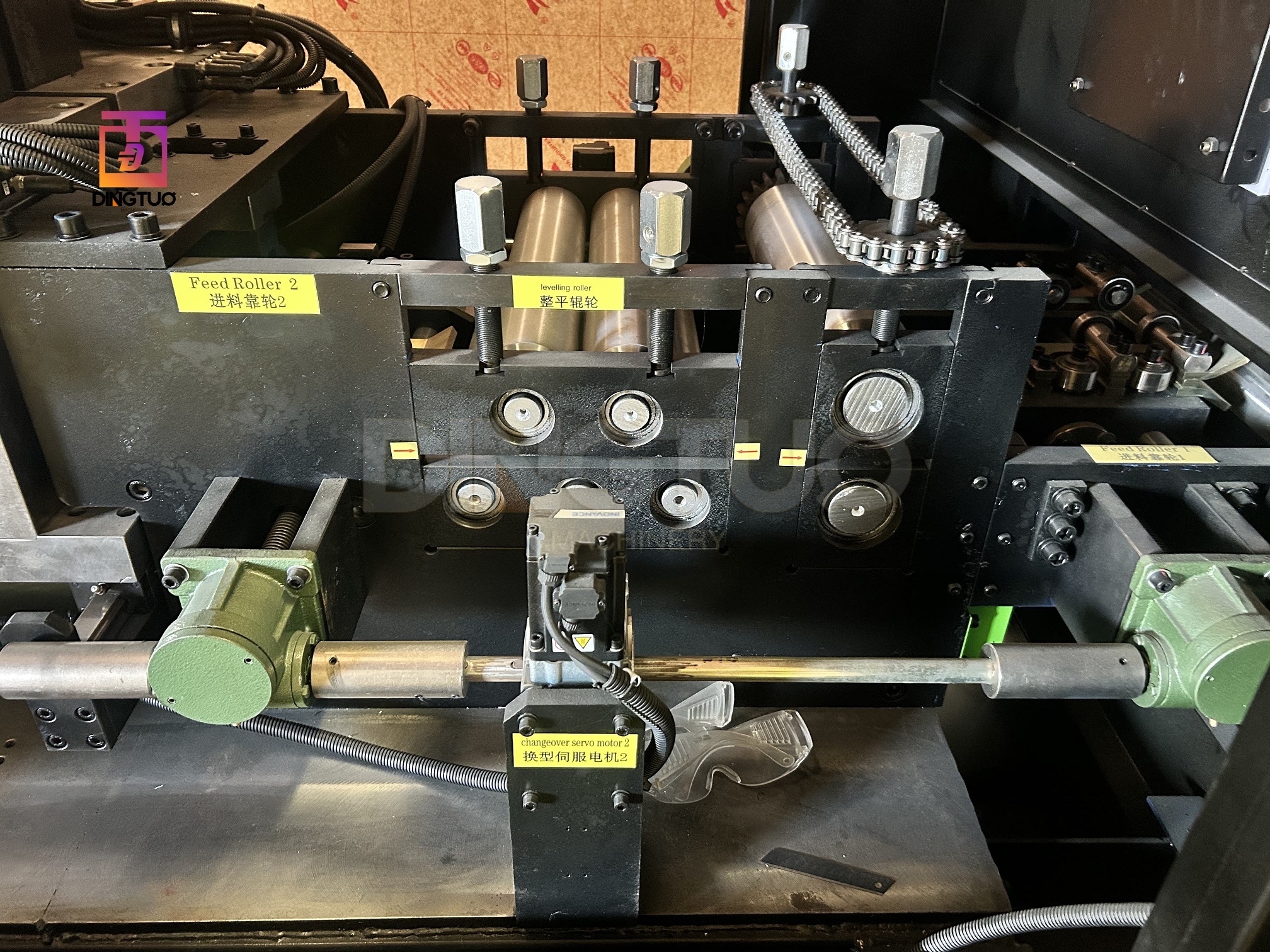

2. FEEDING PLATFORM : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE

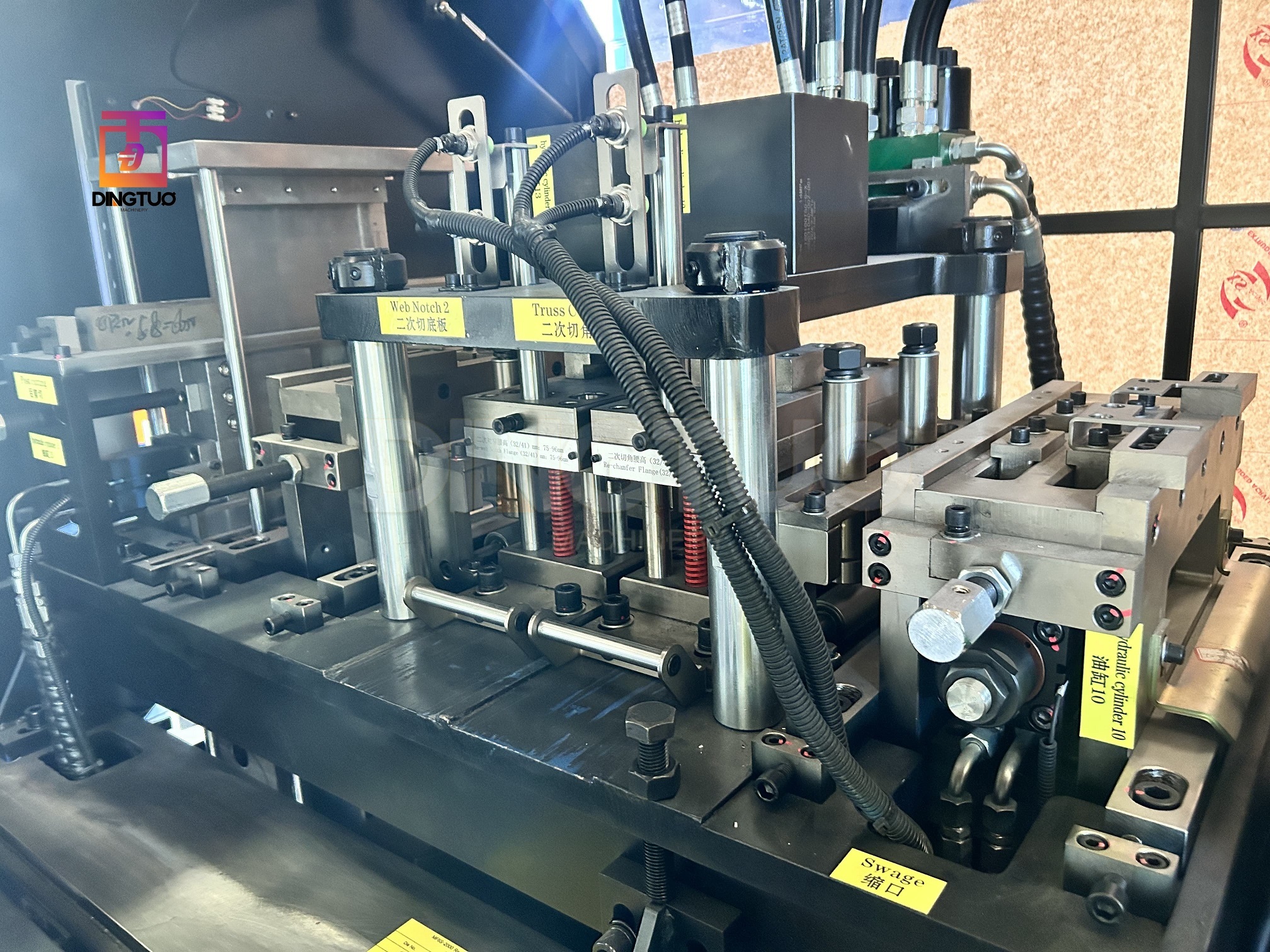

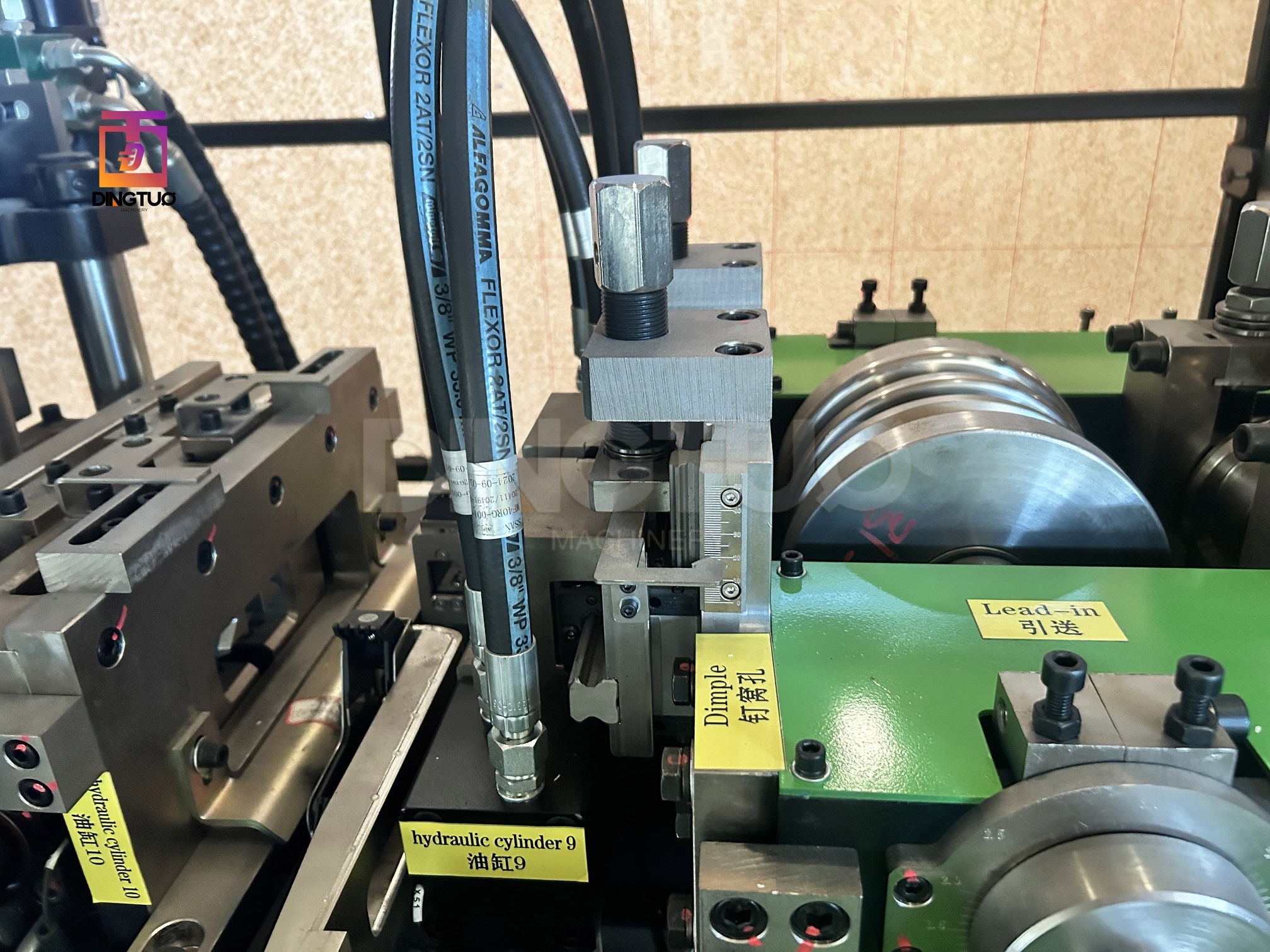

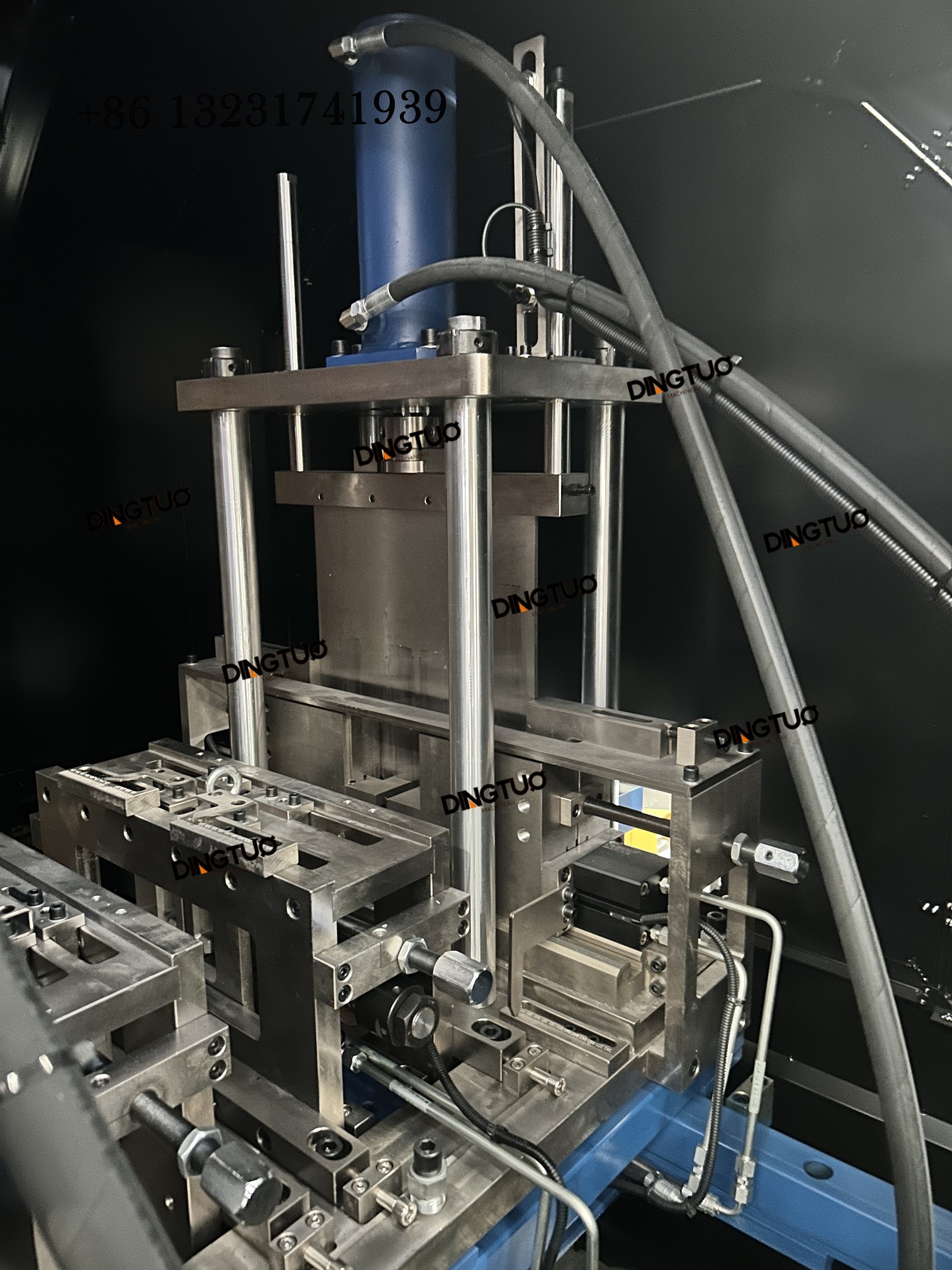

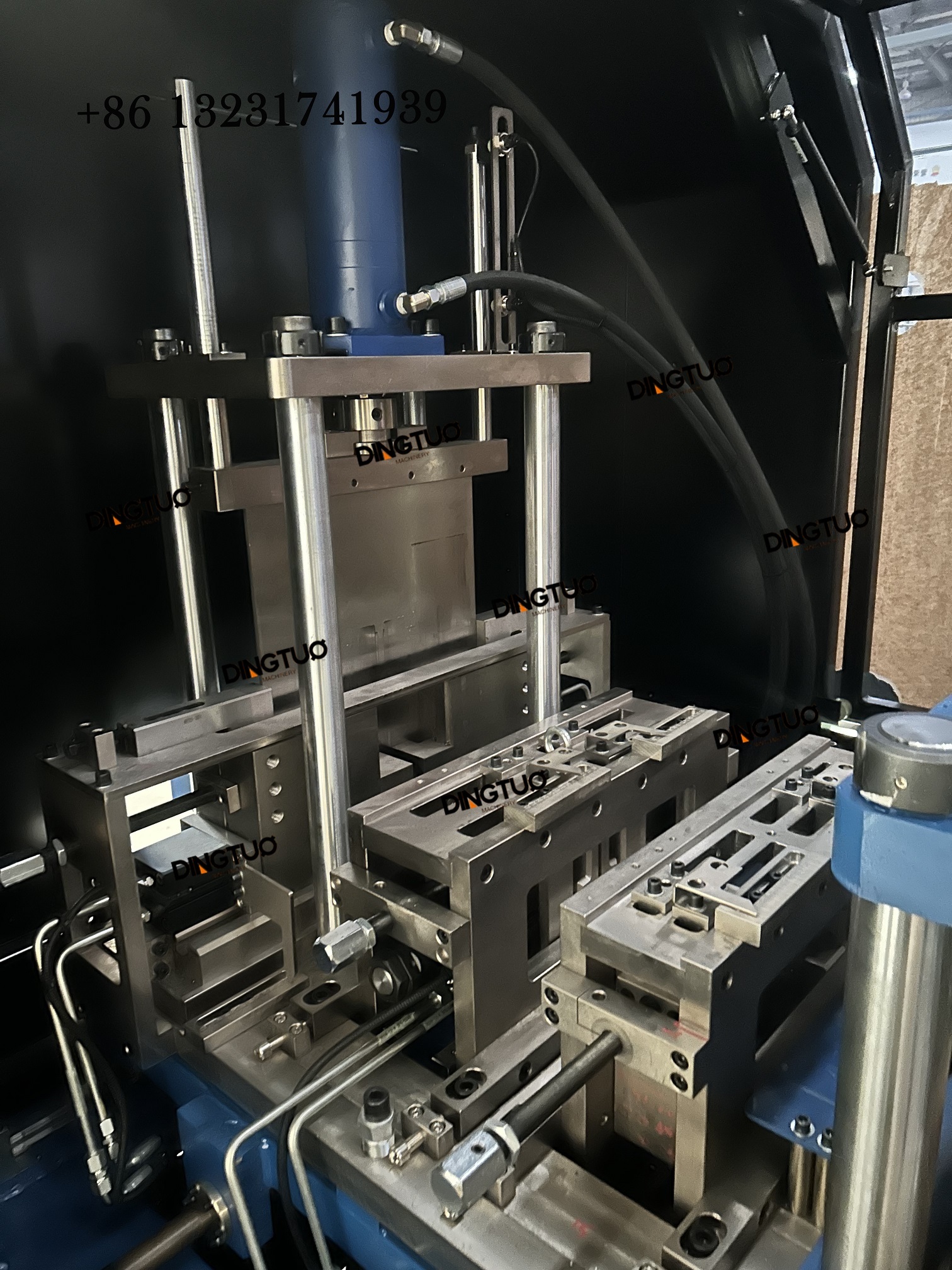

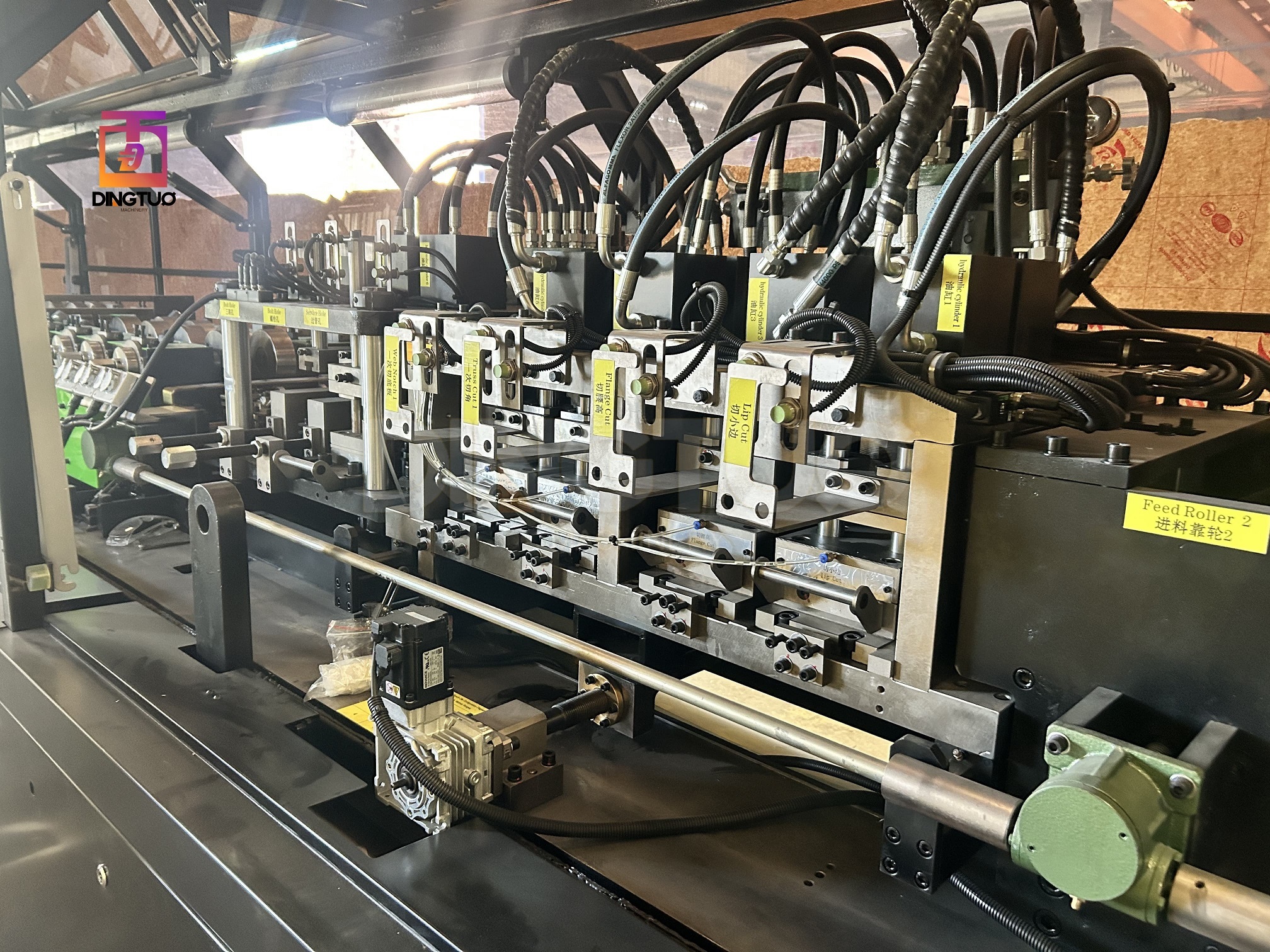

3. STANDARD PUNCHING UNIT : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE
75-200mm any specifications can achieve the following punching:

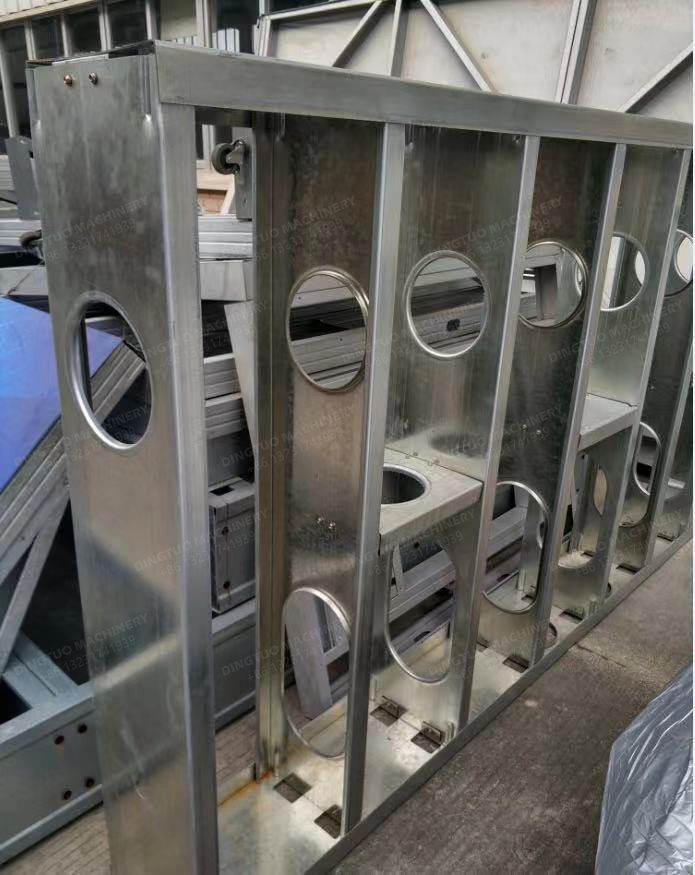

Punching included : 1. lip cut 2. flange cut 3. end truss cut 1( chamfer cut 1) 4. web notch 1 5. service hole 80X40mm 6. web bolt hole 7. web triple whole 8. dimple whole 9. swage 10. end truss cut 2 ( chamfer cut 2) 11. web notch 2 12. cutter

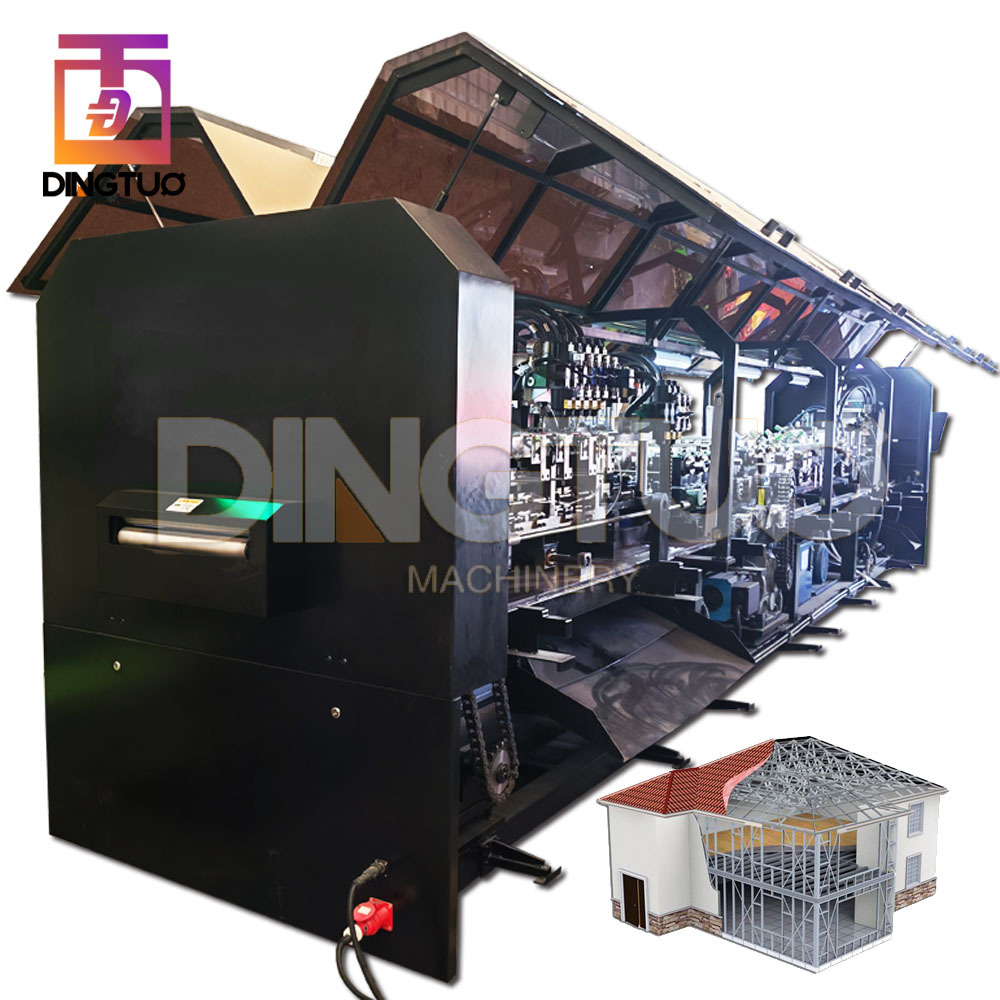

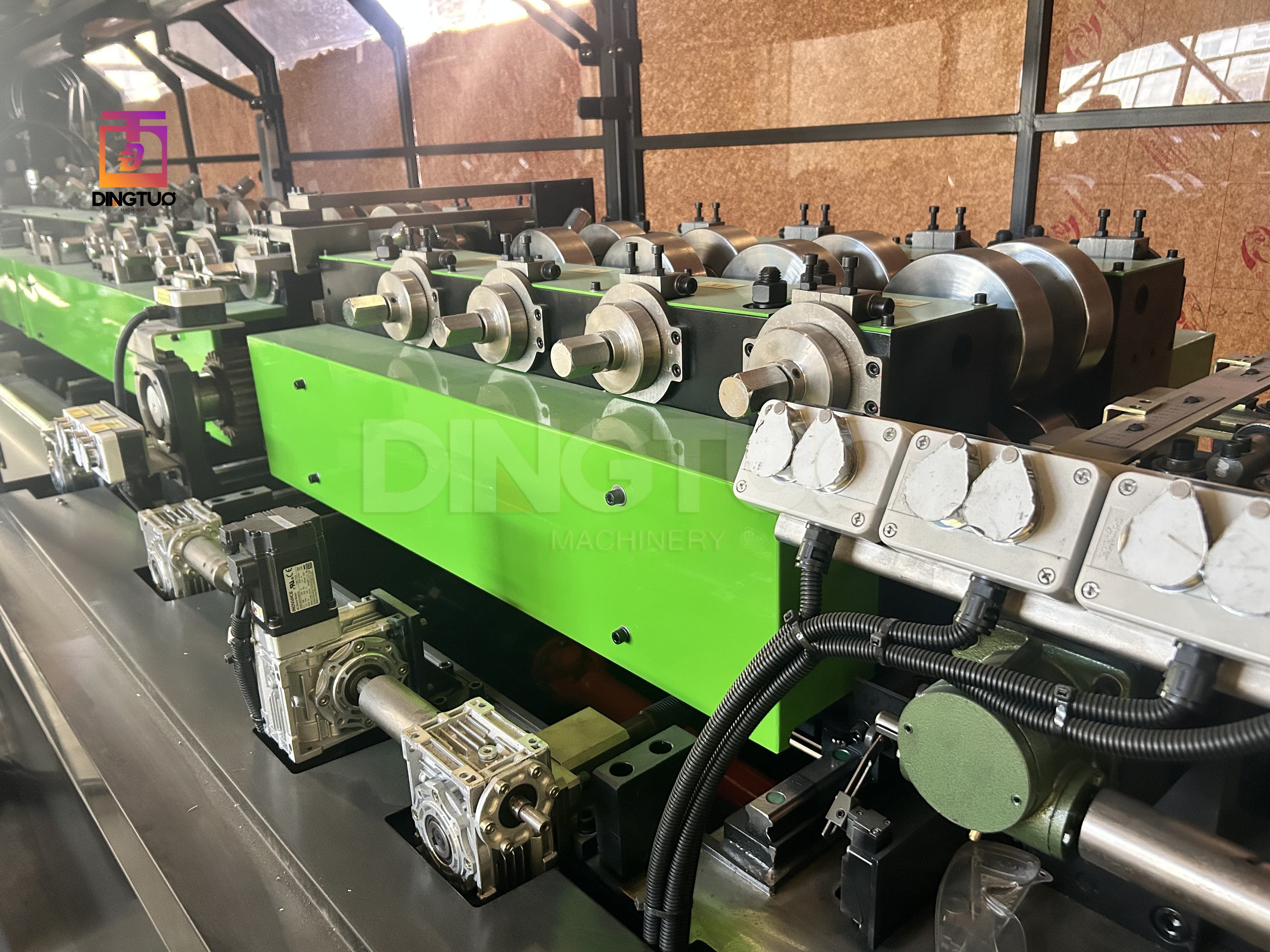

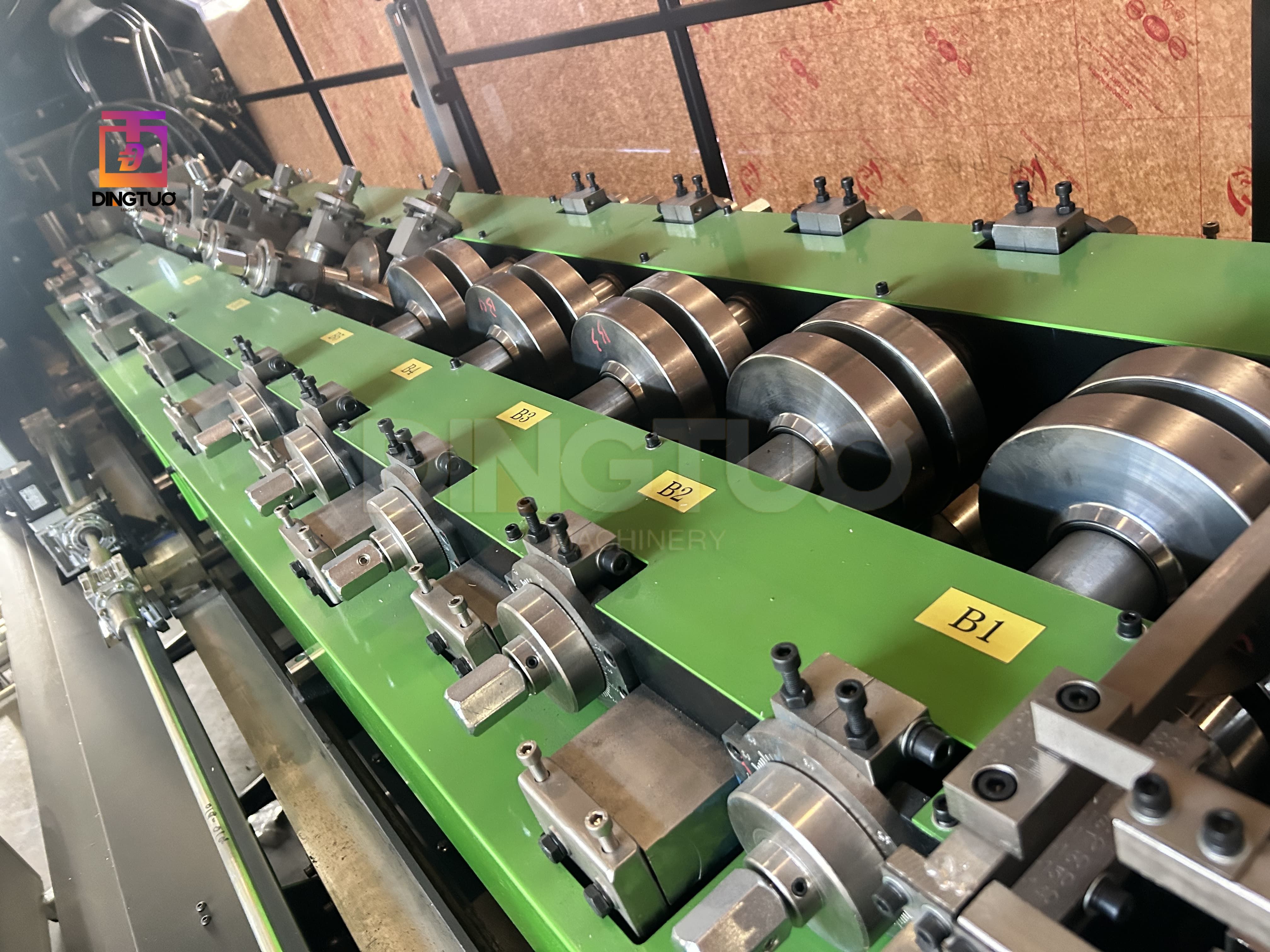

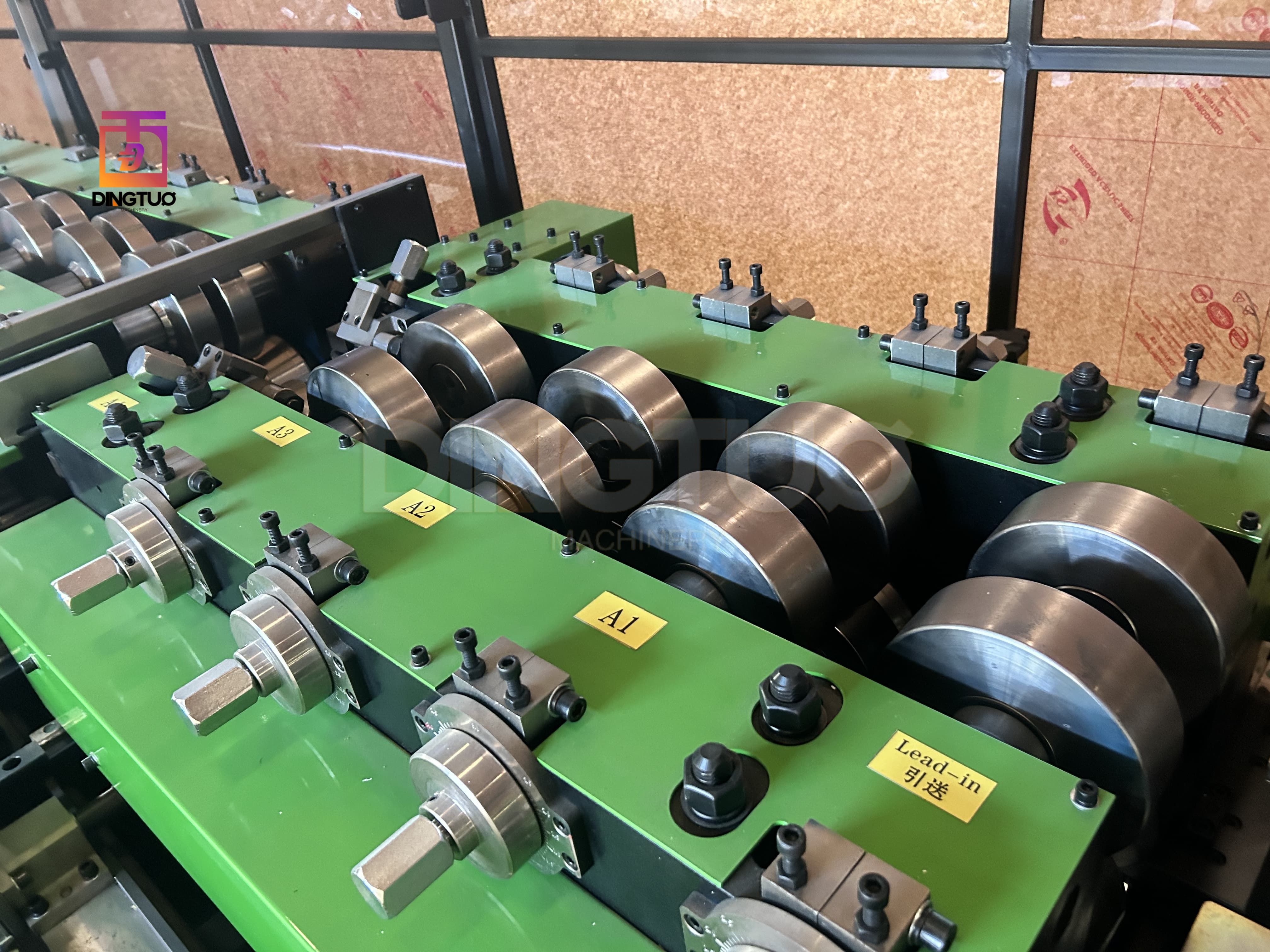

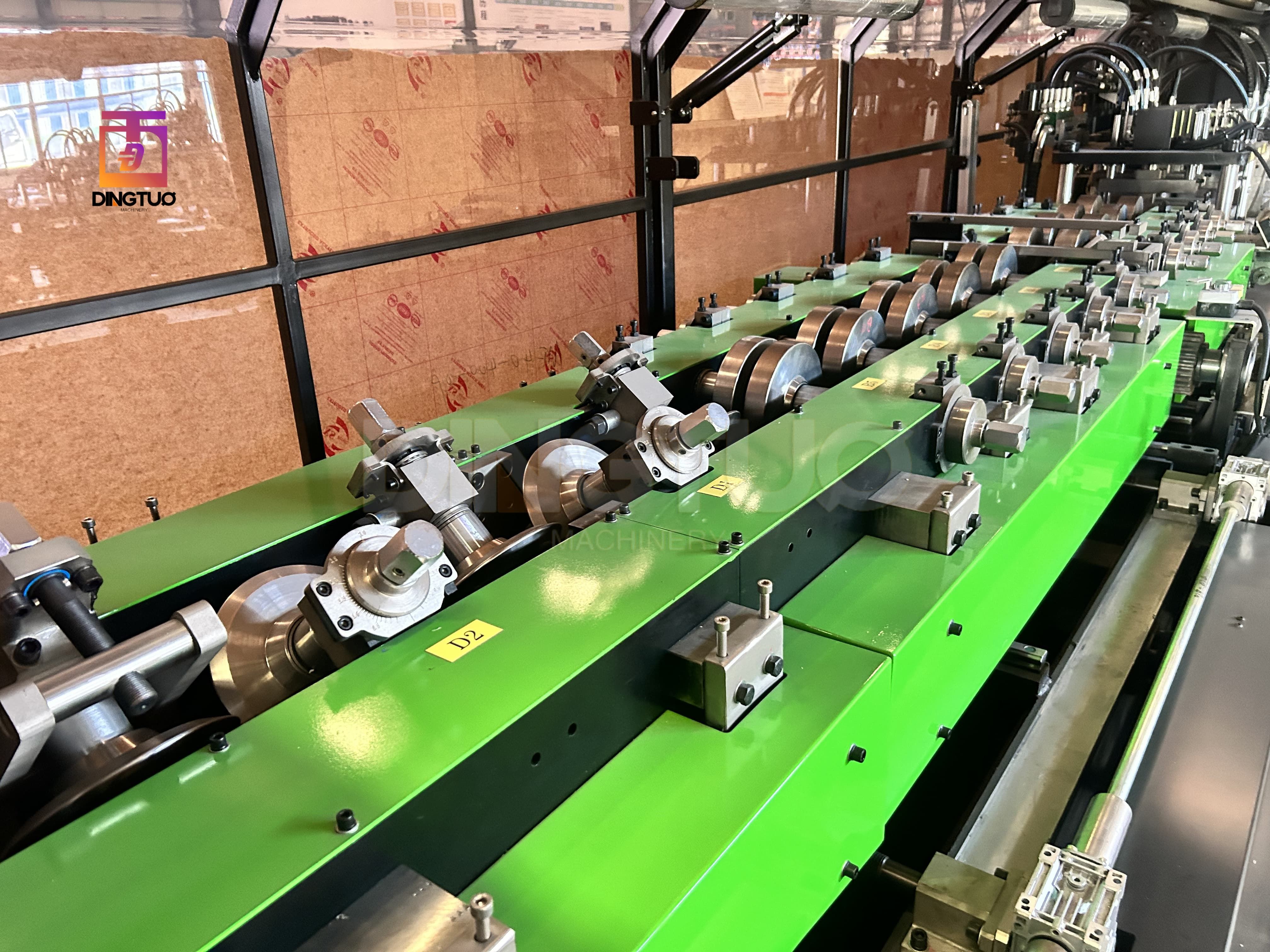

3. FORMING UNIT : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE

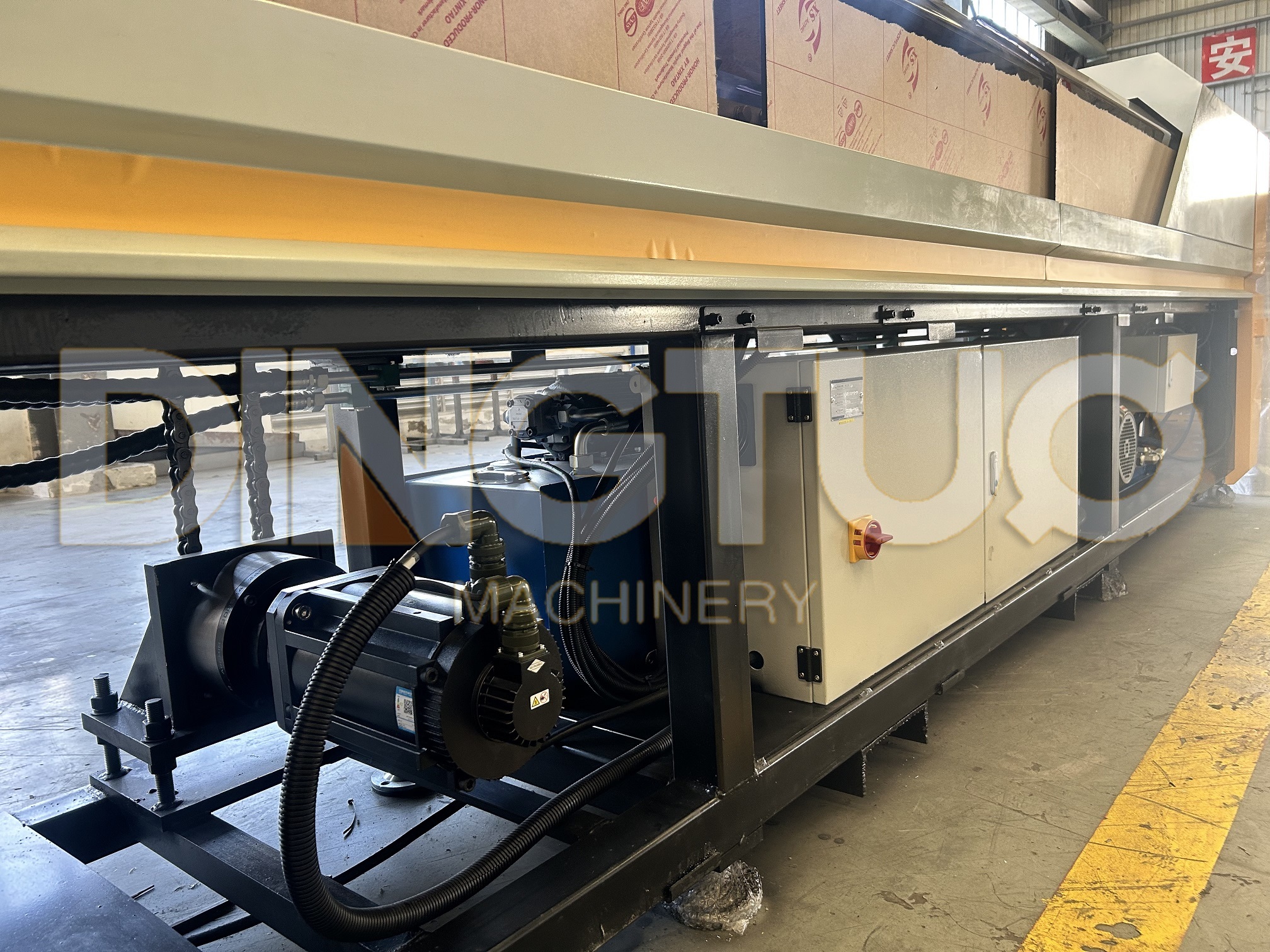

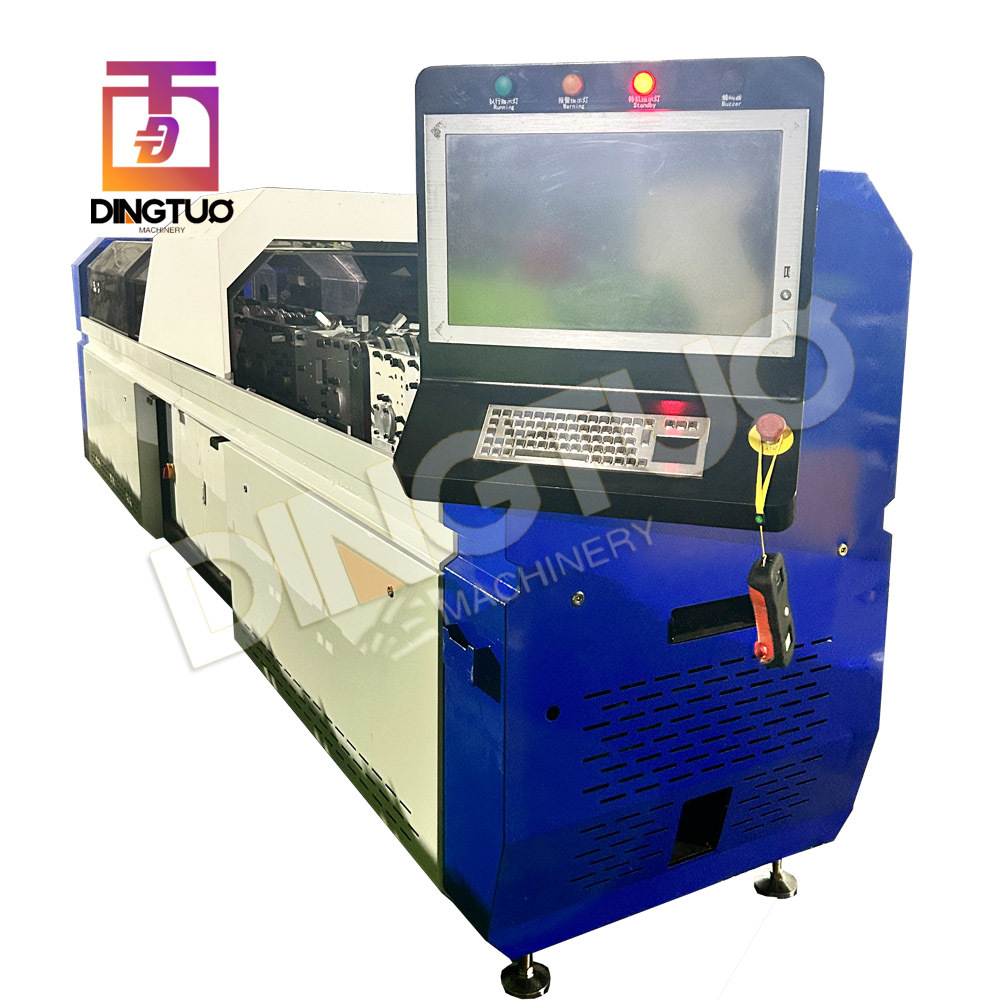

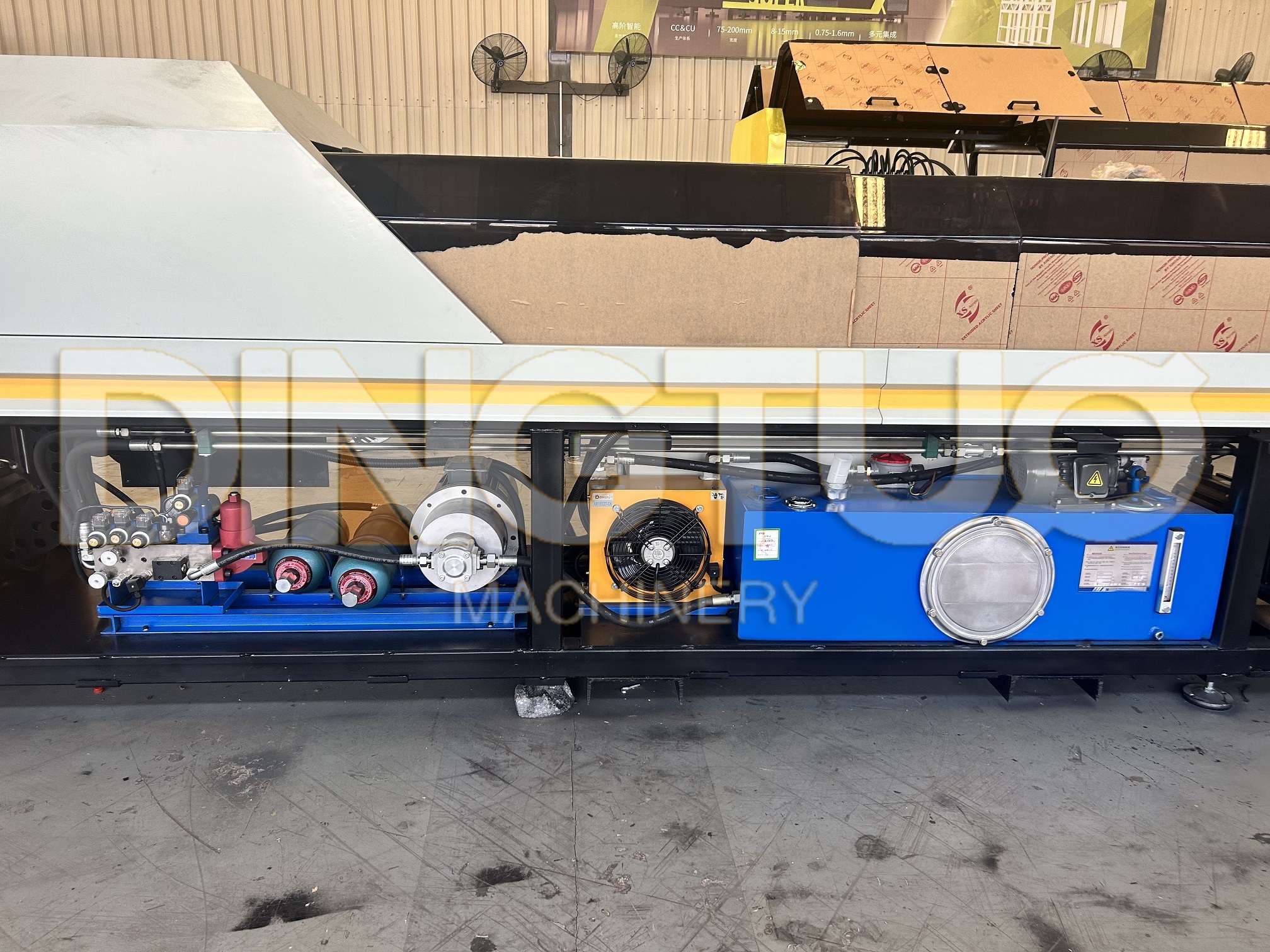

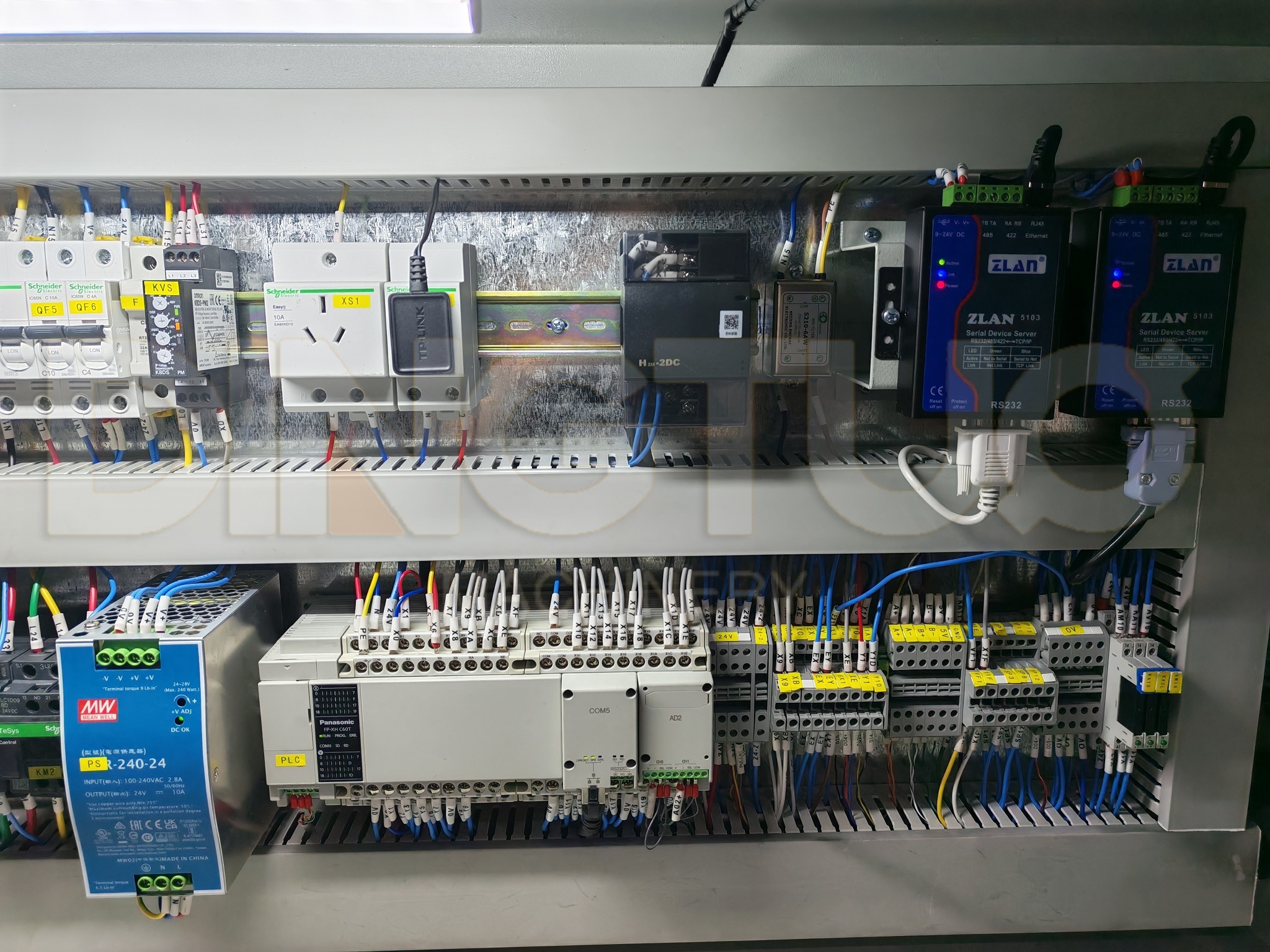

4. HYDRAULIC PUMP STATION SYSTEM AND ELECTRIC CONTROL SYSTEM
Dual accumulators ensure high-speed 48m/min , stable operation and punching performance.
High-power servo motors and a high-power oil pump station ensure high-speed 48m/min , stable operation and punching performance.
Twenty years of technical experience in the light steel keel equipment industry ensures high-quality, stable operation.

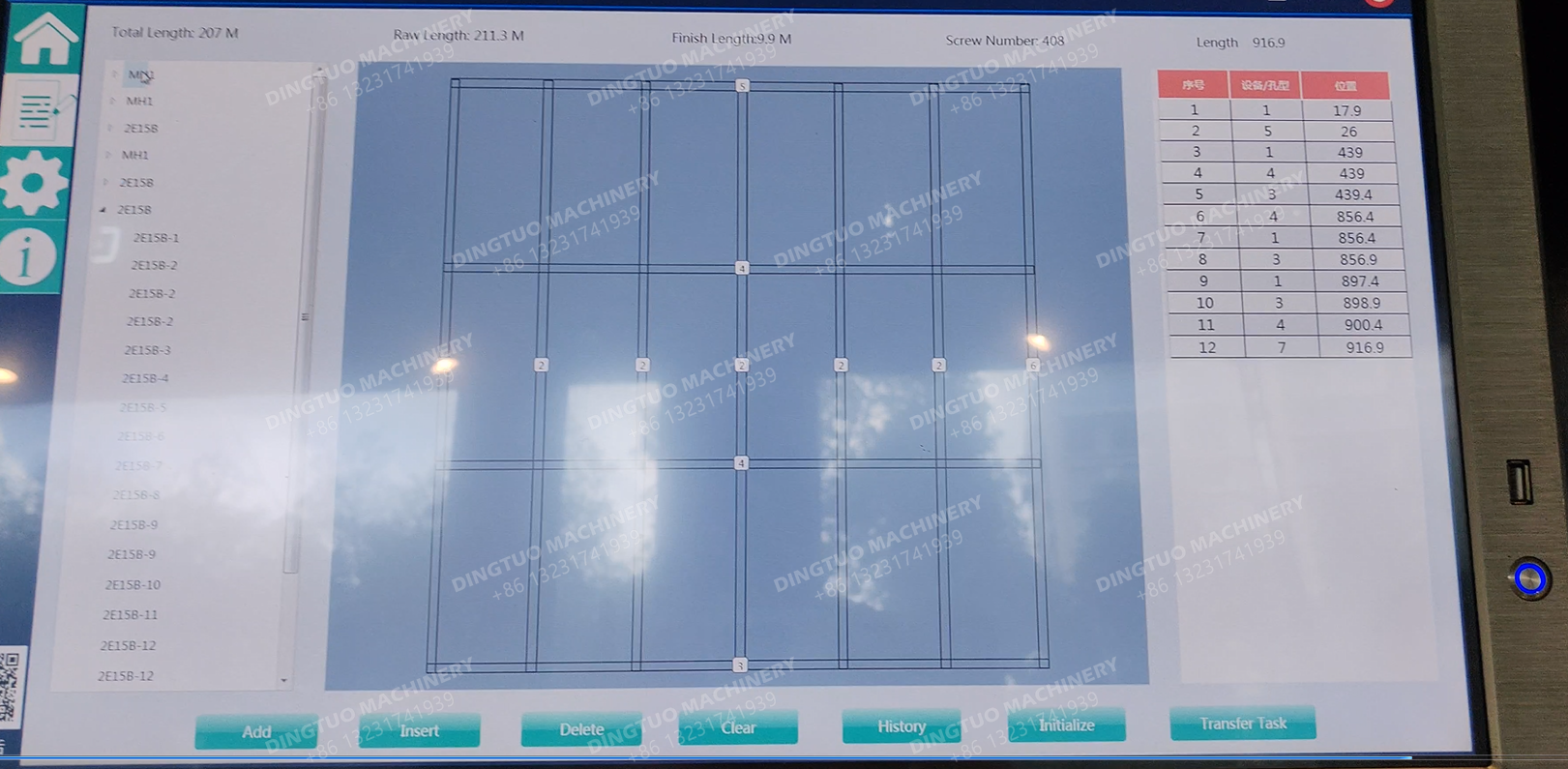

Machine computer program + computer remote program + machine electronic control program + design software are all independently developed to ensure the quality of equipment software and hardware and provide customers with the most powerful service support.
5. RUN OUT TABLE
we can send you run out table production files and you can do it by yourself.
6. SPARE PARTS
some free spare parts will be sent with machine together.
connect Elena to purchase important necessary spare parts .
