High intelligence high speed MF350 CU 150 to 360 2.5mm Steel Joist Roll Forming Machine
Key words:
Product category:
Tel/Whatsapp:
High intelligence high speed MF350 CU 150 to 360 2.5mm Steel Joist Roll Forming Machine
LGSF / FLOOR JOIST MACHINE RELATED PRODUCTS

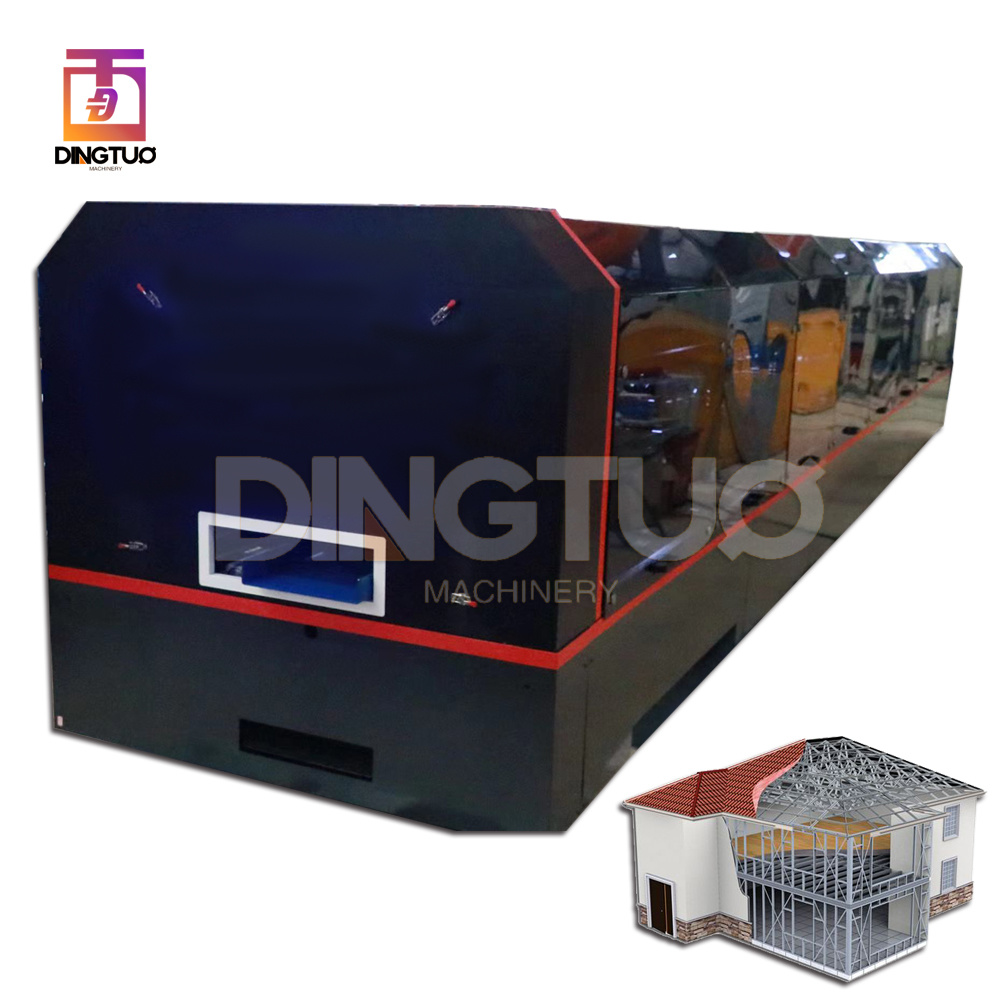

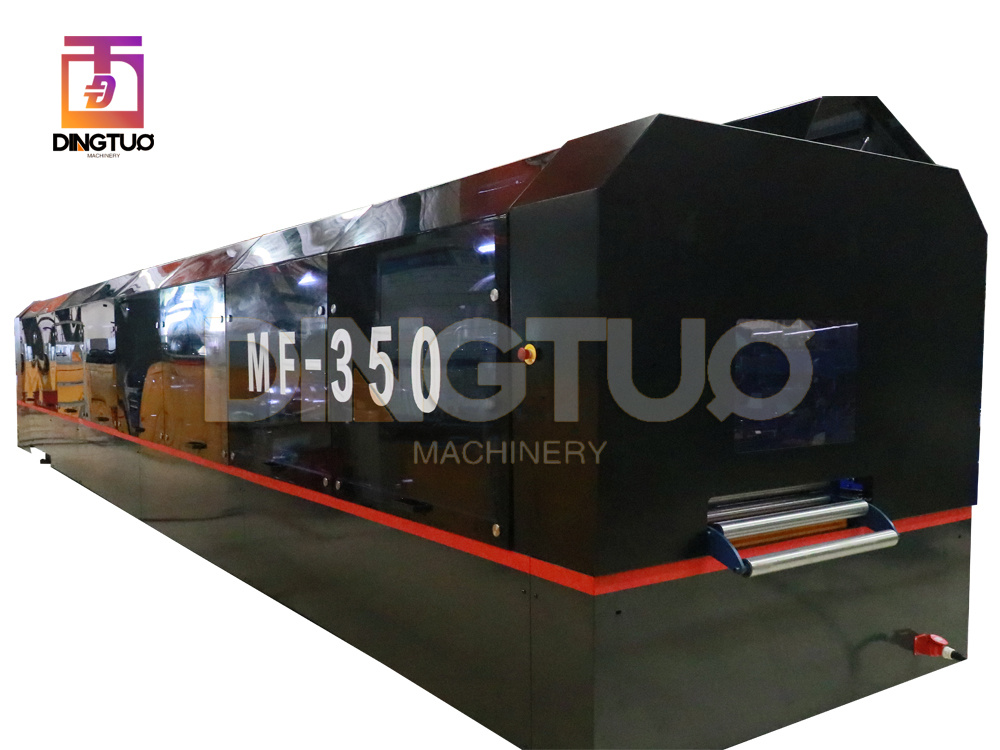

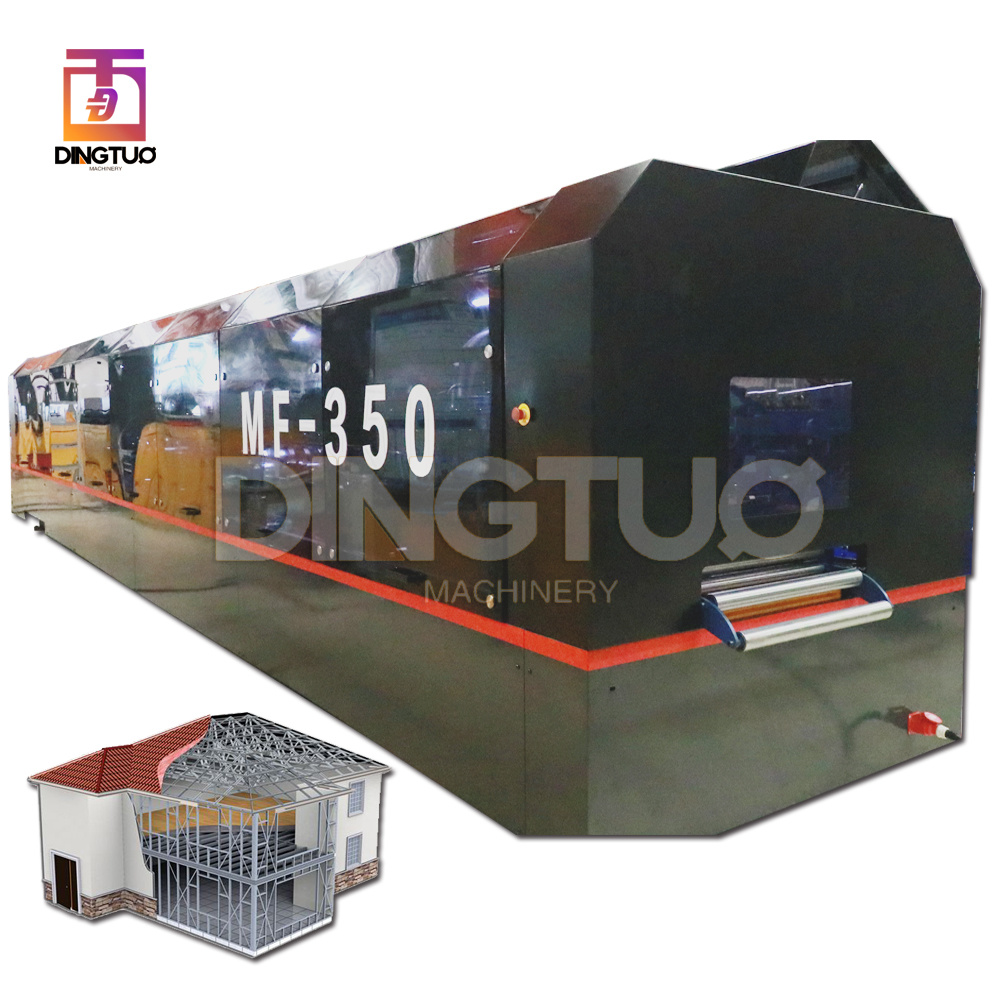

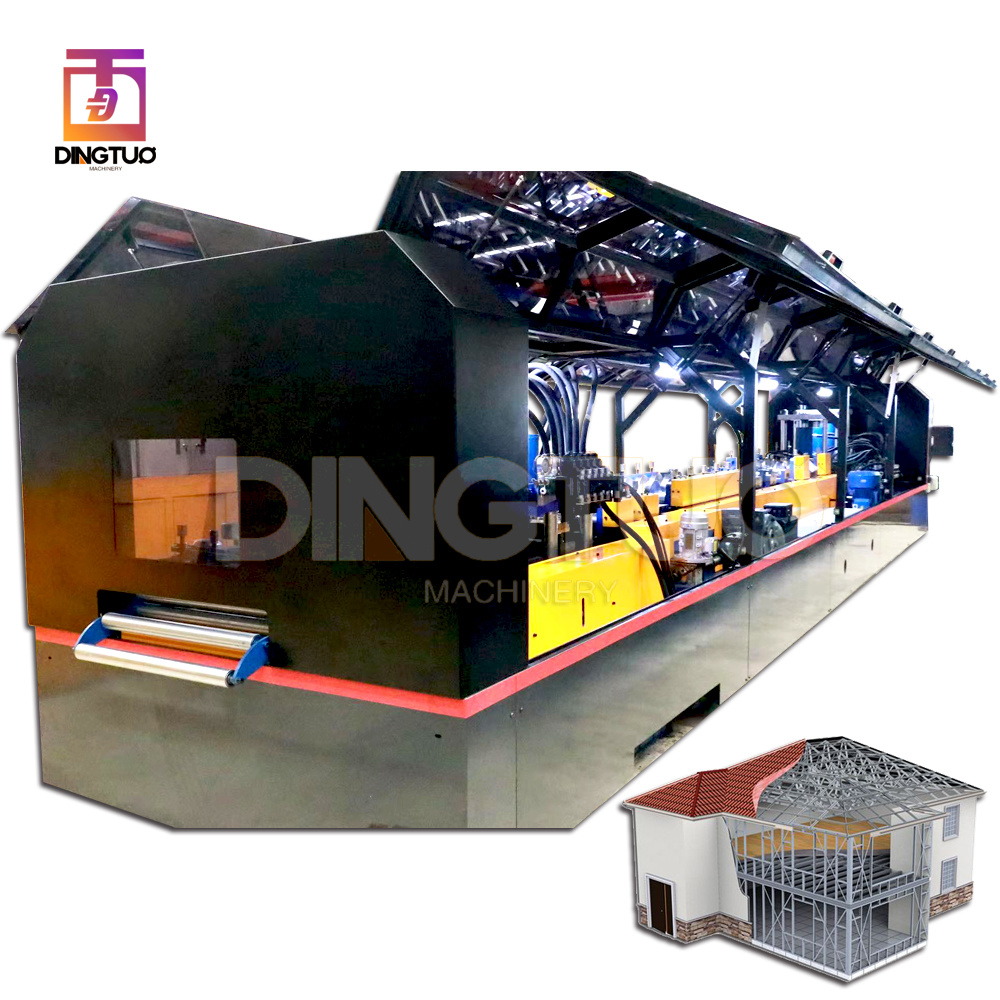

MF350 CU 150 TO 360 STEEL FLOOR JOIST MACHINE
LGSF PARAMETER :

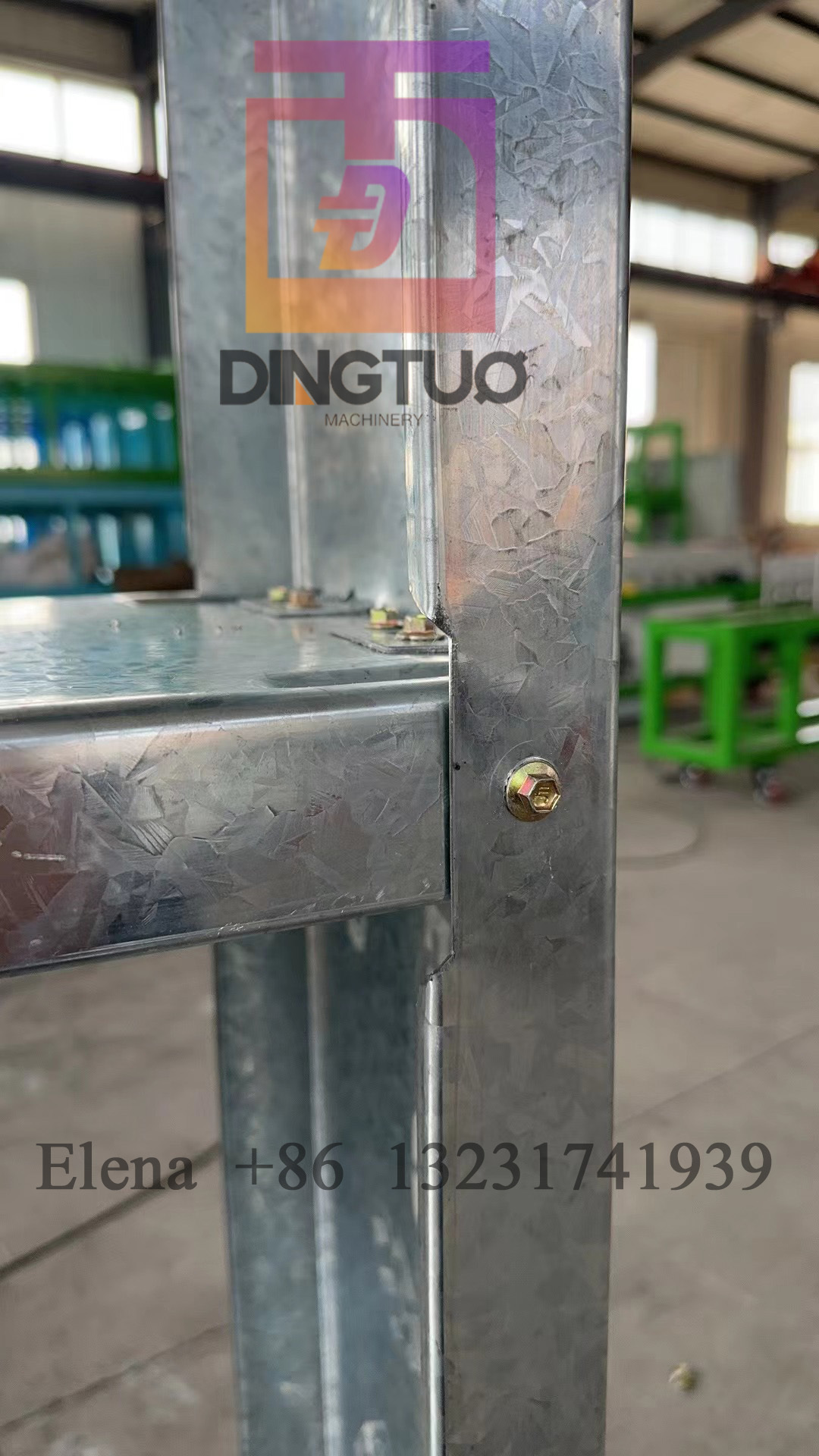

①Web (150-360mm), ②Flange : 60-90mm ( can do Unequal waist height to do embraced beams to increase the connecting part strength) ; ③Lip (10-20 mm , web size 360mm, lip can reach 10-27.5mm); ④Raw material thickness (1.0-2.5mm)
Applicable materials: Q235, Q345 ,G550 hot-rolled strip steel or hot-rolled galvanized strip steel
Machine output speed: high speed 35m/min (actual production speed depends on the number of holes punches
LGSF MACHINE ADVANTAGES:

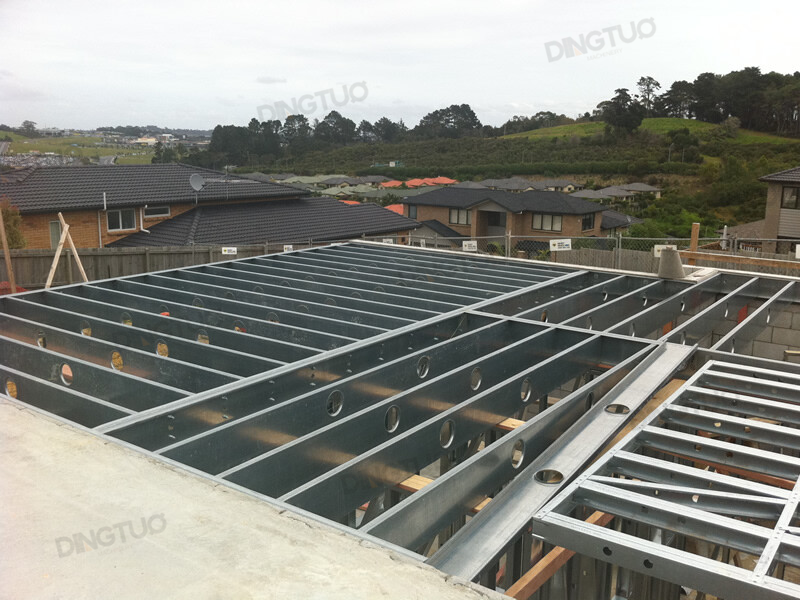

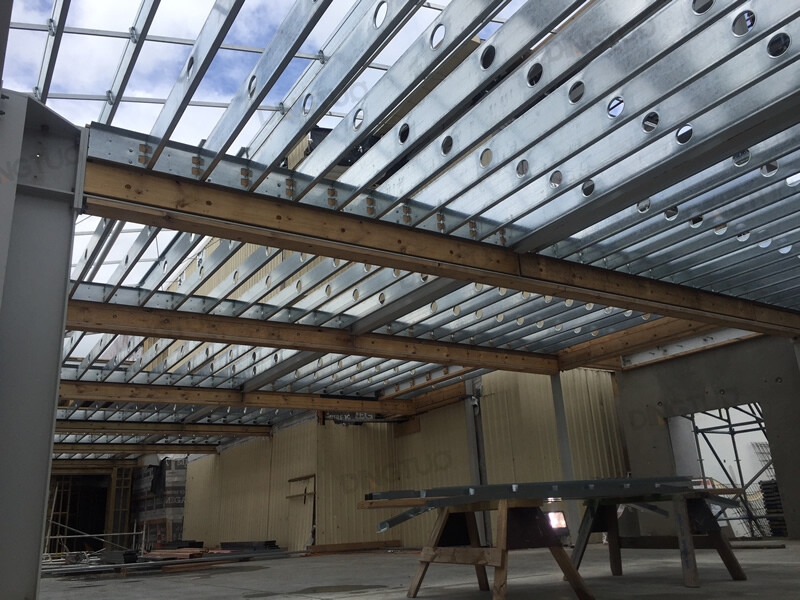

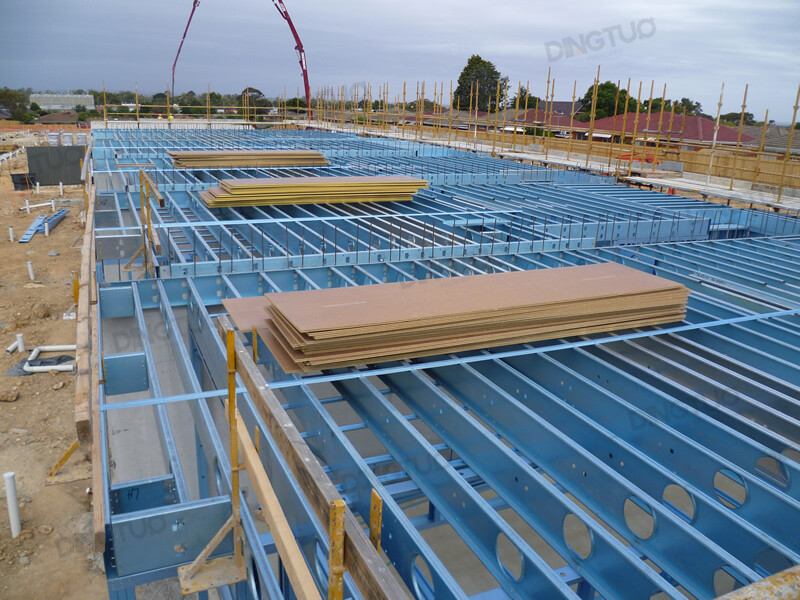

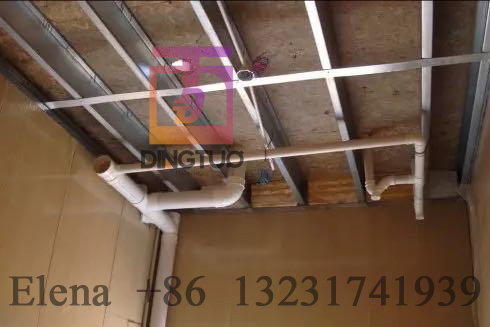

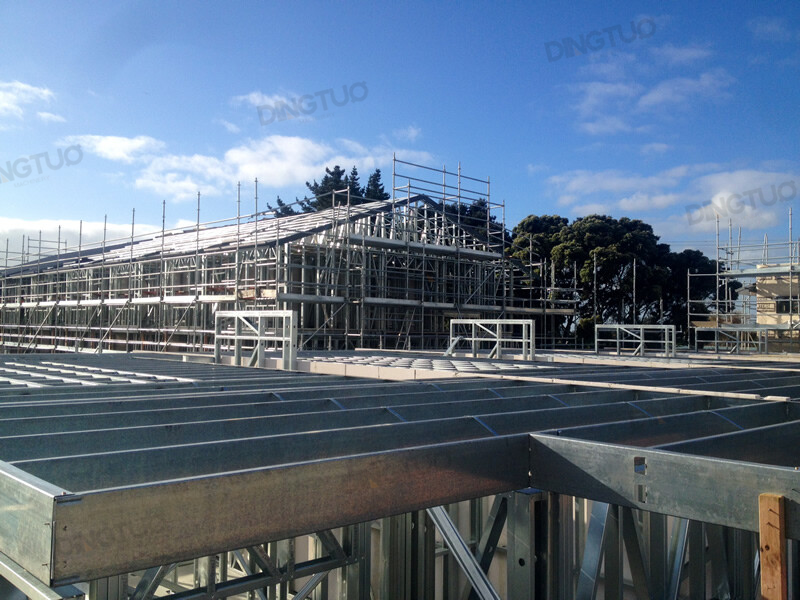

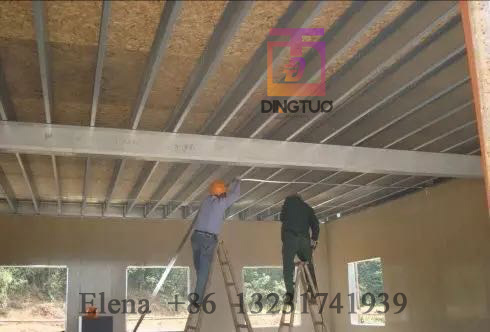

Popularity: Light gauge steel frame (LGSF) machinery has gained significant traction globally due to its adaptability to modern construction demands, offering cost-effective, sustainable, and time-efficient solutions for residential, commercial, and industrial projects. Its rising adoption aligns with the shift toward green building practices and prefabricated construction.

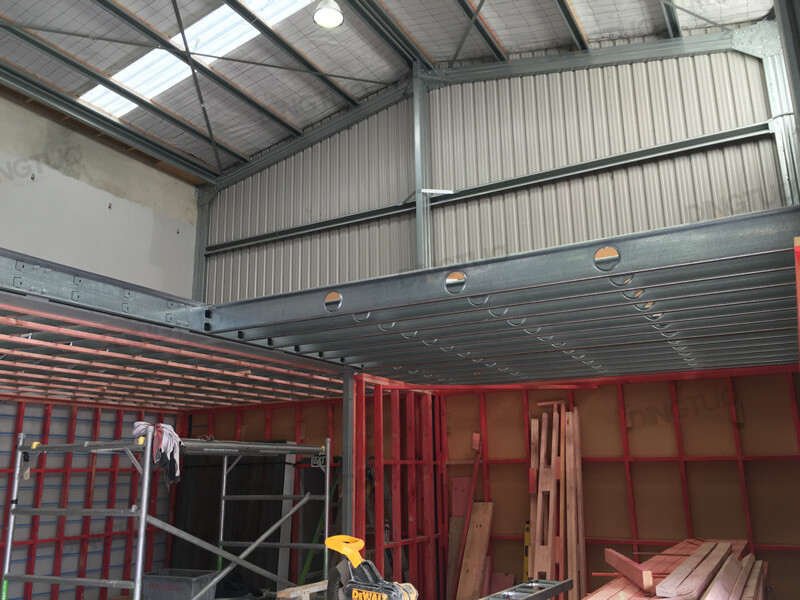

Architectural Functionality: LGSF systems enable precise engineering of lightweight yet high-strength frameworks, supporting flexible design configurations and excellent seismic resistance. They are ideal for energy-efficient structures, with compatibility for insulation and cladding, while minimizing material waste.
Necessity of Equipment: Specialized LGSF machines are indipensable for manufacturing cold-formed steel components with precision, ensuring structural integrity and compliance with safety standards. These systems enhance production speed, reduce labor costs, and streamline workflows, making them critical for scaling modern construction projects sustainably.

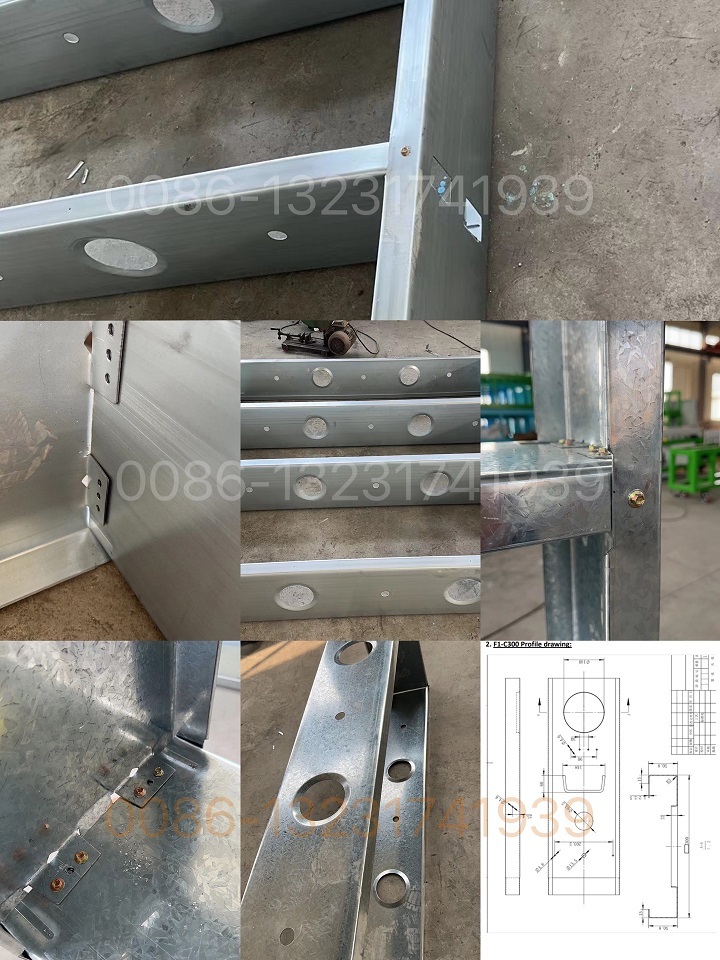

MULTIPLE 150-360 FLOOR JOIST MACHINE COMPONENTS
1: 6 T HYDRAULIC DECOILER

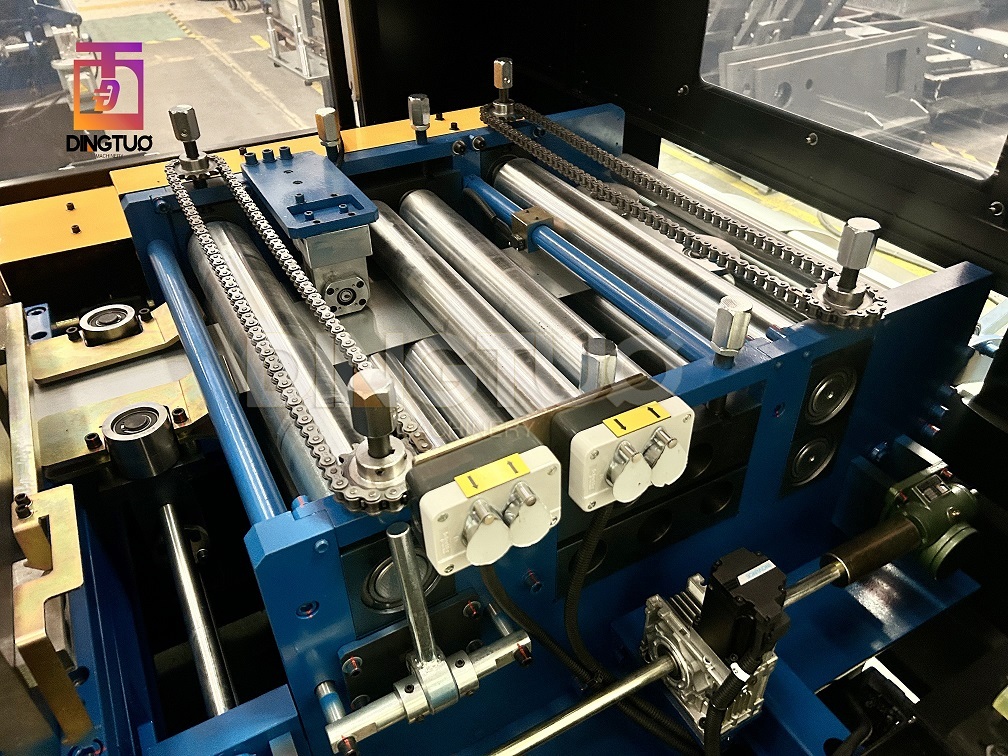

2. FEEDING PLATFORM : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE
3. STANDARD PUNCHING UNIT : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE

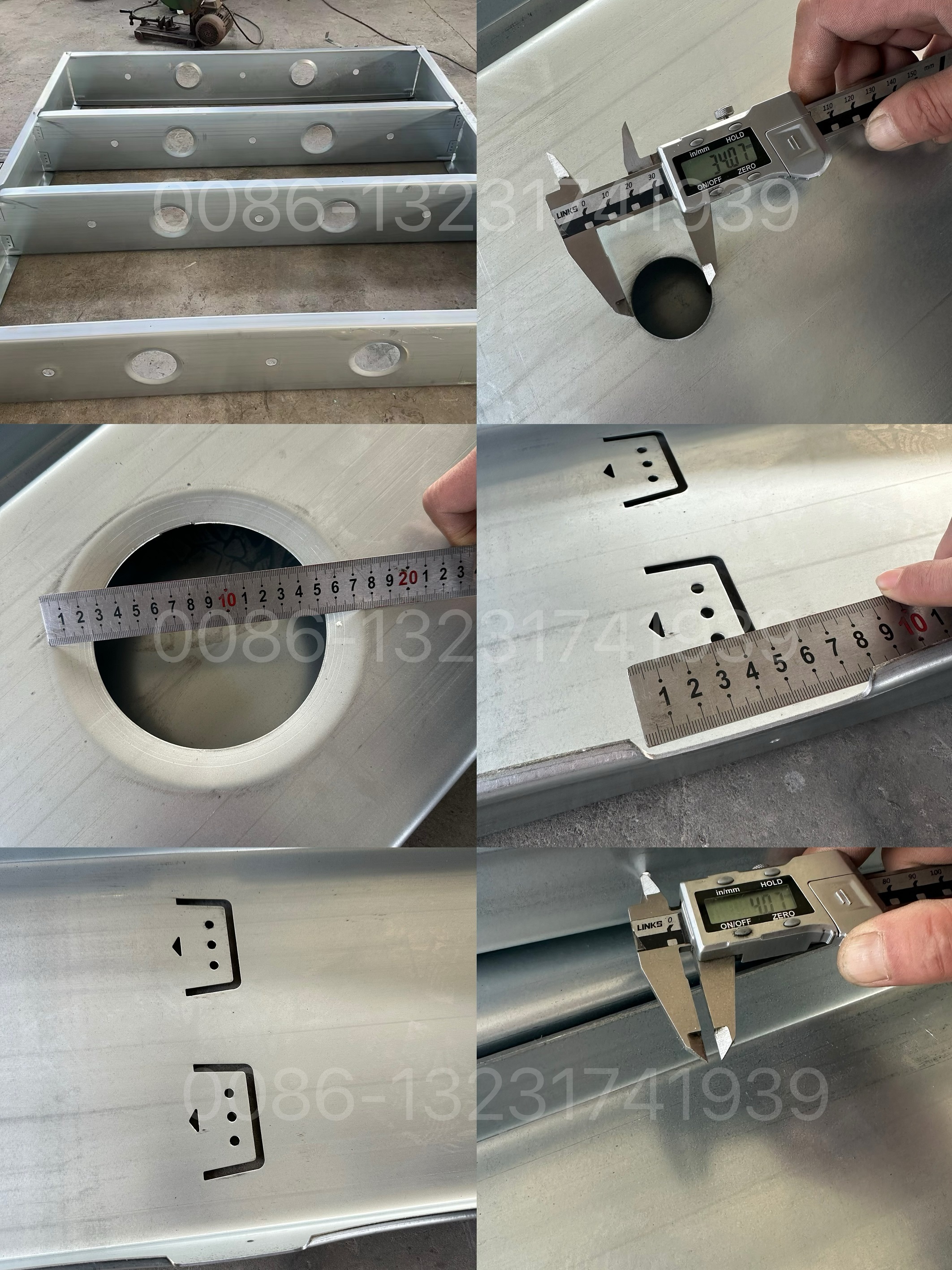

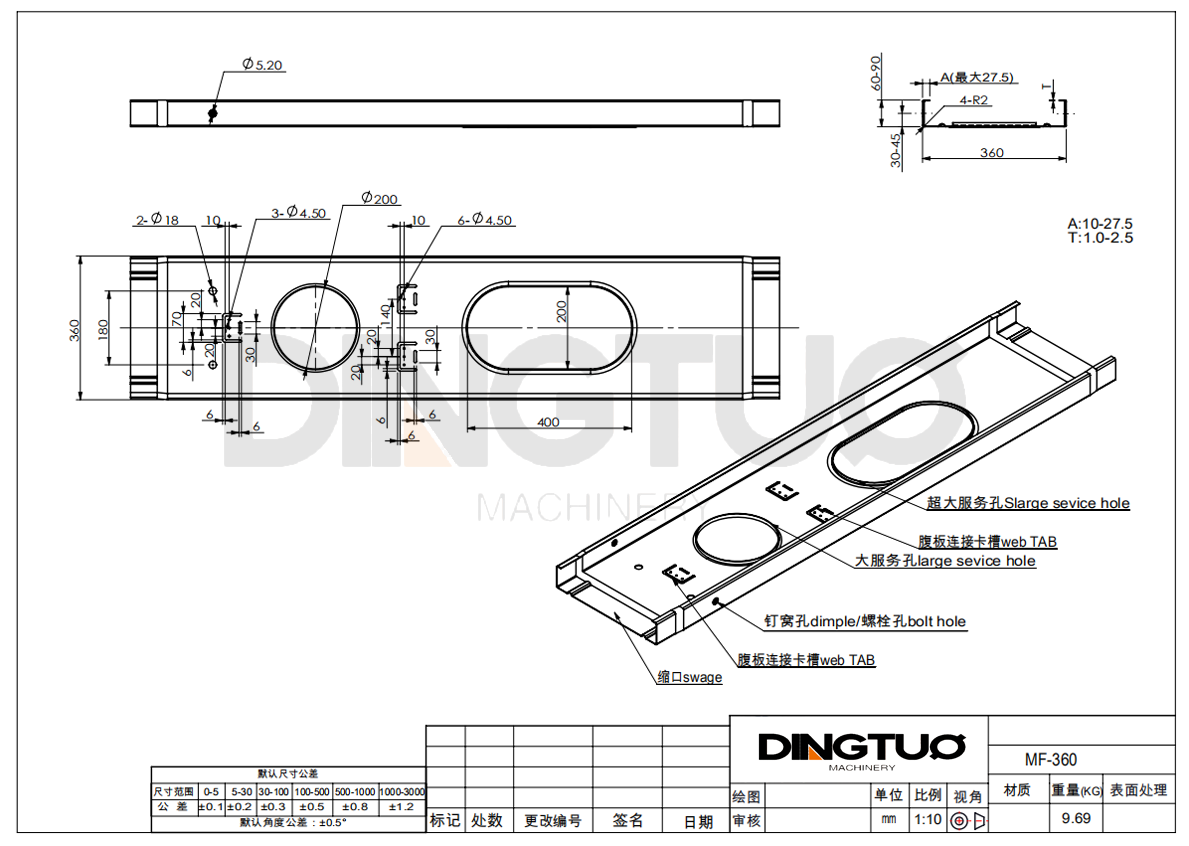

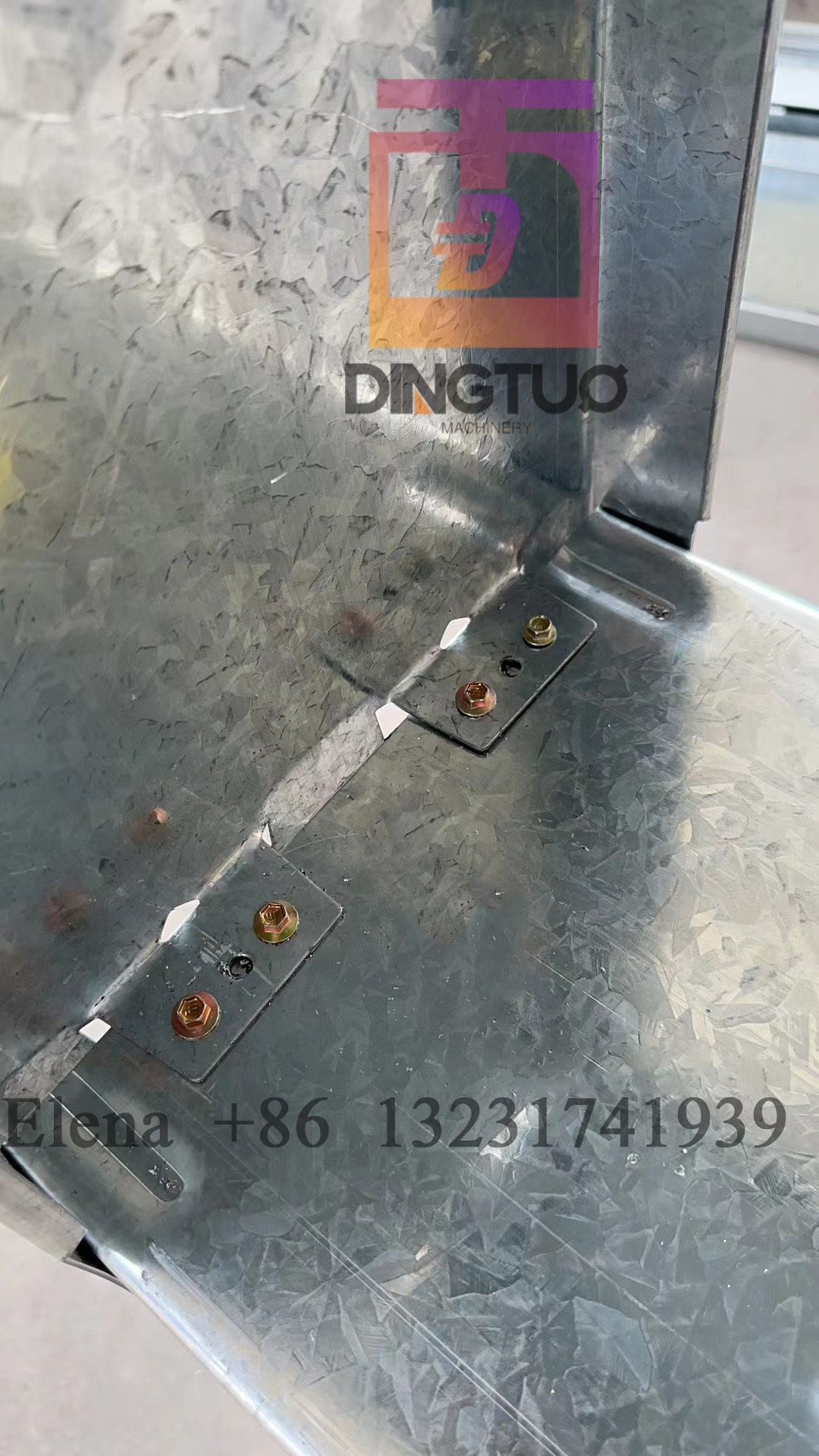

The standard punching moulds included :

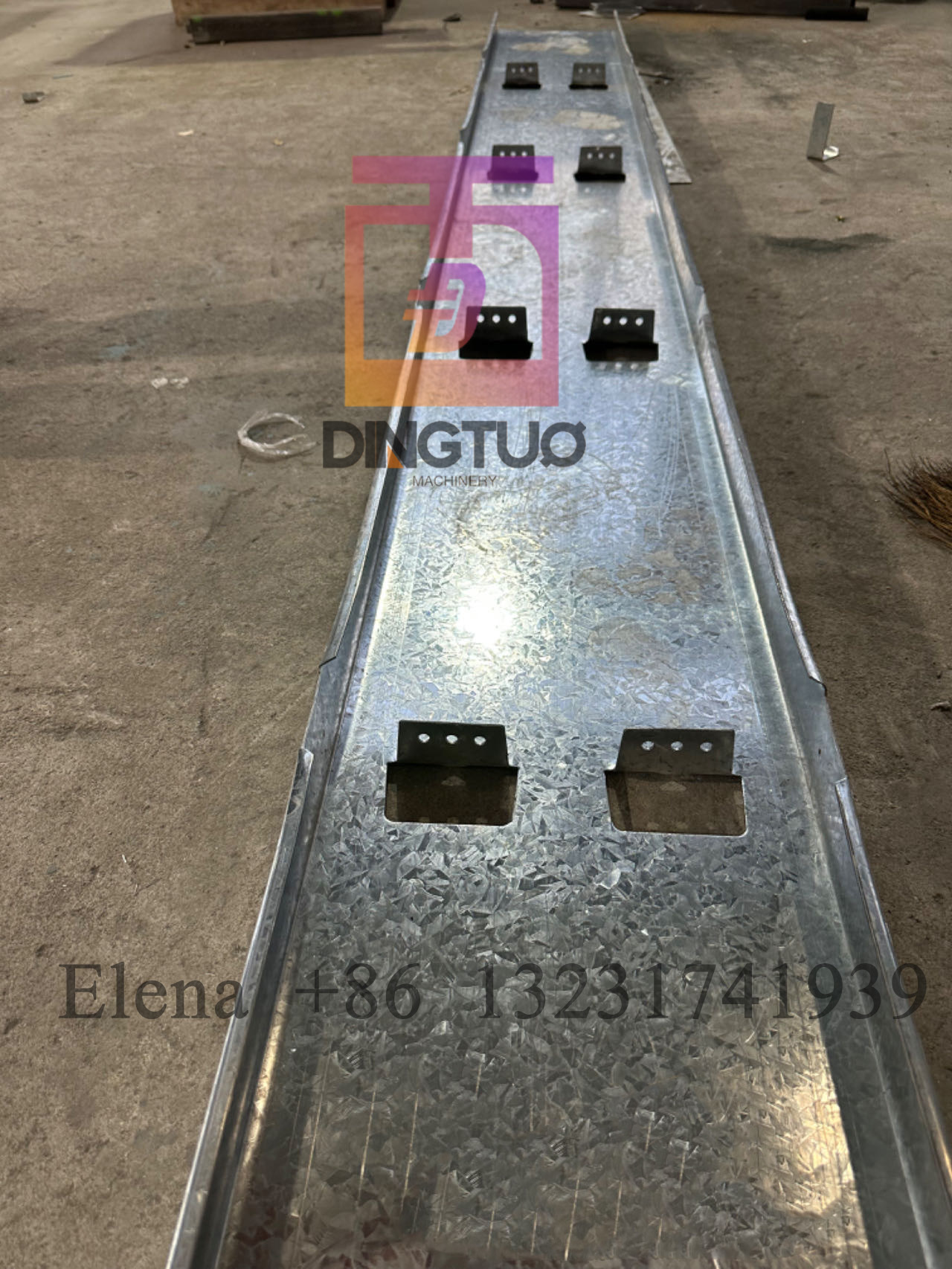

- web tab ( 4.5mm diameter*3 round holes/each web tab)
- Single web tab ( 4.5mm diameter*3 round holes)
- Large service hole 100 mm (used for 200/250mm web size)
- Large service hole 200 mm (used for 300/350/360mm bottom width)
- Slarge service hole 200*400 mm (used for 300/350/360mm bottom width)
- Dimple hole 5.2mm
- Bolt hole 2*18mm
- Swage online

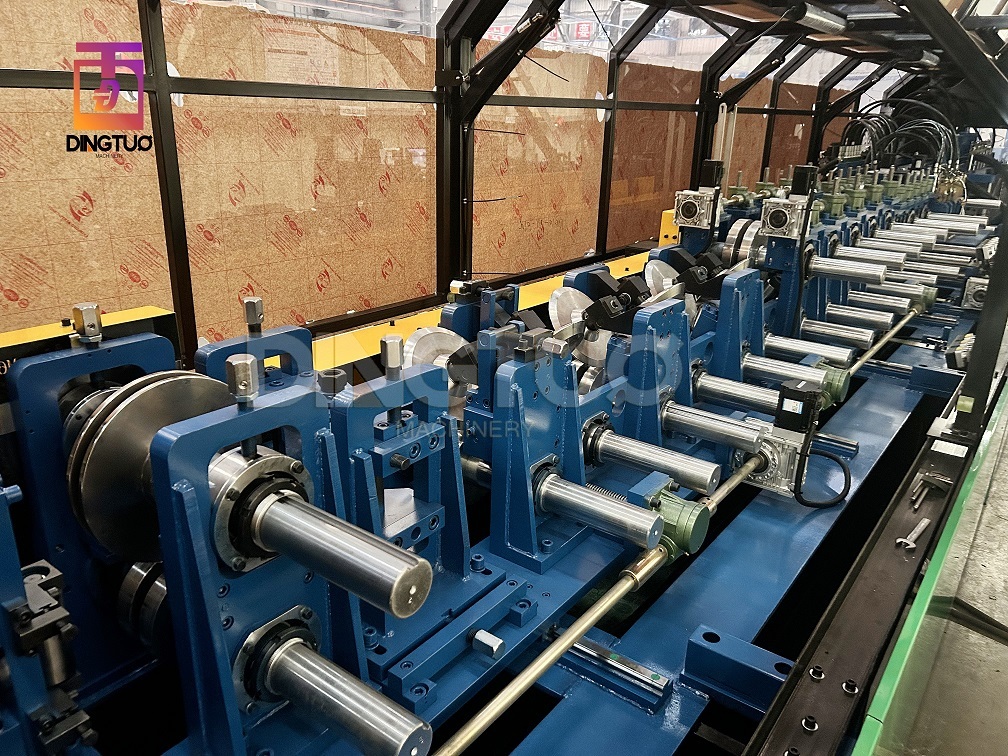

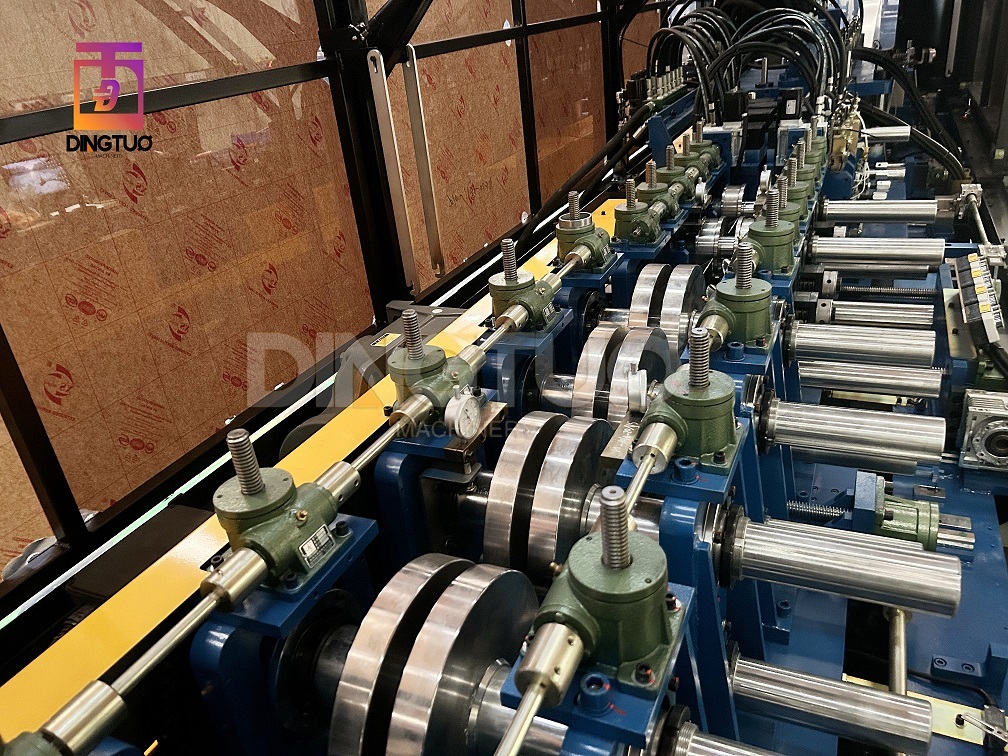

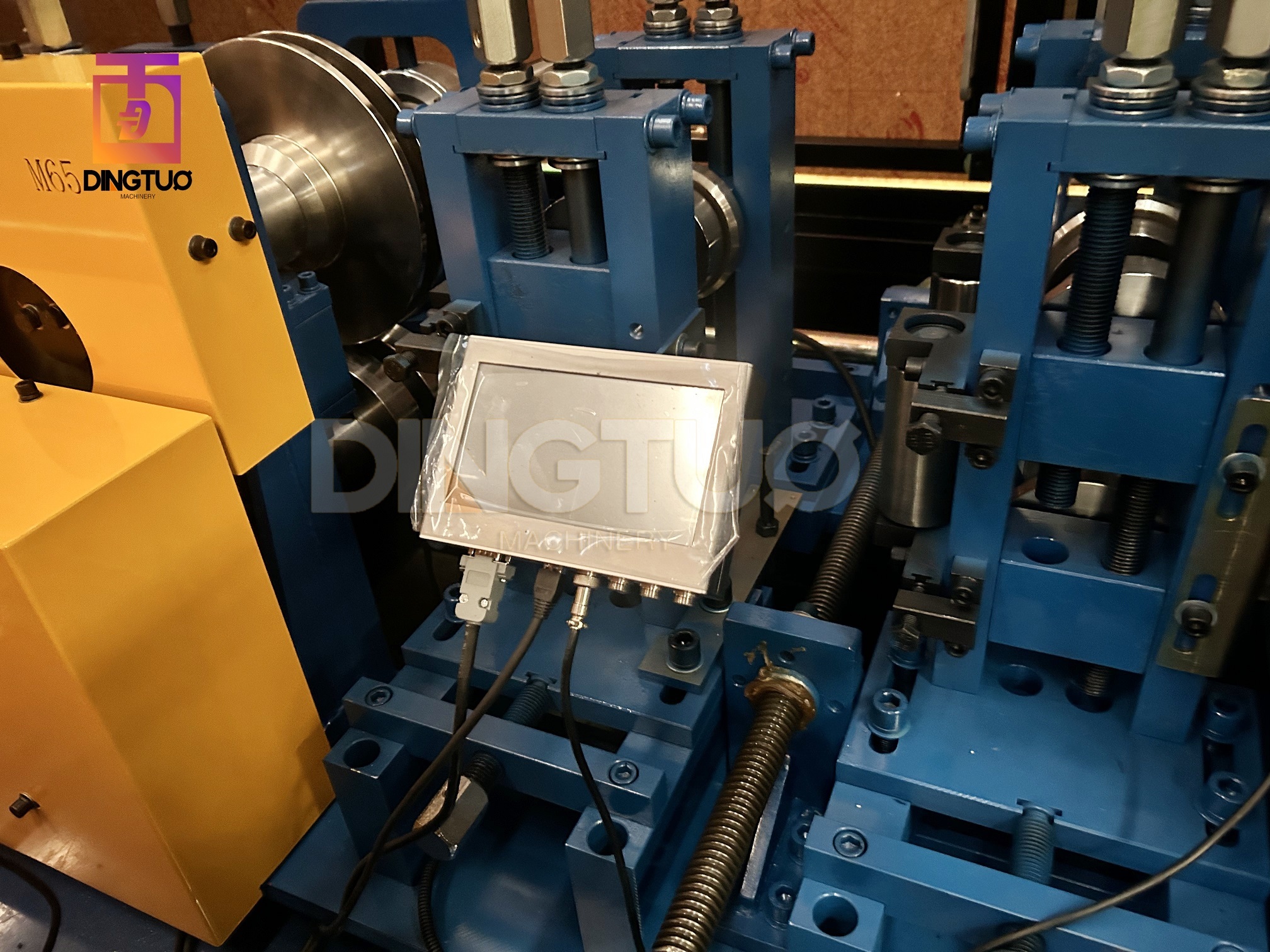

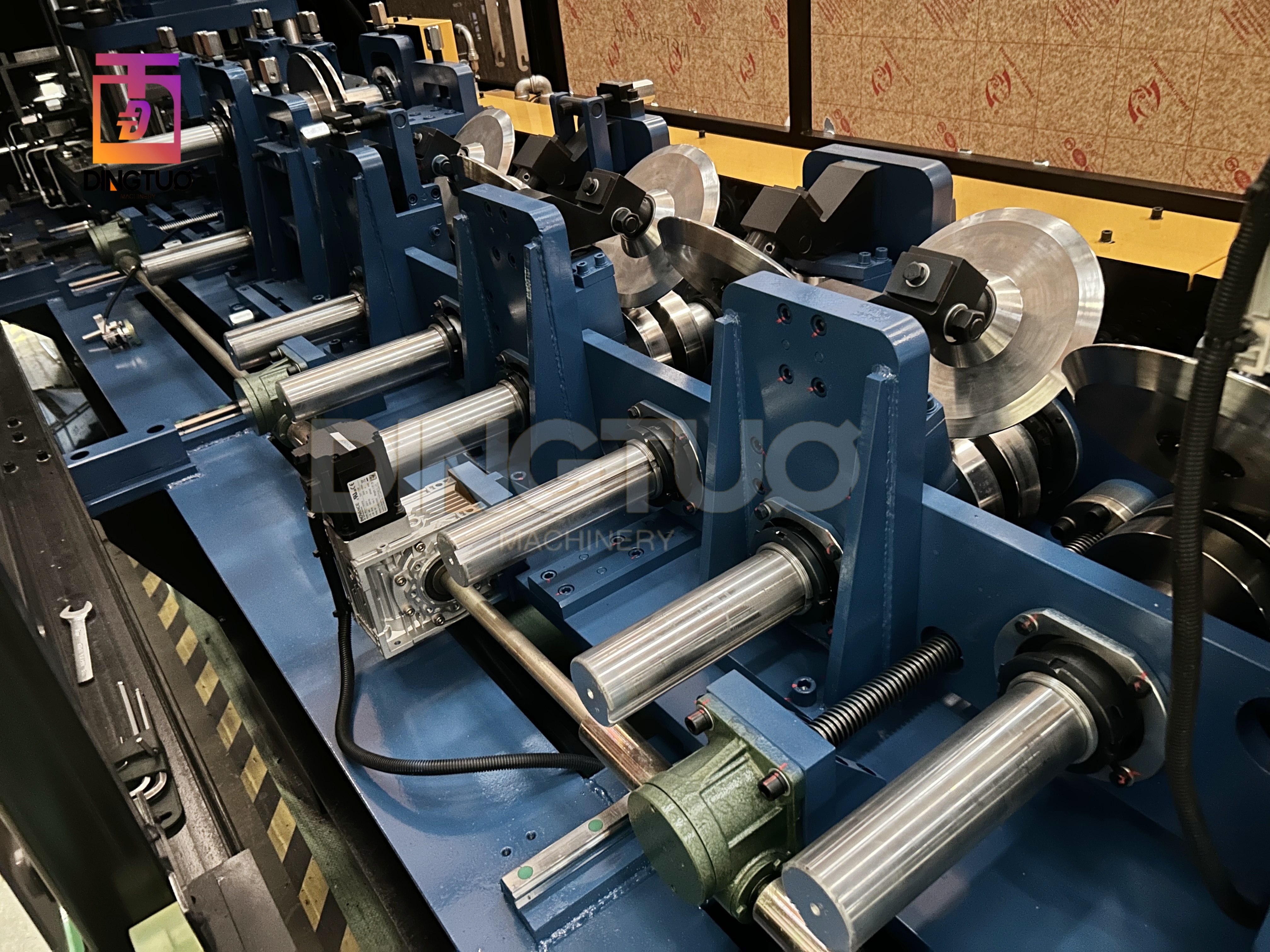

3. FORMING AND CUTTING UNIT : SERVO MOTOR AUTOMATIC SIZE CHANGEABLE
THICKNESS AND WEB SIZE ADJUSTABLE AUTOMATICALLY

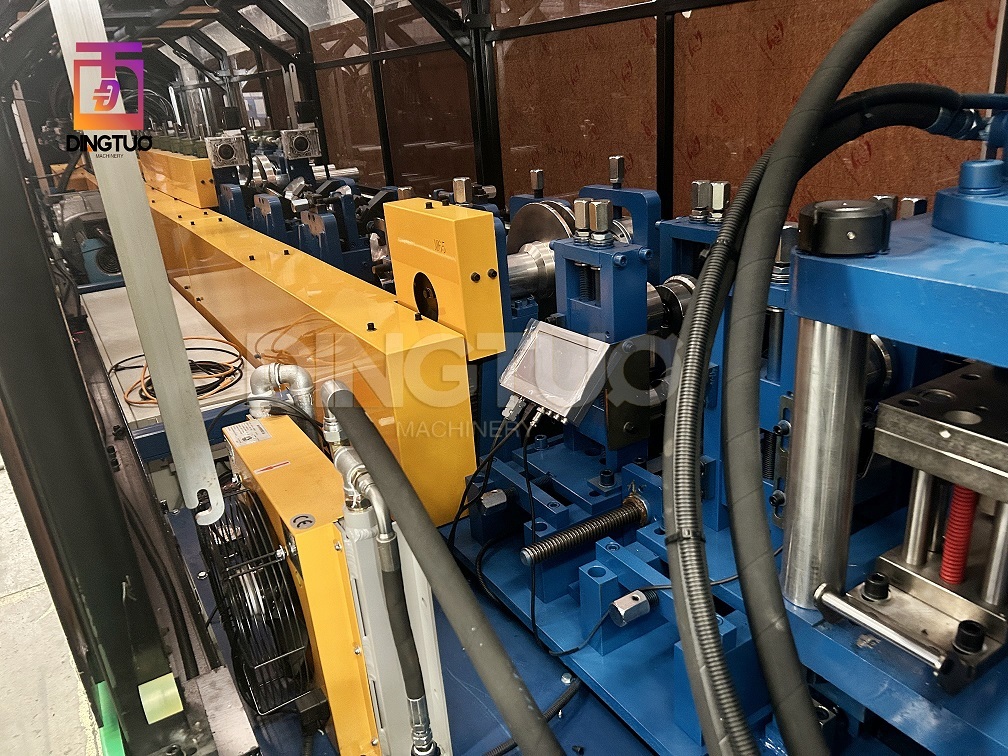

4. HYDRAULIC PUMP STATION SYSTEM AND ELECTRIC CONTROL SYSTEM
Dual accumulators ensure high-speed 48m/min , stable operation and punching performance.
High-power servo motors and a high-power oil pump station ensure high-speed 48m/min , stable operation and punching performance.
Twenty years of technical experience in the light steel keel equipment industry ensures high-quality, stable operation.
Machine computer program + computer remote program + machine electronic control program + design software are all independently developed to ensure the quality of equipment software and hardware and provide customers with the most powerful service support.

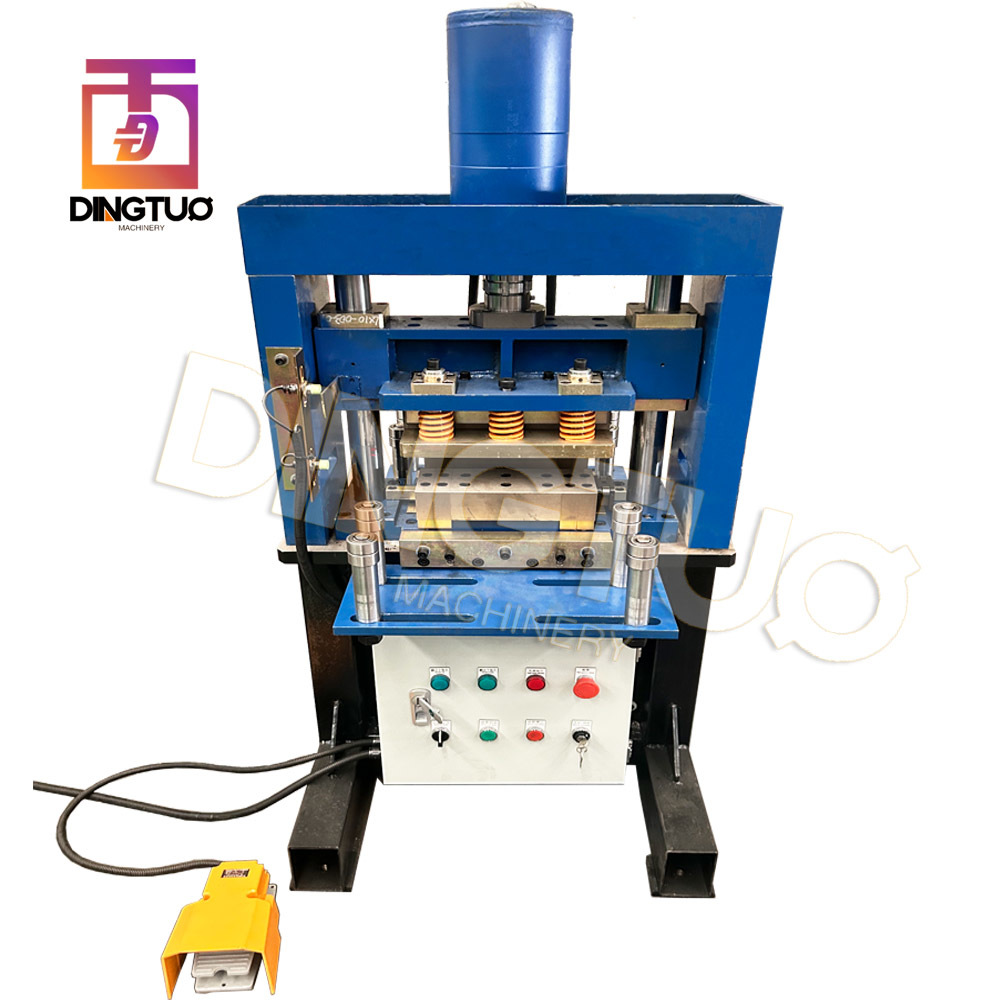

5. OFFLINE END FLANGE DEVICE
6. RUN OUT TABLE
we can send you run out table production files and you can do it by yourself.
6. SPARE PARTS
some free spare parts will be sent with machine together.
connect Elena to purchase important necessary spare parts .
