metal notched roller shutter machine roll up door roll forming machine with 3 kinds of different patterns

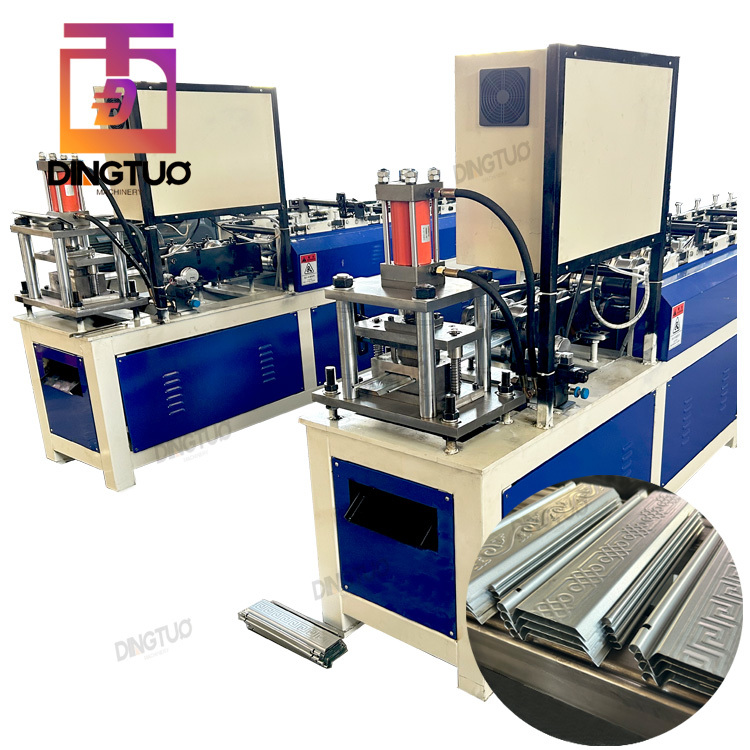

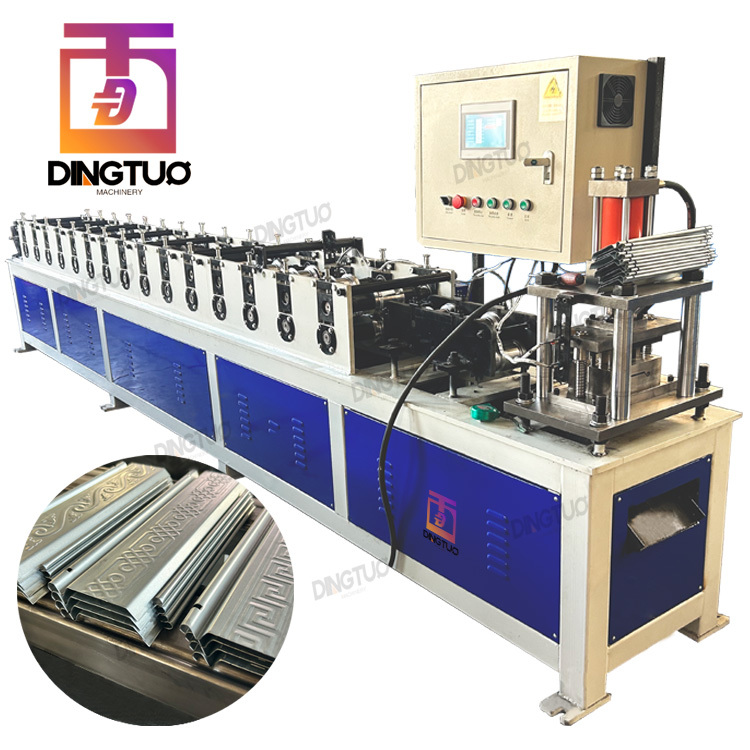

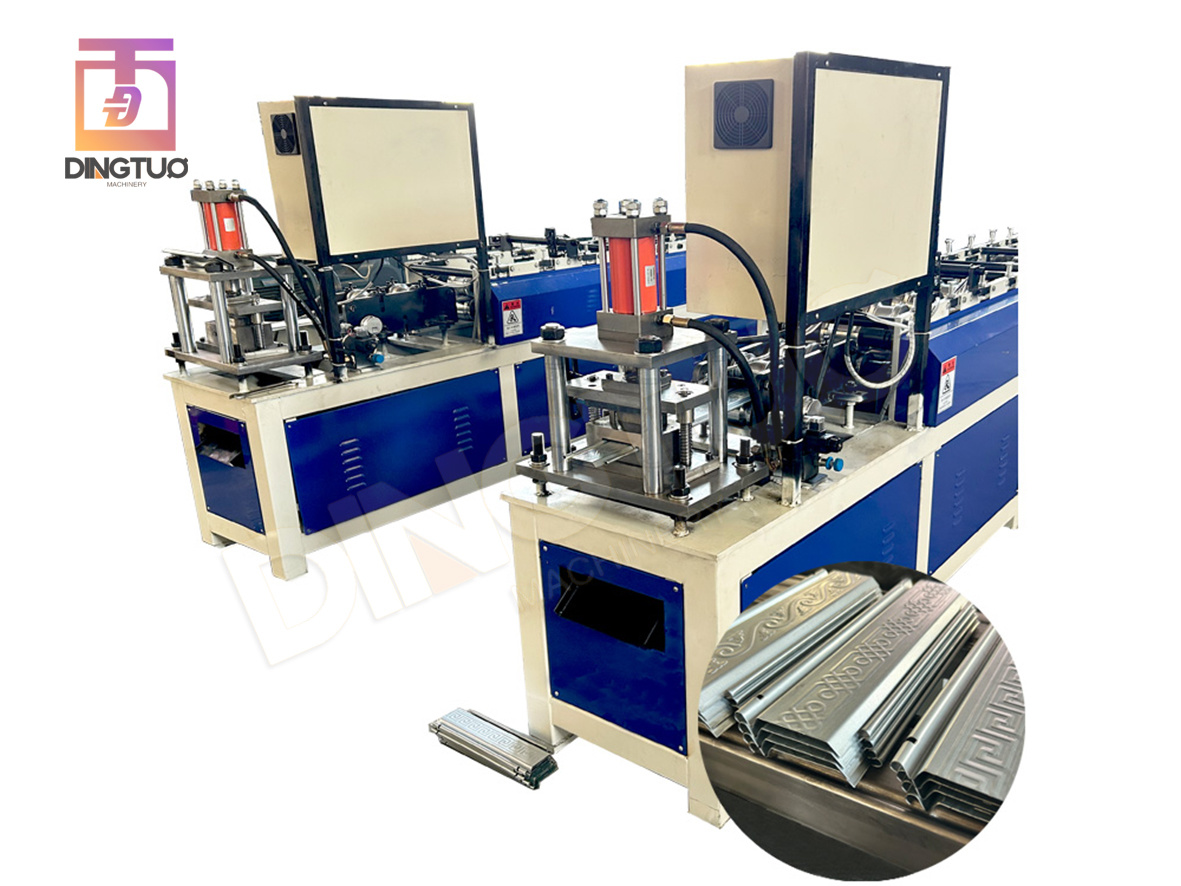

ROLLING SHUTTER DOOR ROLL FORMING MACHINE

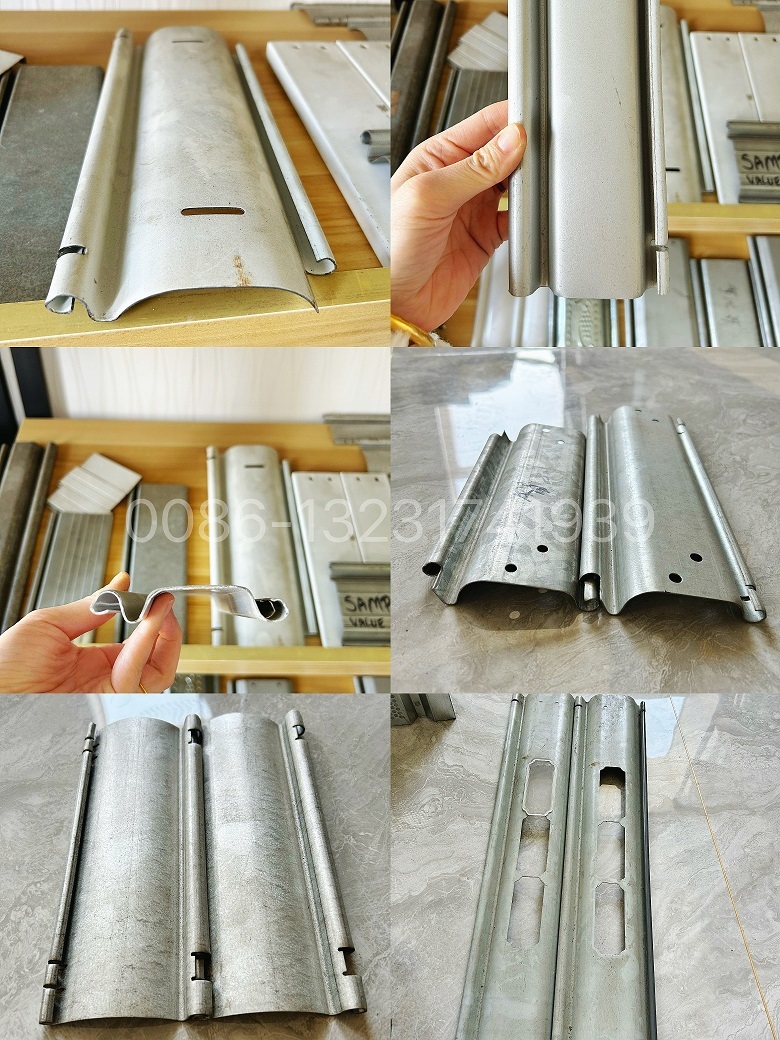

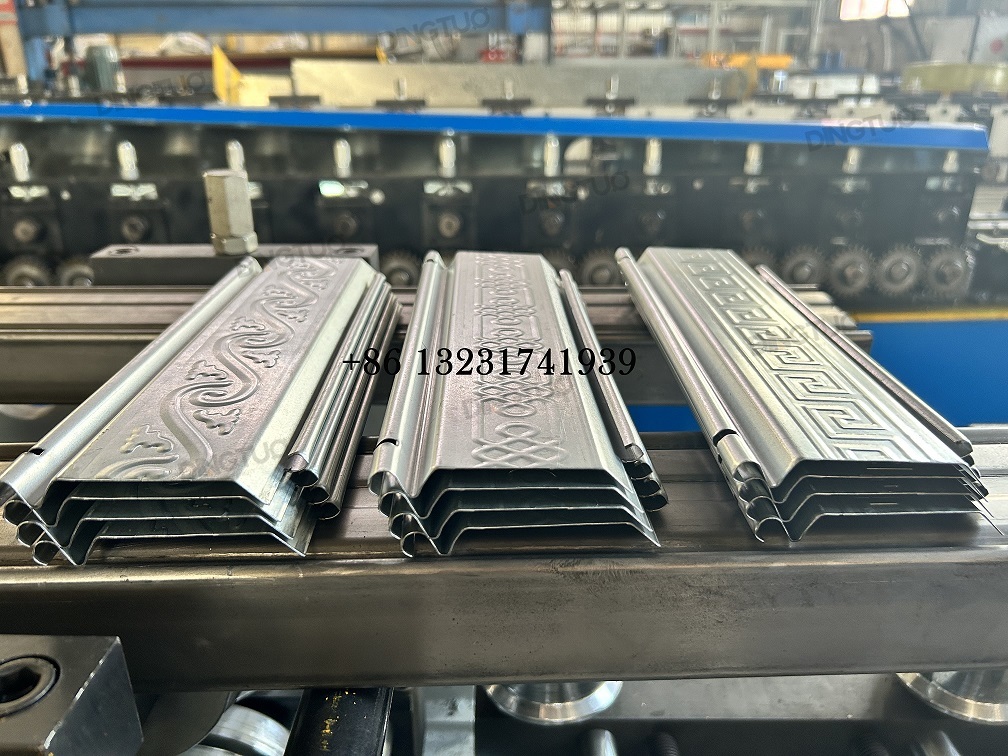

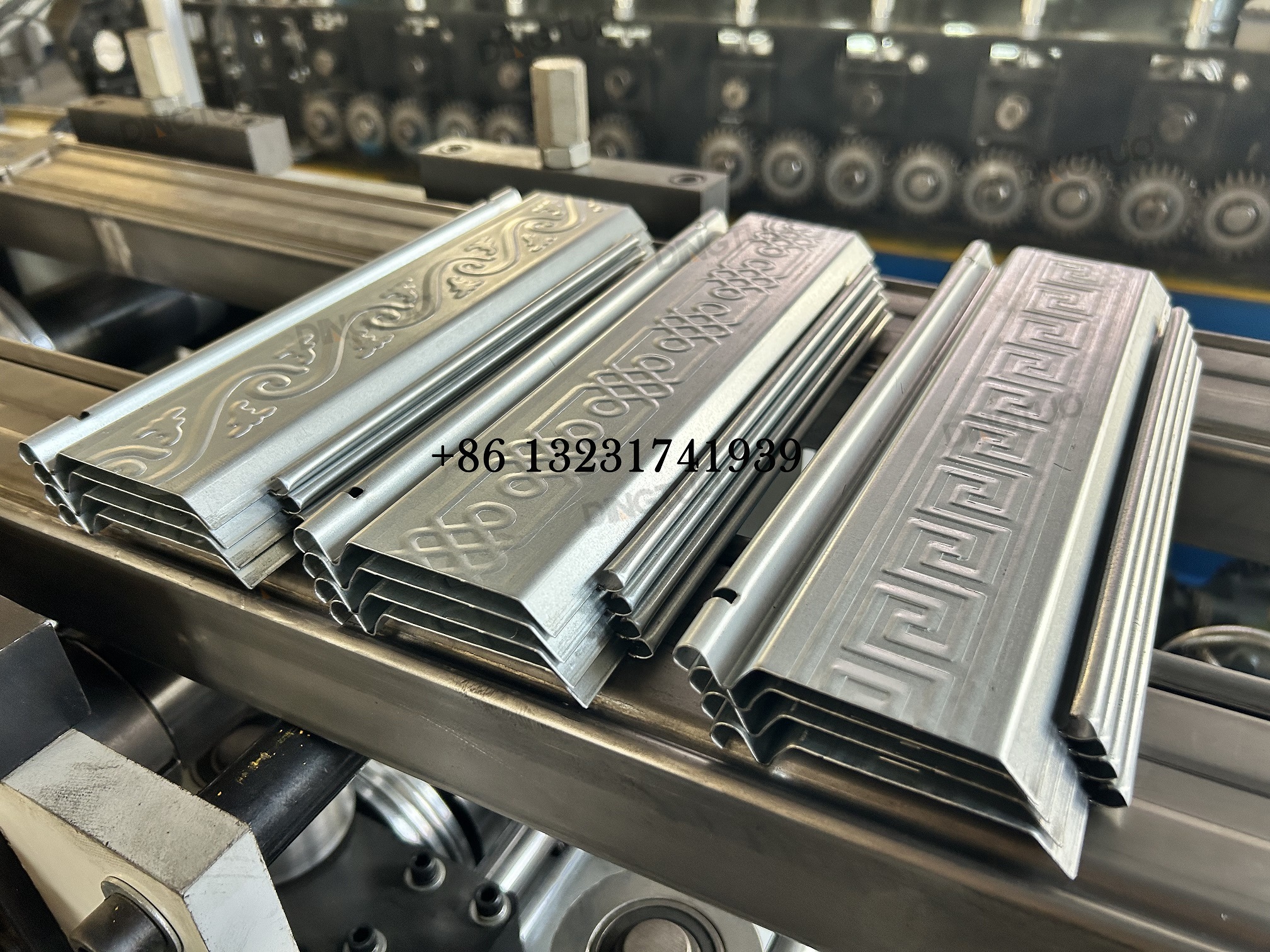

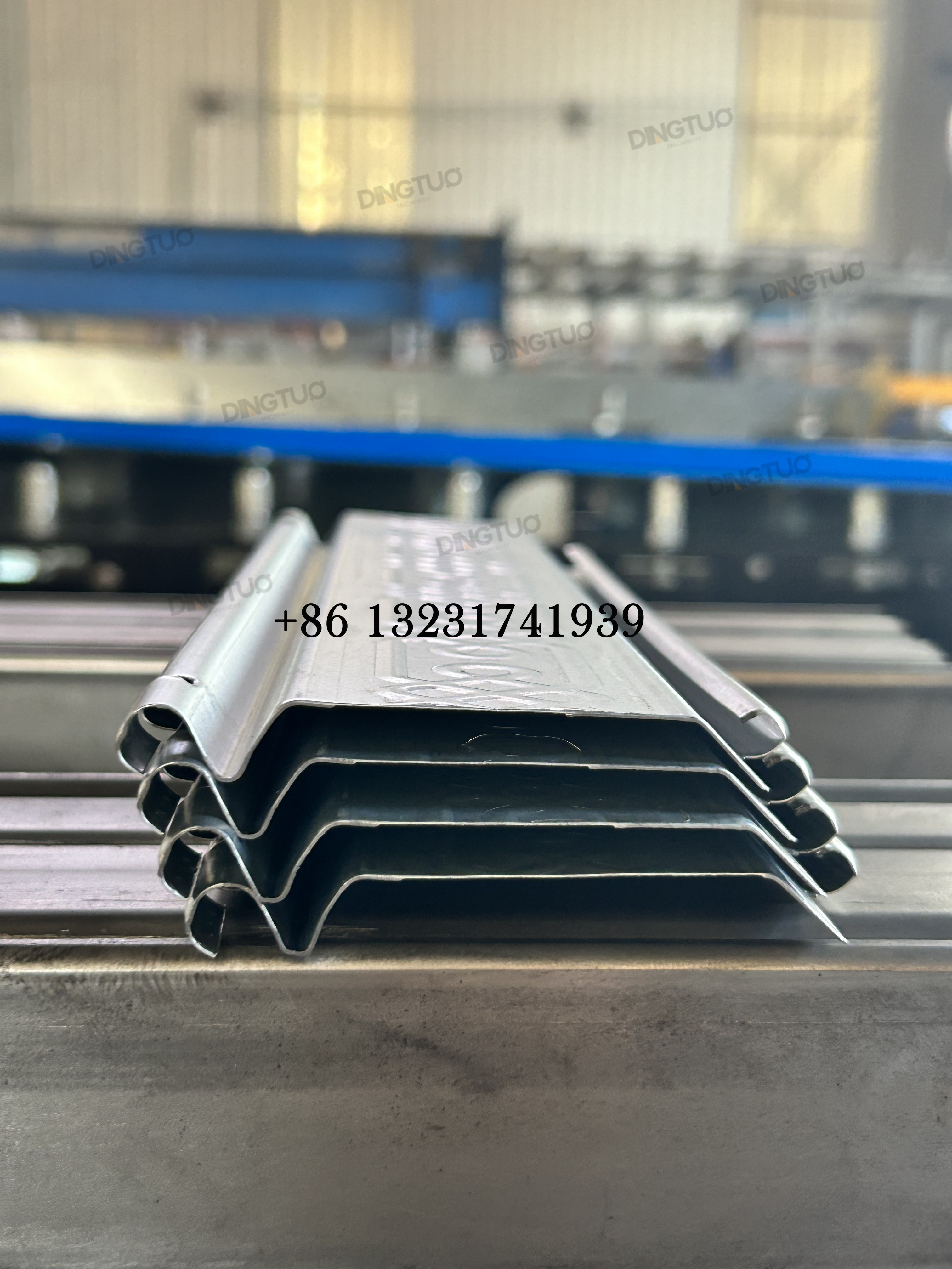

This rolling shutter door roll forming machine is designed to create shutters with a thickness ranging from 0.3 mm to 1 mm, or according to the specific requests of clients. The machine uses 130 mm coilto do YX12/95 shutters . There had notches on shutters which will be made together when cutting . The machine with 3 different patterns as client needs. It is equipped with 1 decoiler , 1 forming machine, and 1 run out table.
Machine Parameter : ( customized )
1. Decoiler

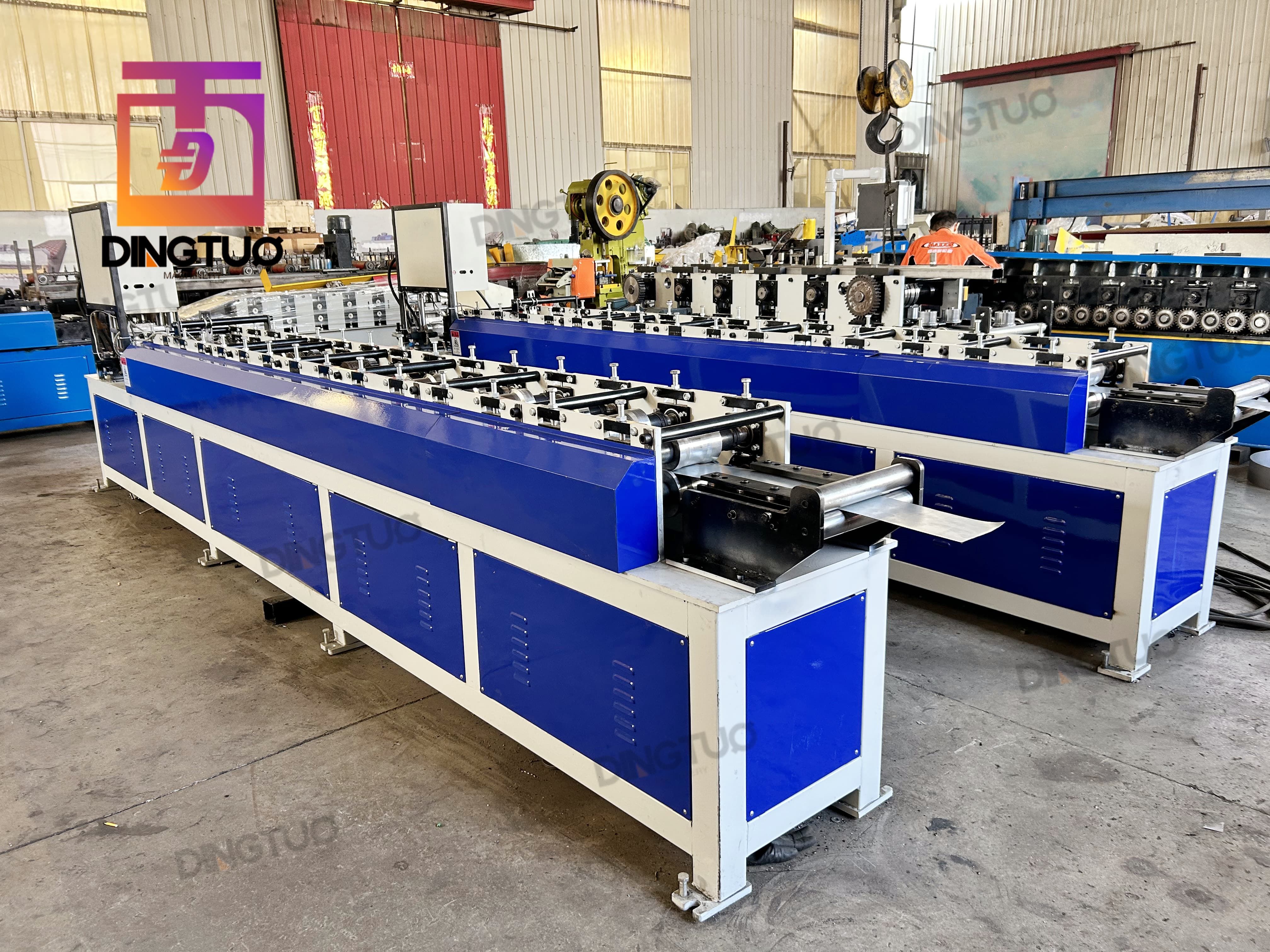

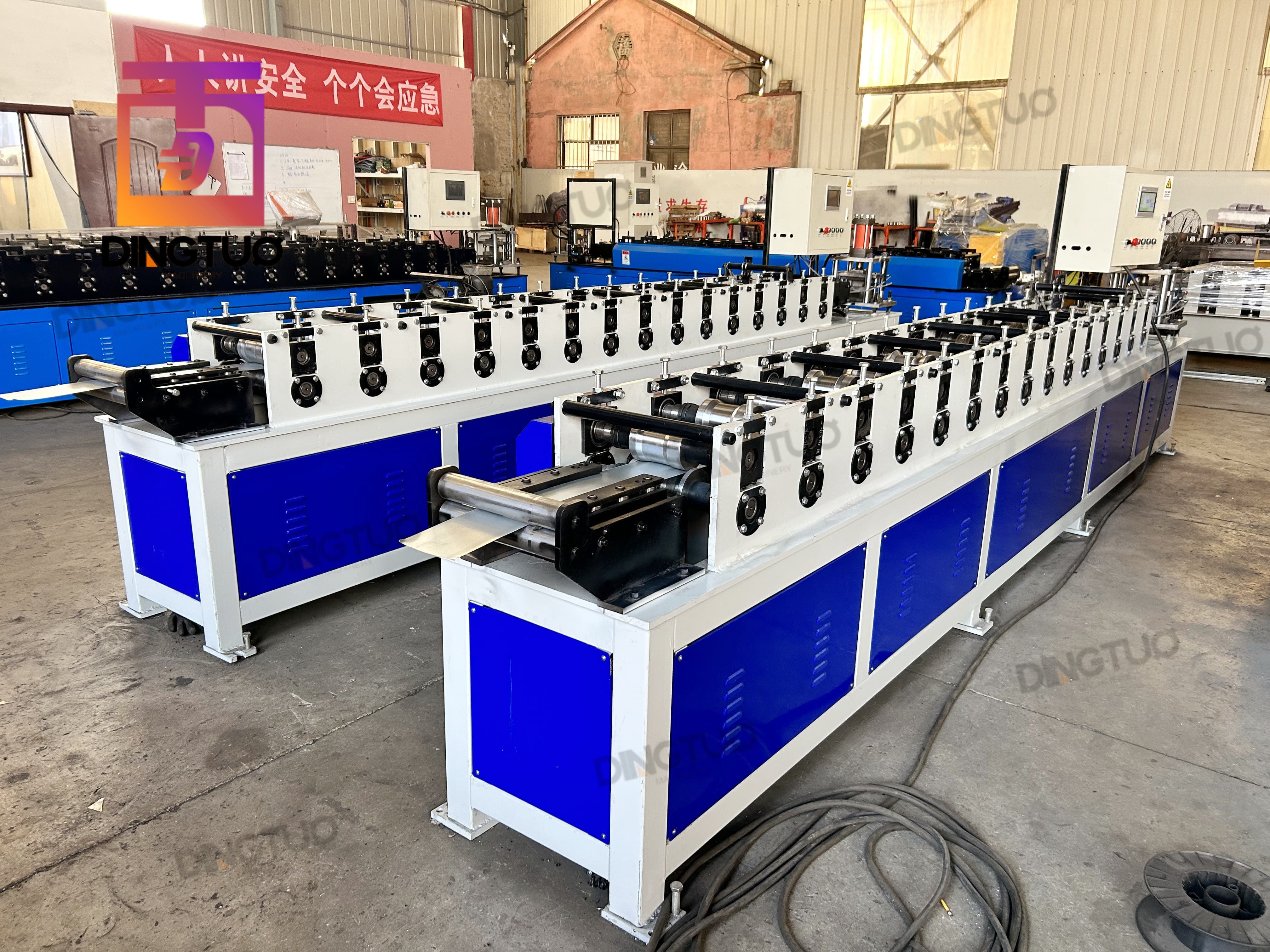

2. Forming machine

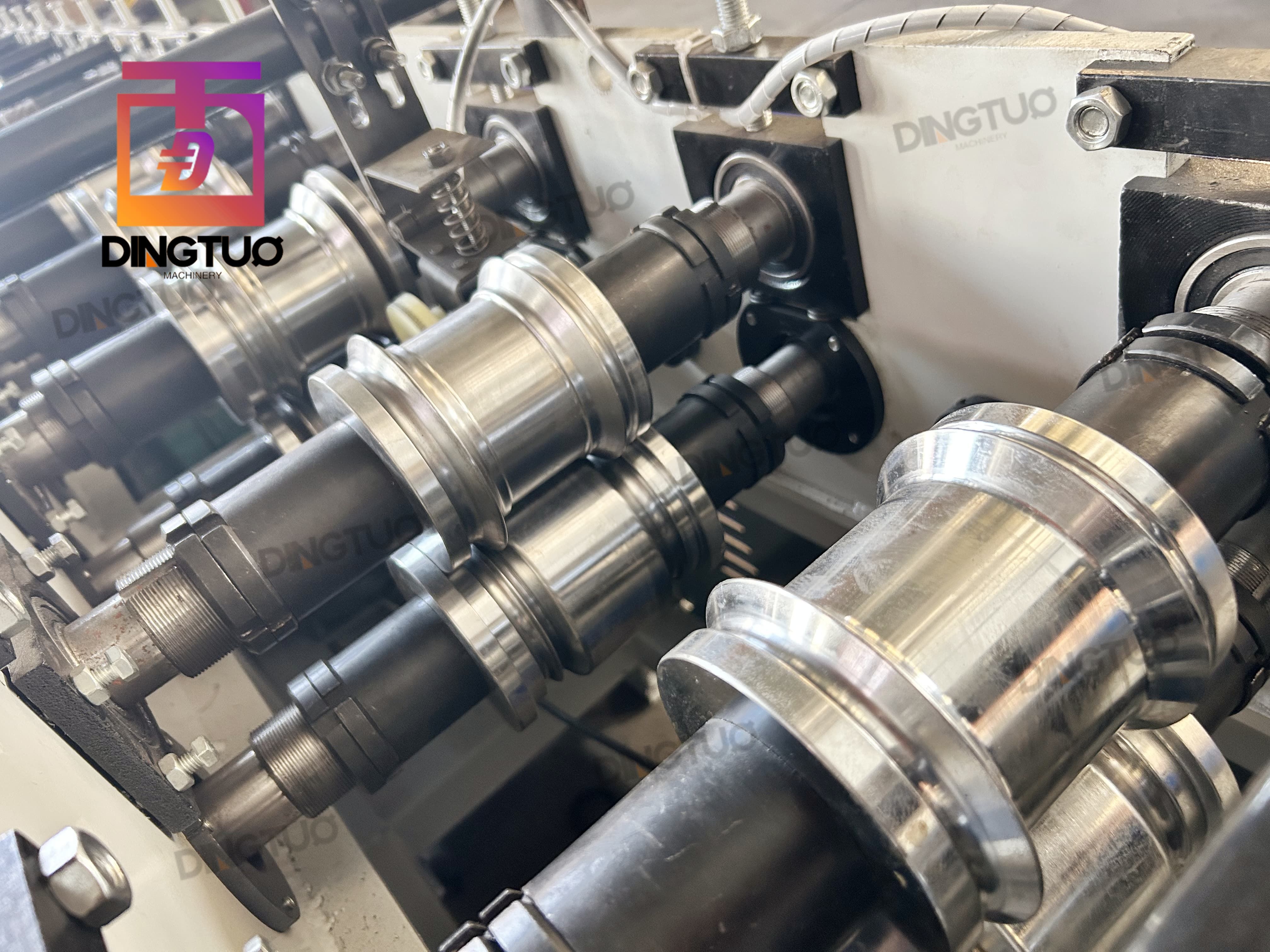

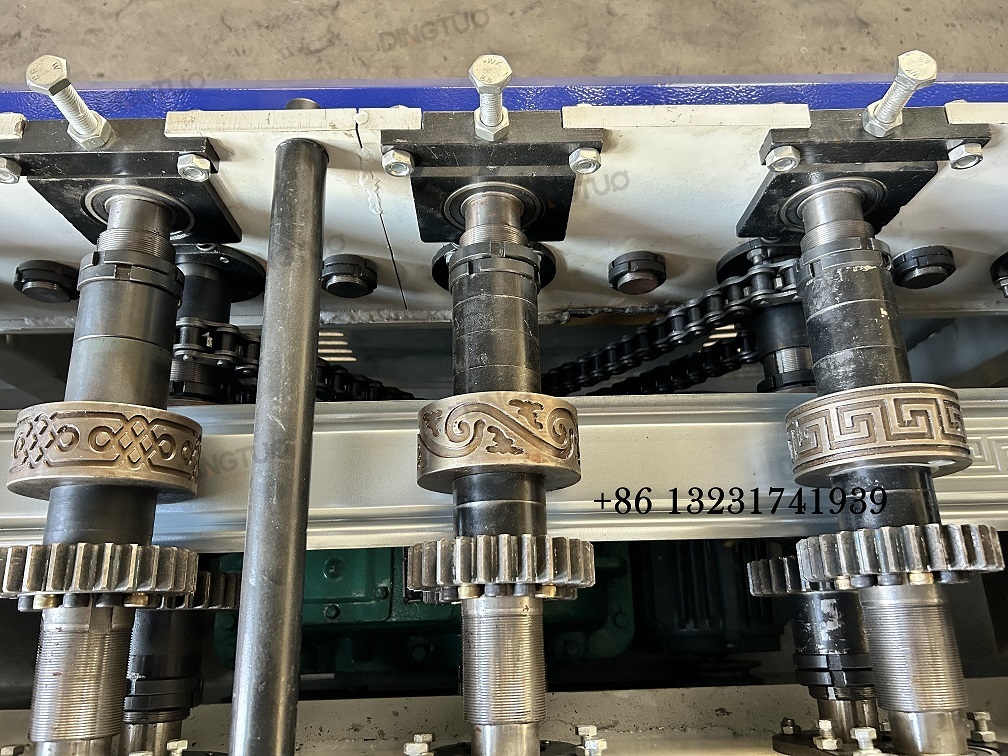

15 forming stations / Gcr15 rollers /50mm solid shafts/ gears transmission/ 4kw motor with K serious redecer / overall wire cutting middle plates machine stands

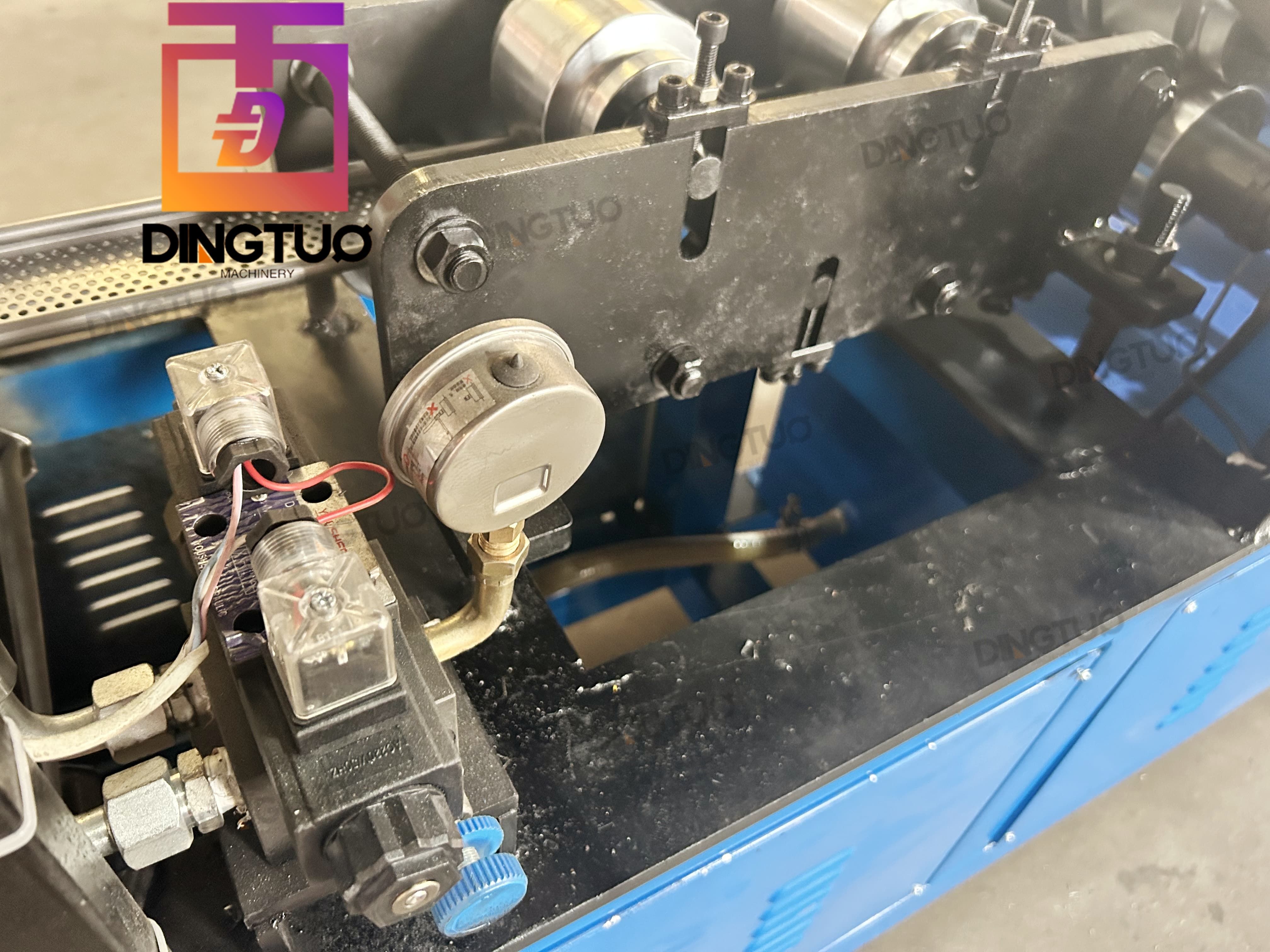

3. Hydraulic Pump Station And Electric Control Cabinet

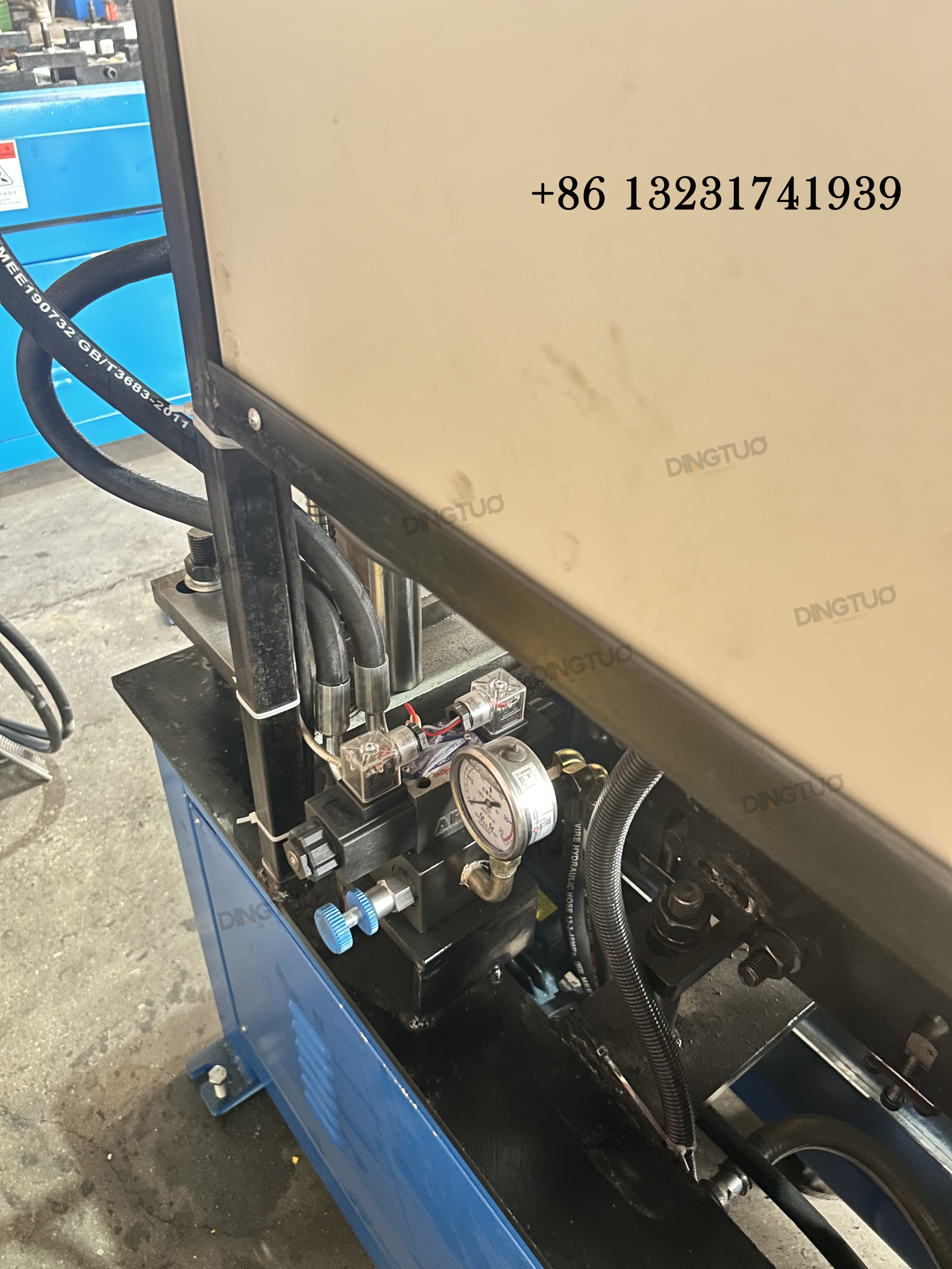

Inside type pump station : save client workshop , after receiving the machine , no need to connect this part wires which is more convenient and easy for client operation ;

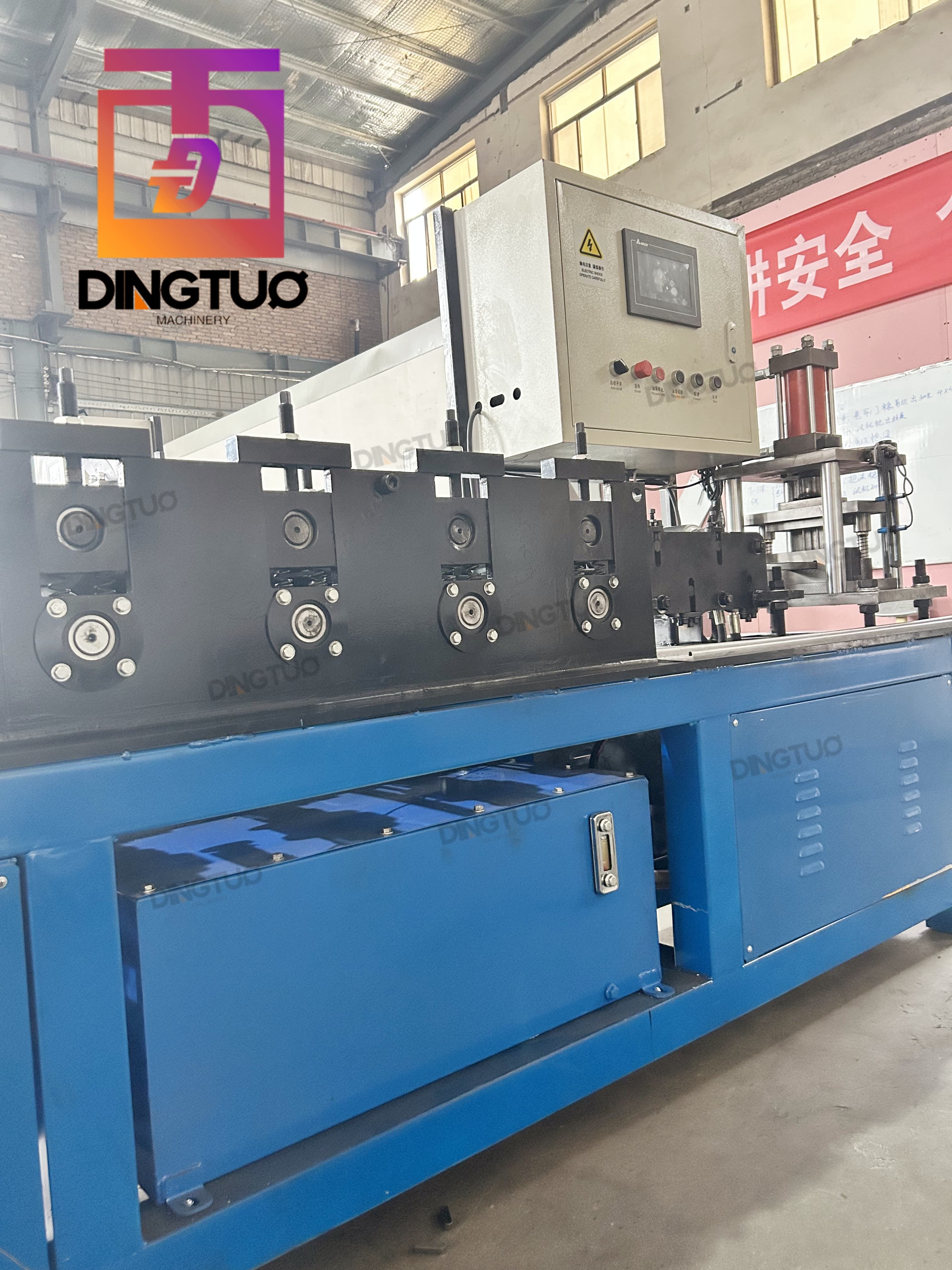

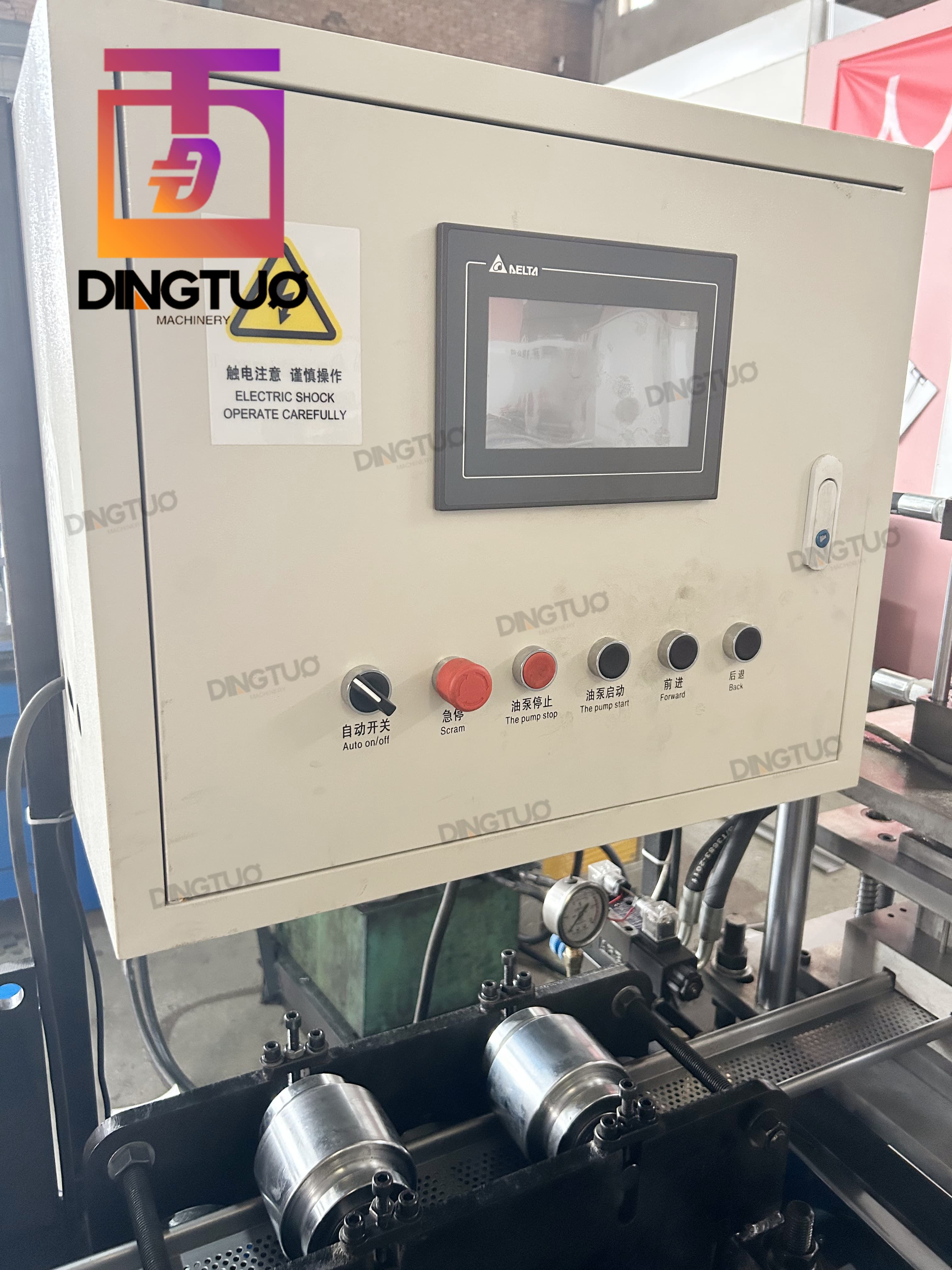

Electric control cabinet : Delta brand which is very stable control system and after receiving the machine, only connect the 3 live wires and 1 neutral wire ( 380V,50 HZ, 3 phases or voltage customized) which is easy for clients operation .
4. Run Out Table
Spare Part
No. | Name | Quantity | Country |
1 | Rely | 2pcs | China |
2 | Encoder | 2pcs | China |
3 | Encoder wheels | 2pcs | China |
4 | bearings | 2pcs | China |
5 | limit switch | 2pcs | China |
6 | Switch buttons | 3pcs | China |
7 | sensor | 4pcs | China |
8 | Oil tubes | 2pcs | China |
9 | Gears | 2pcs | China |
11 | circlip | 30pcs | China |
12 | Tool Box | 1 Set | China |
