80 100 120 140 automatic size chanegable rack beam machine shelving beam roll forming machine
We are direct manufacturer of rack beam, panel, upright column roll forming machine. 80/100/120/140 mm height beams can be done in one machine. Machine can use 1.6-2mm material. Equipped with automatic screw lift for easy thickness adjustment. Cast iron machine stands, strong base frame, gearboxes transmission, and servo motor for stability. Flying cut for improved productivity. High-end configuration for high quality machine.
Key words:
Product category:
Tel/Whatsapp:
80 100 120 140 automatic size chanegable rack beam machine shelving beam roll forming machine

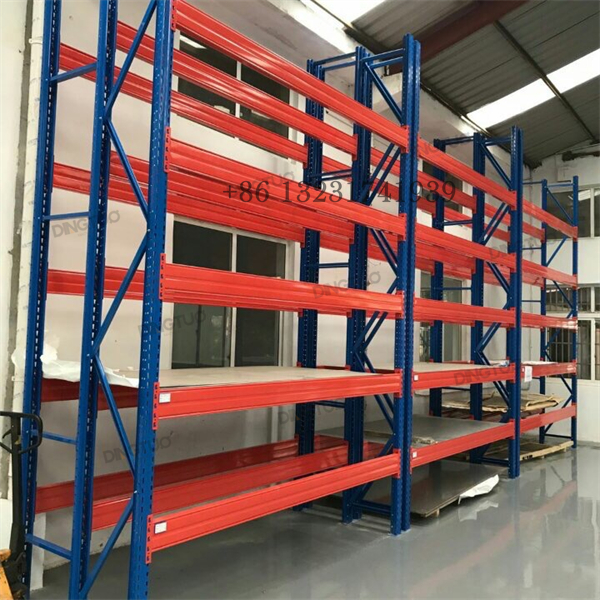

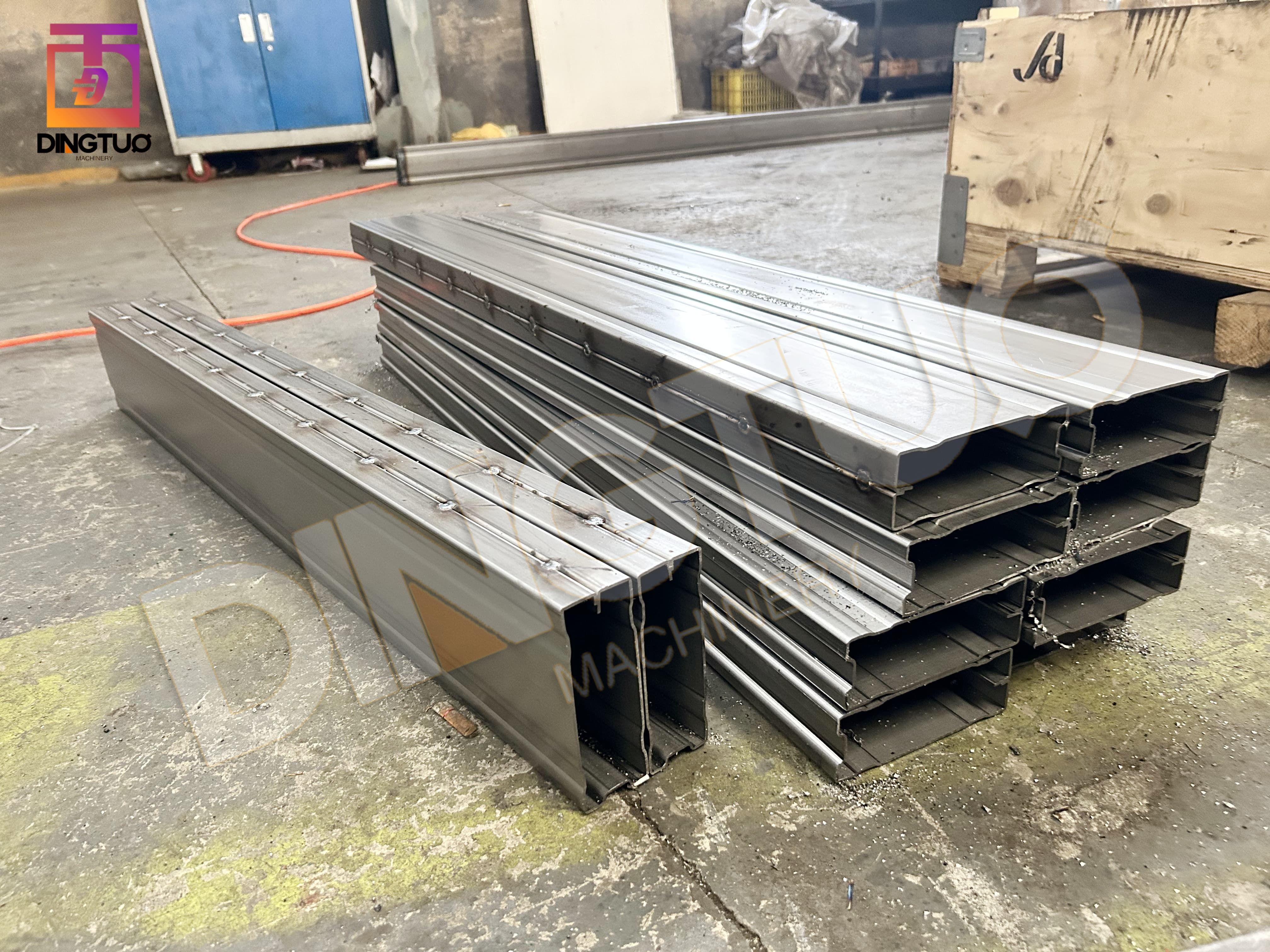

Metal Upright Storage Rack Beam Roll Forming Machine Introduction

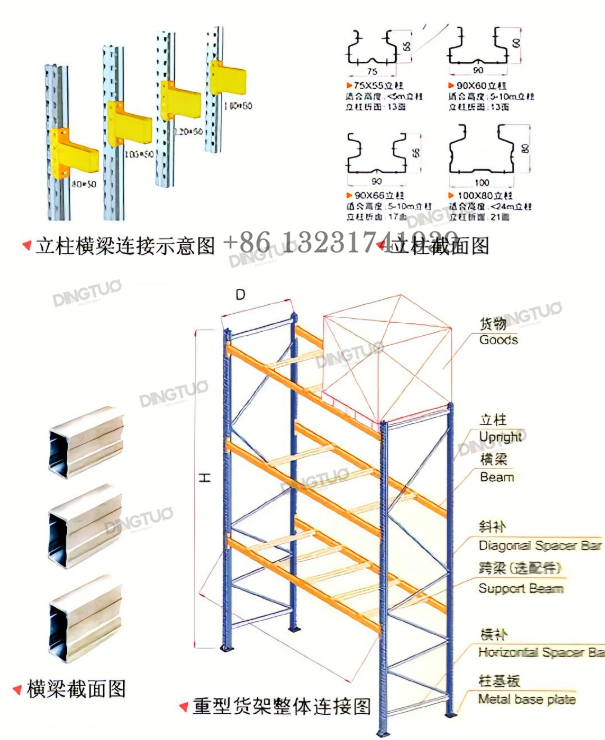

Upright Storage Rack Beam Machine Introduction

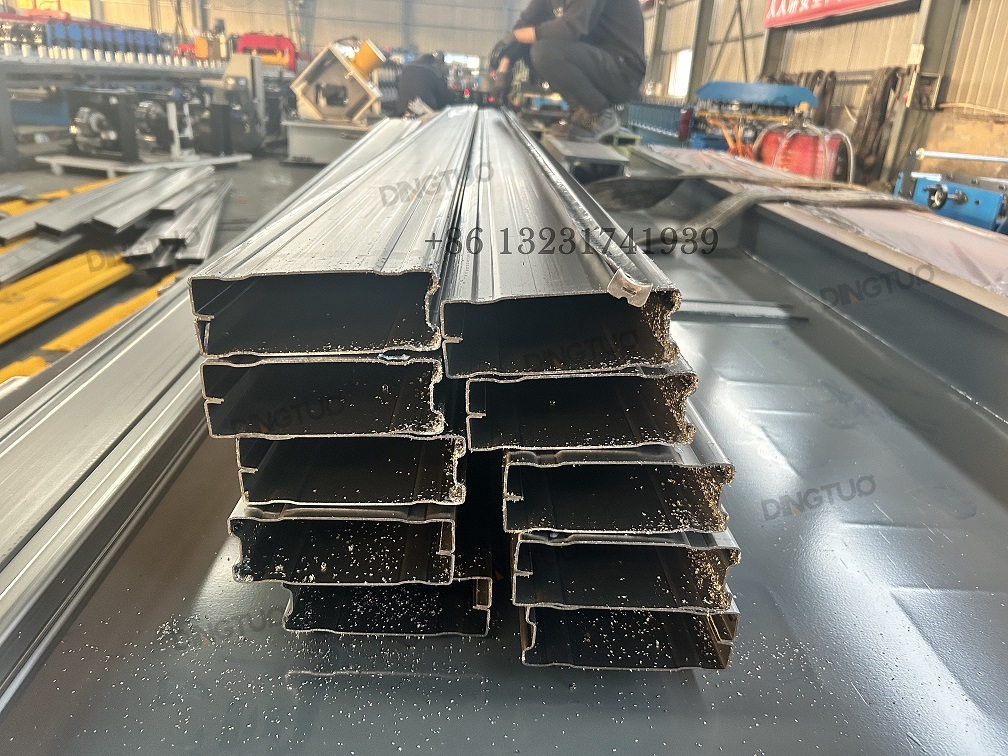

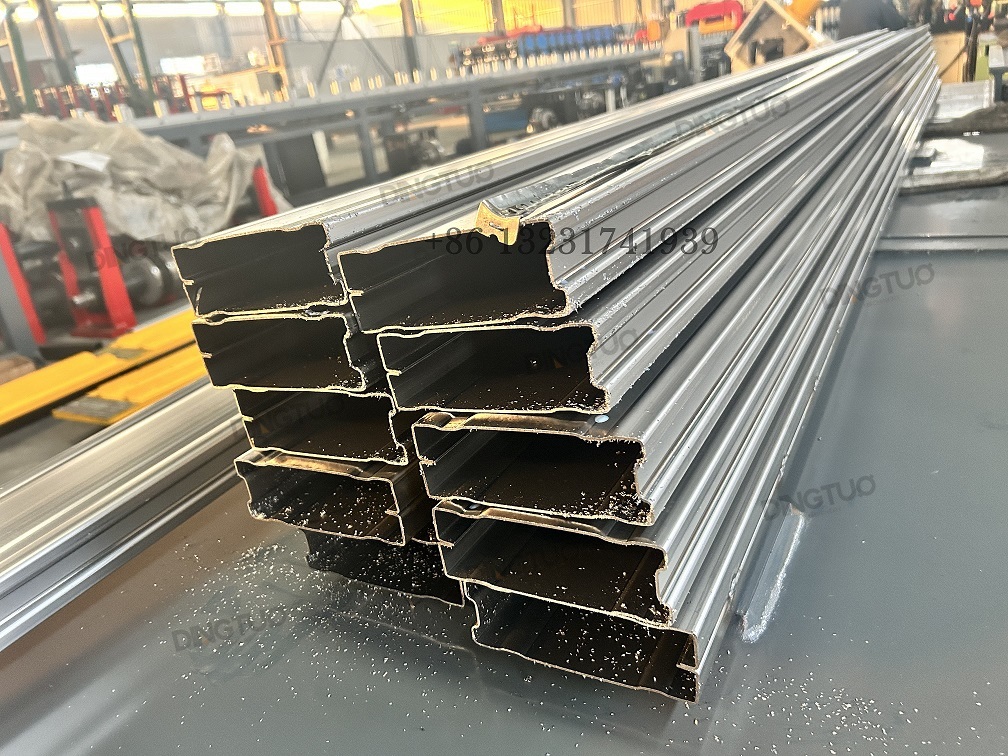

We are direct manufacturer of rack beam, panel, upright column roll forming machine. 80/100/120/140 mm height beams can be done in one machine. Machine can use 1.6-2mm material. Equipped with automatic screw lift for easy thickness adjustment. Cast iron machine stands, strong base frame, gearboxes transmission, and servo motor for stability. Flying cut for improved productivity. High-end configuration for high quality machine.
MACHINE COMPONENTS
NO. | Description | Quantity (set) |
1 | 1.5 T/2.5T/3T/5T ...customized(manual/hydraulic/electric) decoiler and leveling device | 1 |
2 | Feeding Platform | 1 |
3 | Forming system | 1 |
| 4 | welding part | |
5 | Transmission system | 1 |
6 | Automatic Hydraulic Cut | 1 |
7 | Run-out table | 1 |
8 | Hydraulic pump station | 1 |
9 | Electric Control Cabinet | 1 |
10 | Spare parts and tools | 1 |
Decoiler : there had hydraulic /electric / manual type can be chose
1.Range of segment expansion: 480 ~ 520mm
2. Coil bearign weight: 5tons

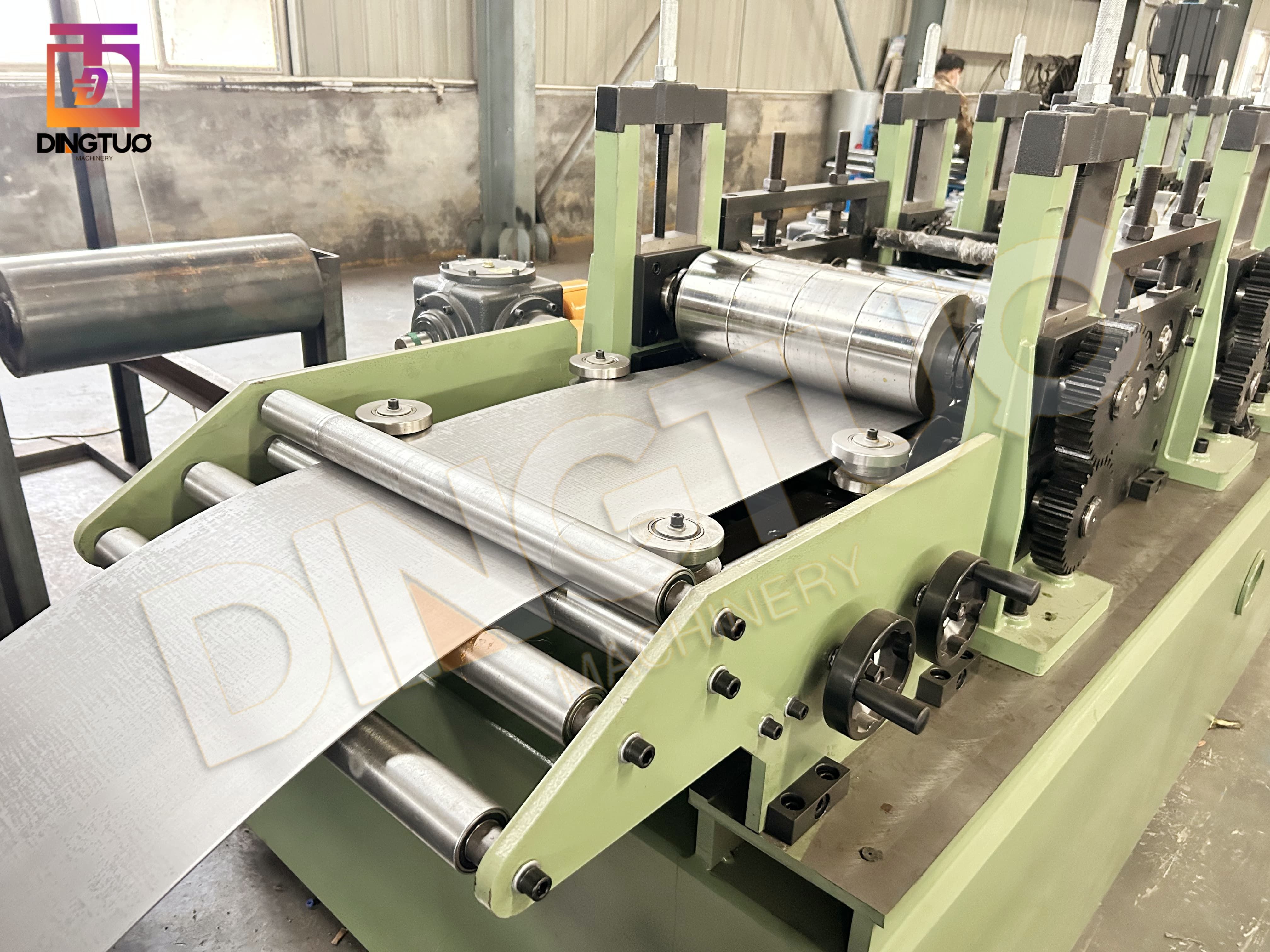

Feeding Platform : feeding guide + clamping unit + leveling unit

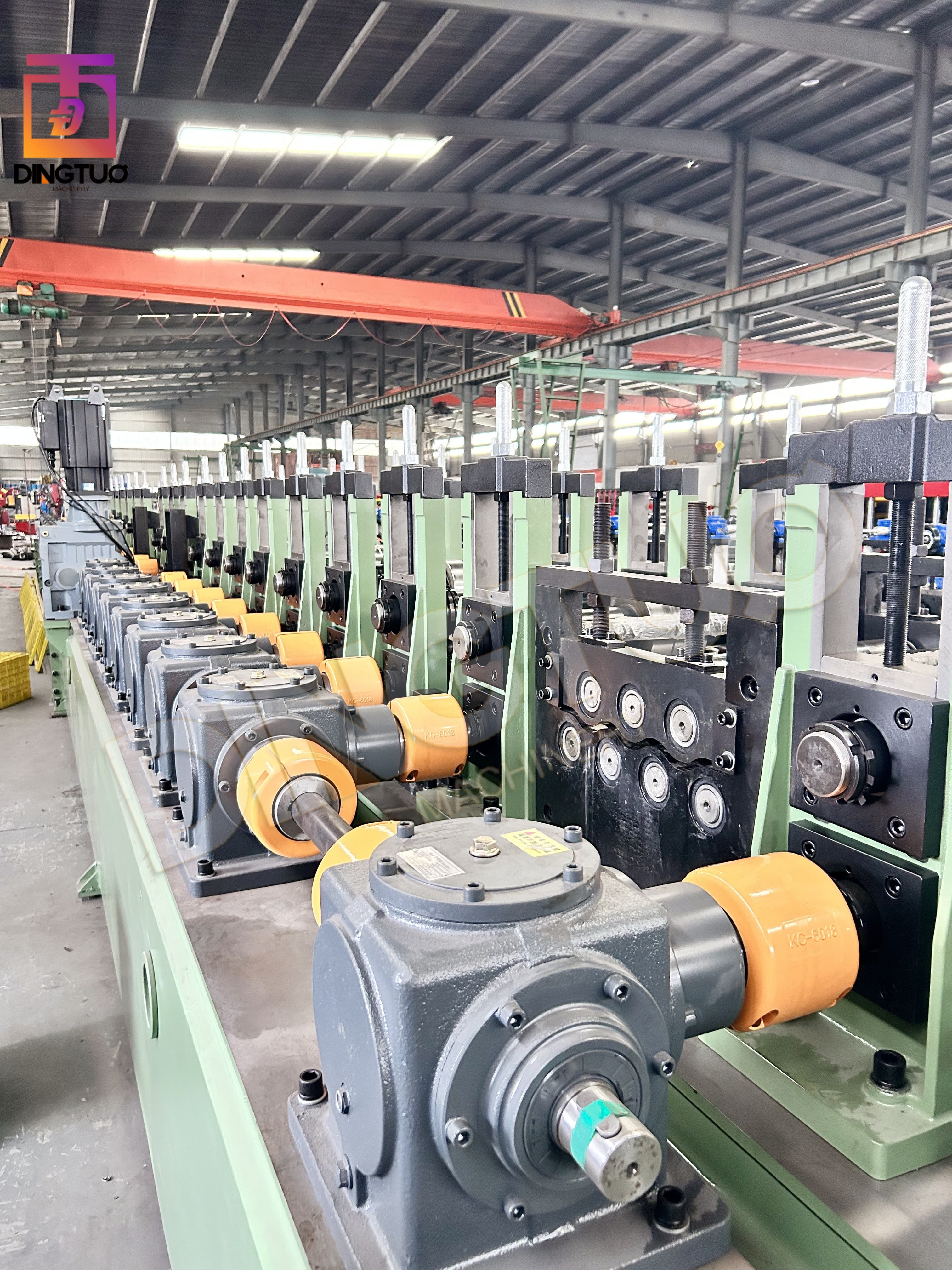

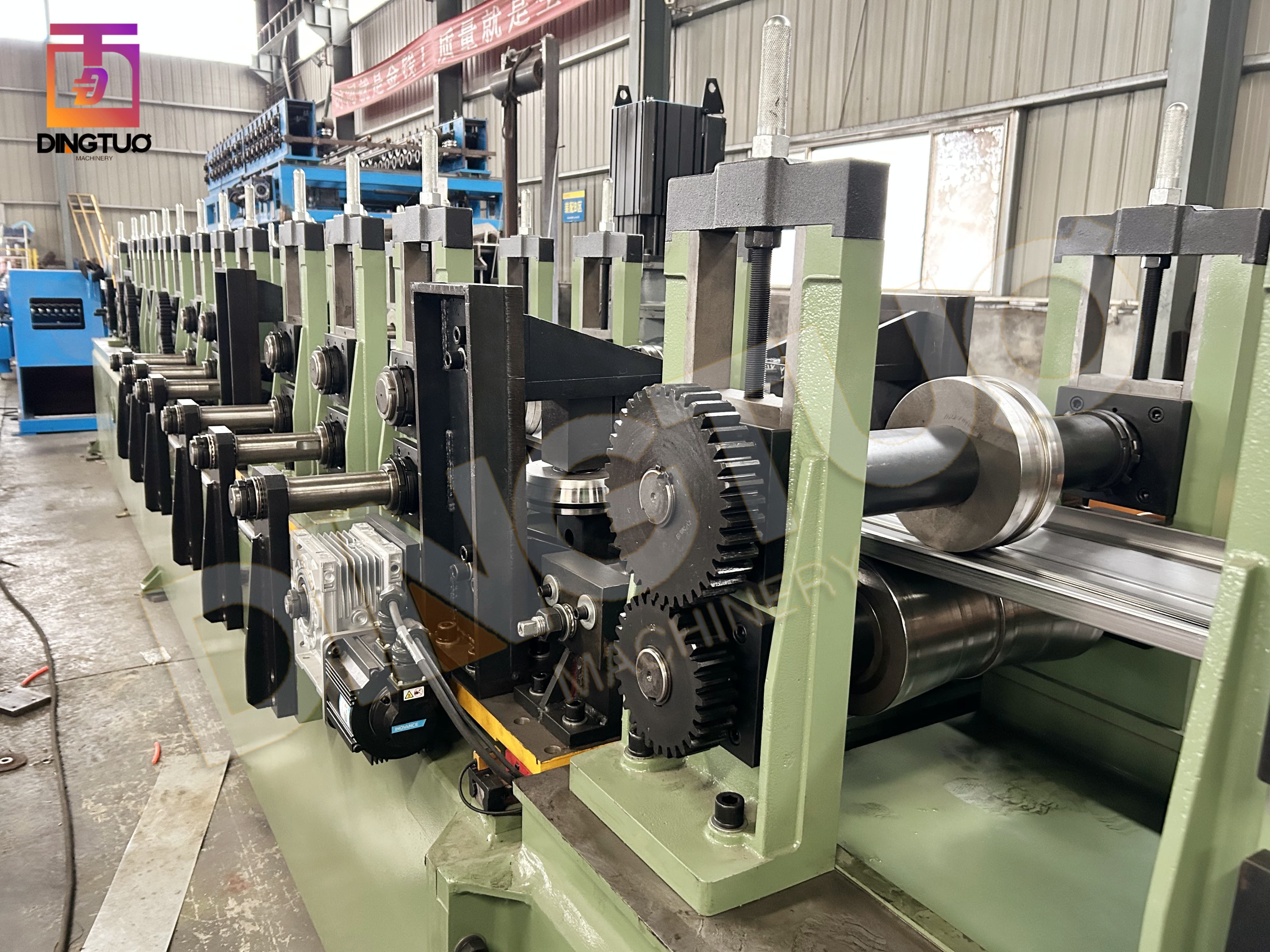

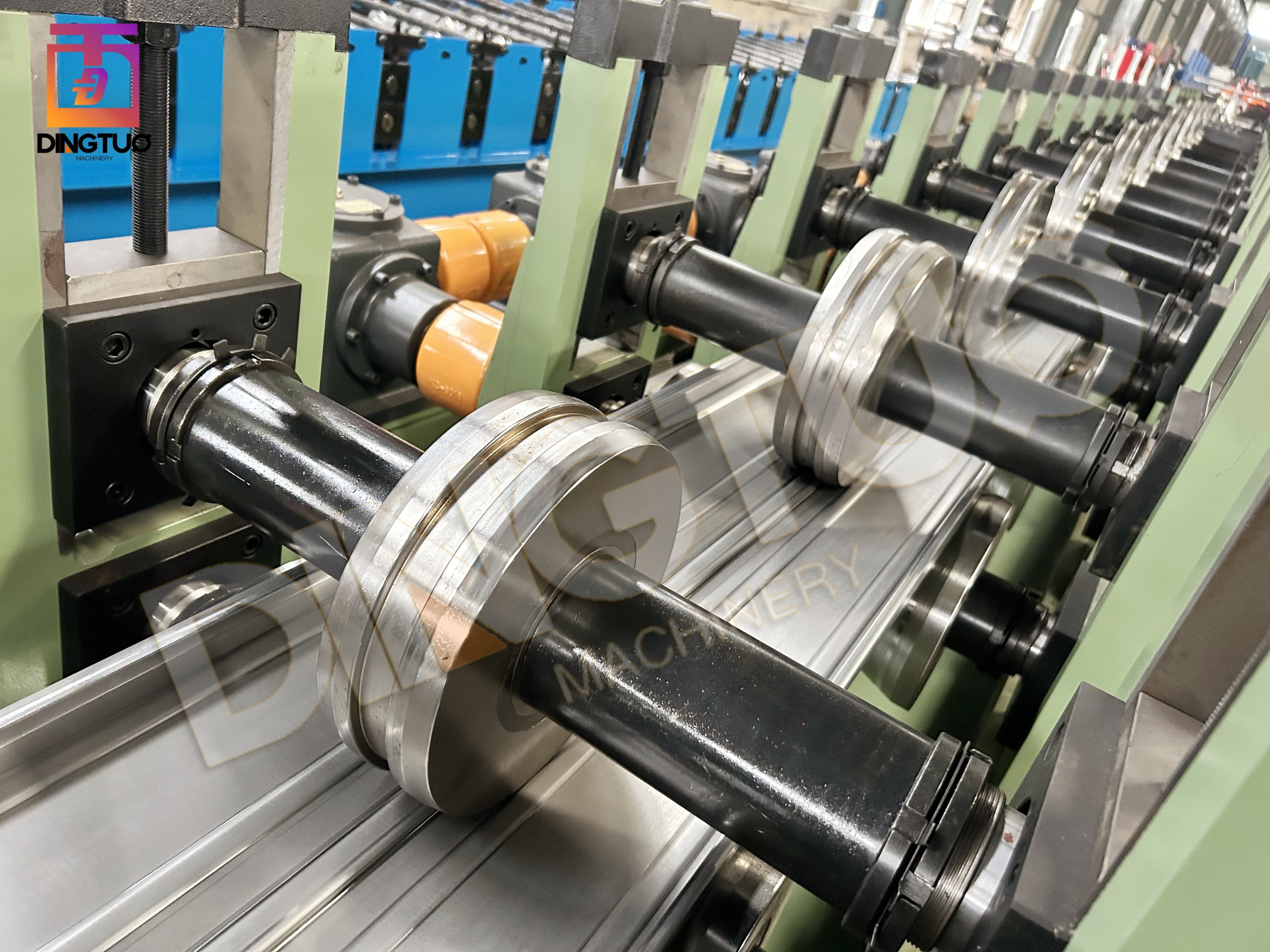

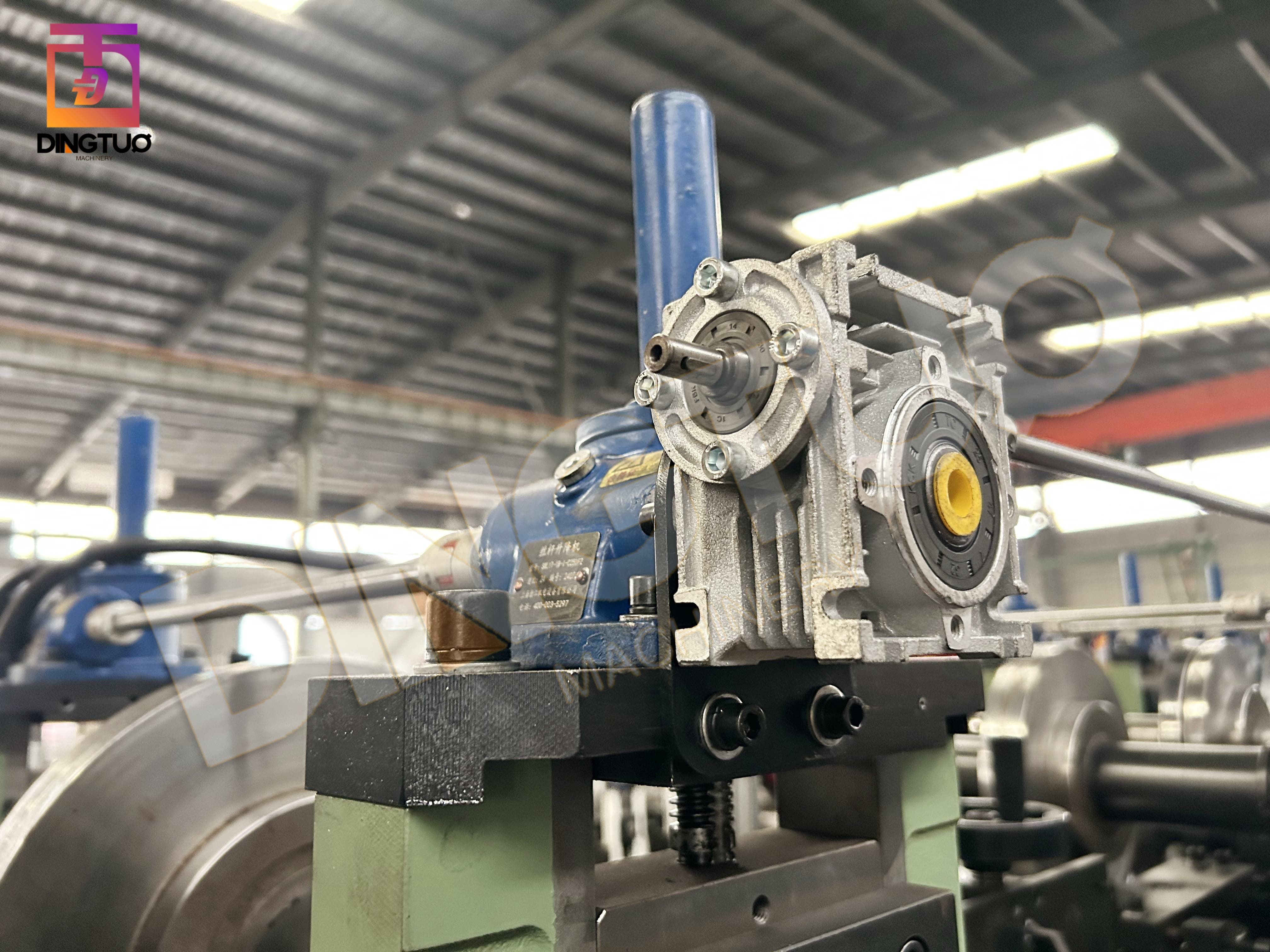

Forming Unit : Cast iron machine stands + gearboxes transmission + servo motor + automatic size changeable

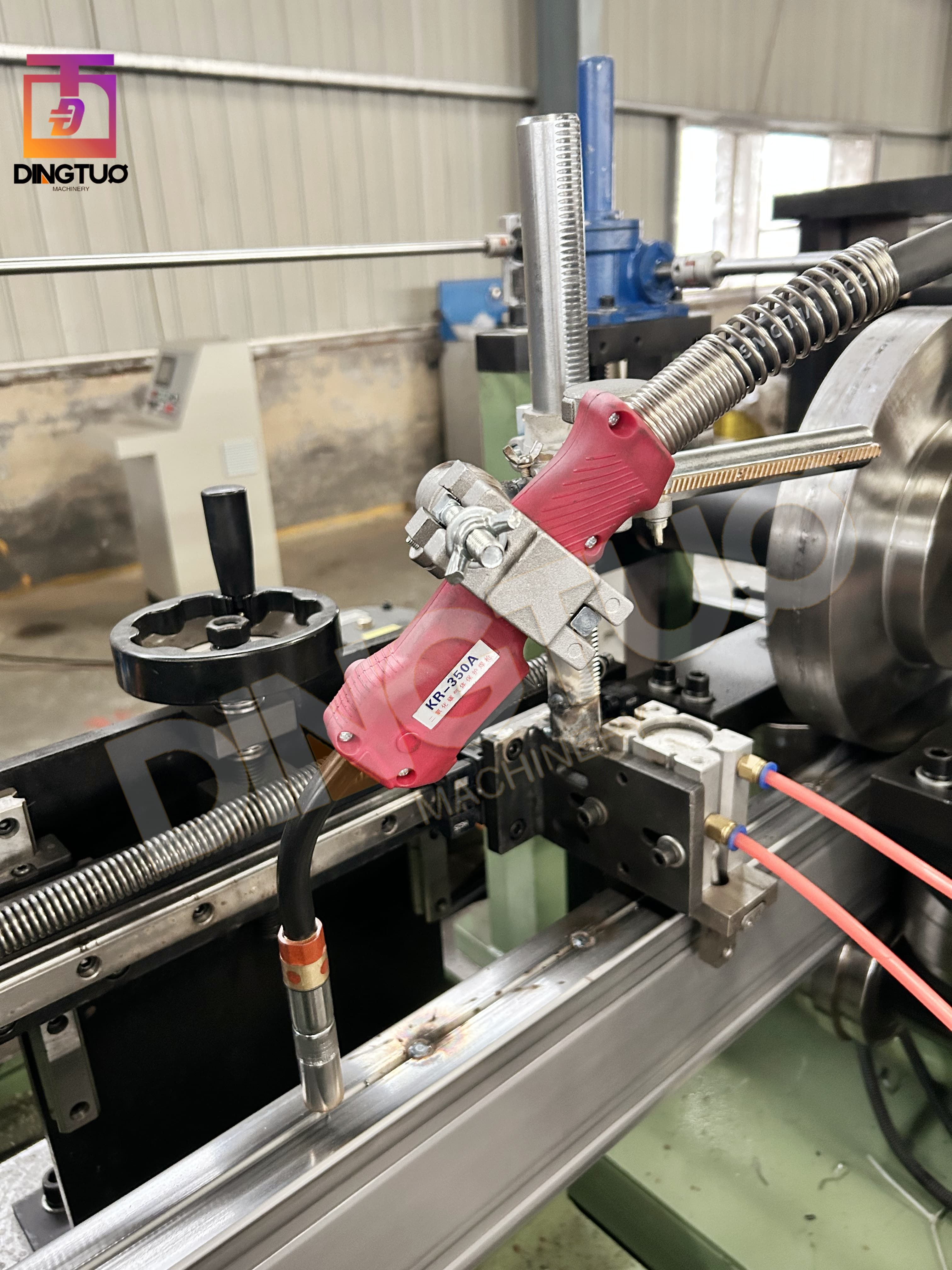

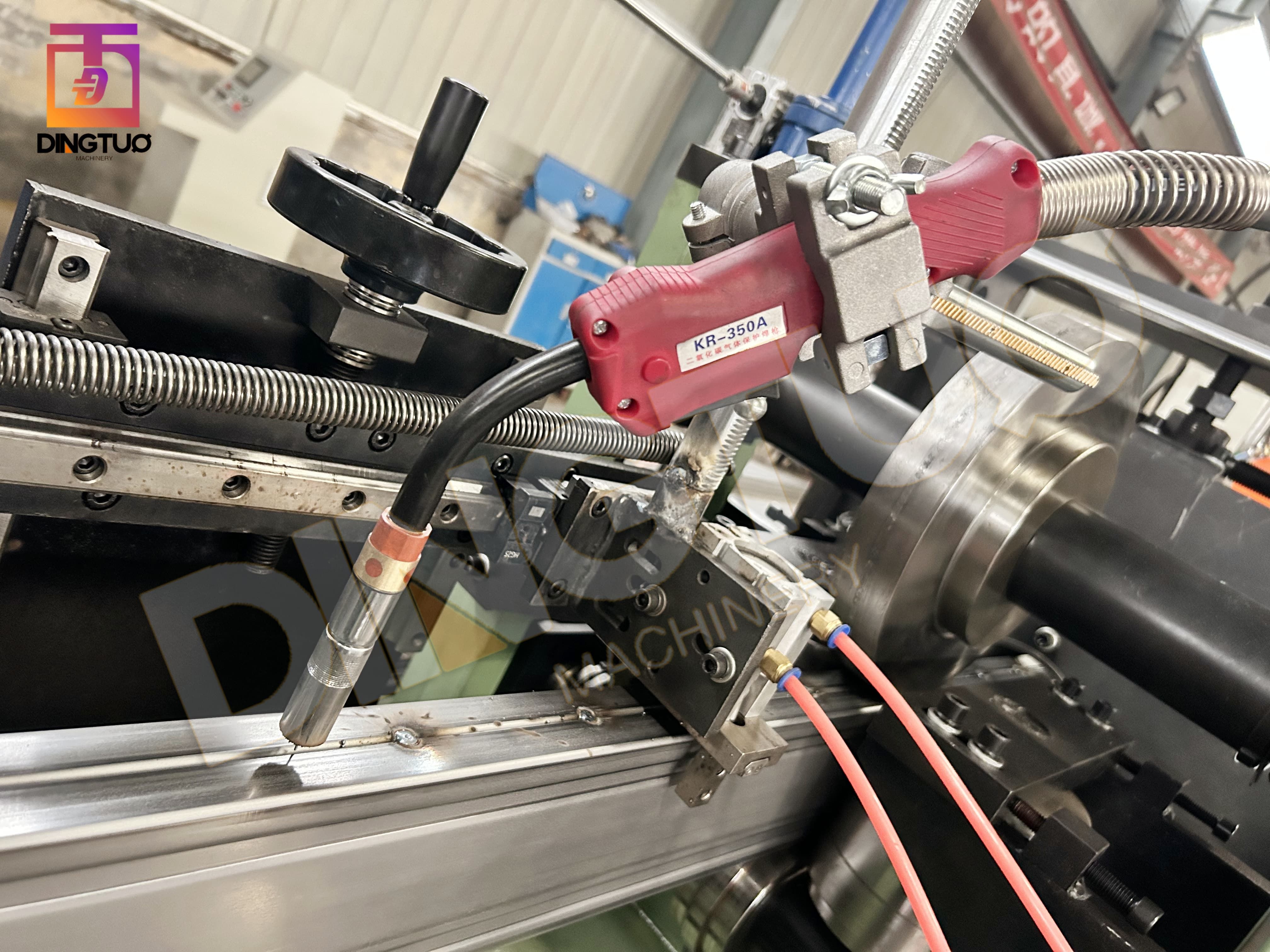

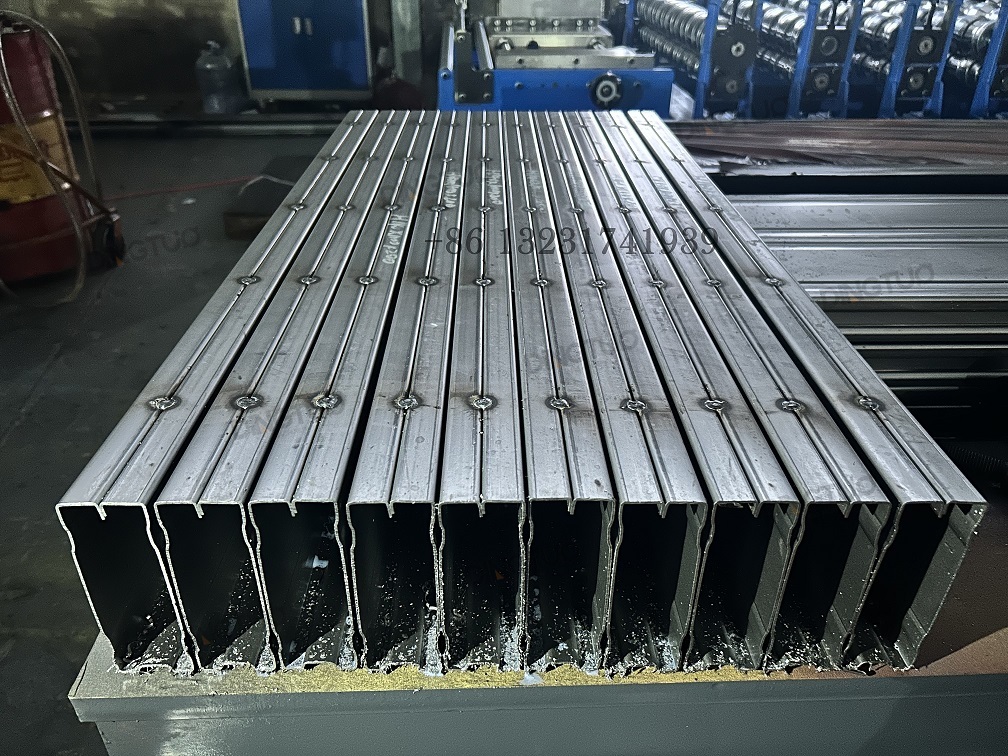

Carbon Dioxide Shielded Welding Unit

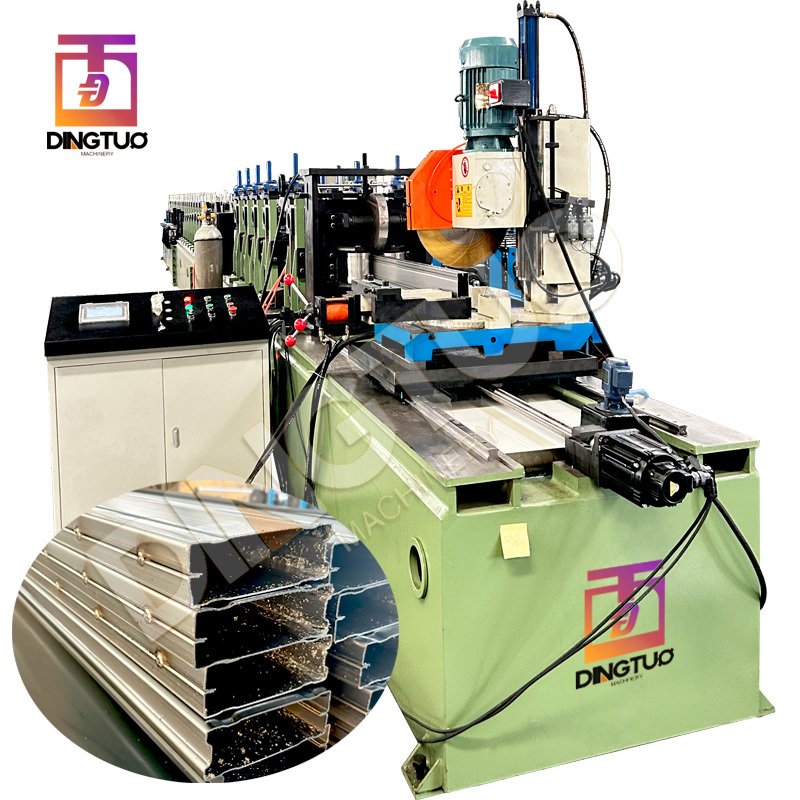

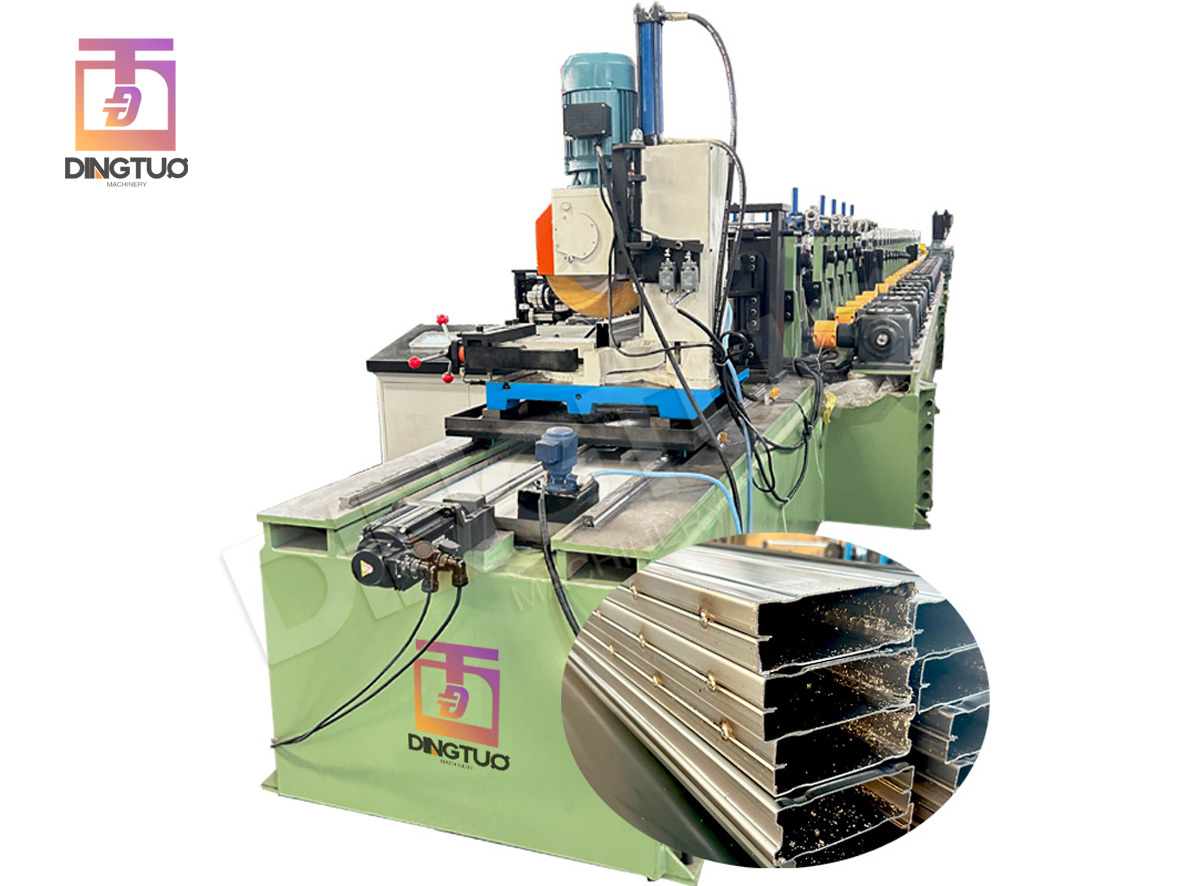

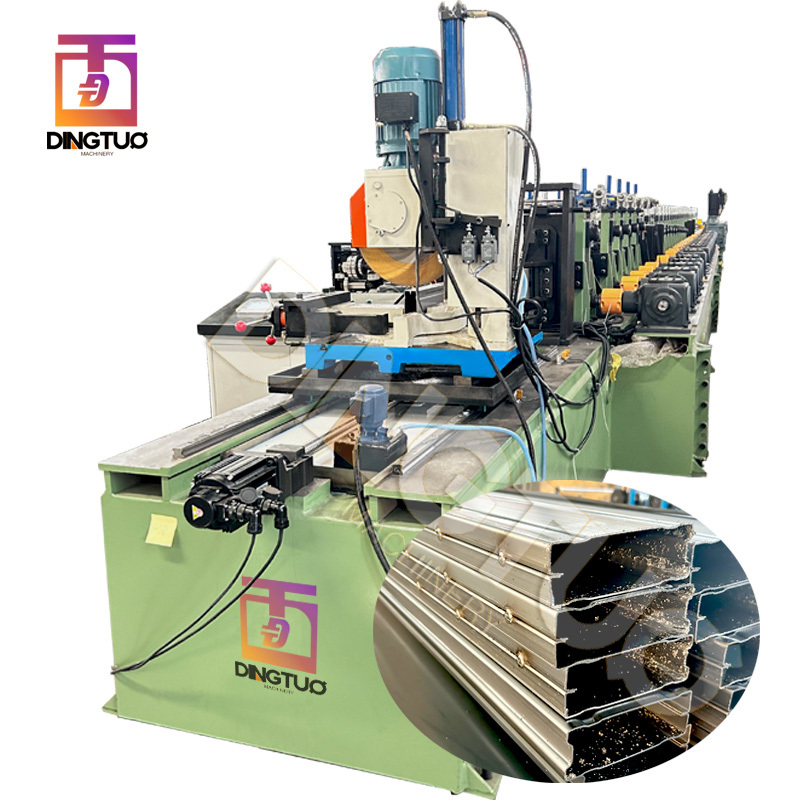

Servo Flying Cutting Unit
Run Out Table
MACHINE BASIC PARAMETER
No | Item | Parameter |
1 | Raw Material | GI , Q235 , 2mm |
1 | Decoiler | 1. Feeding method: passive feeding 2. Rolling method: manual tightening 3. Suitable coil inner diameter: φ508mm 4. Suitable coil outer diameter:<φ1400mm 5. Load: 1.5/2.5/3/5...customized tons |
2 | Profile Size | 80 100 120 140 ADJUSTABLE automatically |
3 | Side stands’ thickness | cast iron |
5 | Forming station | 28 |
6 | Total Power | 15 kw (K serious main motor power) |
7 | Mill bed material | whole iron plates / 150*150 square tubes welded H beam/ ....customized .. |
8 | Voltage | 380 V 50HZ 3 phases 220V /415V/ 480V ....customized |
9 | Diameter of shaft | 75mm diameter solid shafts customized as profile sizes and thickness and material |
10 | Cutting type | Automatic shear |
11 | Forming Shaft | Material : 45# steel. Processing technology: quenching and tempering treatment HB210-230 + lathe rough turning + CNC lathe fine turning shape + milling machine processing keyway and round nut stop groove. |
12 | Forming Roller | Material: Cr12 steel, processing technology: fine turning + wire cutting keyway + surface polishing and hard chrome plating. |
13 | Cutting Blade | Material : Gcr15/ Cr12.....customized processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape. |
14 | transmission | gears/ gearboxes customized as client needed |
15 | Run Out table Length | 6m |
16 | PLC Brand | DELTA/XINJIE Brand.... customzied |
17 | Touch Screen Brand（HMI） | DELTA/XINJIE Brand.... customzied |
18 | Frequency Brand | DELTA/XINJIE Brand.... customzied |
20 | Electrical motor | Top brand , quality tested, stable Performance. |
21 | Encoder | OMRON Brand with aluminum bracket |
22 | Low-voltage electrical | Schneider Brand |
23 | Machine rough size | L 15m * W 1.5m * 1.8m |
24 | Machine rough weight | 20,000 KGS |
25 | Machine with anchor bolts | can level the machine on the ground |
Spare Part
No. | Name | Quantity | Country |
1 | Encoder | 1pcs | China |
2 | Encoder wheels | 2pcs | China |
3 | bearings | 2pcs | China |
4 | sensors | 2pcs | China |
5 | Oil tubes | 2pcs | China |
6 | nuts | 5pcs | China |
7 | Tool Box | 1 Set | China |
