Flying Cut CHC Drywall Partition Wall Channel Soundproof Channel Roll Forming Machine

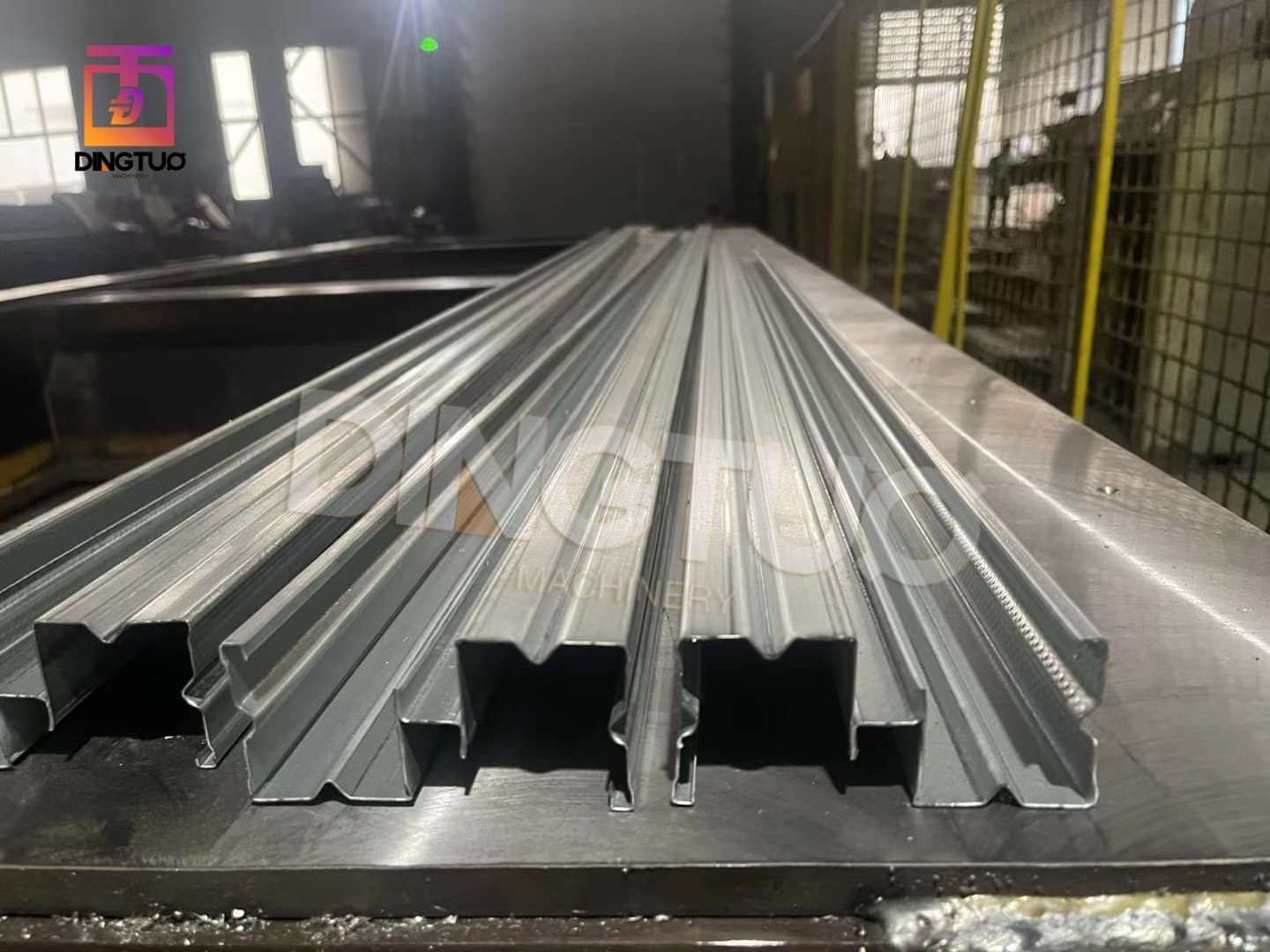

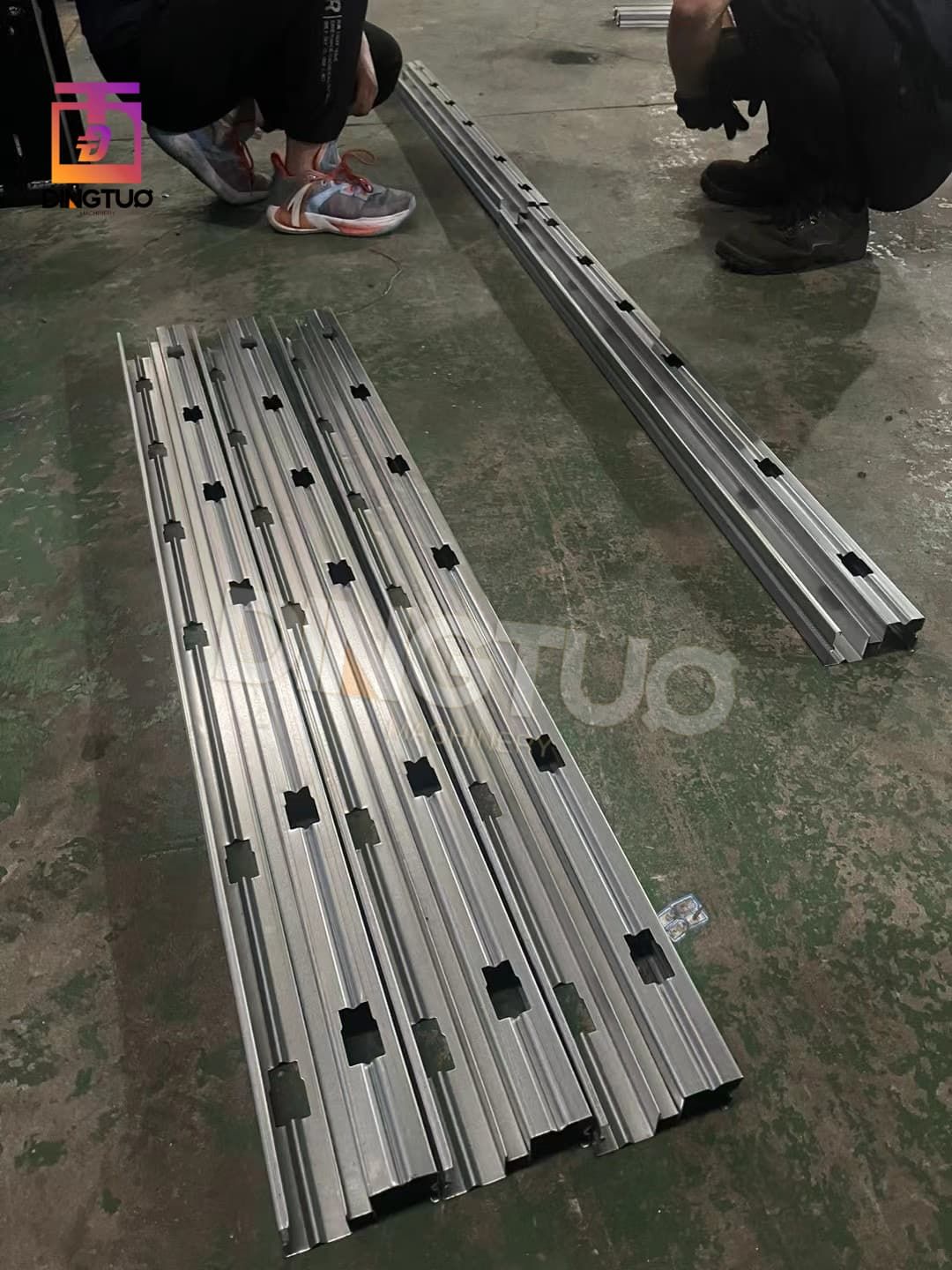

Metal Drywall CHC Soundproof Stud Channel Roll Forming Machine Introduction

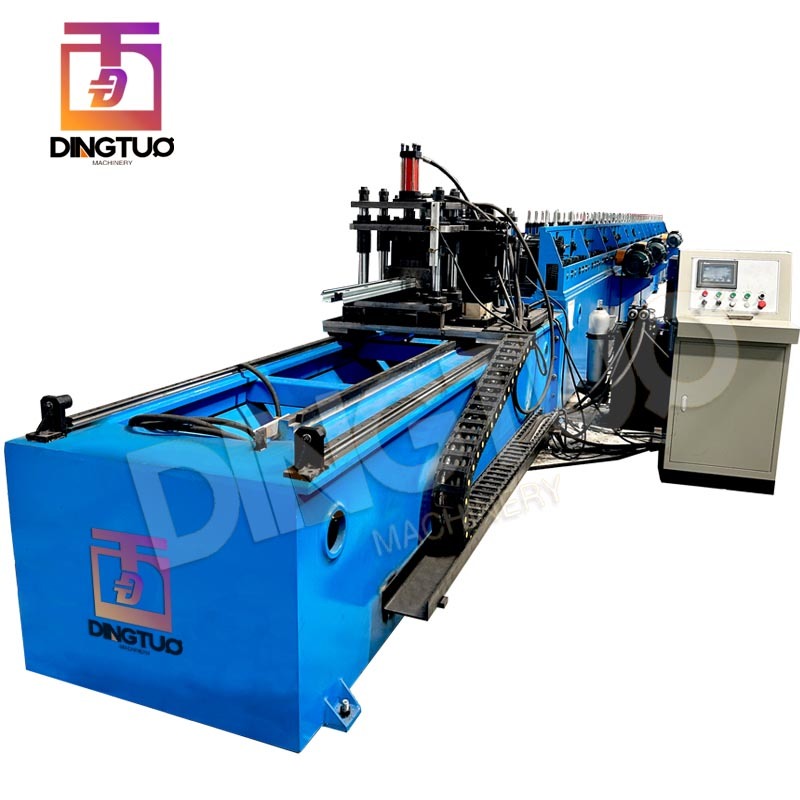

This is a CHC type partition wall channel / soundproof channel light gauge steel roll forming machine. In order to meet the high productivity requirements of our clients, this machine is equipped with a flying punch unit and flying cut unit, allowing it to achieve speeds of up to 45-50m/min. The machine features a sturdy and durable structure, with a base frame made of welded iron plates, machine stands cast from iron, and gears transmission with high structural strength. The rollers are made of Cr12, ensuring excellent performance and durability. All of these components come together to create a machine that is both stable and of high quality.
Machine Components
NO. | Description | Quantity (set) |
1 | 1.5 T/2.5T/3T/5T...customized(manual/hydraulic/electric) decoiler | 1 |
2 | Feeding Platform | 1 |
3 | Forming system | 1 |
4 | Transmission system | 1 |
5 | Automatic flying punch and flying Cut unit | 1 |
6 | Run-out table | 1 |
7 | Hydraulic pump station | 1 |
8 | Electric Control Cabinet | 1 |
9 | Spare parts and tools | 1 |

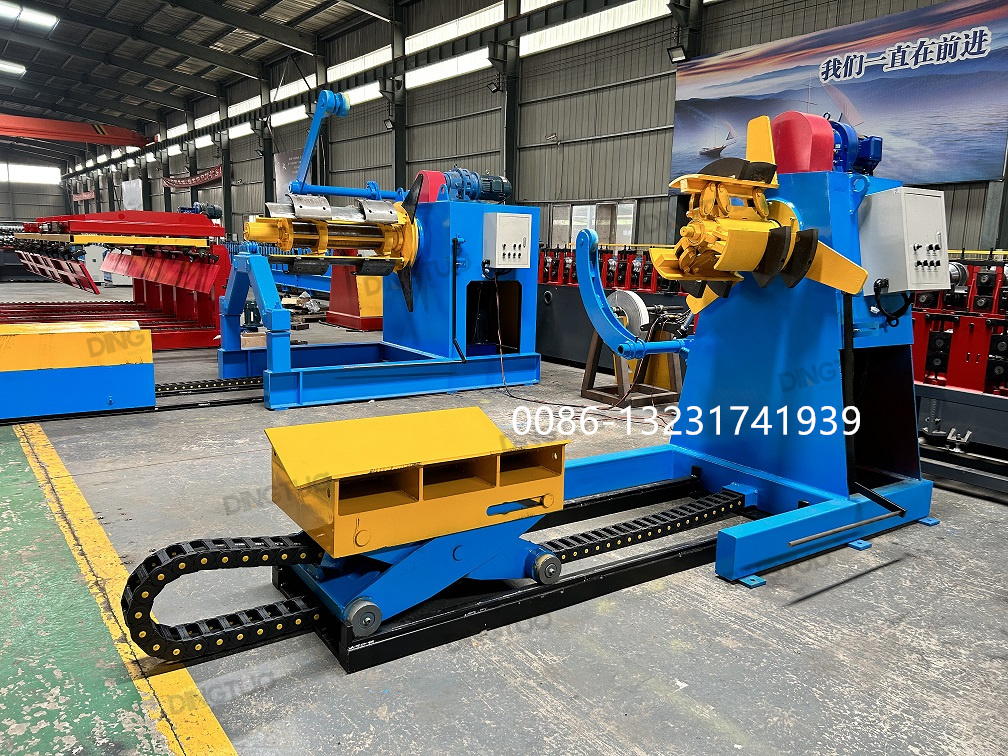

1.Machine Decoiler :
There had hydraulic decoiler/ electric decoiler / manual decoiler for your choice

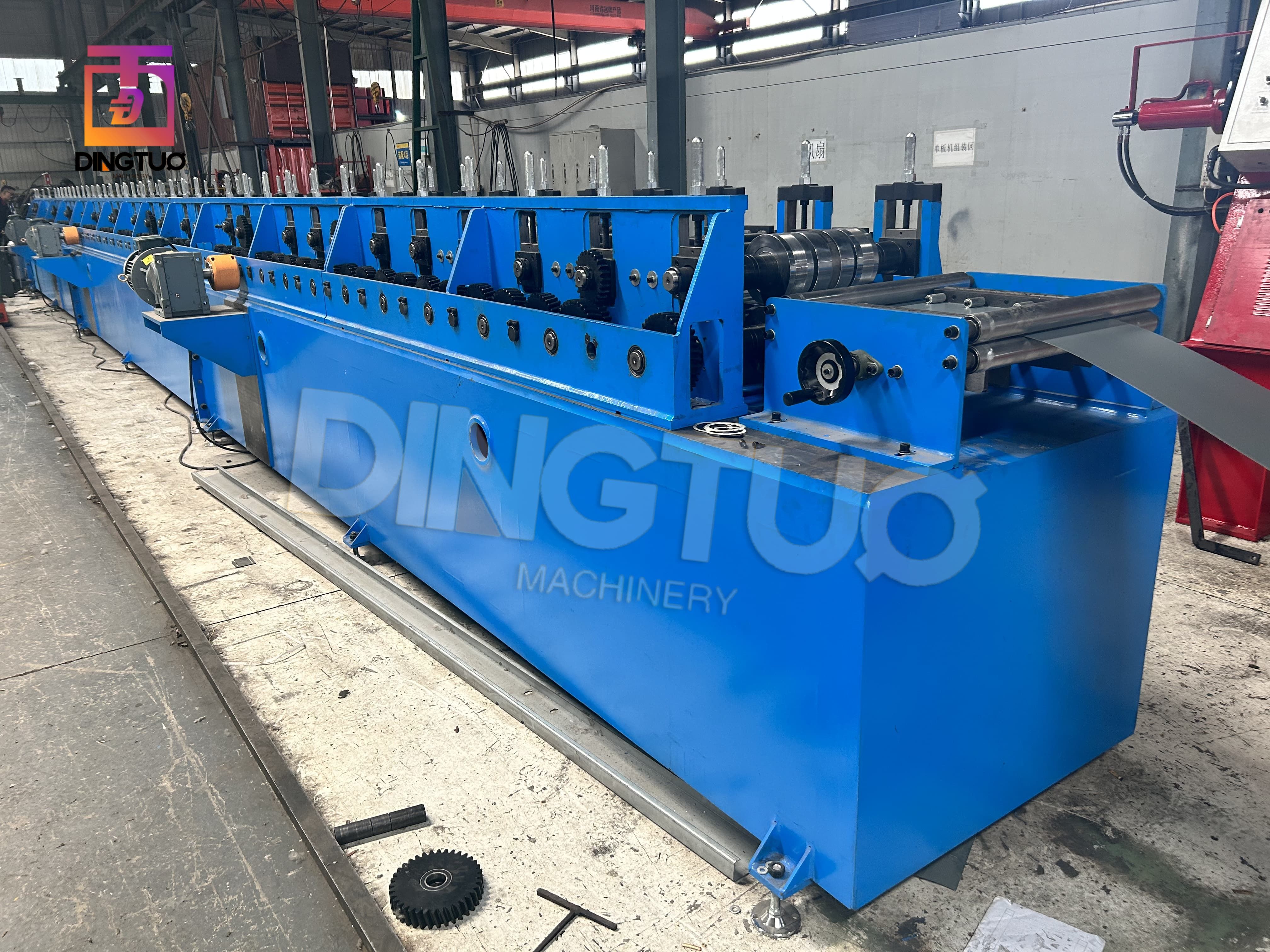

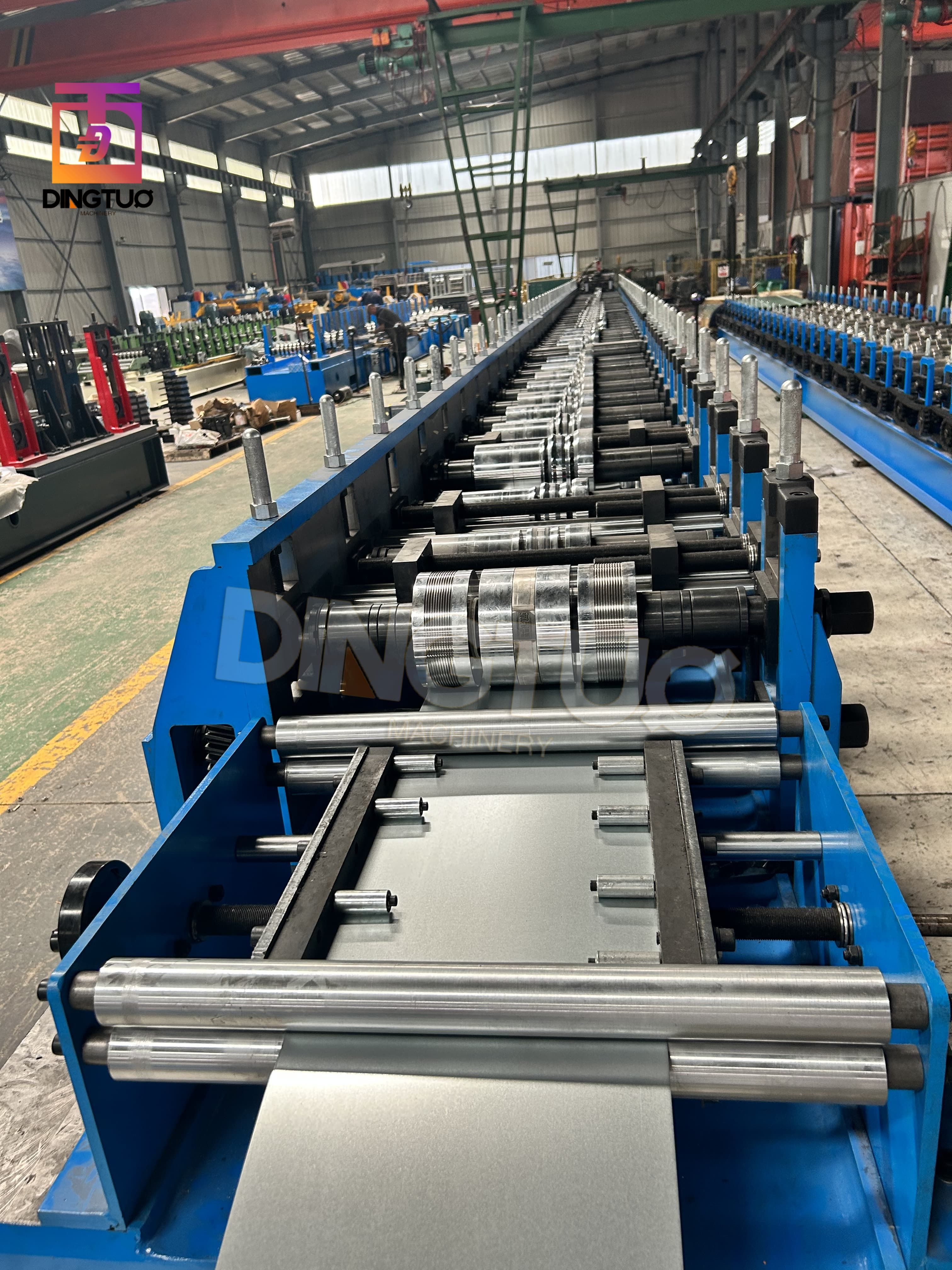

2.Machine Forming:
2.1 . 45 stations ( according to client's profile and material and material thickness)

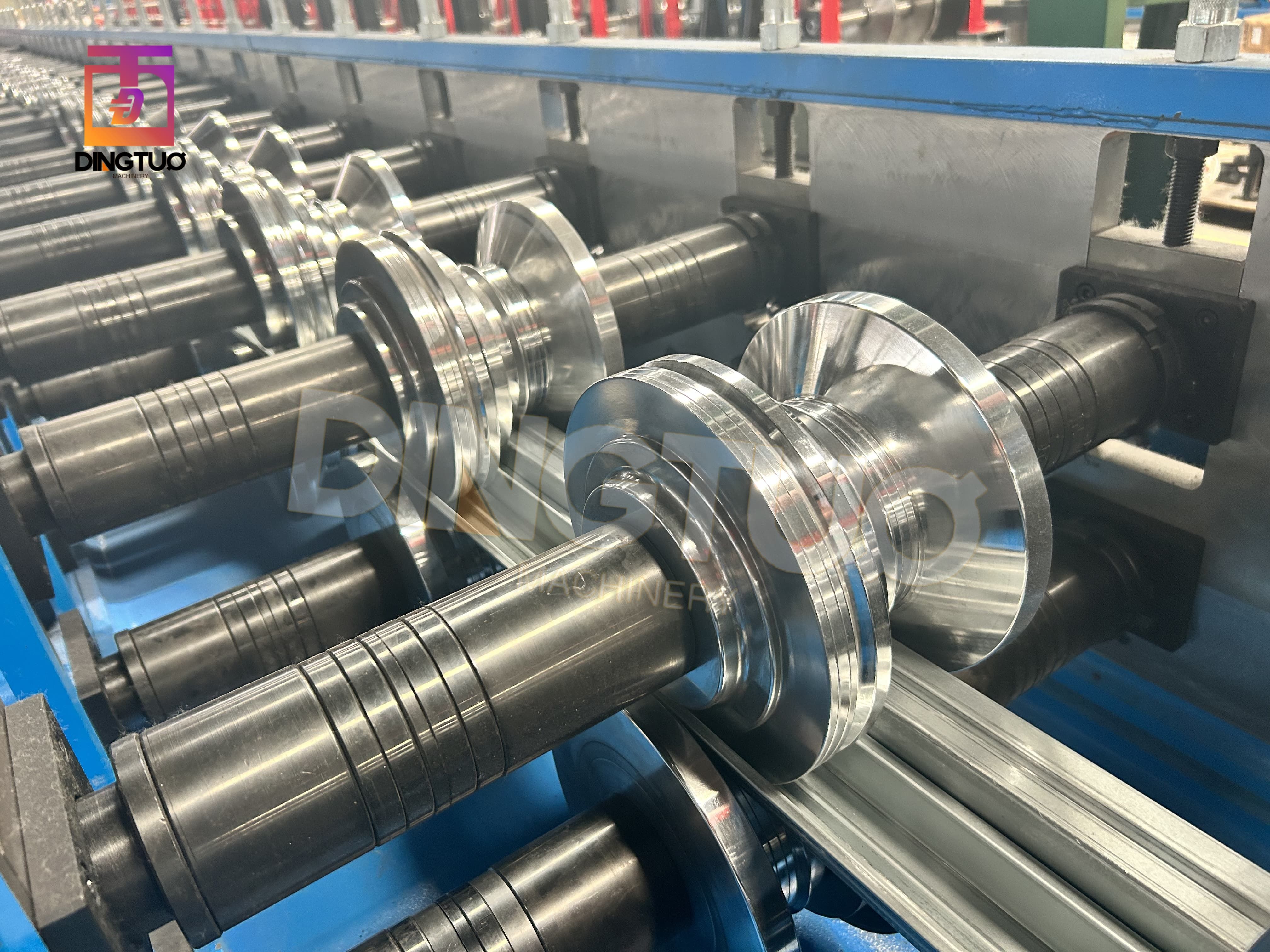

2.2. Cr12mov rollers ( hardness HRC 58-62 degrees, the best wear-resistance roller material )
2.3. Cast iron machine stands ( One-piece casting, strong and durable）
2.4. Whole iron plates welded base frame （ square tube welded as inside frame and then put 8mm iron plates as outer frame and then above the frame , will put 25mm thickness iron plates as paving plates to put machine stands and gears.... which will do CNC milling . The best frame type )
2.5. Gears transmission ( our type is high-cost type , check pictures )
2.6. K serious gears type reducer ( runnign stable , low noise )

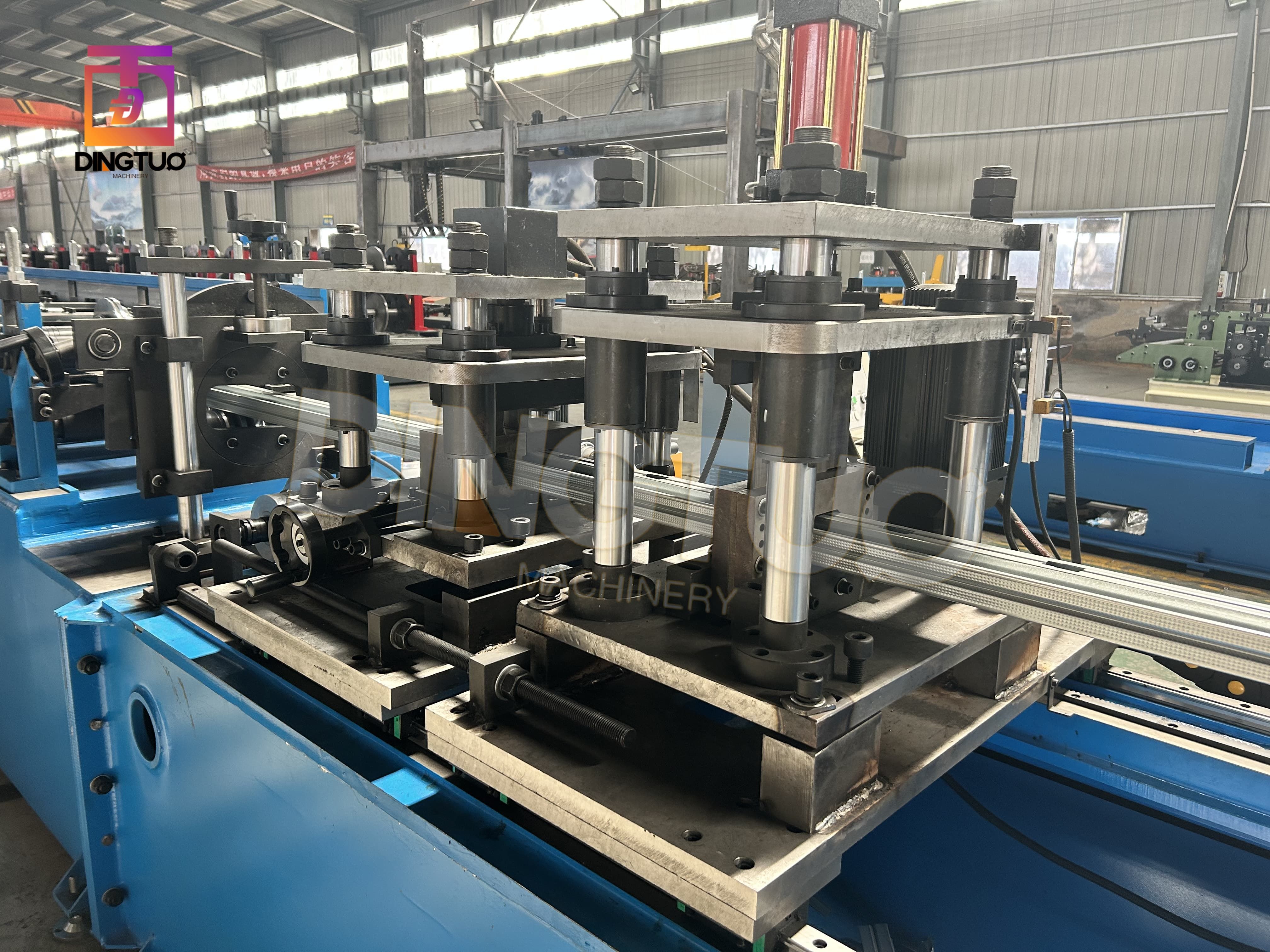

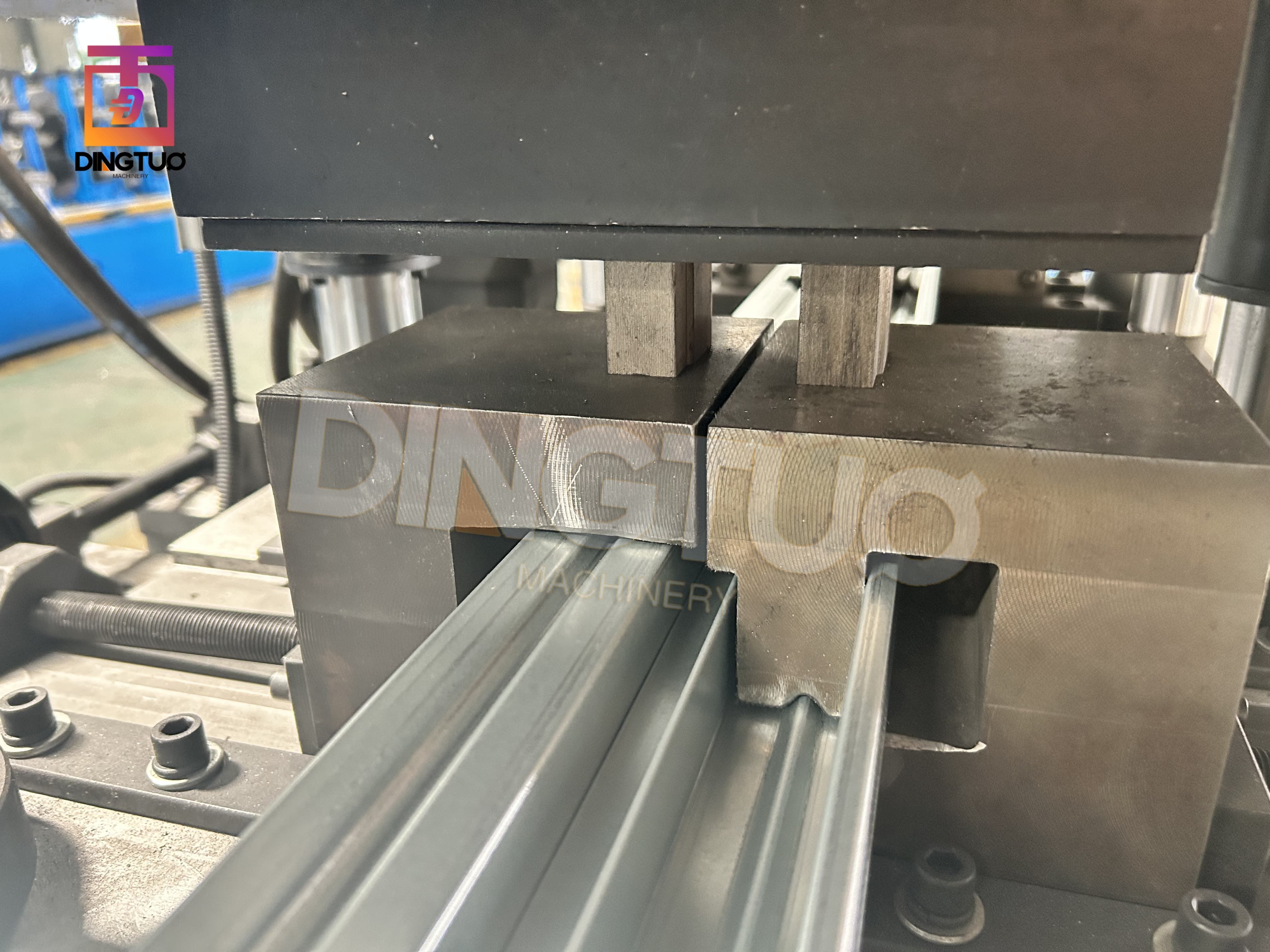

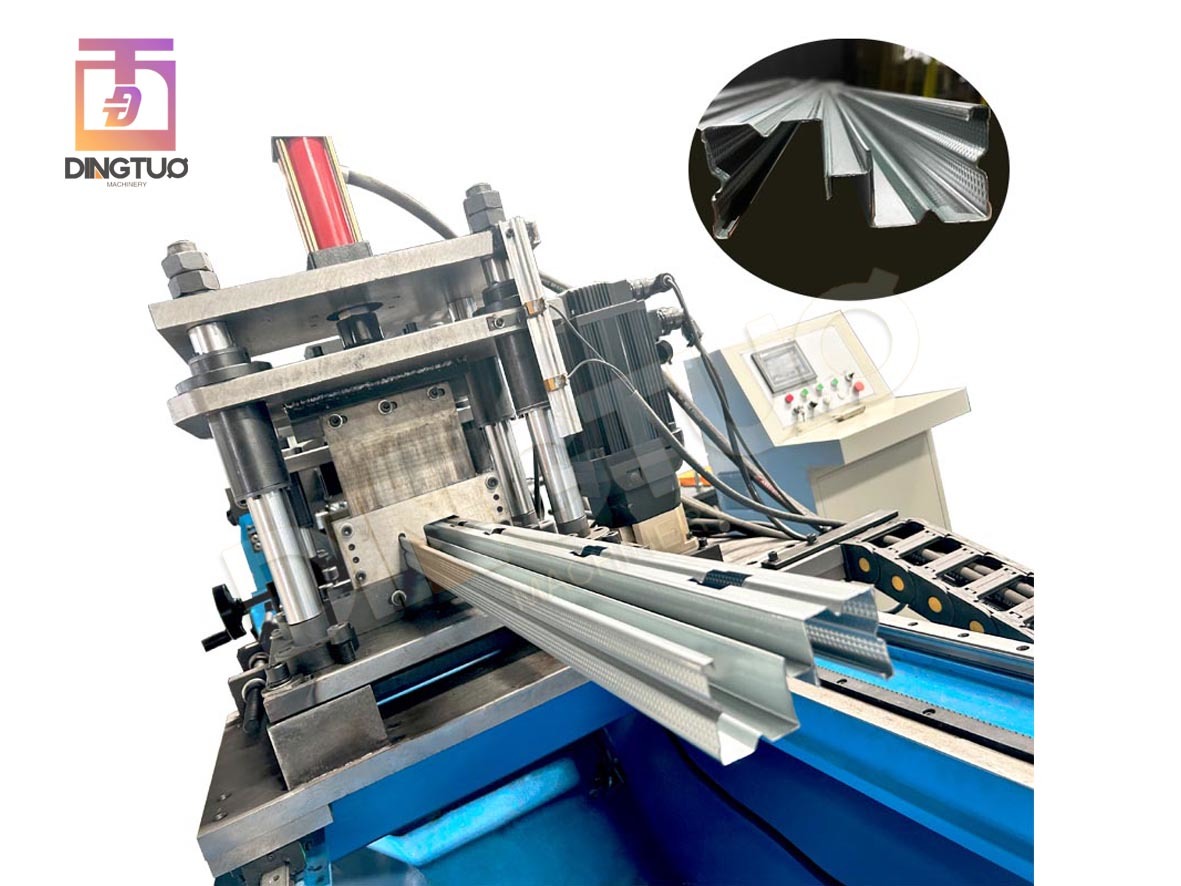

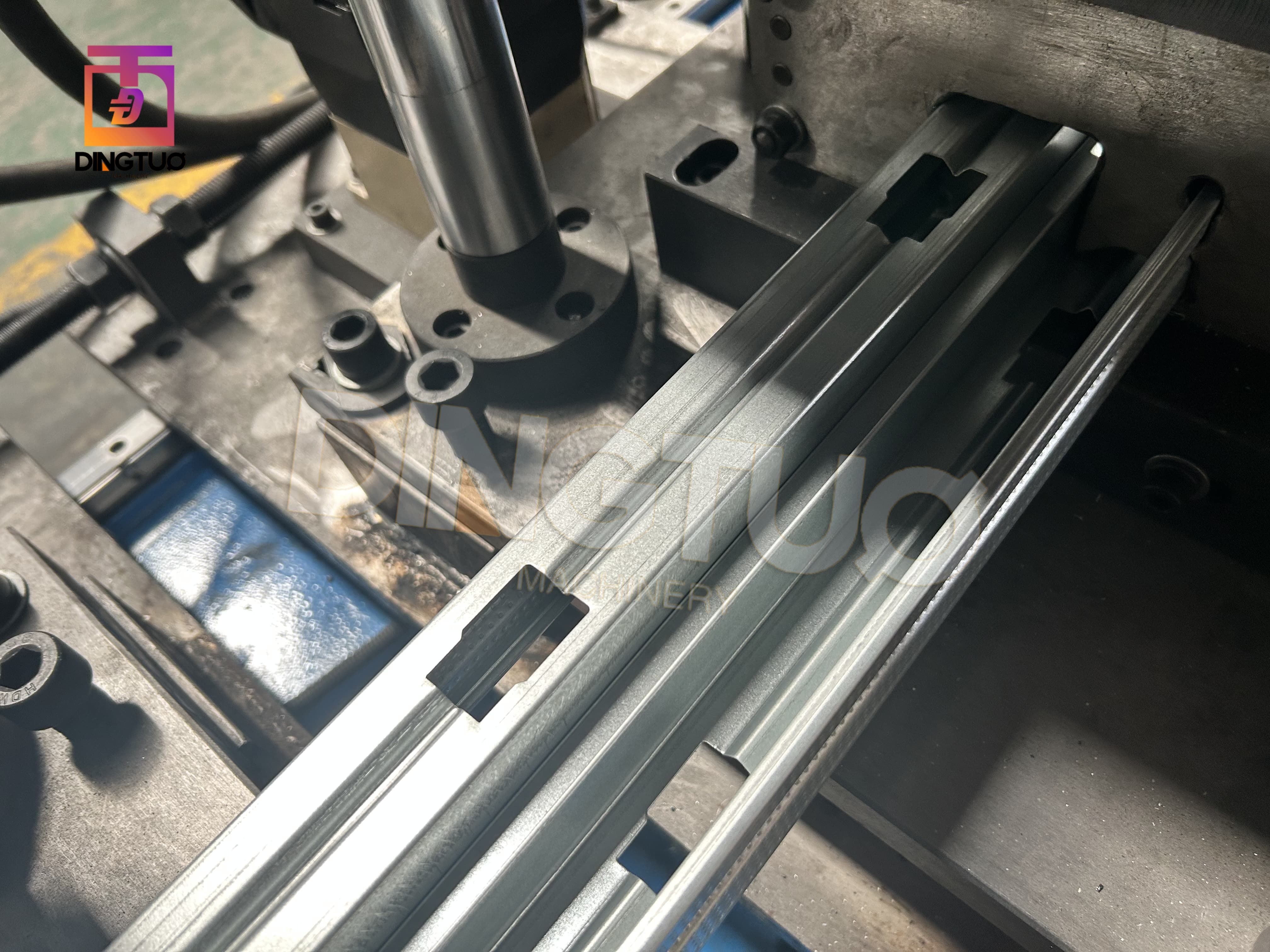

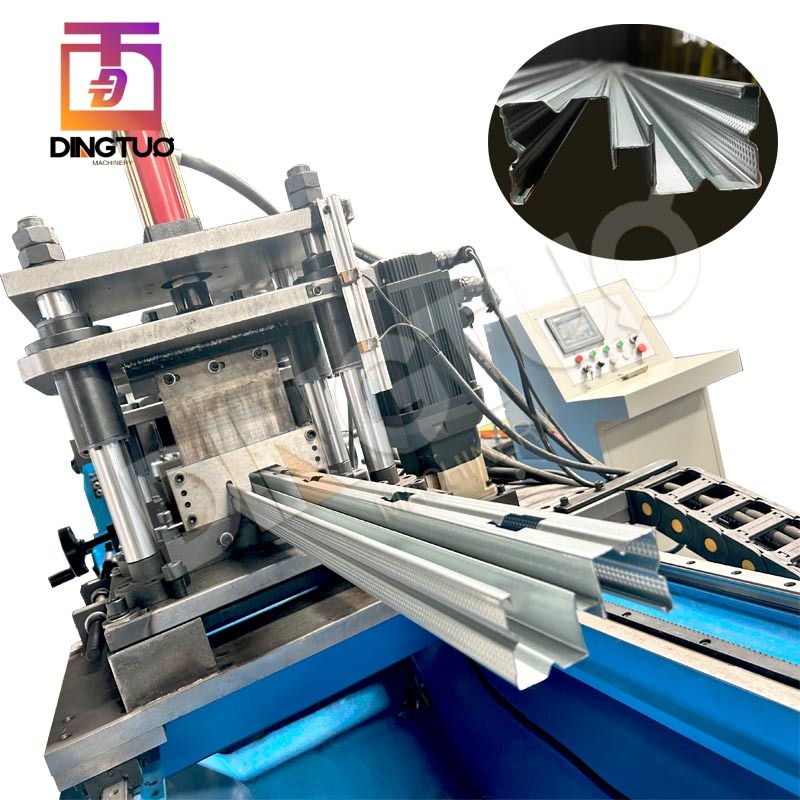

3. Machine Flying Punch And Flying Cut Unit
4. Machine run out table :L 3m which was made of thicker square tubes . High quality
5. Machine Spare Parts
No. | Name | Quantity | Country |
1 | Encoder | 1pcs | China |
2 | Encoder wheels | 2pcs | China |
3 | bearings | 2pcs | China |
4 | sensors | 2pcs | China |
5 | Oil tubes | 2pcs | China |
6 | nuts | 5pcs | China |
7 | Tool Box | 1 Set | China |
