USA Used 3'' Metal ridge cap roof flashing machine

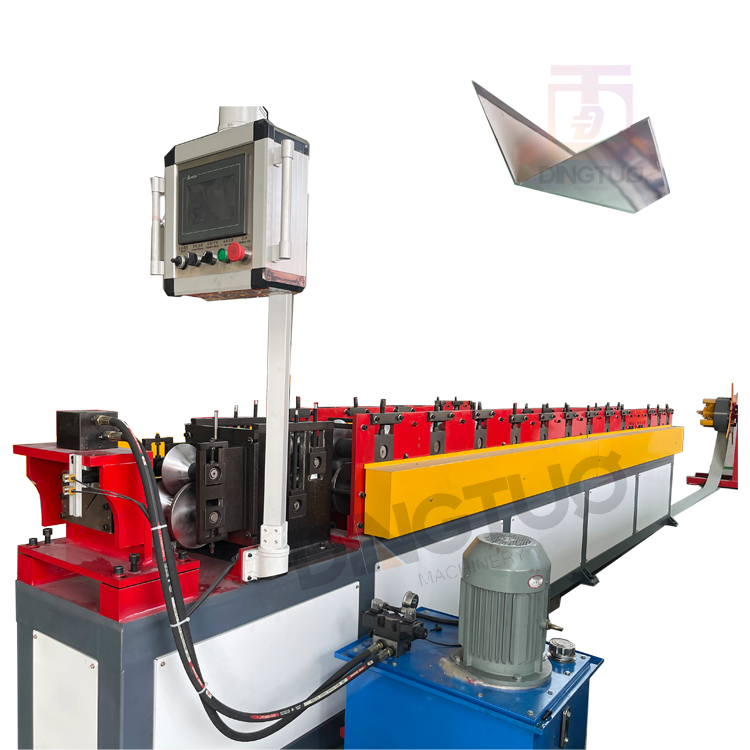

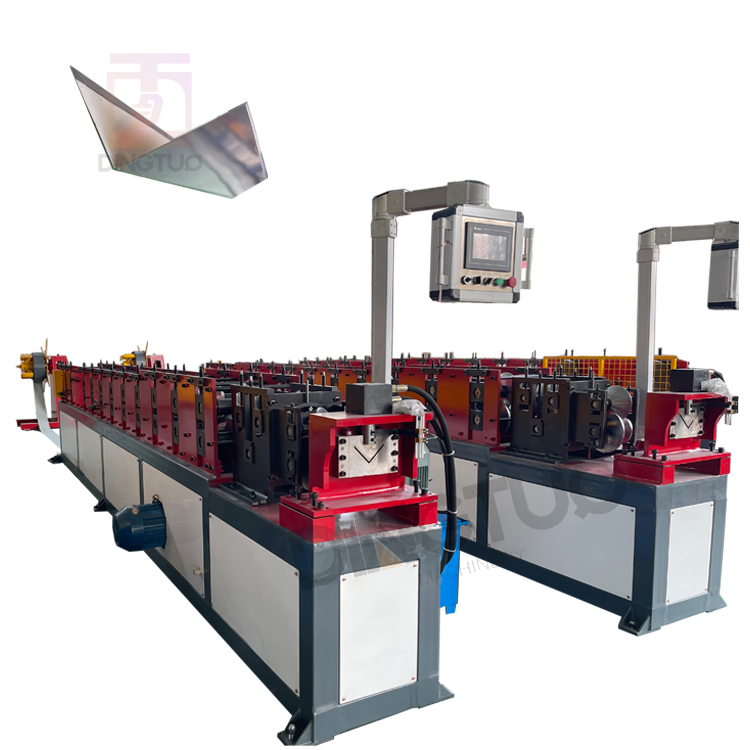

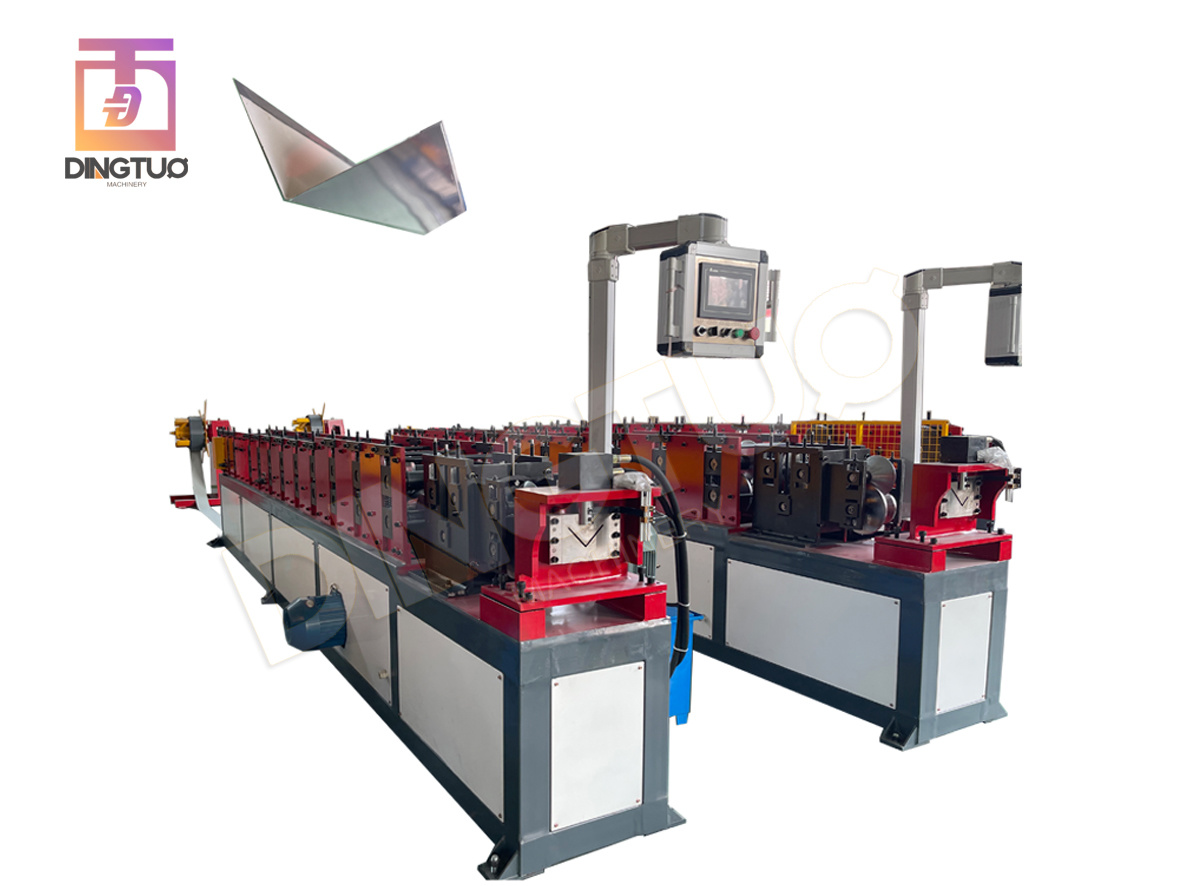

METAL ROOF RIDGE L TRIM FLASHING MACHINE

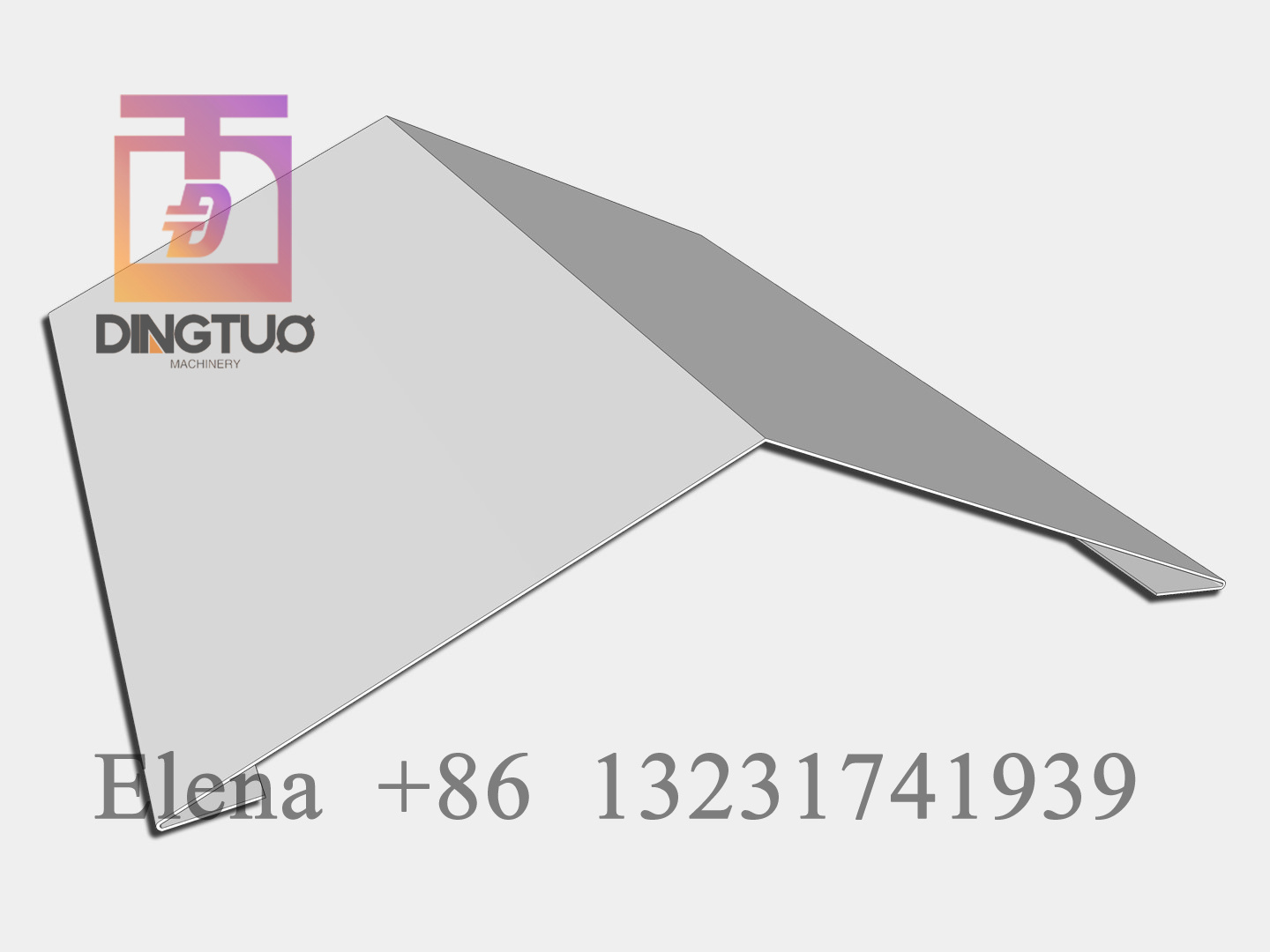

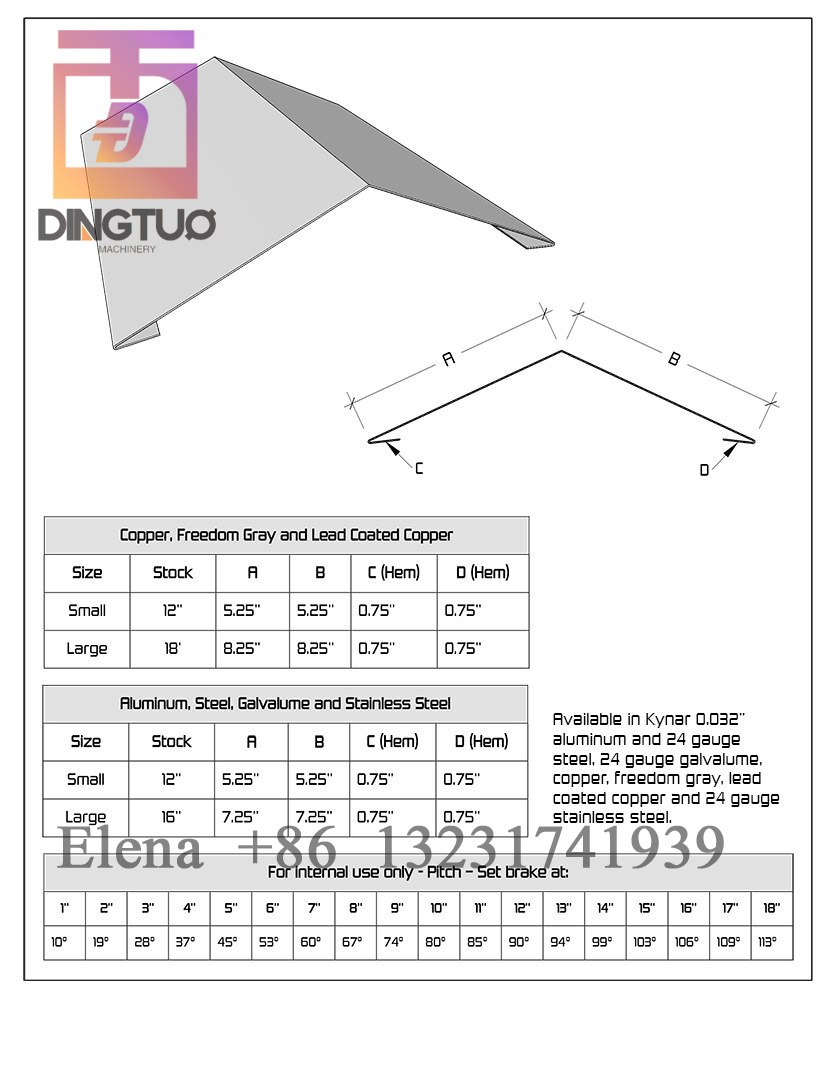

This is one 3'' metal roof ridge cap L shape flashing roll forming machine. The sheets are very popular in America .... ridge cap flashing profile sizes support customization.
- Machine Outlet
NO. | Description | Quantity (set) | Remark |
1 | 1.5T manual decoiler | 1 |
|
2 | Feeding Platform | 1 | One complete unit as main machine |
3 | Forming System | 1 | |
4 | Transmission system | 1 | |
5 | Hydraulic Cutting System | 1 | |
6 | Run-out table | 1 |
|
7 | Hydraulic pump station | 1 |
|
8 | Electric Control Cabinet | 1 |
|
9 | Spare parts and tools | 1 | As attaching list |
Machine Parameters
No | Item | Parameter |
1 | Raw material | PPGI |
2 | Thickness | 0.3-0.6mm |
3 | Feeding width/coil width | customized |
4 | Useful width | customized |
5 | Side stands’ thickness | 16mm |
6 | Forming Speed | 15m/min |
7 | Forming station | 12 stations |
8 | Total Power | 5.5 kw (main motor power) +4 KW(hydraulic pump station motor power) |
9 | Mill bed material | 350H beams welded ,8mm standard H beams’ thick |
10 | Voltage | 380 V , 50HZ, 3 Phases |
11 | Diameter of shaft | 70mm diameter solid shafts |
12 | Cutting type | Automatic hydraulic cutting with iron cast knife holder |
13 | Forming Shaft | 45# steel with grinding process |
14 | Forming Roller | 45# steel with hard chrome coating |
15 | Cutting Blade | Cr12 with hard treatment |
16 | Chain size | One inch |
17 | PLC | DELTA Brands |
18 | Frequency /Touch Screen | DELTA Brand |
19 | Electrical motor | SHANGHAI LICHAO brand |
20 | Encoder | OMRON Brand with aluminum bracket |
21 | Low-voltage electrical | SCHNEIDER Brands |
22 | Machine rough size | L5m*W0.8m*H1.5m |
23 | Machine rough weight | 2000 KGS |
24 | Machine with legs | Have which can level the machine on the ground |

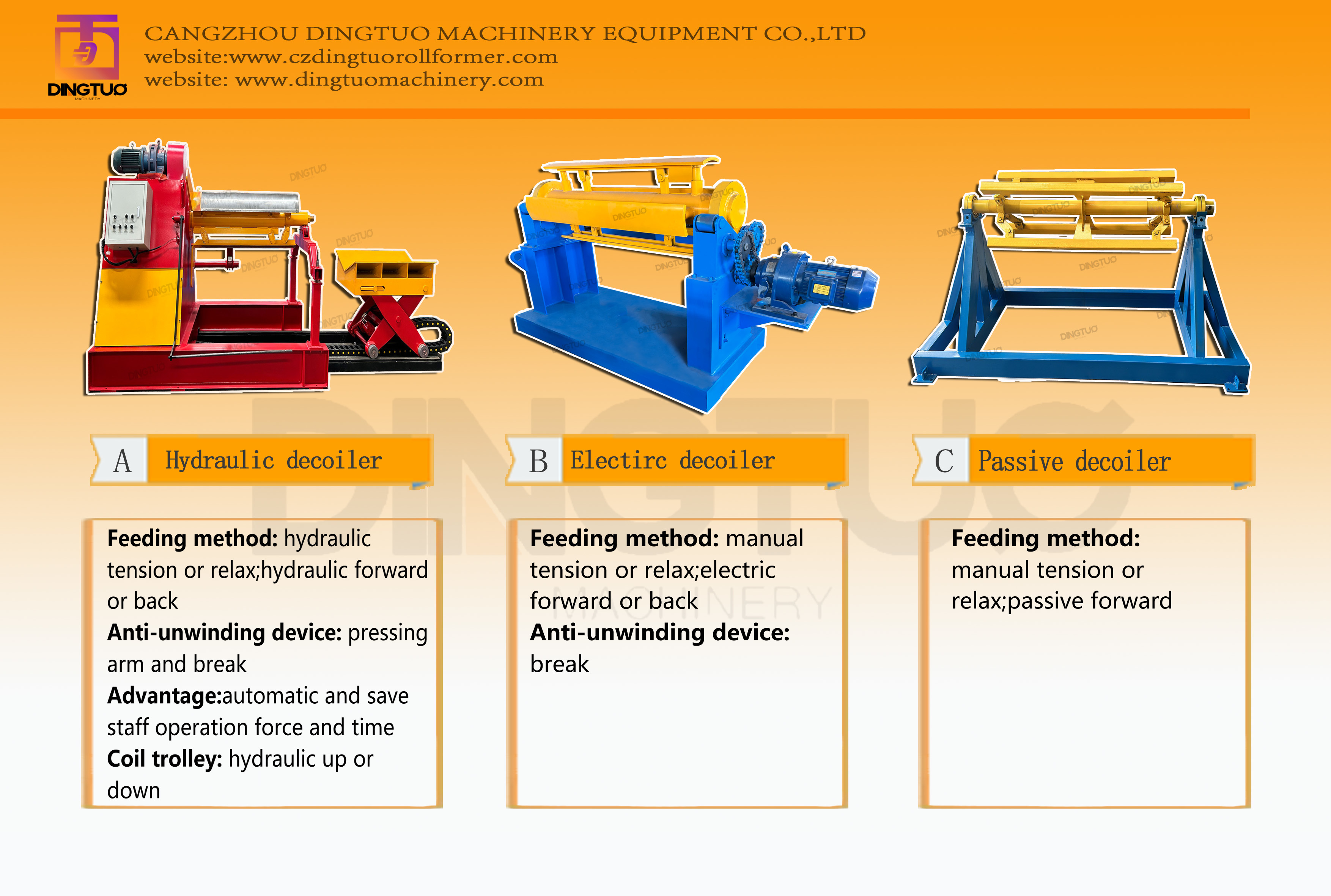

1.Decoiler :save operation time
there had hydraulic decoiler / electric decoiler/ manual standard decoiler can be chose
2.Pre-cutting unit :save materials
There had hydraulic pre-cutter / electric pre-cutter/ manual pre-cutter can be chose

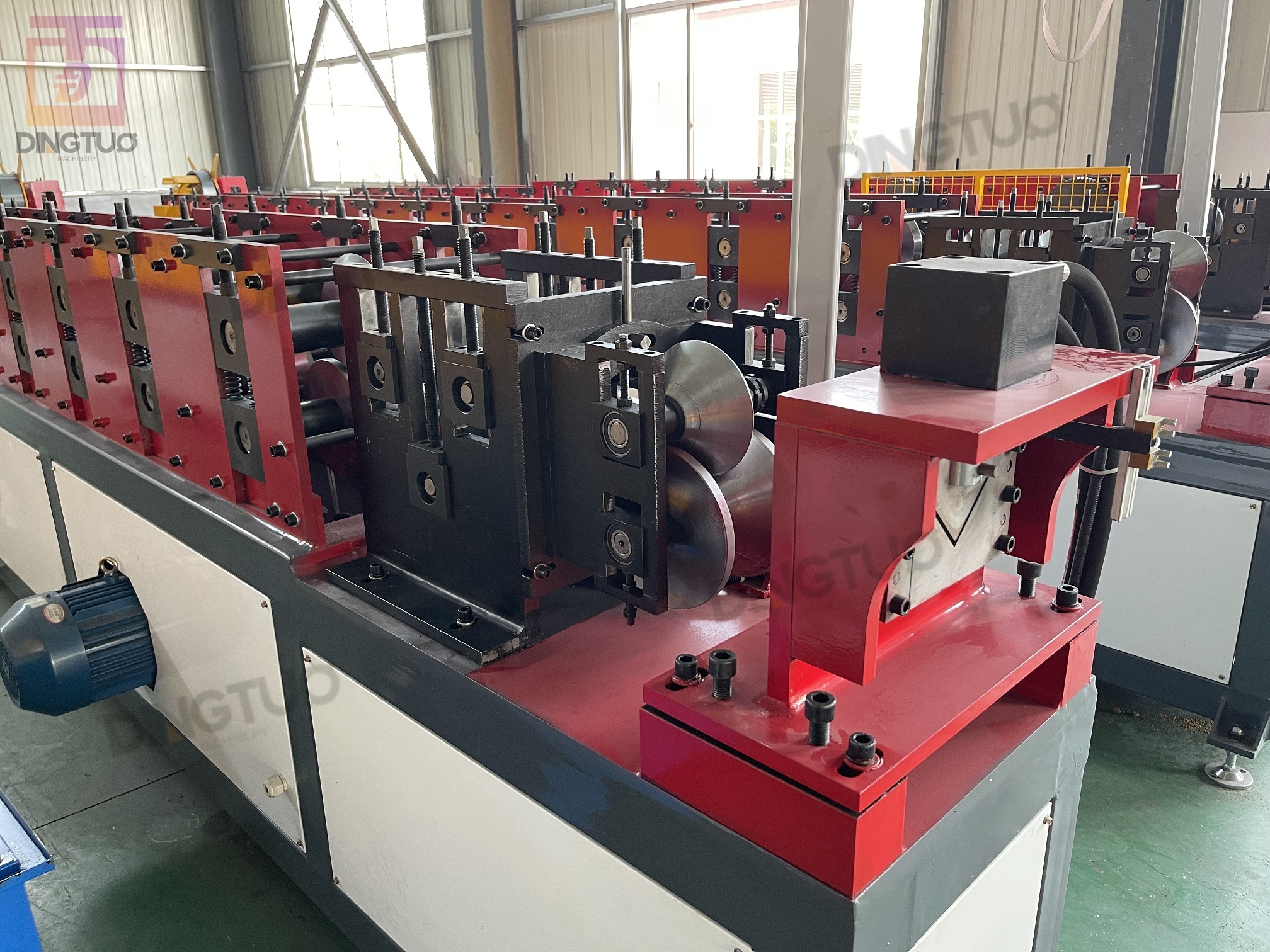

3.Forming unit :structure stable
The machine stands we use CNC milling and screw connection which have more complex machining process.Clients can receive more higher precision machine and make more higher procesion ridge caps.

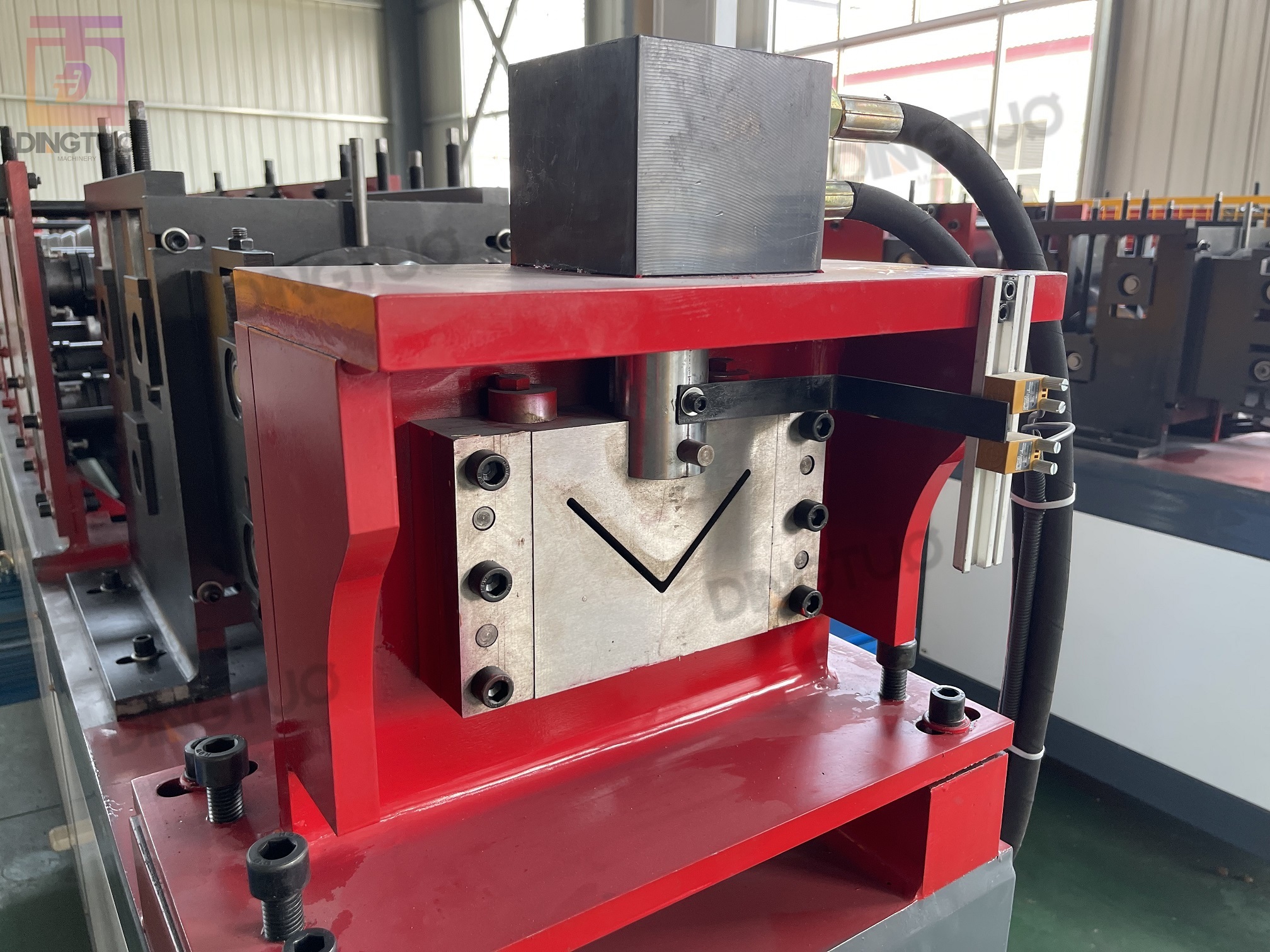

4.Cutting unit :structure stable
cutting tupe without scraps
5.Run Out Table : save time
