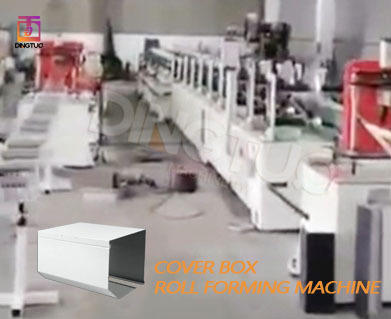

automatic size changeable rolling shutter cover box roll forming machine
Rolling Shutter Box Roll Forming Machine
DINGTUO specializes in a comprehensive range of machinery for roller shutter doors, which includes the manufacturing of shutter box machines. For the two-piece shutter box design, two distinct machines are required: one for the cover panel and another for the back panel. Both machines are equipped with automatic size adjustment capabilities, accommodating a full range of dimensions from 150mm to 250mm. In the case of the four-piece shutter box configuration, three separate machines are necessary, all of which also feature automatic size adjustment for enhanced versatility.
COMPONENTS of Shutter Box Roll Forming Machine
Uncoiler: Loading the steel coil

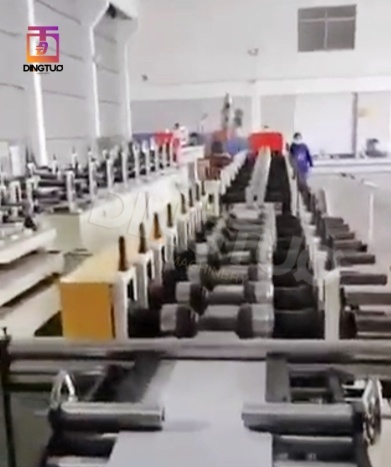

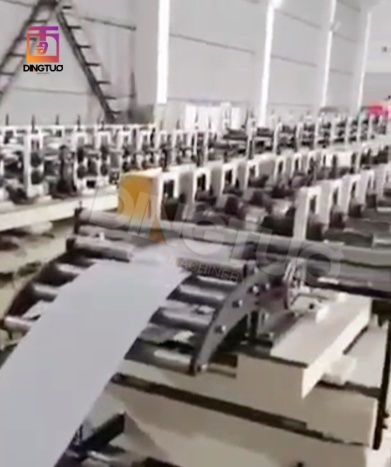

Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final slats straight adjusting.

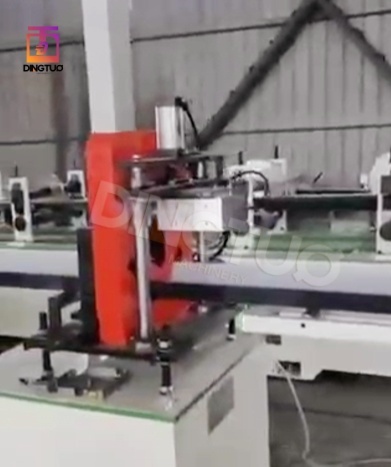

Saw cutting: For precise cuts.
Out Table: Stacking the finished slats.
Controller: Control whole line with setting length and numbers.
TECHNICIAN DETAILS of Shutter Box Roll Forming Machine
Main specification
Suitable plate: Aluminum or steel with customized thickness
Material of rollers: Gcr15, with heat treatment and chrome plating on the surface. HRC58~62
Material of shaft: 45# steel, with heat treatment ,
Cutting: saw cutting
The whole machine is controlled by PLC.
Working schedule
Put the steel coil on the un-coiler—→Feeding—→Roll former—→Cutting system—→Out table
1. Un-coiler
Feeding Platform :
Forming: cast iron machine stands / Cr12 rollers /19 forming stations/ 7.5kw K serious redecer /cassette quick changeable type
Run Out Table
Spare Part
No. | Name | Quantity | Country |
1 | Rely | 2pcs | China |
2 | Encoder | 2pcs | China |
3 | Encoder wheels | 2pcs | China |
4 | bearings | 2pcs | China |
5 | limit switch | 2pcs | China |
6 | Switch buttons | 3pcs | China |
7 | sensor | 4pcs | China |
8 | Oil tubes | 2pcs | China |
9 | Gears | 2pcs | China |
11 | circlip | 30pcs | China |
12 | Tool Box | 1 Set | China |
