European perforated steel rolling shutters roll forming machine

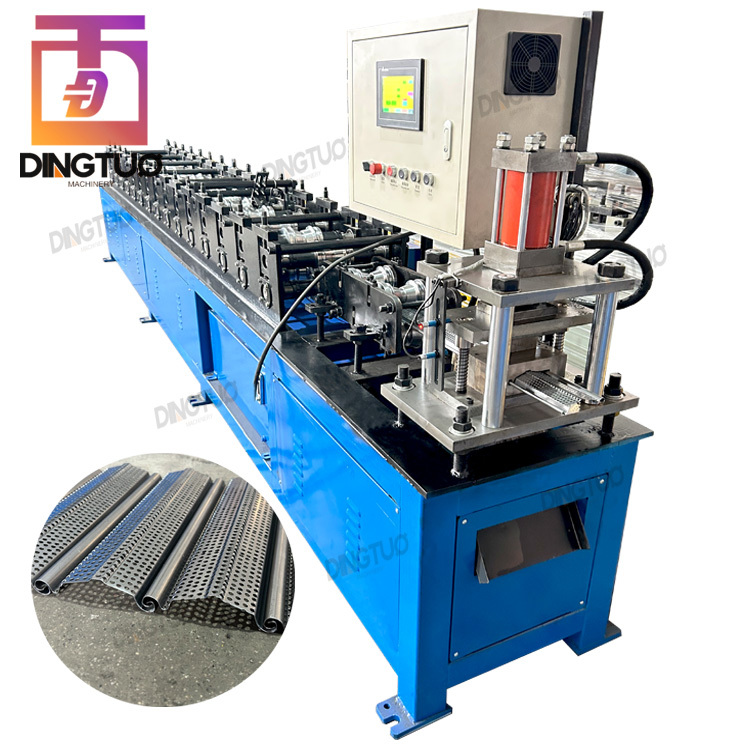

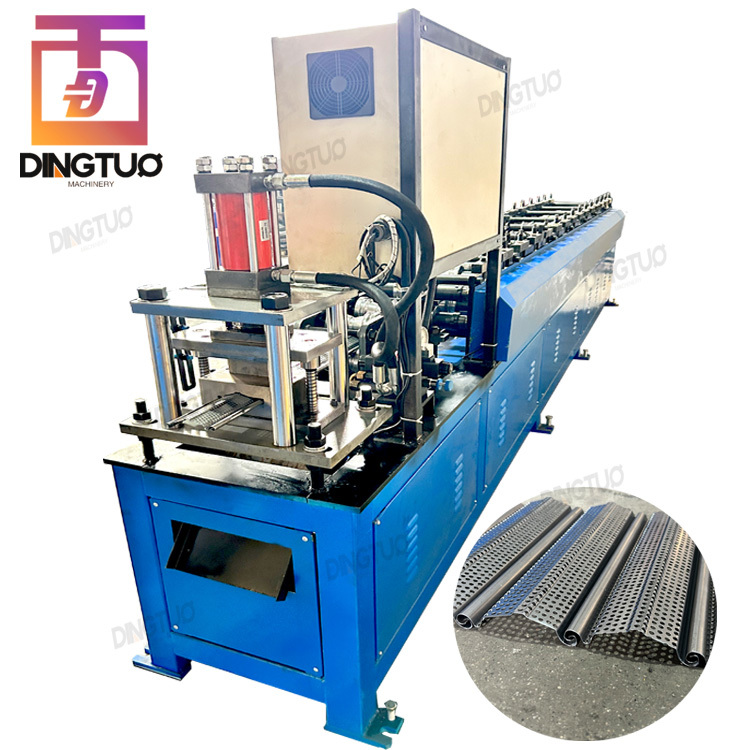

EUROPEAN PERFORATED ROLLING SHUTTER DOOR ROLL FORMING MACHINE

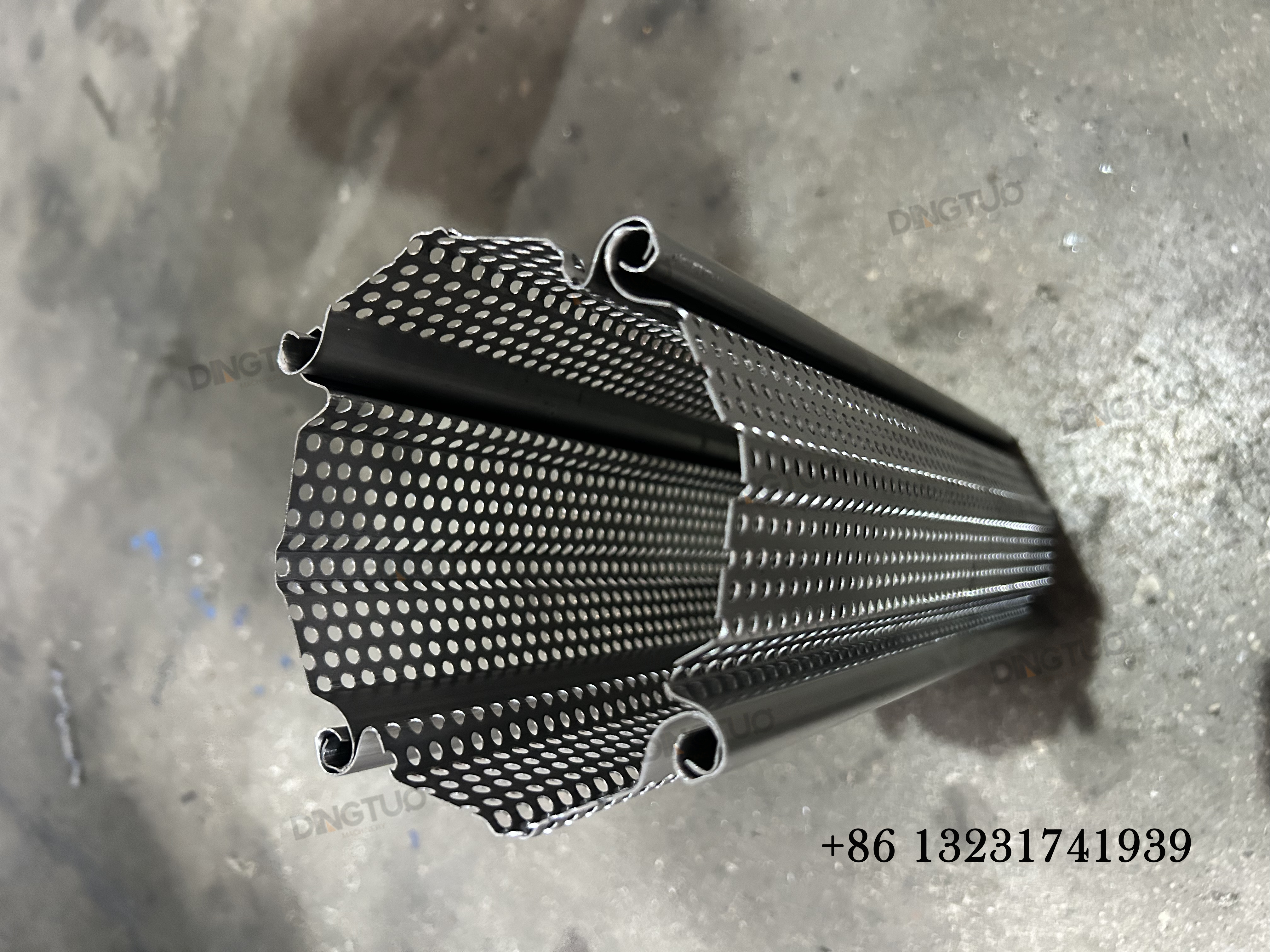

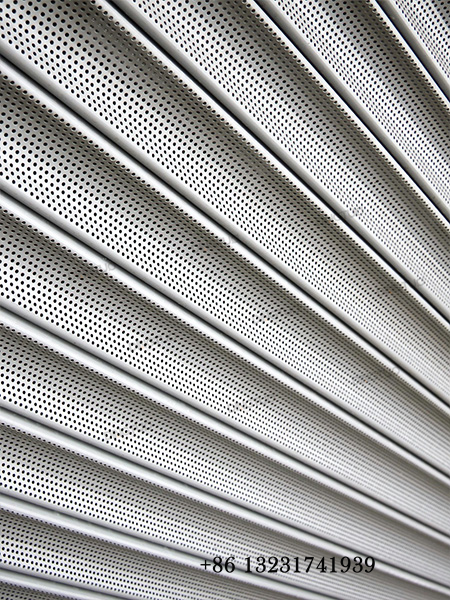

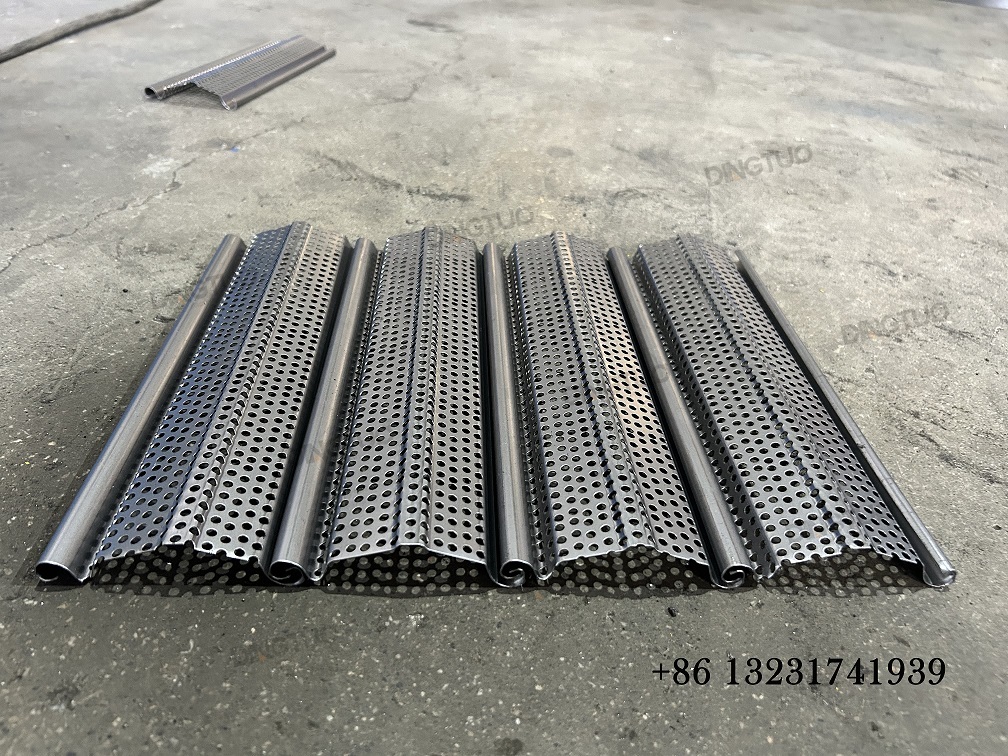

This European perforated rolling shutter door roll forming machine is designed to create shutters with a thickness ranging from 0.4mm to 0.6mm, or according to the specific requests of clients. The machine is capable of producing shutter doors in the size YX 22.5 / 100, or according to the customized specifications provided by clients. It is equipped with a 2 in 1 decoiler and leveling machine, a punch machine with servo feeder, a forming machine, and a run out table. The perforated rolling shutter door slats produced by this machine are ideal for use in commercial or residential settings where light transmission and ventilation are required.
Machine Parameter : ( customized )

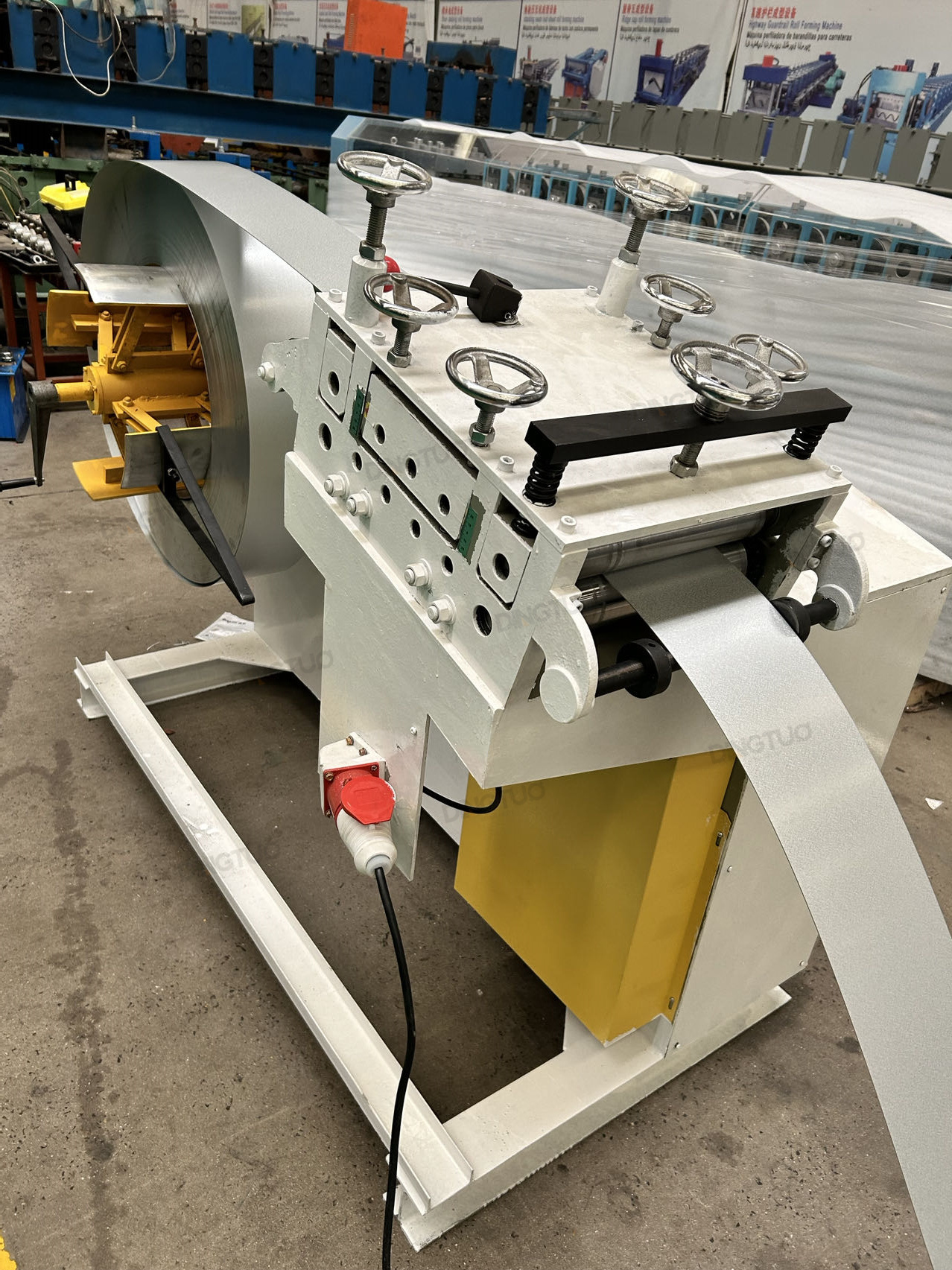

1. 2 in 1 Decoiler and leveling device

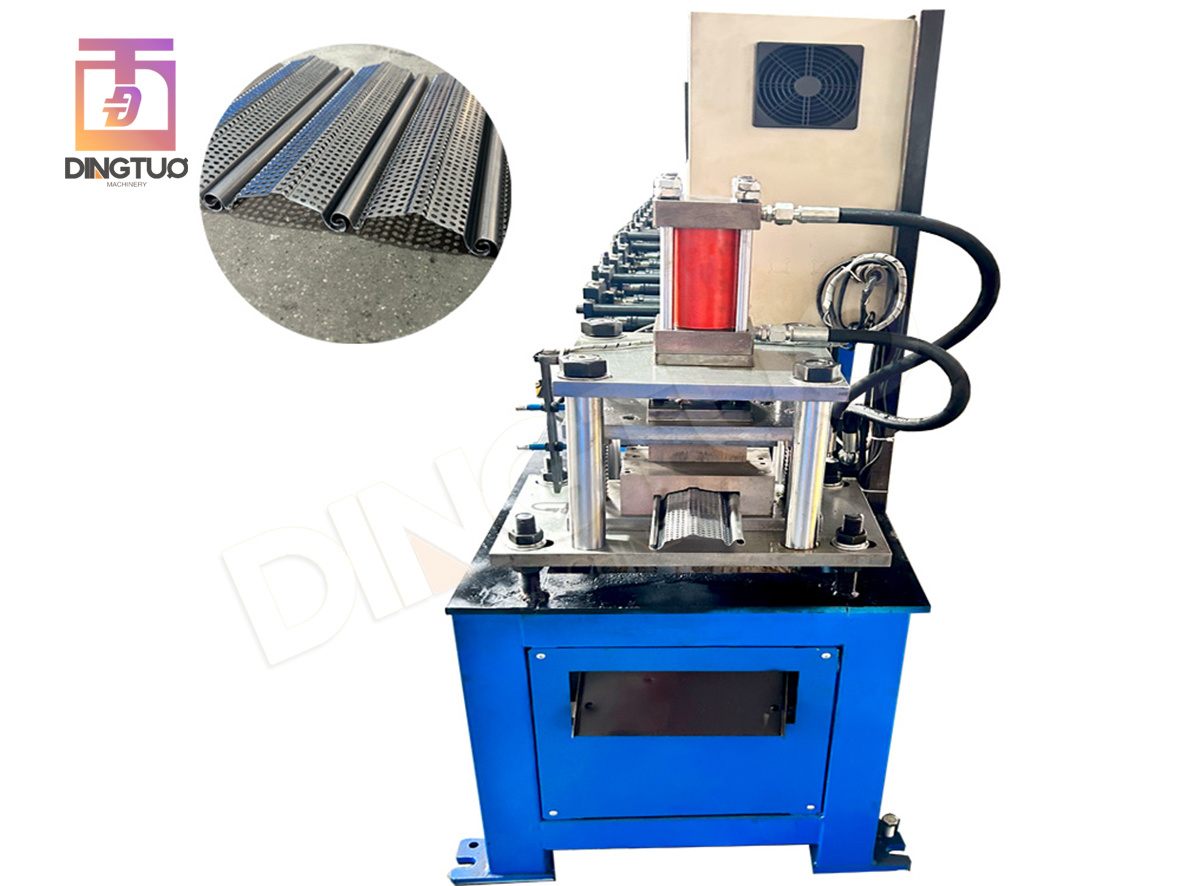

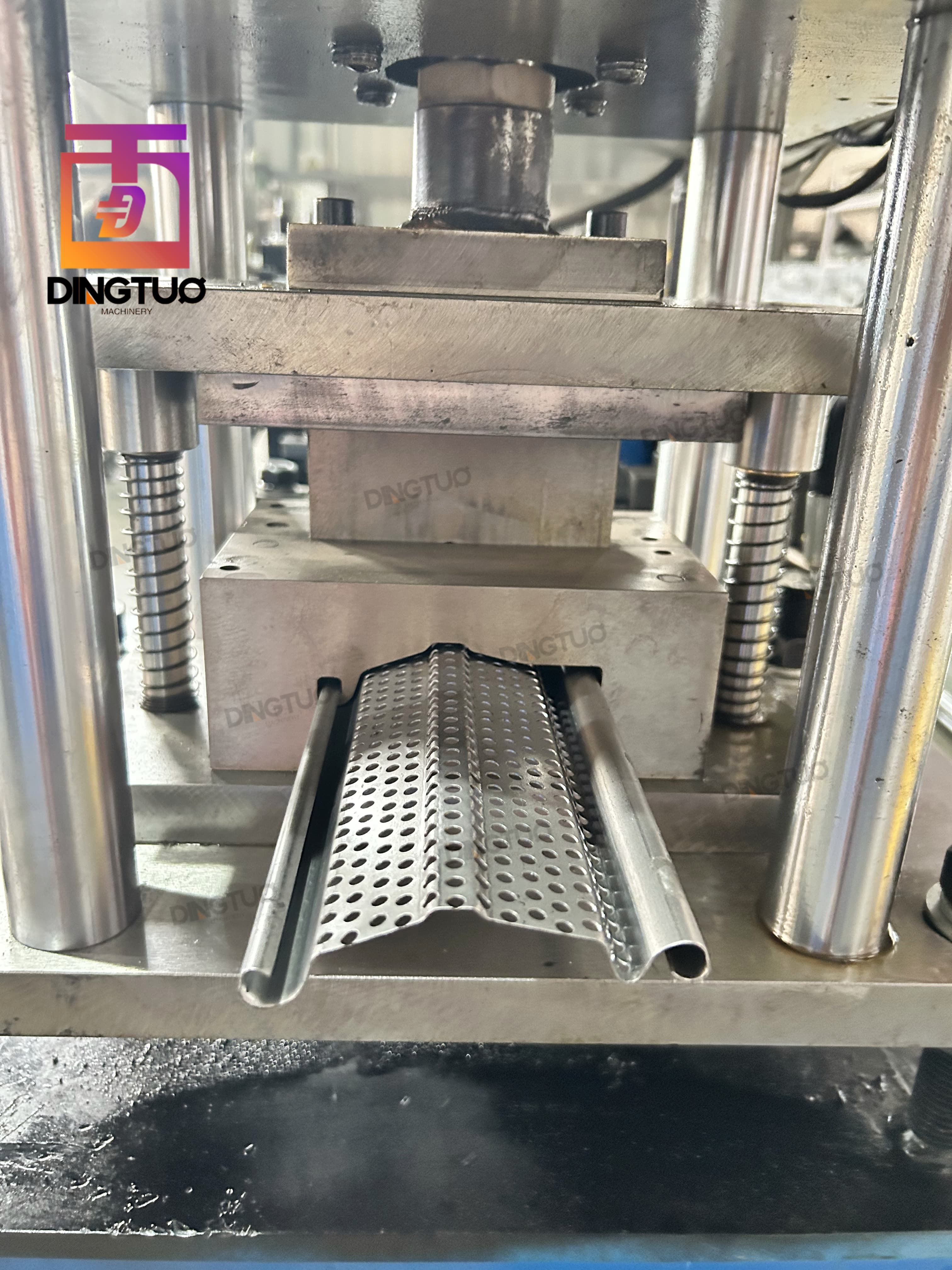

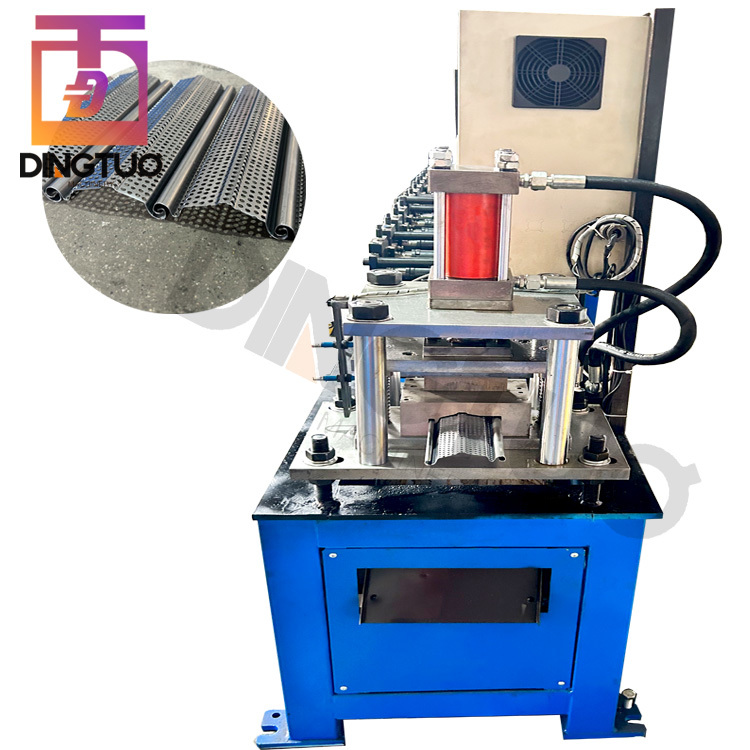

2. Punch with servo feeder and punch die and electric control cabinet

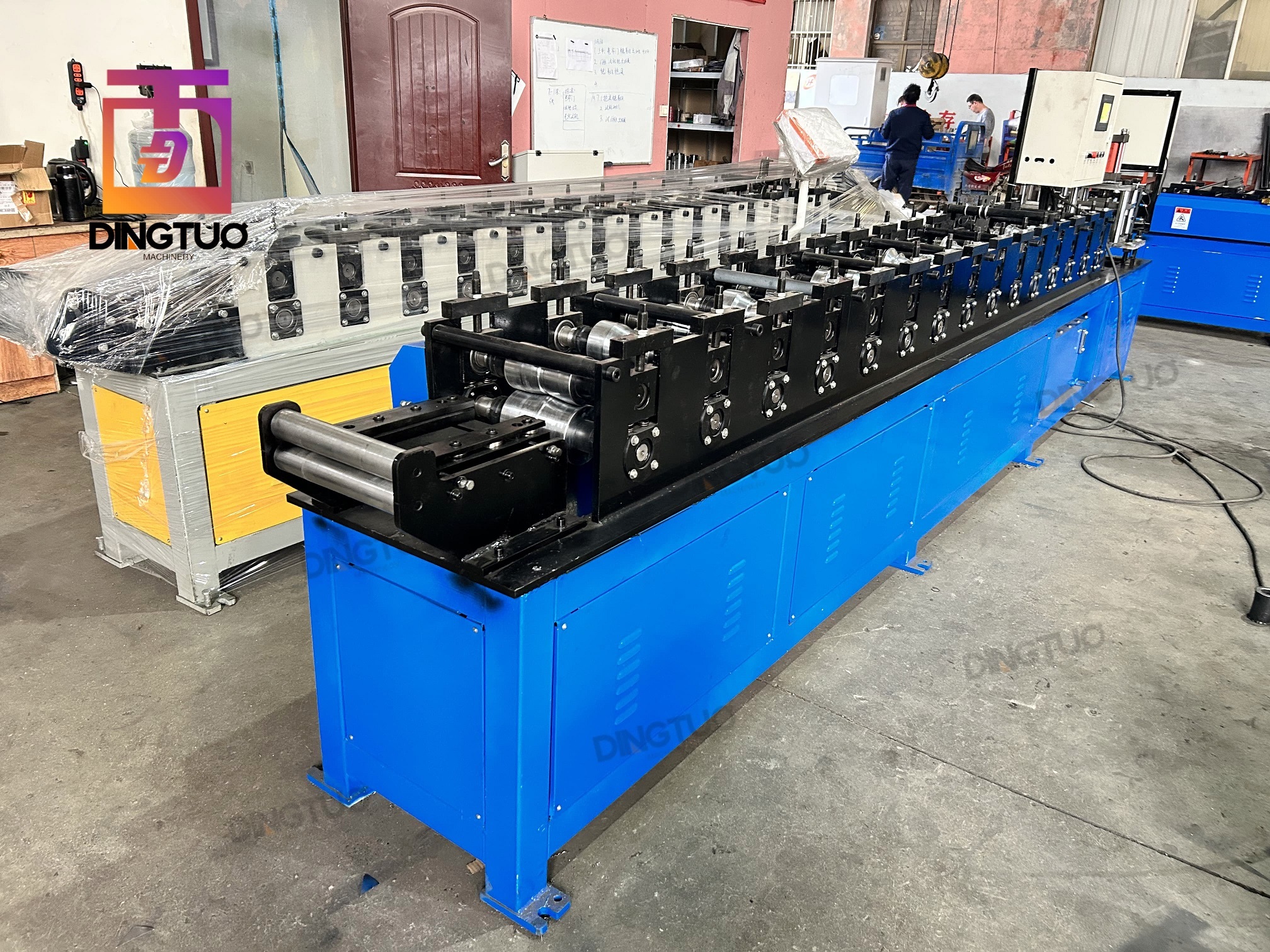

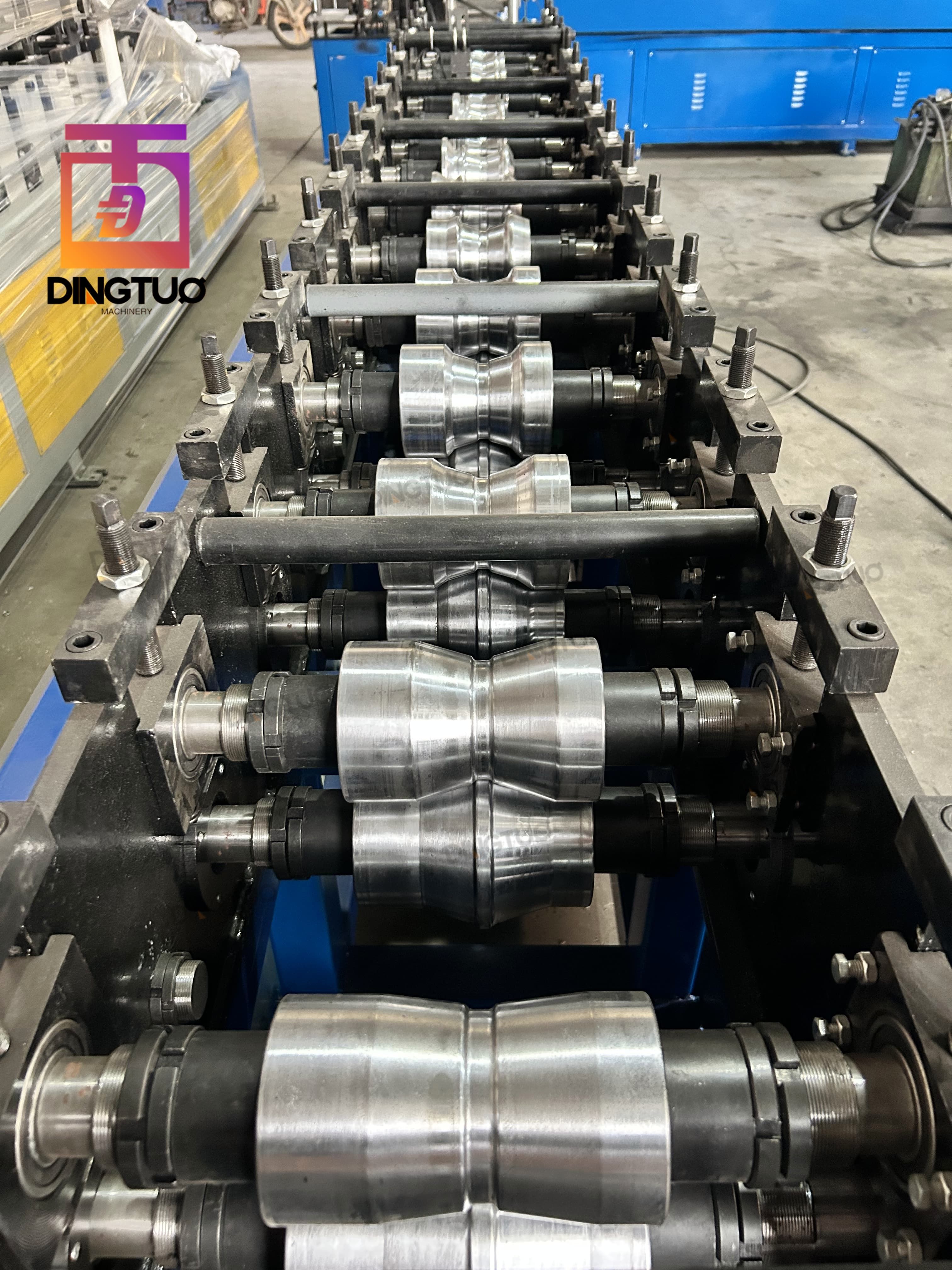

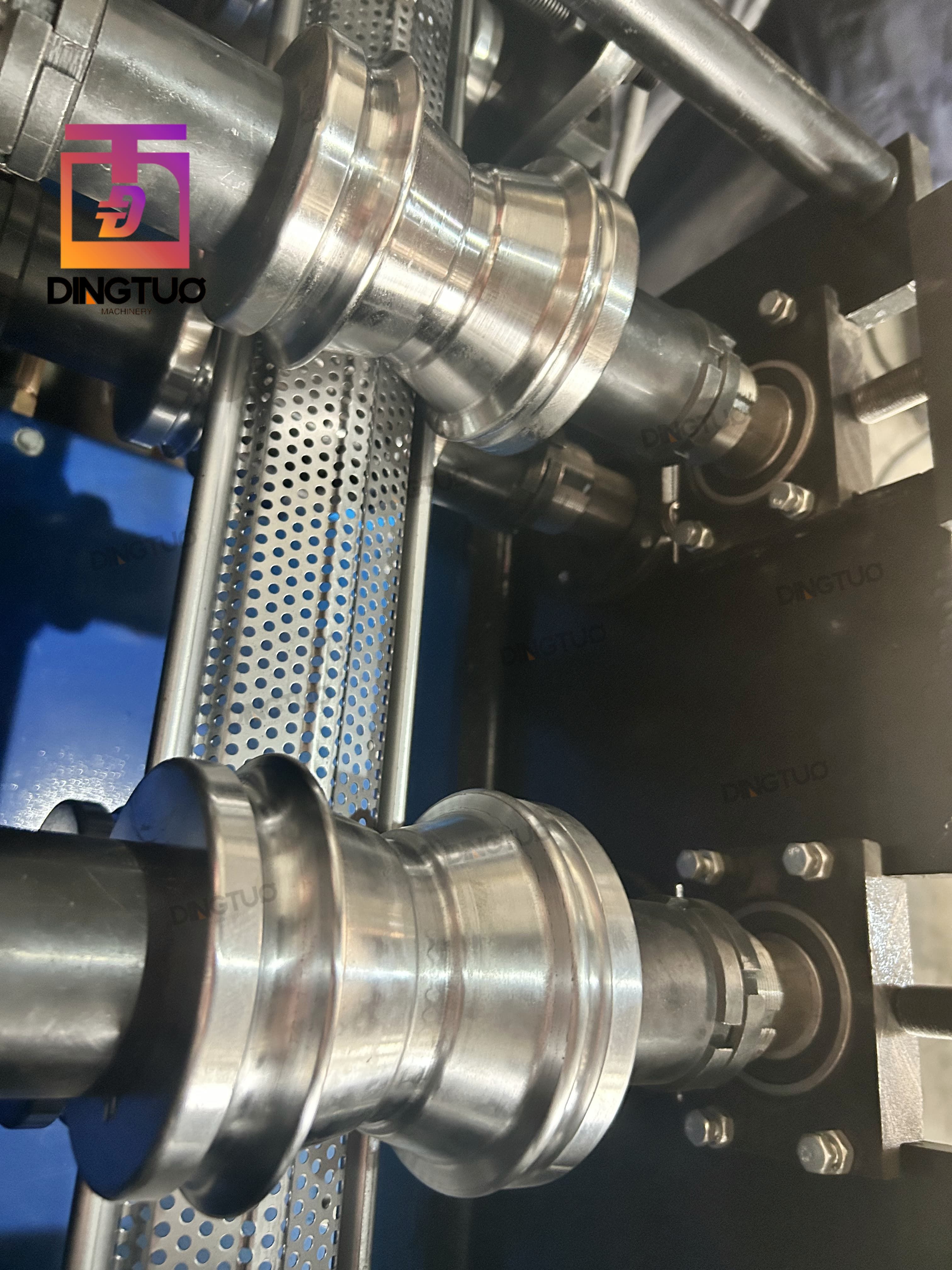

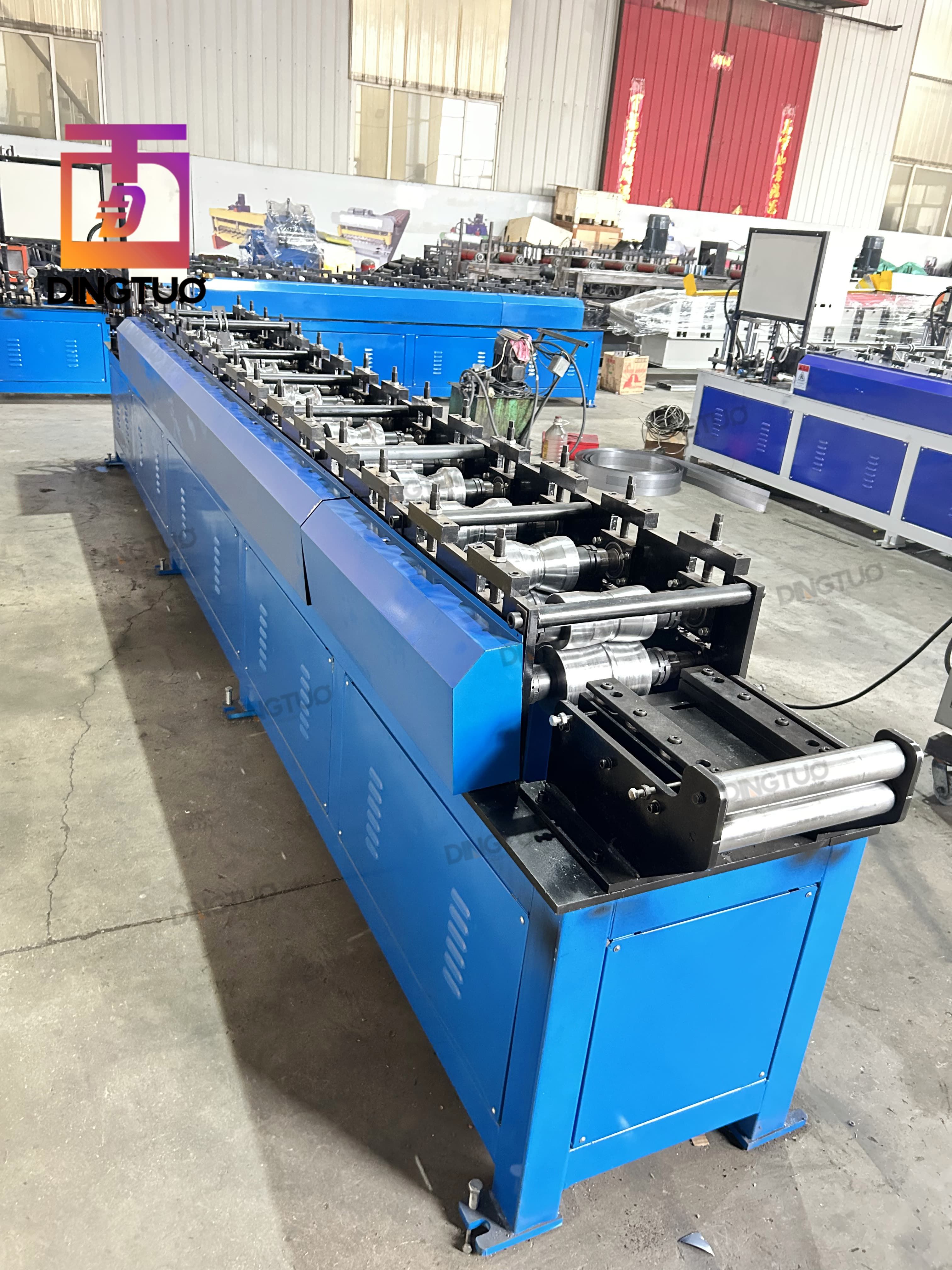

3. Forming machine
16 forming stations / Cr12 rollers /50mm solid shafts/ gears transmission/ 4kw motor with K serious redecer / overall wire cutting middle plates machine stands

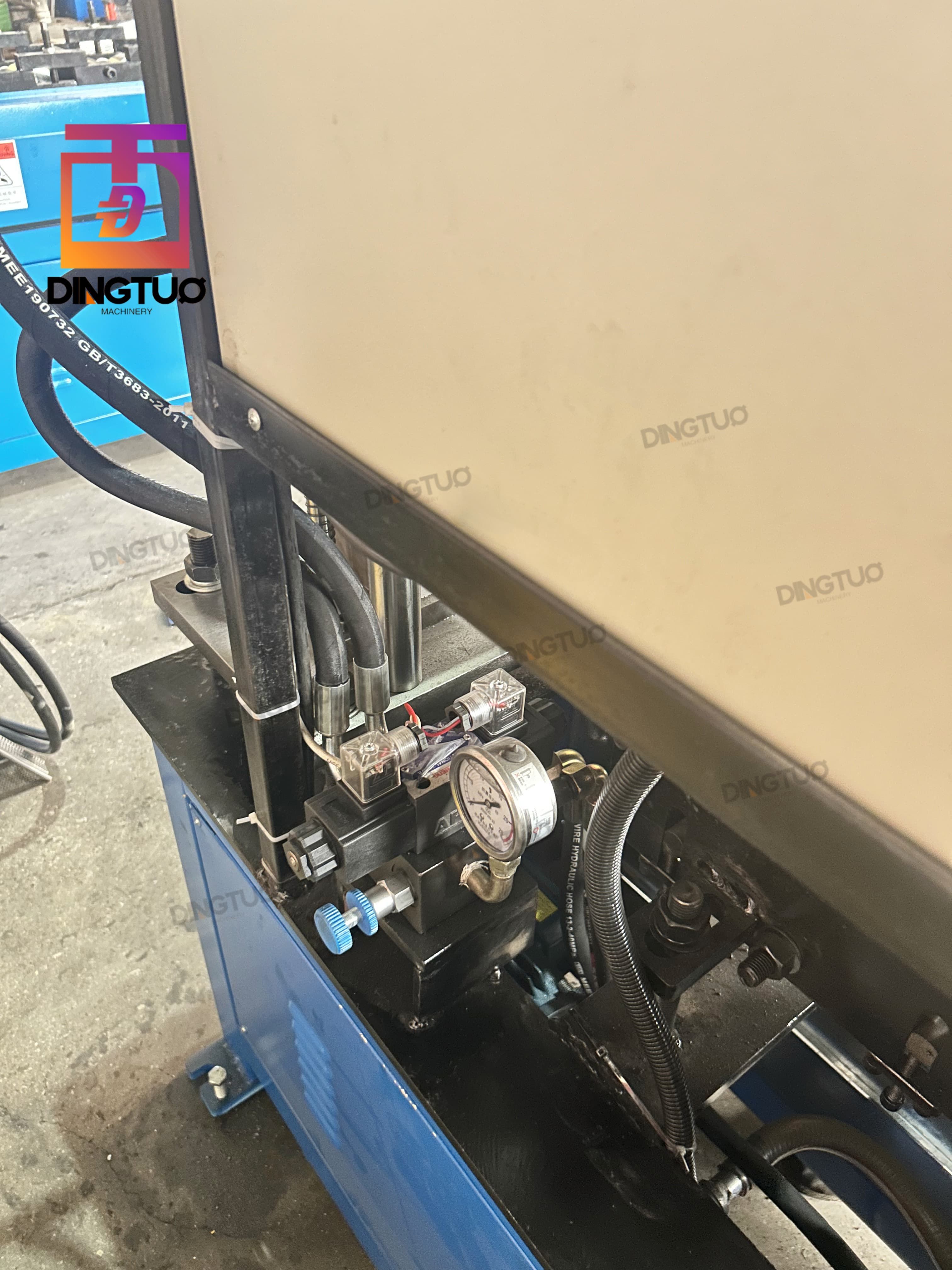

4. Hydraulic Pump Station And Electric Control Cabinet
Inside type pump station : save client workshop , after receiving the machine , no need to connect this part wires which is more convenient and easy for client operation ;
Electric control cabinet : Delta brand which is very stable control system and after receiving the machine, only connect the 3 live wires and 1 neutral wire ( 380V,50 HZ, 3 phases or voltage customized) which is easy for clients operation .
5. Run Out Table
Spare Part
No. | Name | Quantity | Country |
1 | Rely | 2pcs | China |
2 | Encoder | 2pcs | China |
3 | Encoder wheels | 2pcs | China |
4 | bearings | 2pcs | China |
5 | limit switch | 2pcs | China |
6 | Switch buttons | 3pcs | China |
7 | sensor | 4pcs | China |
8 | Oil tubes | 2pcs | China |
9 | Gears | 2pcs | China |
11 | circlip | 30pcs | China |
12 | Tool Box | 1 Set | China |
