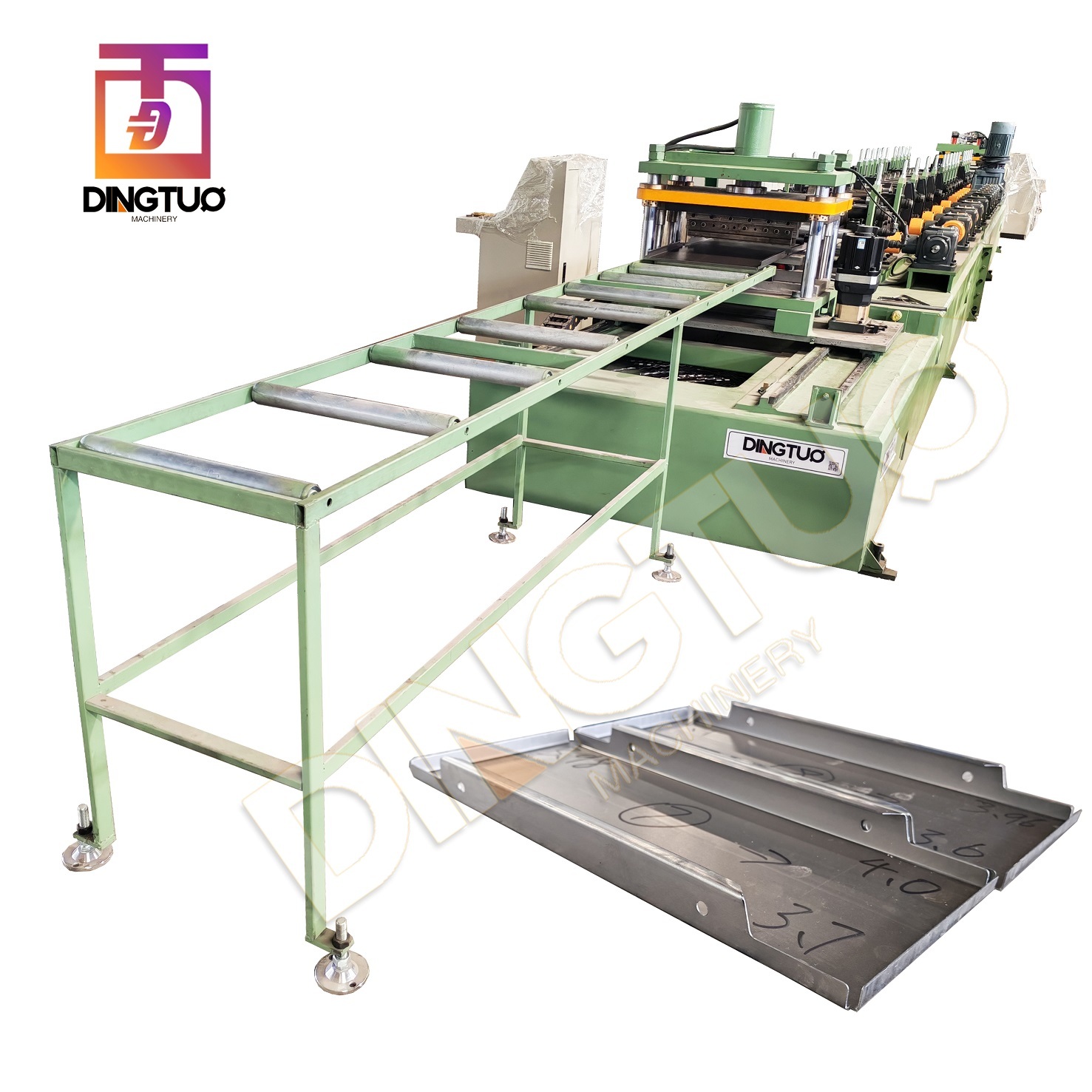

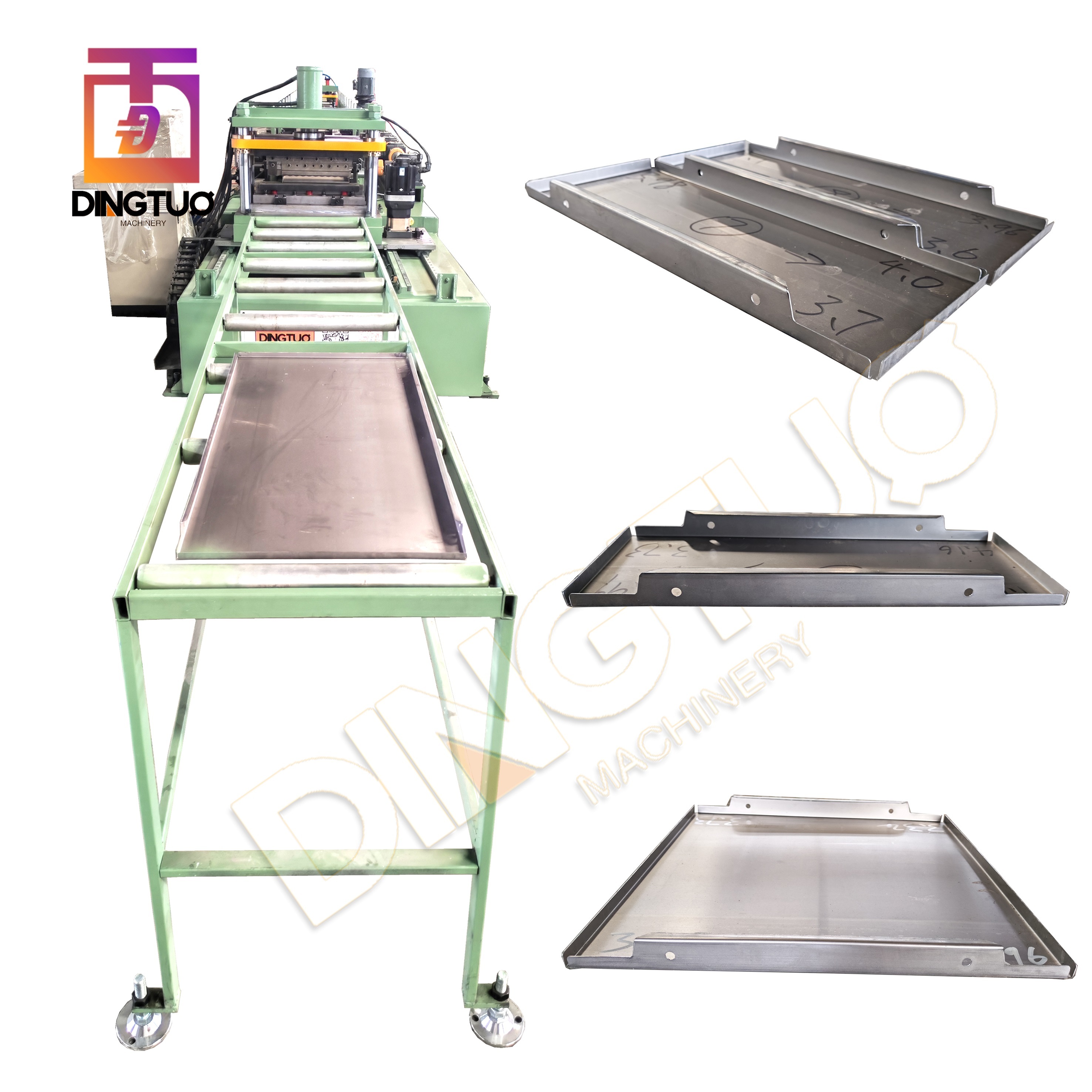

6 pieces / minute automatic size adjustable metal shelf panel roll forming machine

shele panel roll forming machine gearboxes transmission cast iron machine stands 100-500mm bottom width adjustable automatically 6 pieces panels / minutes

Key words:

shelf panel roll forming machine

Product category:

Shelf Series Roll Forming Machines

Tel/Whatsapp:

+86 13231741939

Product Video

Contact immediately

6 pieces / minute automatic size adjustable metal shelf panel roll forming machine

AUTOMATIC SIZE ADJUSTABLE SHELF PANEL ROLL FORMING MACHINE

In the ever-evolving landscape of manufacturing technology, the demand for efficiency and versatility has never been greater. One of the most innovative solutions to meet these demands is the automatic size adjustable metal shelf panel roll forming machine. This cutting-edge equipment not only streamlines the production process but also offers unparalleled flexibility in creating metal shelf panels of various sizes and specifications. With an impressive capacity of producing six pieces per minute, this machine represents a significant leap forward in industrial automation, allowing manufacturers to respond swiftly to market needs while maintaining high standards of quality. As businesses strive to optimize their operations and reduce waste, the integration of such advanced machinery becomes essential in staying competitive in today's fast-paced environment.

Machine Schematic

NO.	Description	Quantity (set)
1	2 in 1 decoiler and leveling machine	1
2	Feeding Platform	1

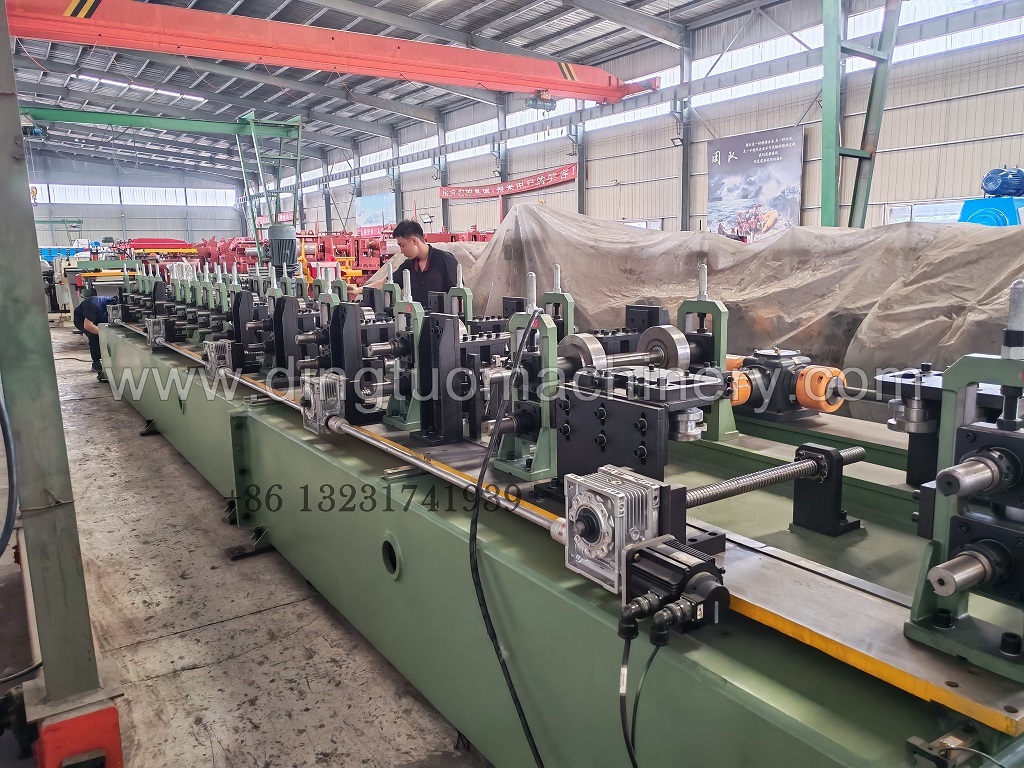

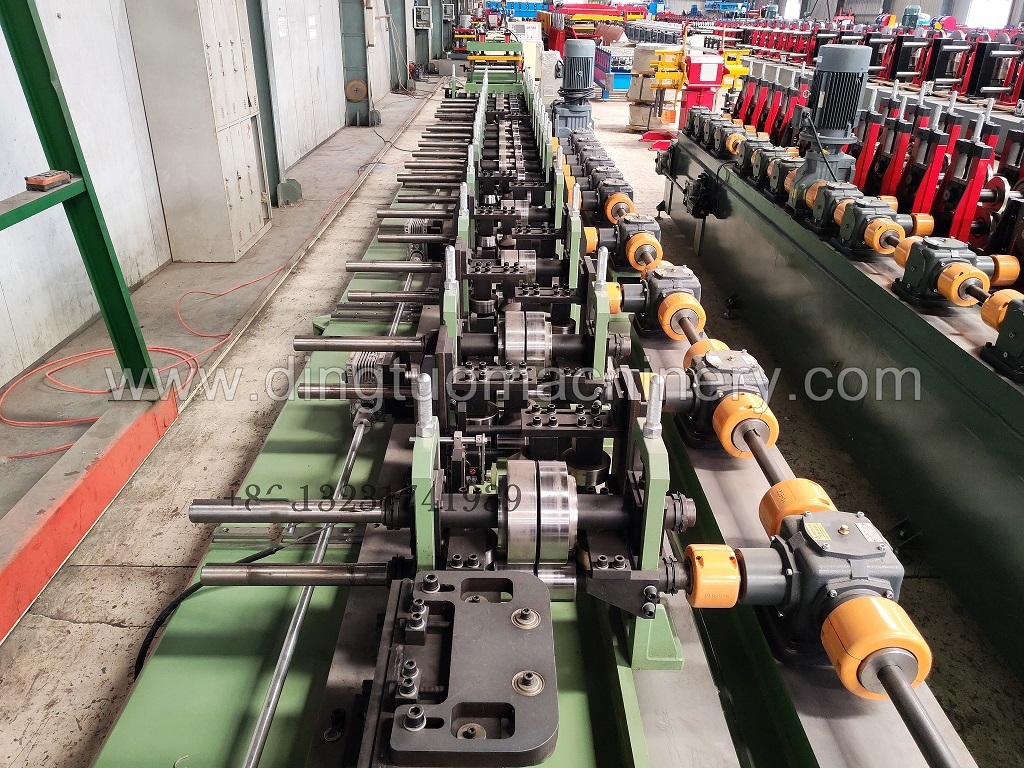

3	Forming System	1
4	Transmission system	1

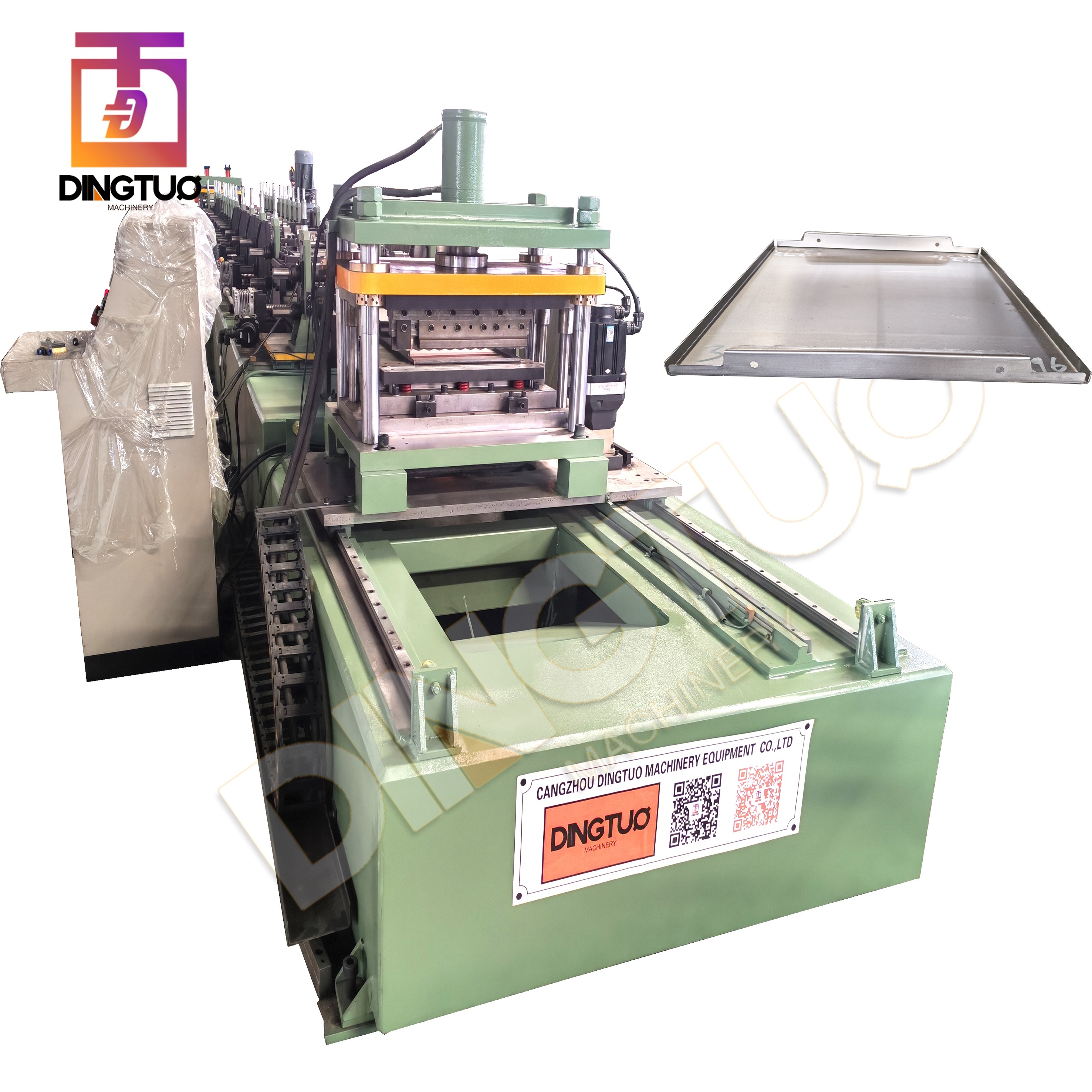

5	Hydraulic cutting and bending system	1
6	Hydraulic pump station	1
7	Electric Control Cabinet	1
8	Spare parts and tools	1

Machine Parameter

No	Item	Parameter
1	Raw material	galvanized steel
2	Thickness	0.7-0.9 mm
3	Feeding width/coil width	as drawing
4	finished sheet bottom width	as drawing
5	Machine stands	cast iron machine stands
6	Forming Speed	6 pieces per one minutes
7	Forming station	16
8	Total Power	7.5KW(hydraulic punching pump statiom motor power); 7.5KW(main motor power) ; 2.2kw ( servo size changeable motor power); 5.5kw (hydraulic cutting motor power ); 5.5kw (servo tracking motor power)
9	Mill bed material	iron sheet box frame
10	Voltage	380 V , 50HZ, 3 Phases or customized
11	Diameter of shaft	65 mm diameter solid shafts
12	Cutting type	4 pillar guides
13	Forming Shaft	45# steel with grinding process
14	Forming Roller	45# steel with hard chrome coating process and overall quenching or customized Gcr15 bearing steel material
15	Cutting Blade	Cr12 with hard treatment
16	Transmission	gearboxes
17	PLC	DELTA Brands /MITSUBISHI
18	Touch Screen	DELTA Brand/MITSUBISHI
19	Electrical motor	SHANGHAI BOJIANG brand
20	Encoder	OMRON Brand with aluminum bracket
21	Low-voltage electrical	SCHNEIDER Brands
22	Host Machine rough size	L15mW2mH2.2m
23	Host Machine rough weight	18000KGS
24	Machine with Anchor bolts	Have

Spare Part

No.	Name	Quantity	Country
1	Rely	several	China
2	Encoder	1pcs	China
3	Encoder wheels	2pcs	China
4	bearings	2pcs	China
5	Travelling Buttons	2pcs	China
6	Switch buttons	3pcs	China
7	The electromagnetic valve	1pcs	China
8	Oil tubes	2pcs	China
9	Gears	2pcs	China
10	Chains	2meters	China
11	circlip	Several	China
12	Tool Box	1 Set	China
