YX 0.75'' -1'' / 7''-10'' automatic size adjustable steel diamond plate trailer fender making machine
Key words:
Product category:
Tel/Whatsapp:

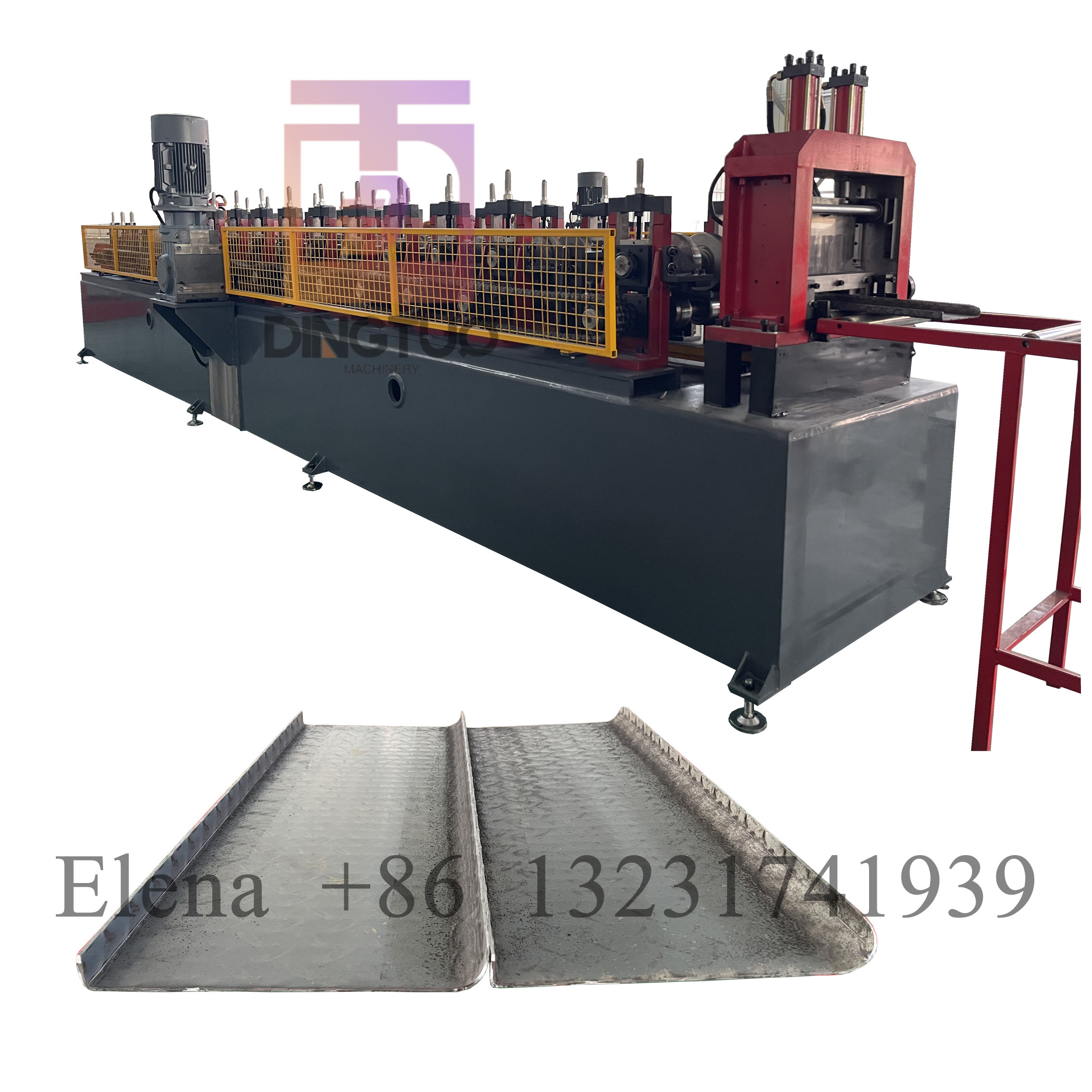

YX 0.75'' -1'' / 7''-10'' automatic size adjustable steel diamond plate trailer fender making machine
YX 0.75''-1''/7''-10'' SIZE ADJUSTABLE

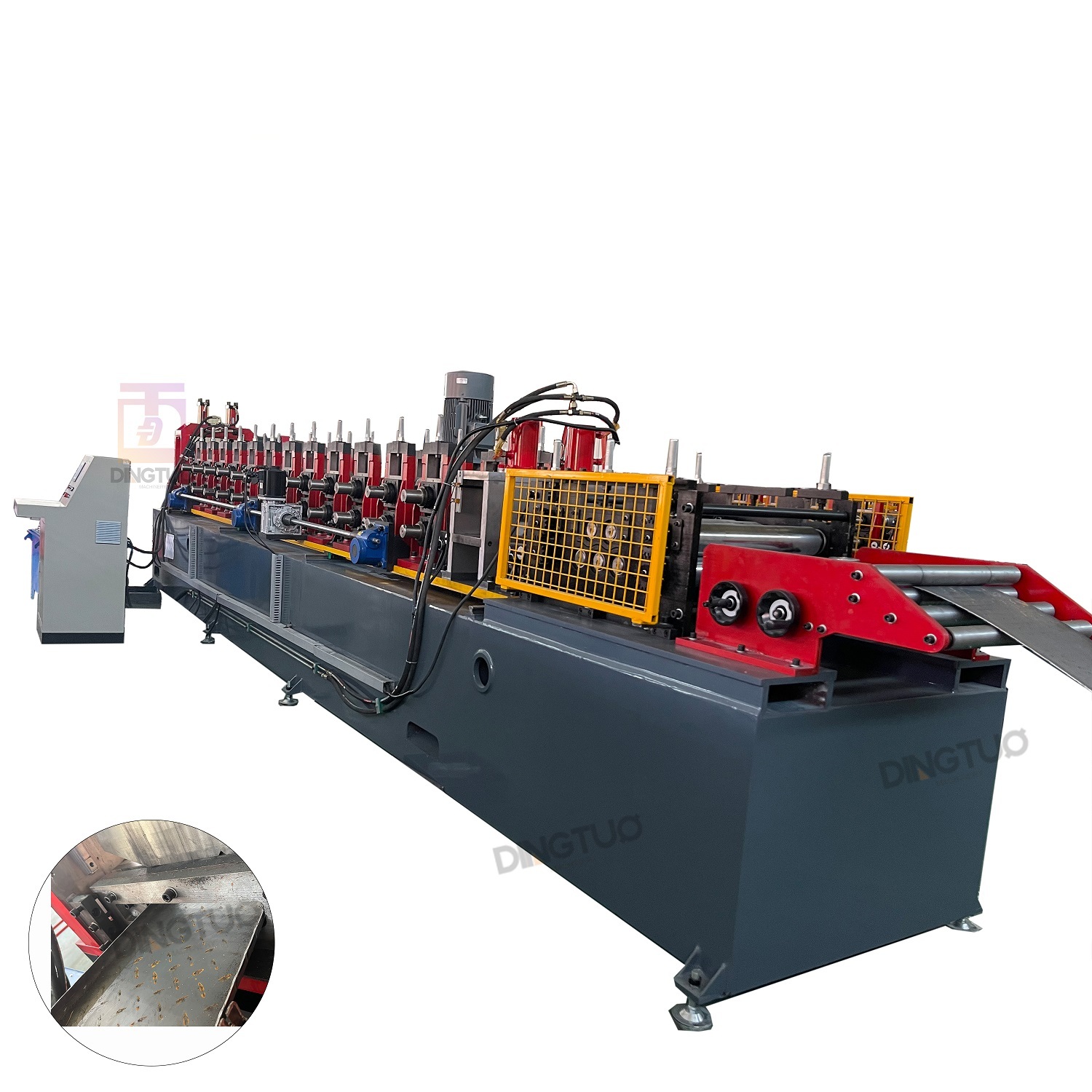

STEEL TRAILER FENDER ROLL FORMING MACHINE

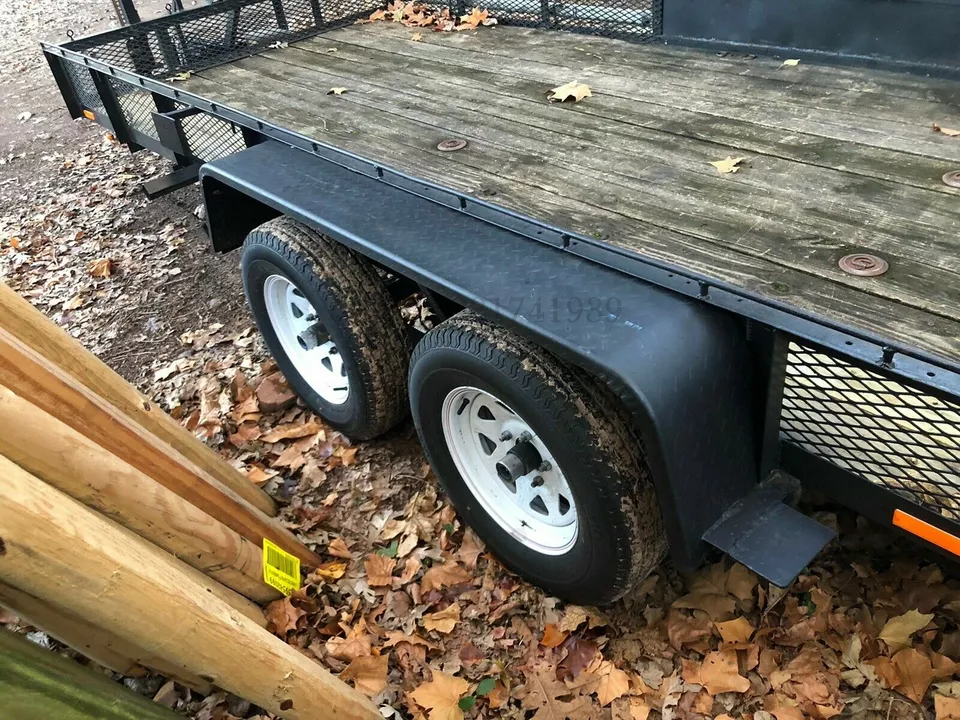

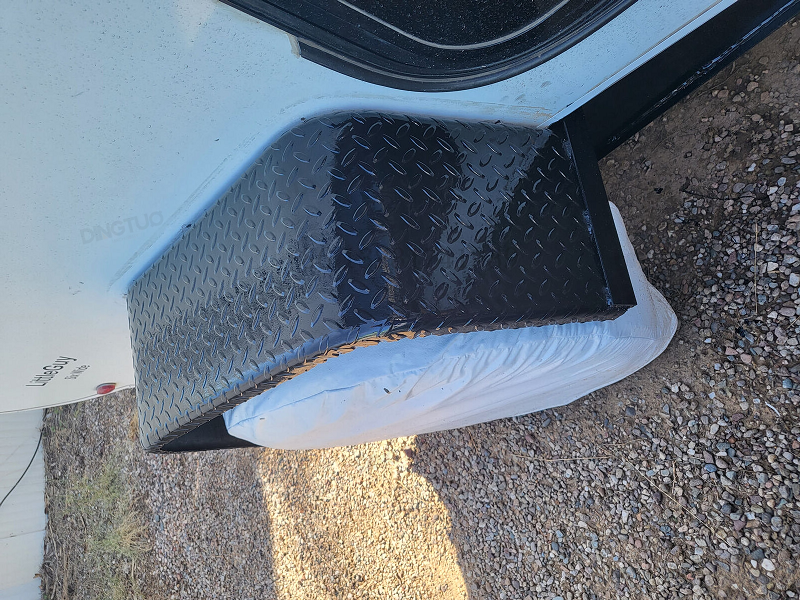

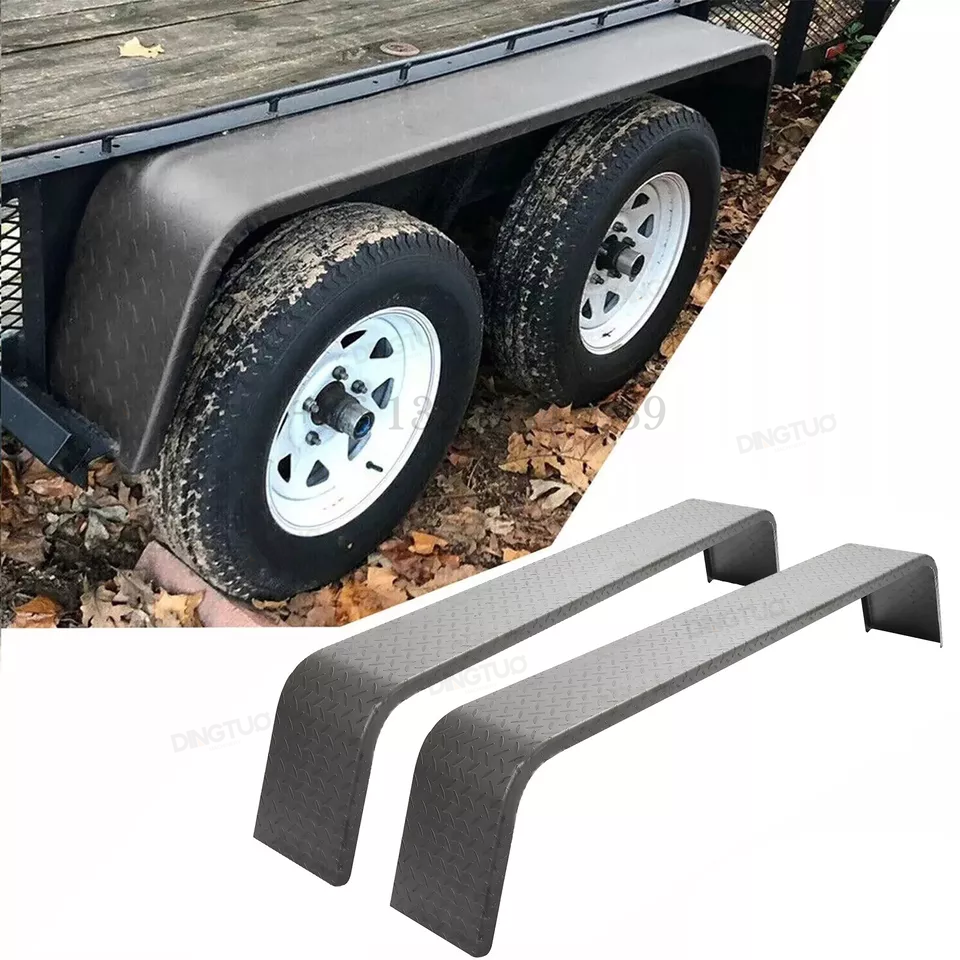

This automatic size adjustable trailer fender machine is a groundbreaking innovation in the industry. It utilizes steel diamond coil to achieve a height adjustment range of 0.75''-1'' and a bottom width adjustment range of 7'' to 10''. The machine is engineered with precision, featuring automatic size adjustment capabilities powered by a servo motor. The use of cast iron machine irons ensures enhanced profile precision. In addition, the machine's configuration is flexible and can be customized to meet the specific profile sizes and requirements of individual clients. With this state-of-the-art technology, manufacturers can streamline their production processes and achieve superior results in trailer fender production.

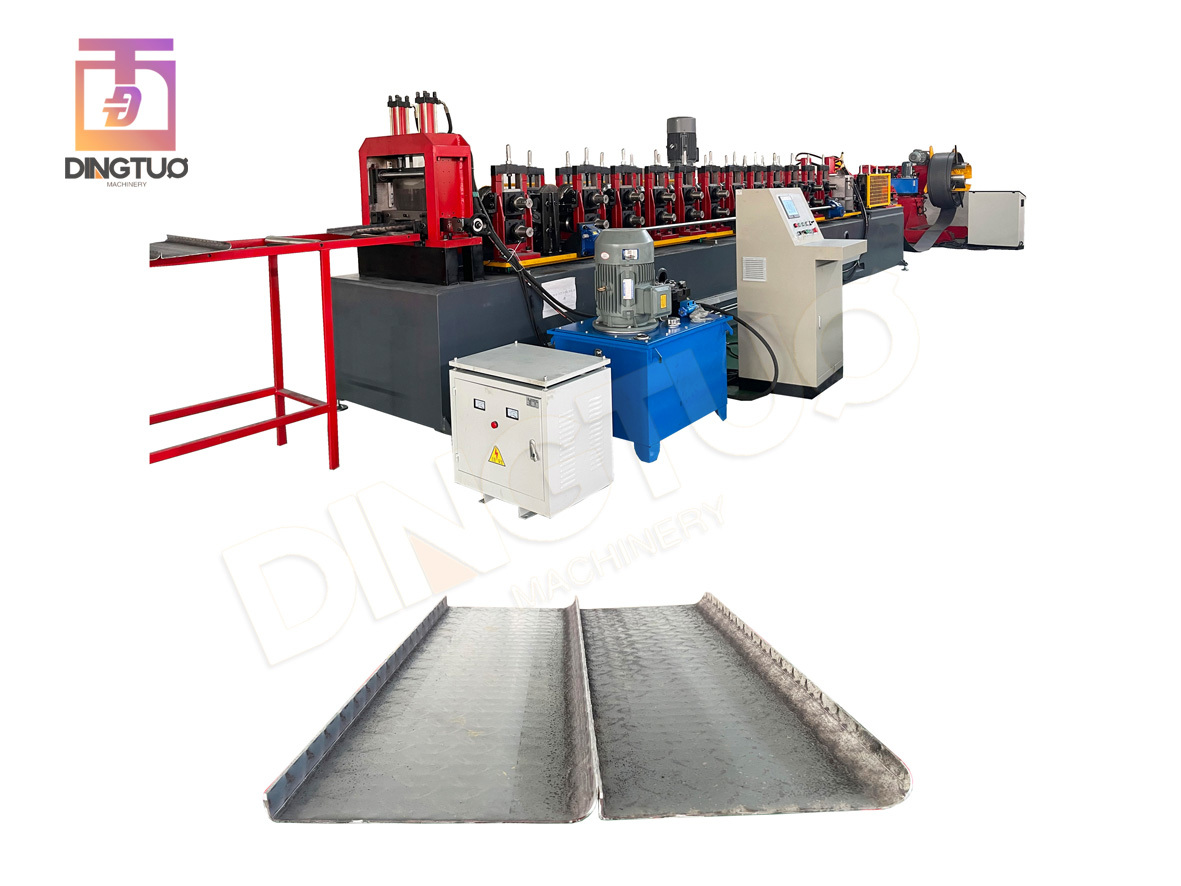

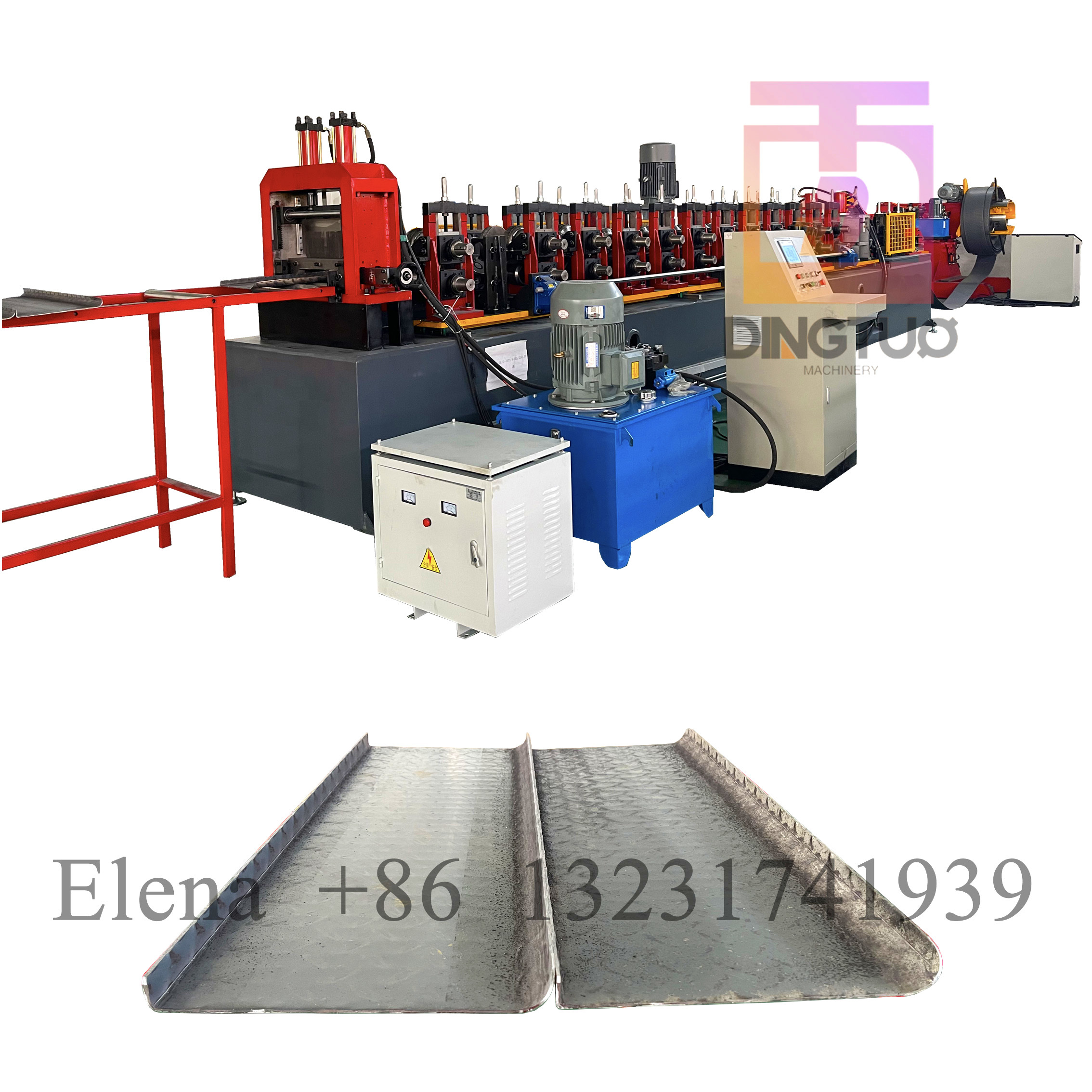

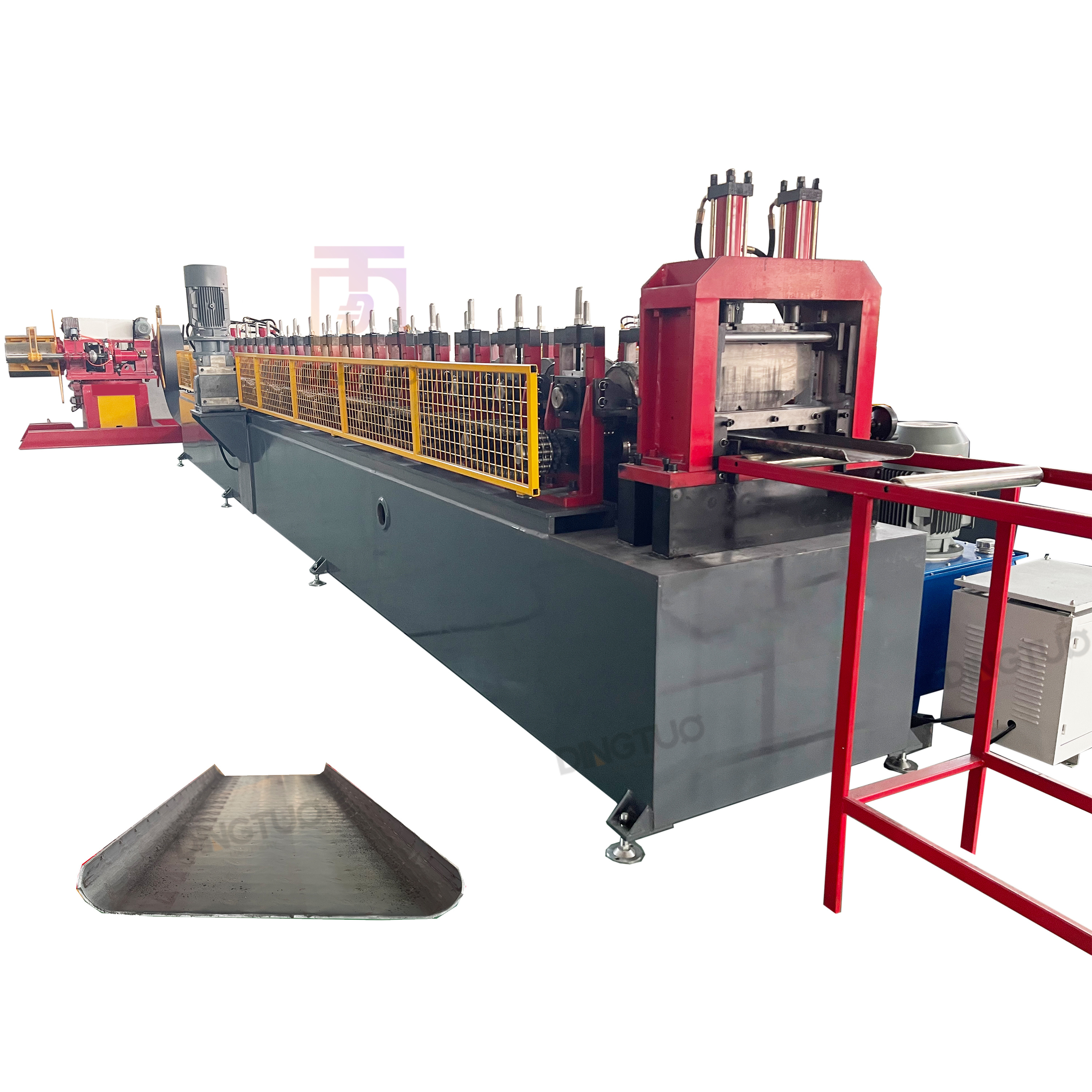

Machine Components
NO. | Description | Quantity (set) |

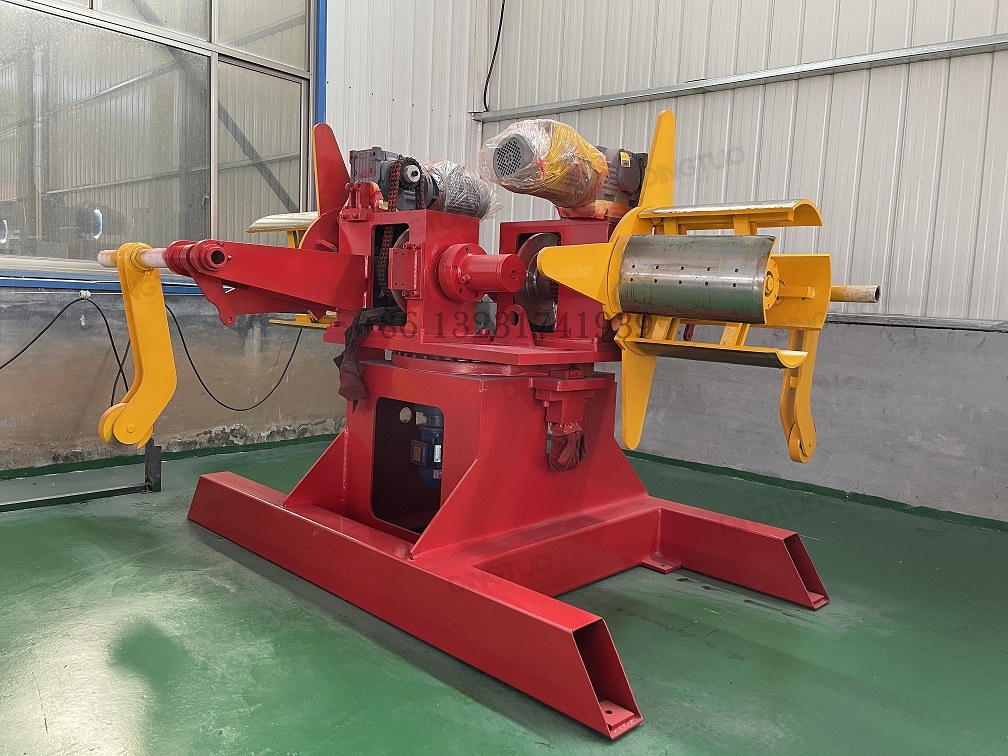

1 | 5 T decoiler | 1 |
2 | Feeding Platform + leveling unit + punching unit | 1 |
3 | Forming system | 1 |
4 | Transmission system | 1 |
5 | Automatic Hydraulic Cut | 1 |
6 | Run-out table | 1 |
7 | Hydraulic pump station | 1 |
8 | Electric Control Cabinet | 1 |
9 | Spare parts and tools | 1 |
Steel Diamond Tread Plate Trailer Fender Machine Parameter

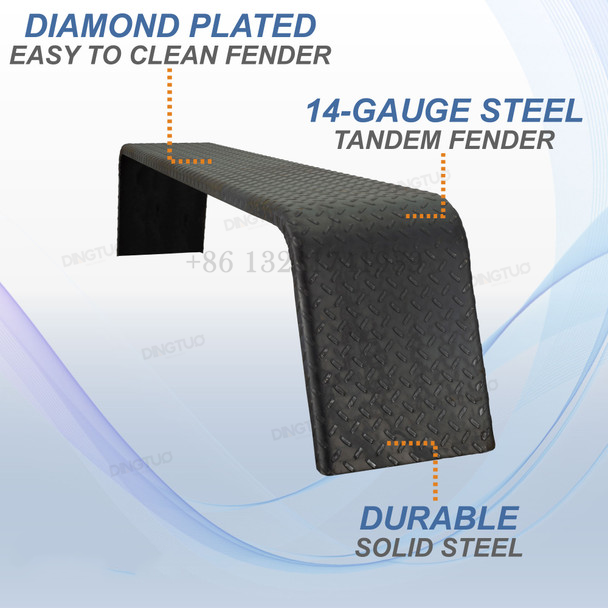

No | Item | Parameter |
1 | Raw Material | steel / 14 gauge |
2 | Decoiler | 1. Suitable coil inner diameter: φ508mm 2. Suitable coil outer diameter:<φ1400mm 3. Load: 5 tons |

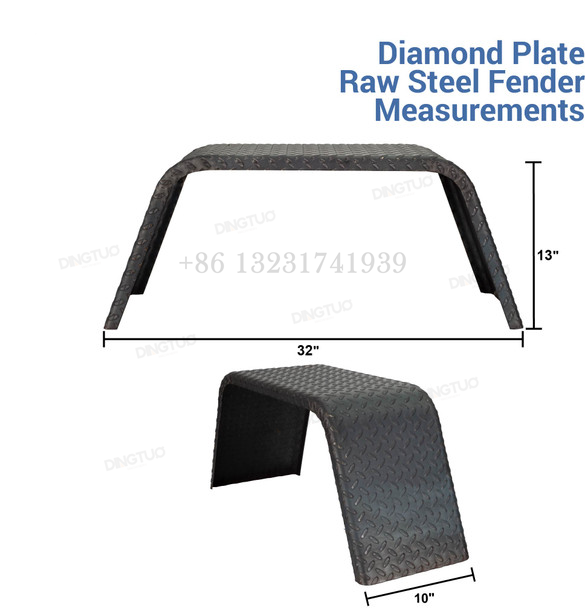

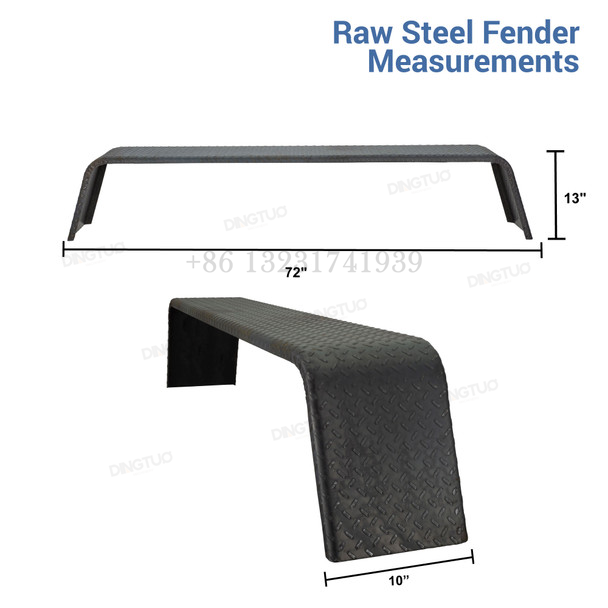

3 | Profile Size | YX 0.75''-1'' height adjustable 7''-10'' bottom width adjustable customized as client needed |
4 | Side stands type | 110 type cat iron machine stands |
5 | Forming Speed | 10 m/min |
6 | Forming station | 12 stations |
7 | Total Power | 15 kw (main servo motor power) + 7.5 KW(hydraulic pump station motor power) |
8 | Mill bed material | square tube welded as inside frame and then outside will weld 8mm whole iron plates and upper will be welded 25mm thickness iron plates with CNC milling processing . All holes will be made by CNC drilling machine . |
9 | Voltage | 220 V 60HZ 3 phases or customized |
10 | Diameter of shaft | 80mm diameter solid shafts |
11 | Cutting type | Automatic Oblique shear |

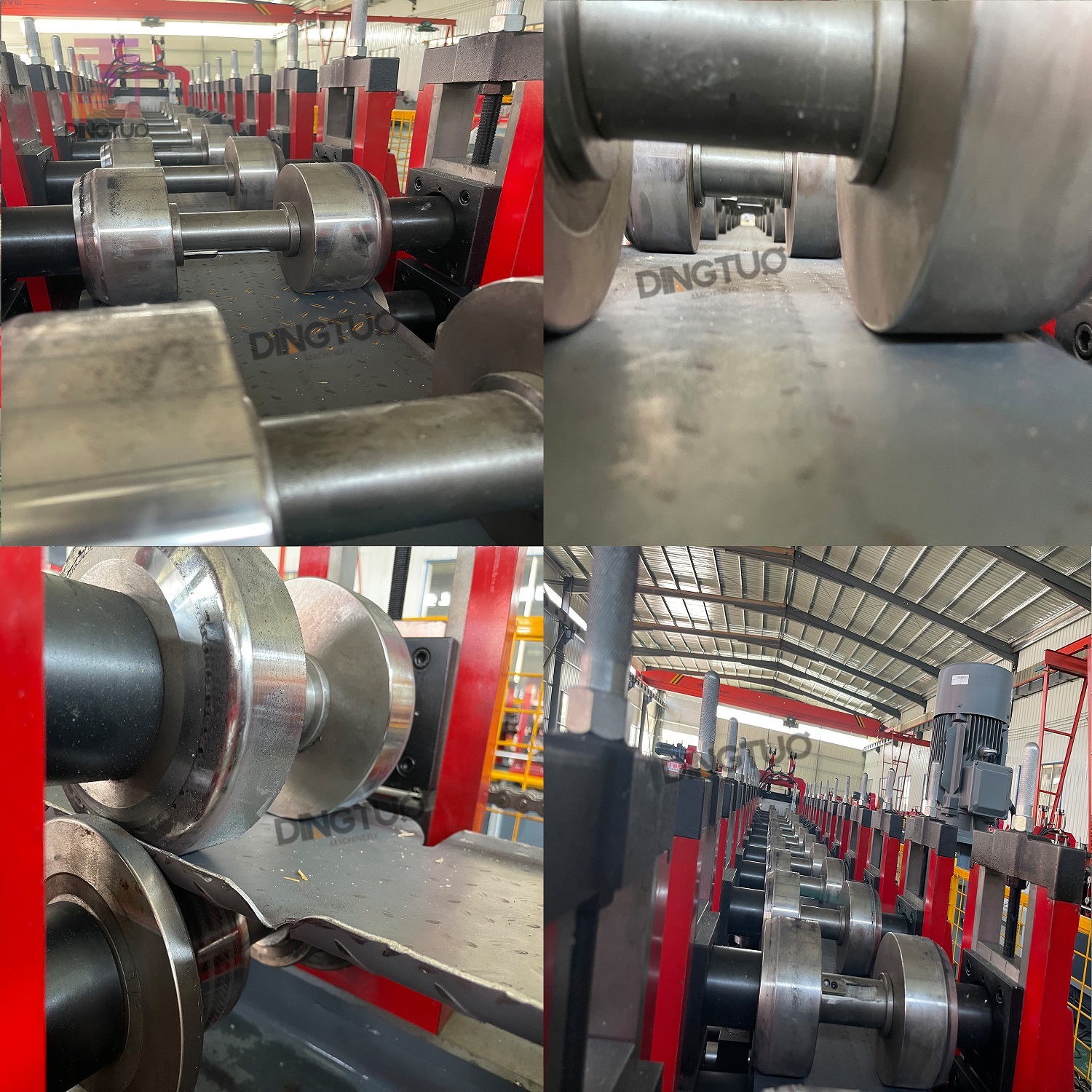

12 | Forming Shaft | Material : 45# steel. Processing technology: quenching and tempering treatment HB210-230 + lathe rough turning + CNC lathe fine turning shape + milling machine processing keyway and round nut stop groove. |
13 | Forming Roller | Material: Cr12 steel, processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape. |
14 | Cutting Blade | Material : Cr12 processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape. |
15 | Chain size | 1.5 inch |
16 | Run Out Table Function | The frame is welded by profiled materials. The top of the frame is equipped with several rollers, and the bottom is composed of adjusting screws, which can match the height of the finished product within a certain range. |
17 | Run Out table Length | 3m *2 sets |
18 | PLC Brand | DELTA Brand |
19 | Touch Screen Brand（HMI） | DELTA Brand |
20 | Frequency Brand | DELTA Brand |
21 | Electrical motor | Top brand , quality tested, stable Performance. |
22 | Encoder | OMRON Brand with aluminum bracket |
23 | Low-voltage electrical | Schneider Brand |
24 | Machine rough size | L 7m * W 0.8m * 1.6m |
25 | Machine rough weight | 7000 KGS |
26 | Machine with anchor bolts | can level the machine on the ground |
Spare Part
No. | Name | Quantity | Country |
1 | Rely | several | China |
2 | Encoder | 1pcs | China |
3 | Encoder wheels | 2pcs | China |
4 | size changeable part bearings | 2pcs | China |
5 | Switch buttons | 3pcs | China |
6 | Oil tubes | 2pcs | China |
7 | sensors | 2pcs | China |
8 | Chains | 2meters | China |
9 | Tool Box | 1 Set | China |
1.Decoiler :save operation time
there had hydraulic decoiler / double head hydraulic decoiler / electric decoiler/ manual standard decoiler can be chose
2.Pre-cutting unit :save materials
There had hydraulic pre-cutter / electric pre-cutter/ manual pre-cutter can be chose

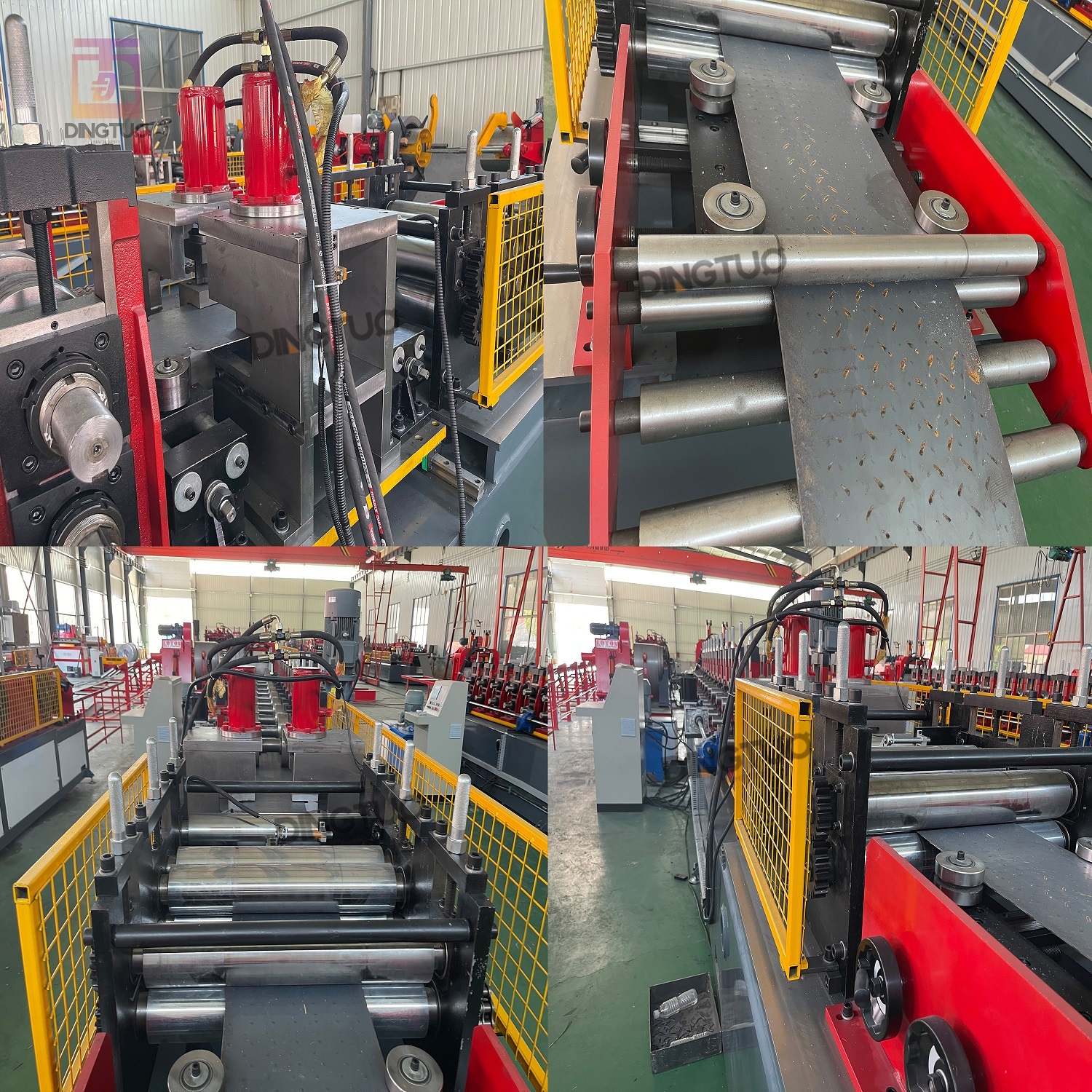

3.Feeding And Clamping And Notch Punching Unit

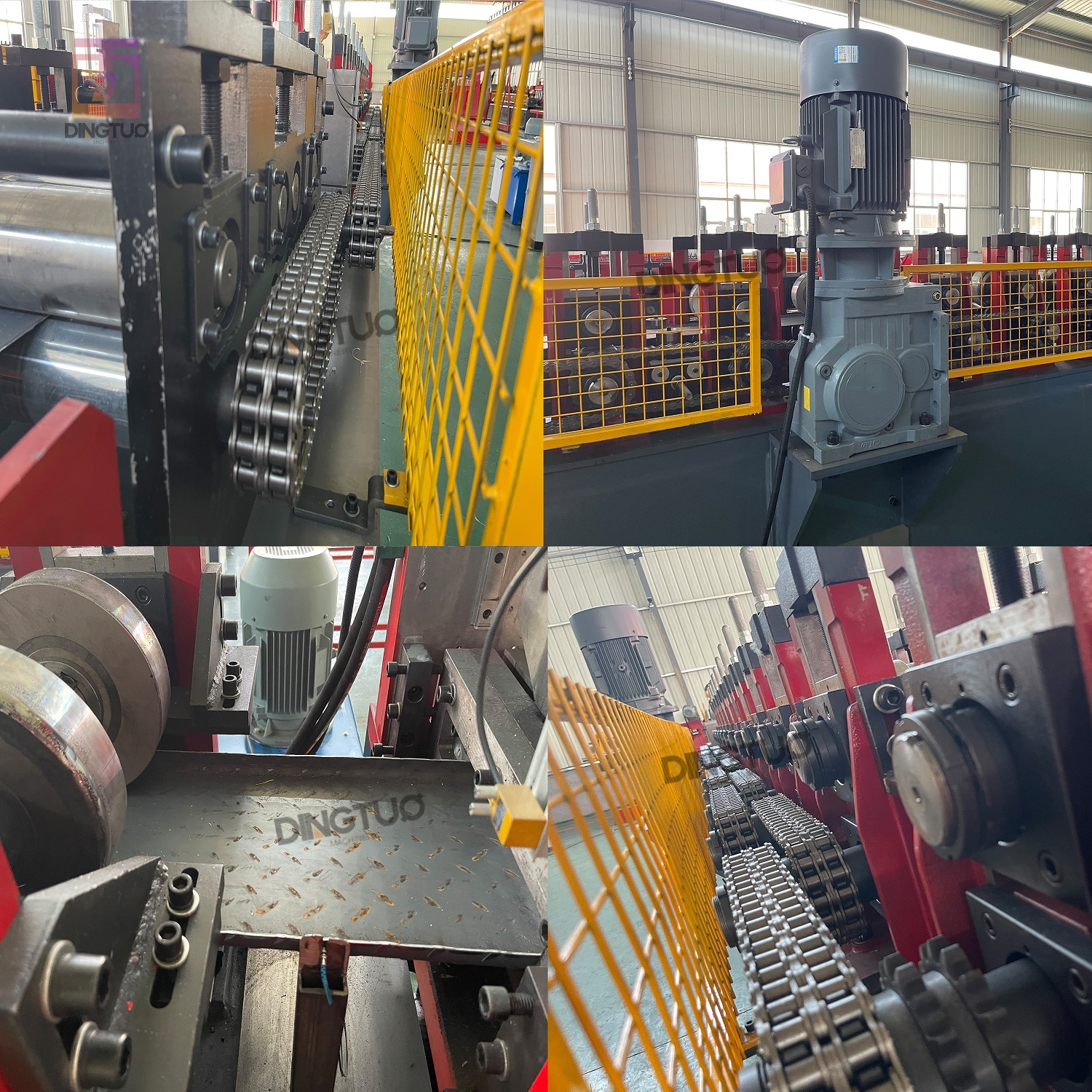

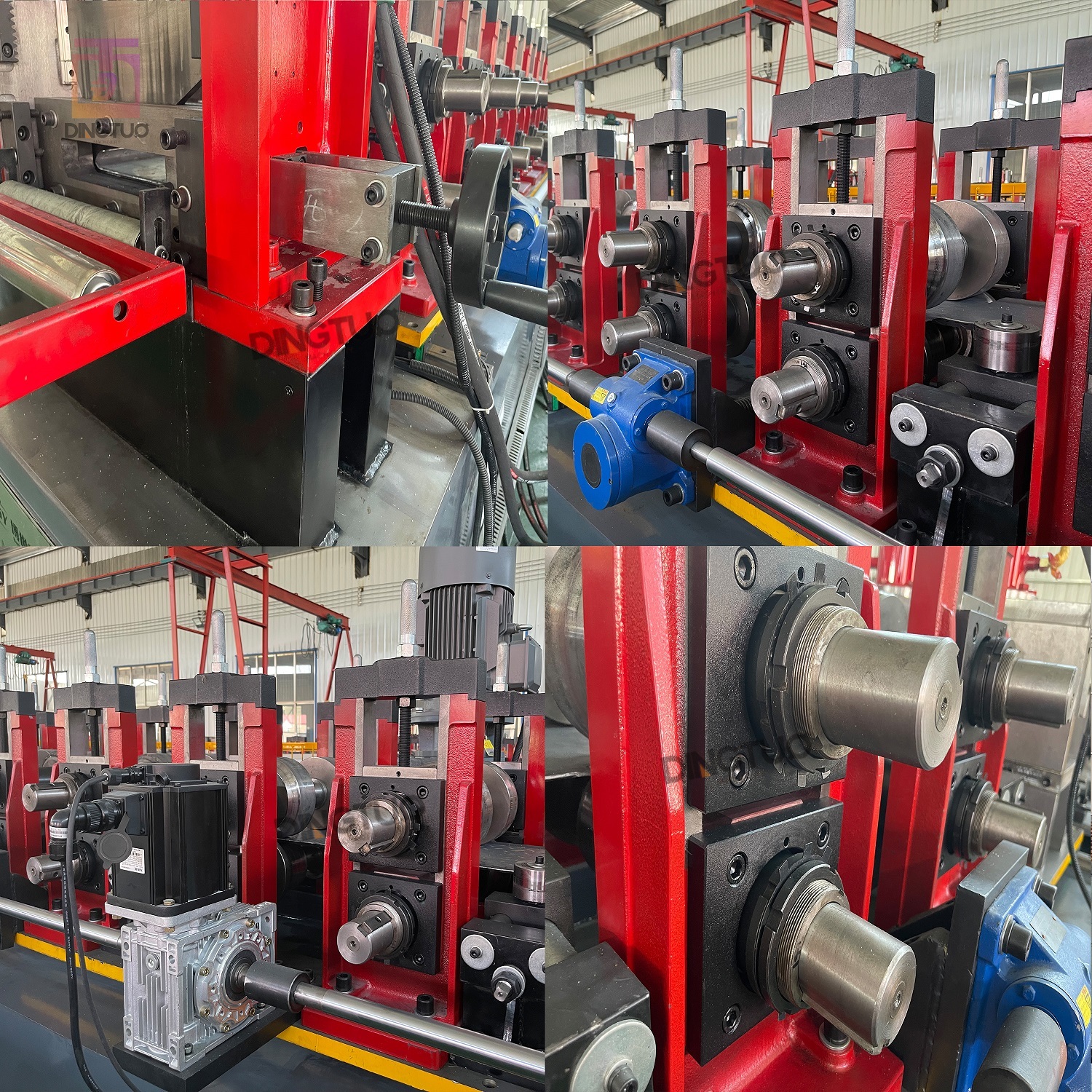

4. Forming unit : servo motor to do size adjustable , cast iron machine stands, stable base frame , structure stable

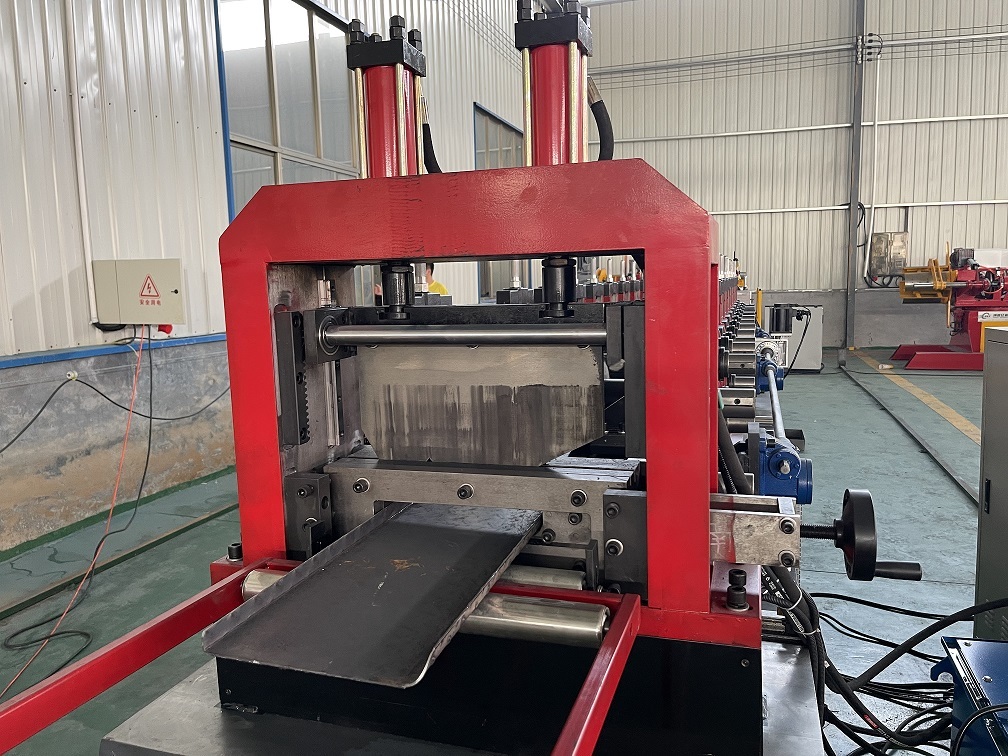

4.Cutting unit : without changing blades when do various sizes
5.Run Out Table : stable
