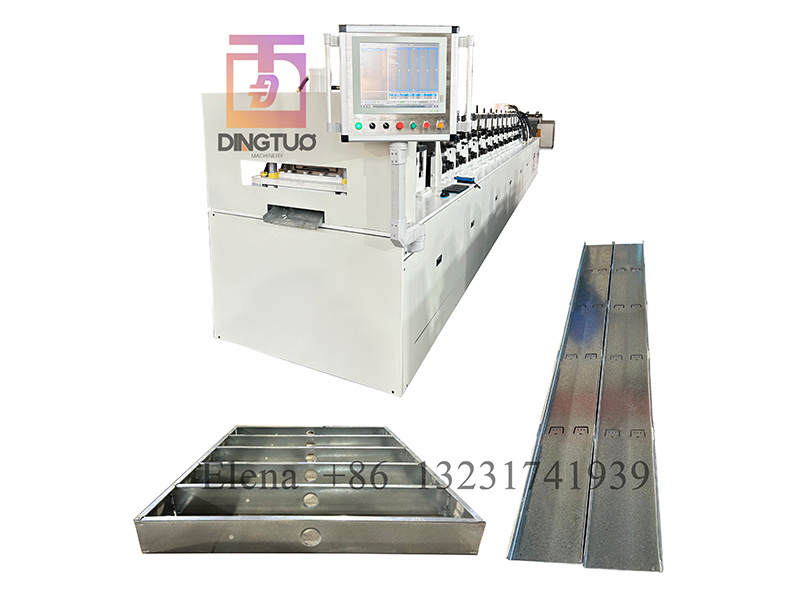

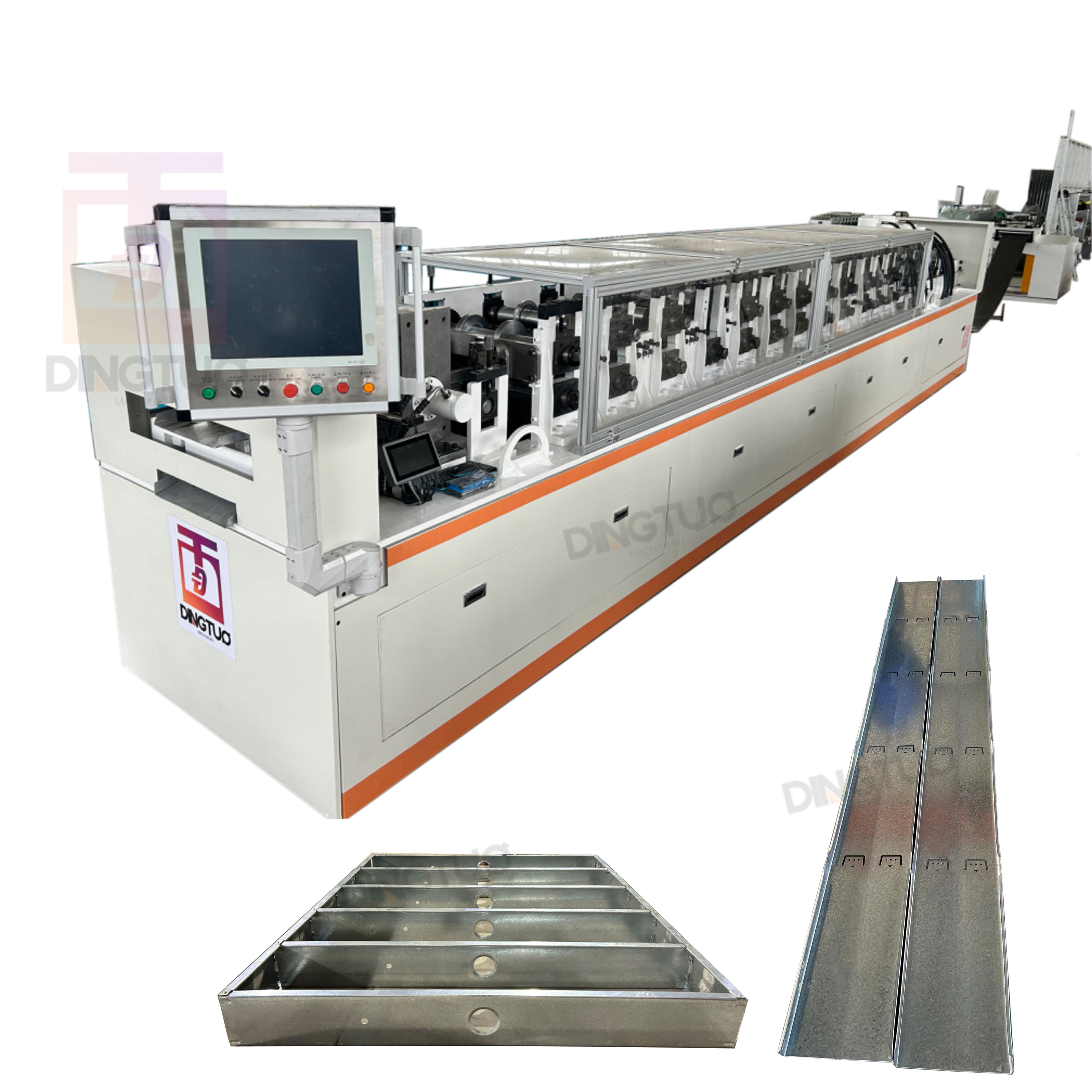

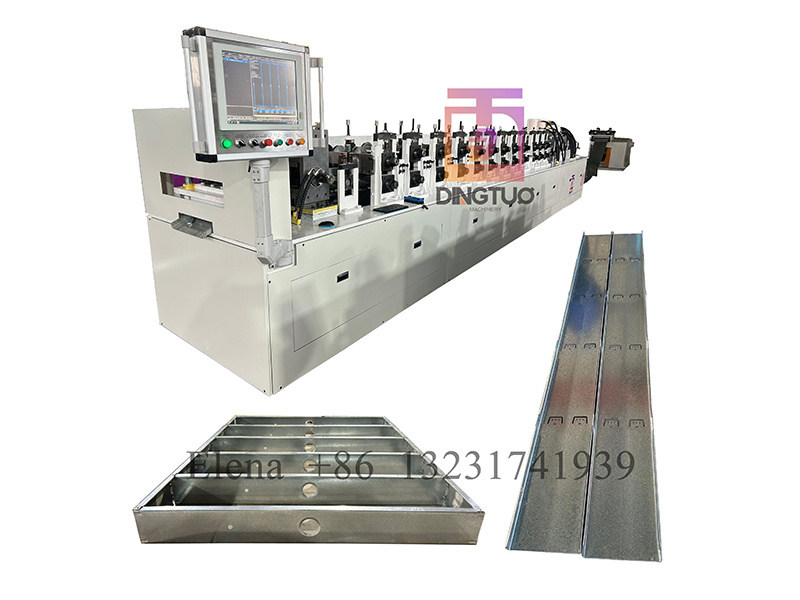

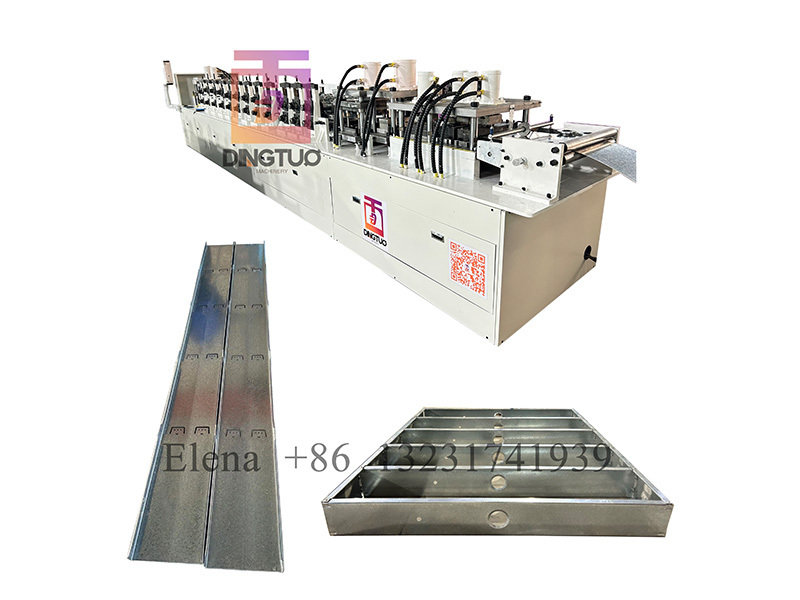

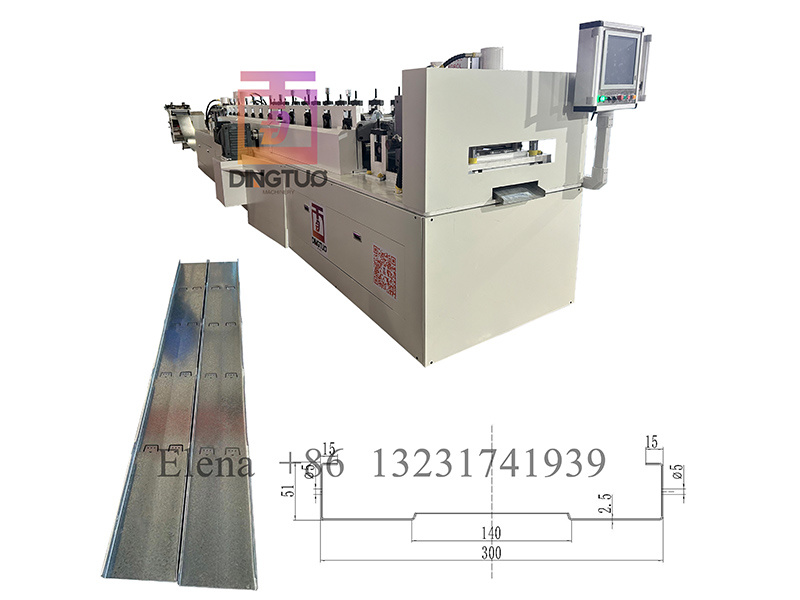

C 300 floor joist roll forming machine

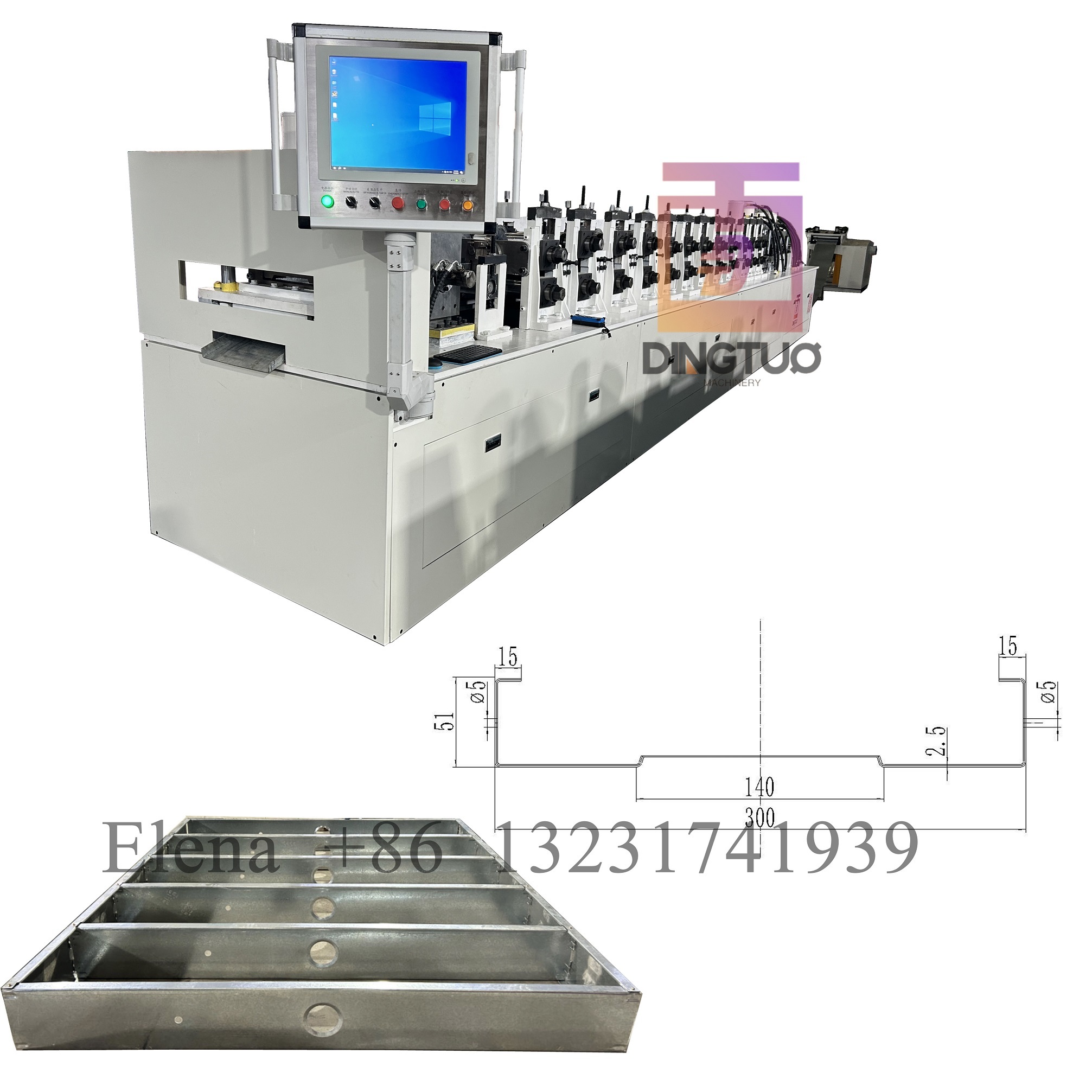

C300 FLOOR JOIST ROLL FORMING MACHINE

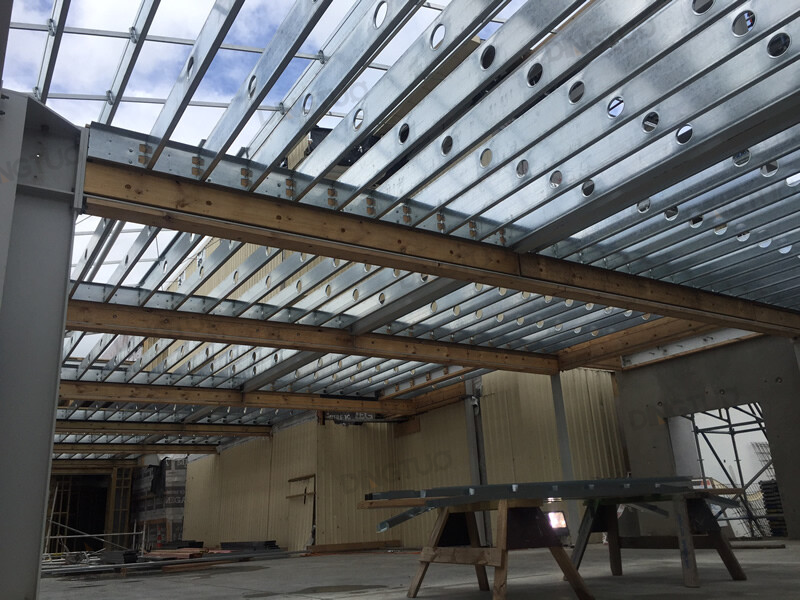

Floors can either be installed in-situ in existing buildings or as cassettes.

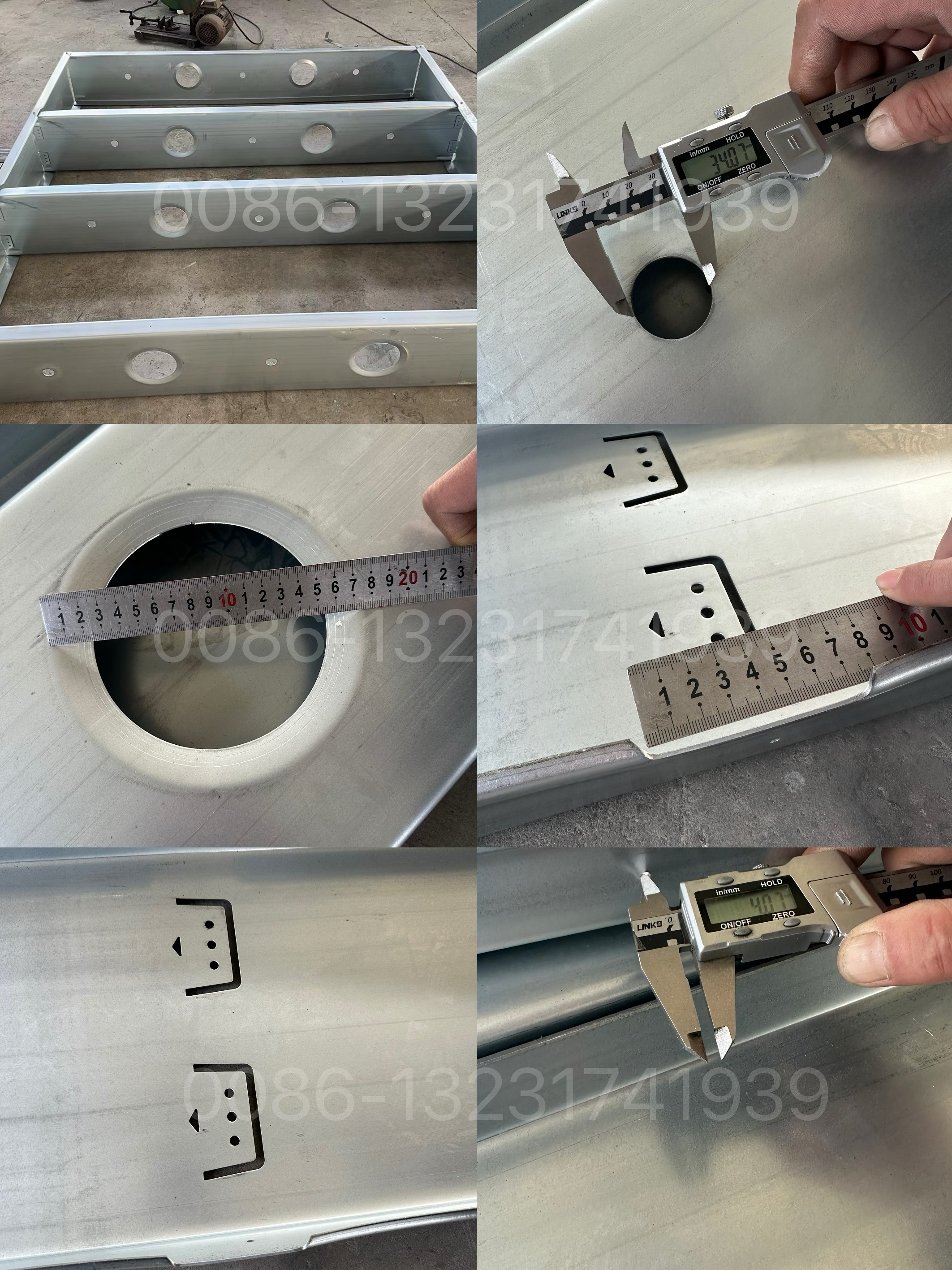

Looking for a dedicated floor joist cassette manufacturing option? Our floor joist roll forming machine will give you increased production capacity. You will also benefit from improved installation efficiency over standard lattice flooring systems. This machine features our unique swaged service hole to make ducting and plumbing easy. The swage and tab design allows for smooth joints, so the floor lining is able to sit flush to the joists. The floor cassettes can be built as modular units or easily assembled piece by piece in existing structures.
It offers a gauge range of 2.0 to 2.5mm (14 to 13 gauge) and produces up to 600m/968ft of floor joists per hour.
C300 Floor Joist Machine Parameter
NO. | Item | Parameter |
1 | 2 in 1 electric decoiler and leveling unit |
3 tons 480-520mm inner diameter |

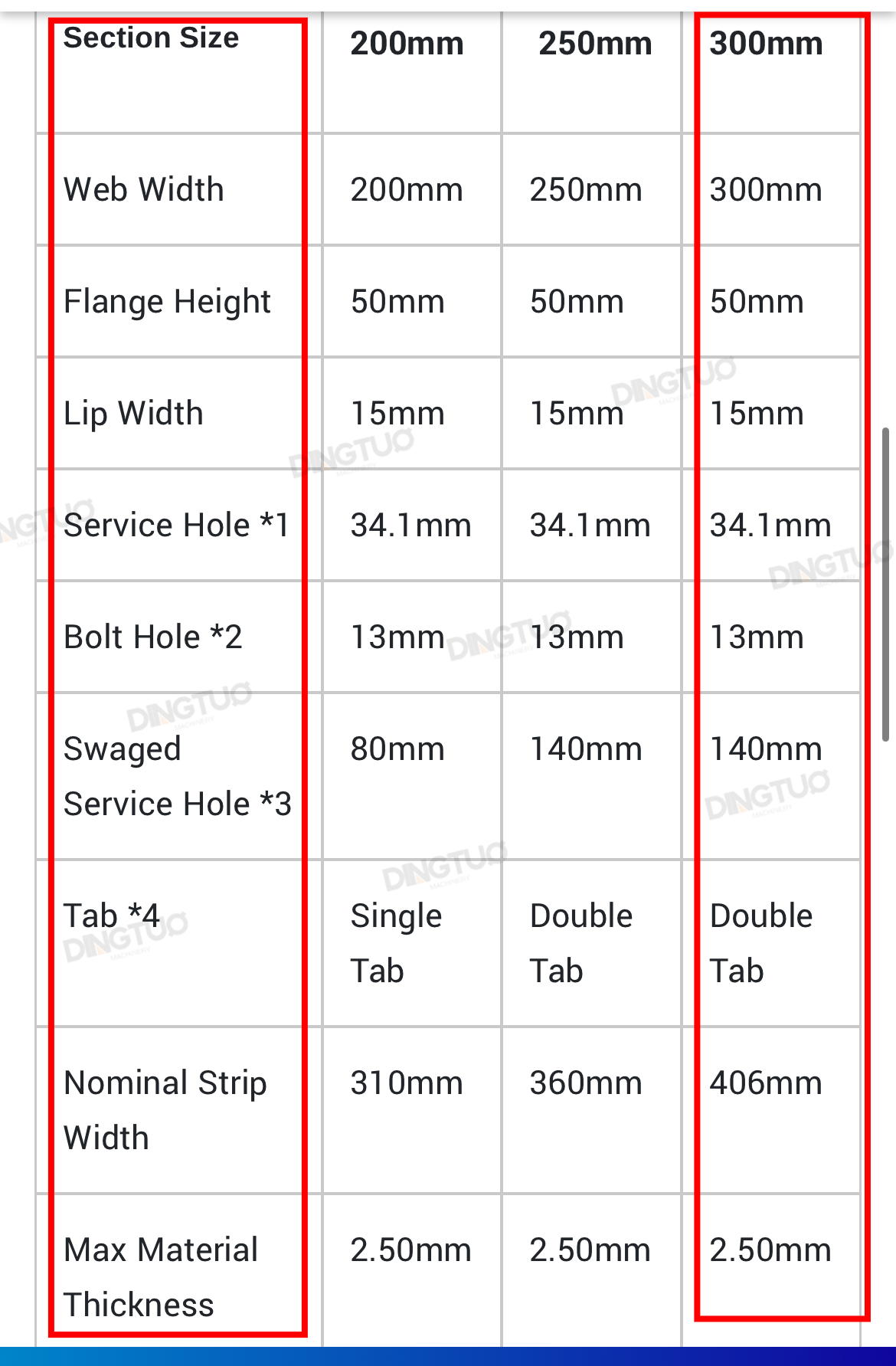

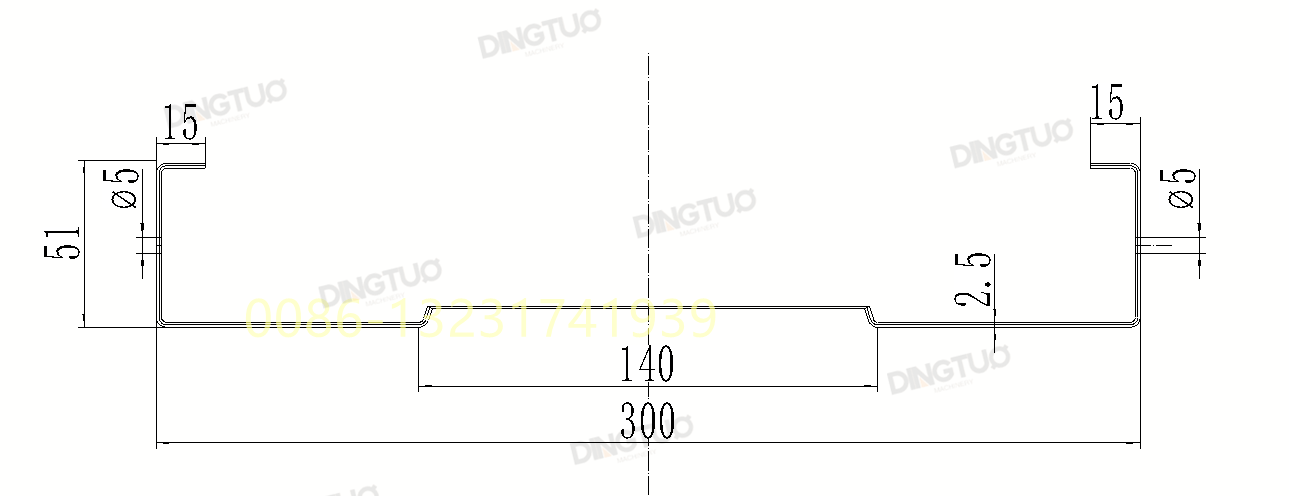

2 | punching unit and profile sizes | see the above attached punching drawing |
3 | machine type |
cast iron machine stands servo motor 17.2 kw .h can do fixed type and can do size adjustable type ( customized as client needed) |
4 | machine size and weight |
L 8.6m * W 1.8m * 1.9m 8500KGS |
5 | machine motor power |
INVT 7.5kw |
6 |
Brand of PLC |
Mitsubishi |
7 |
Brand of low voltage/switch/encoder/button |
Schneider |
8 |
Brand of encoder |
OMRON |
9 |
Brand of inject printer |
SOJET Dual print heads |
10 |
Machine input file |
CSV/XML |
11 |
Voltage |
380V,50HZ ,3phases or customized as client needed |
12 | Design software | Vertex BD |
Machine Components

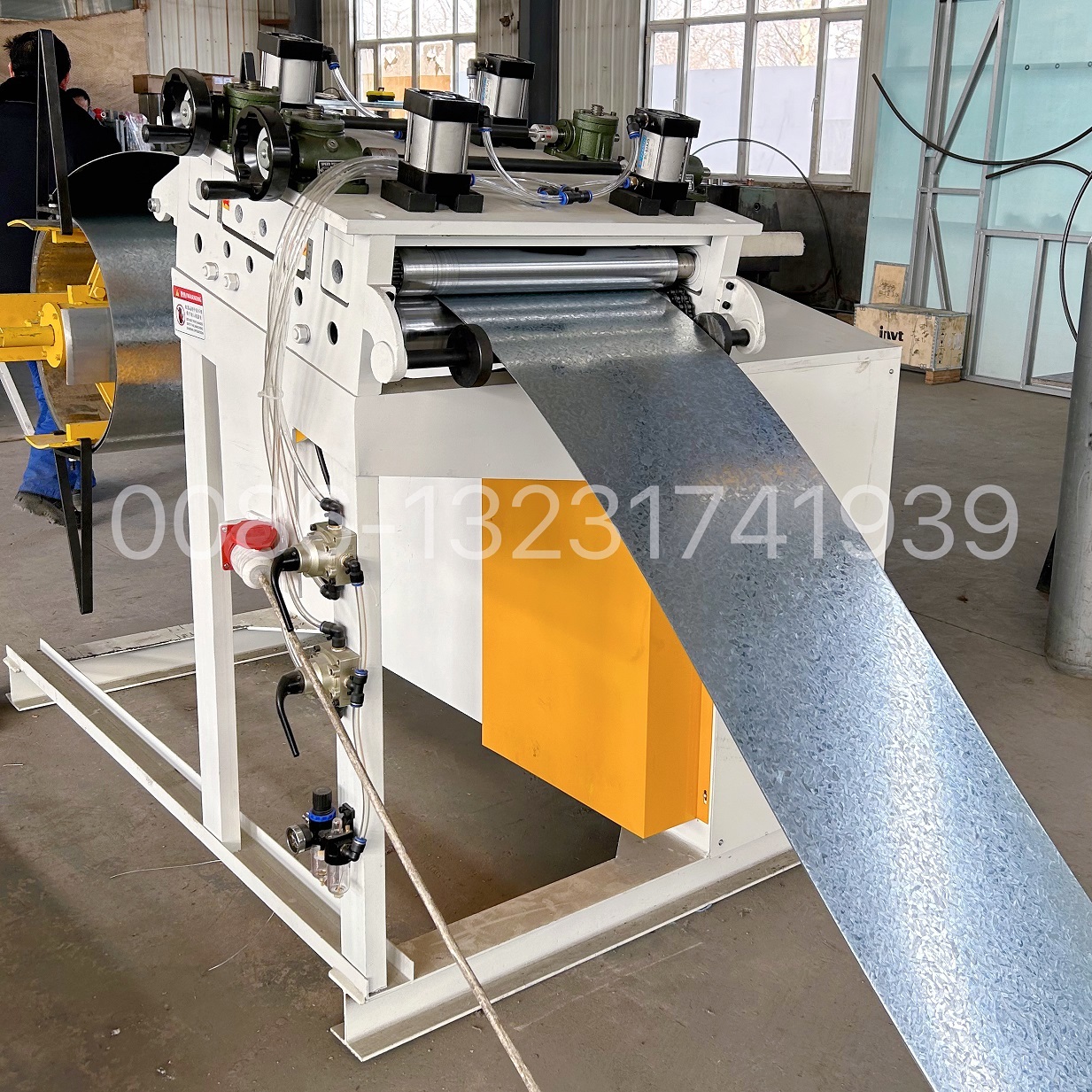

1: 2 in 1 decoiler and leveling unit

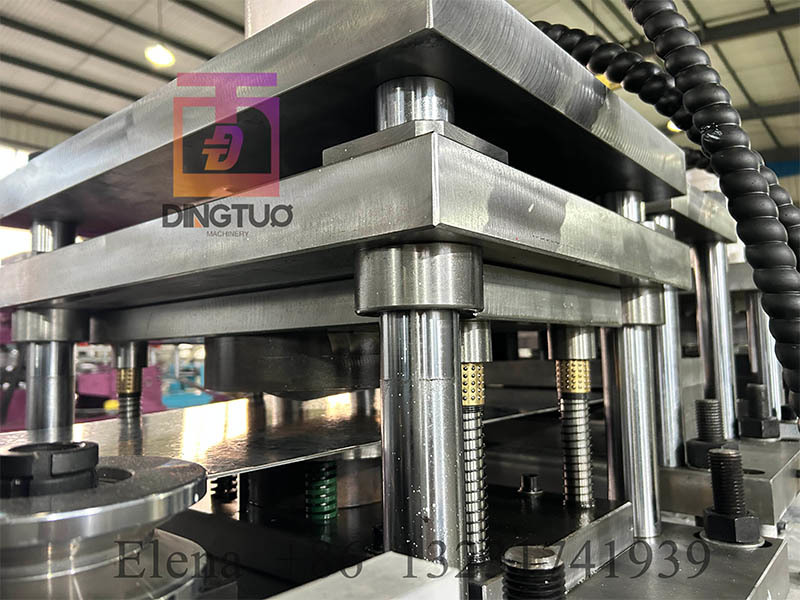

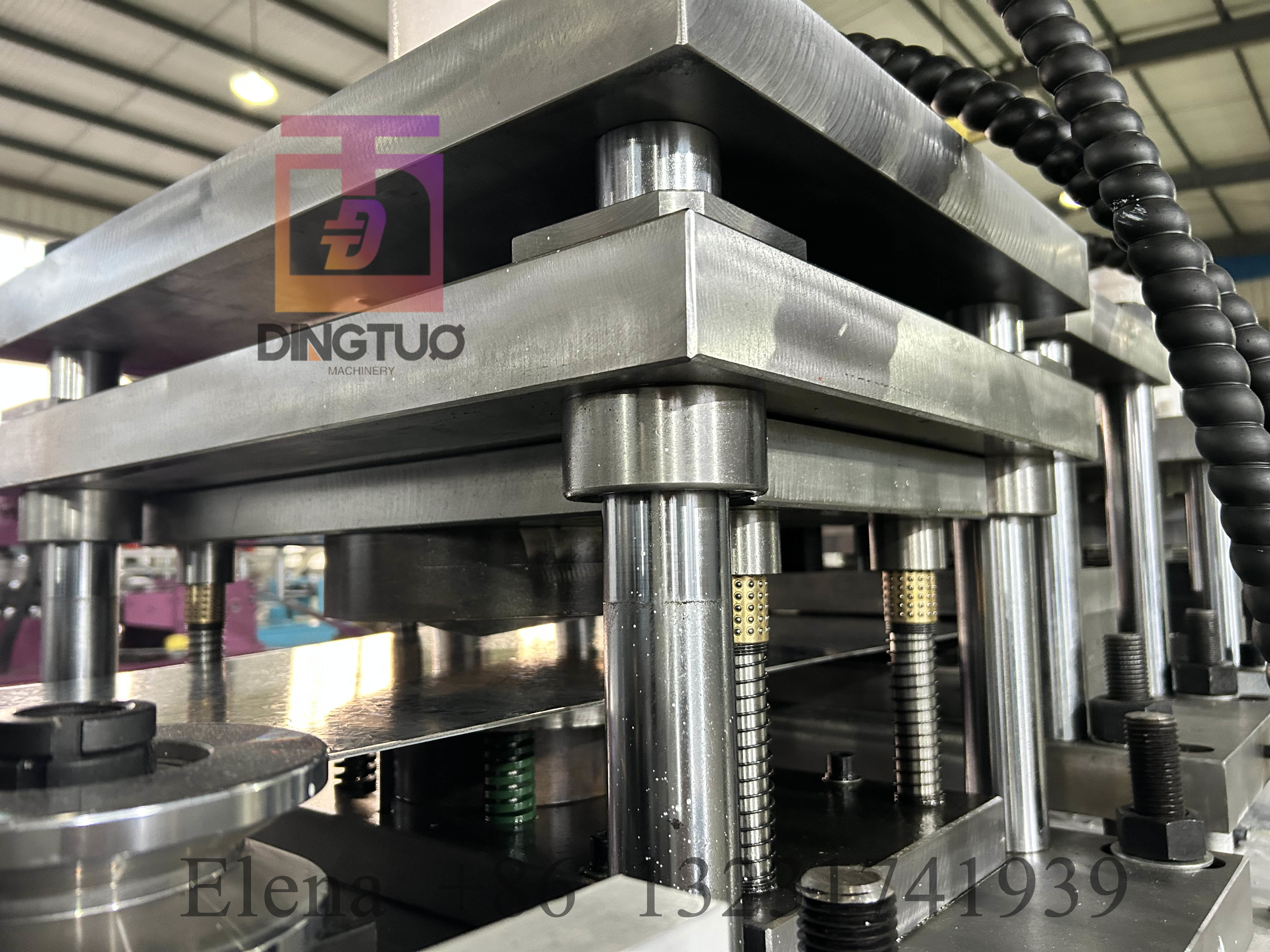

2: Punching unit

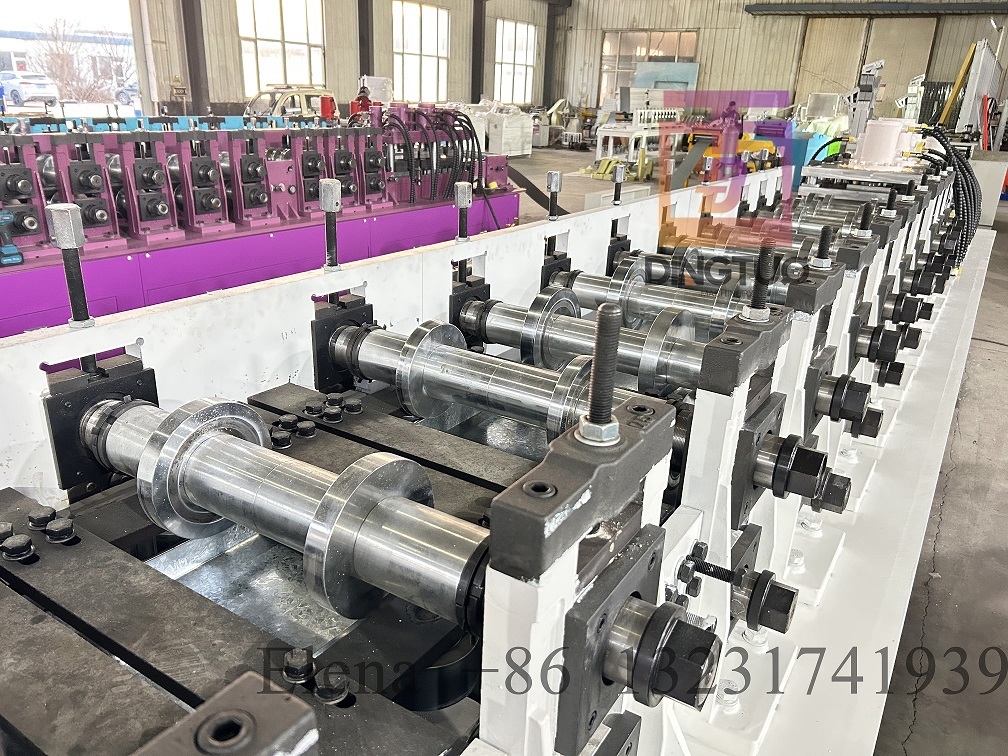

3: Forming unit

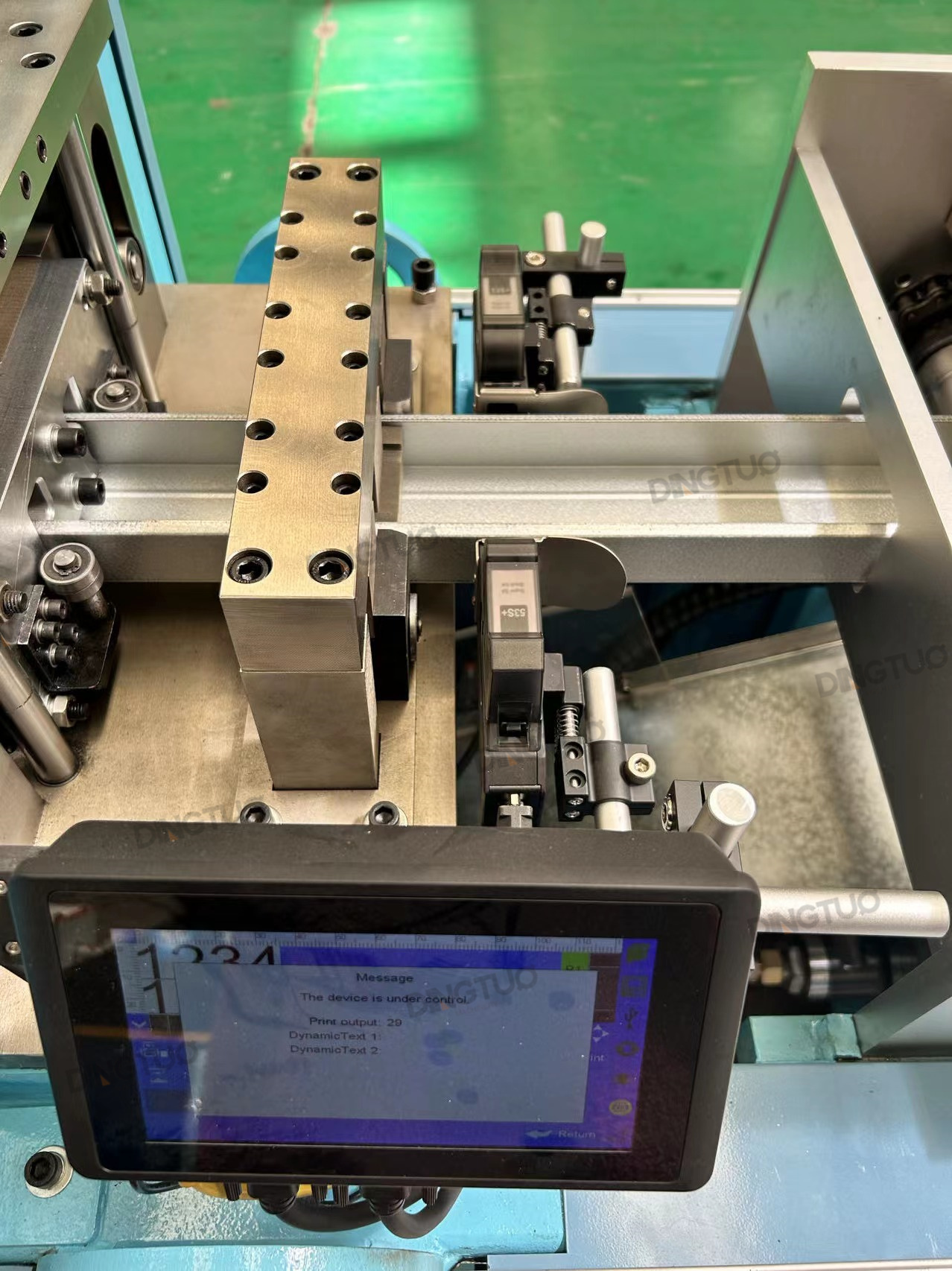

4: Double head printer

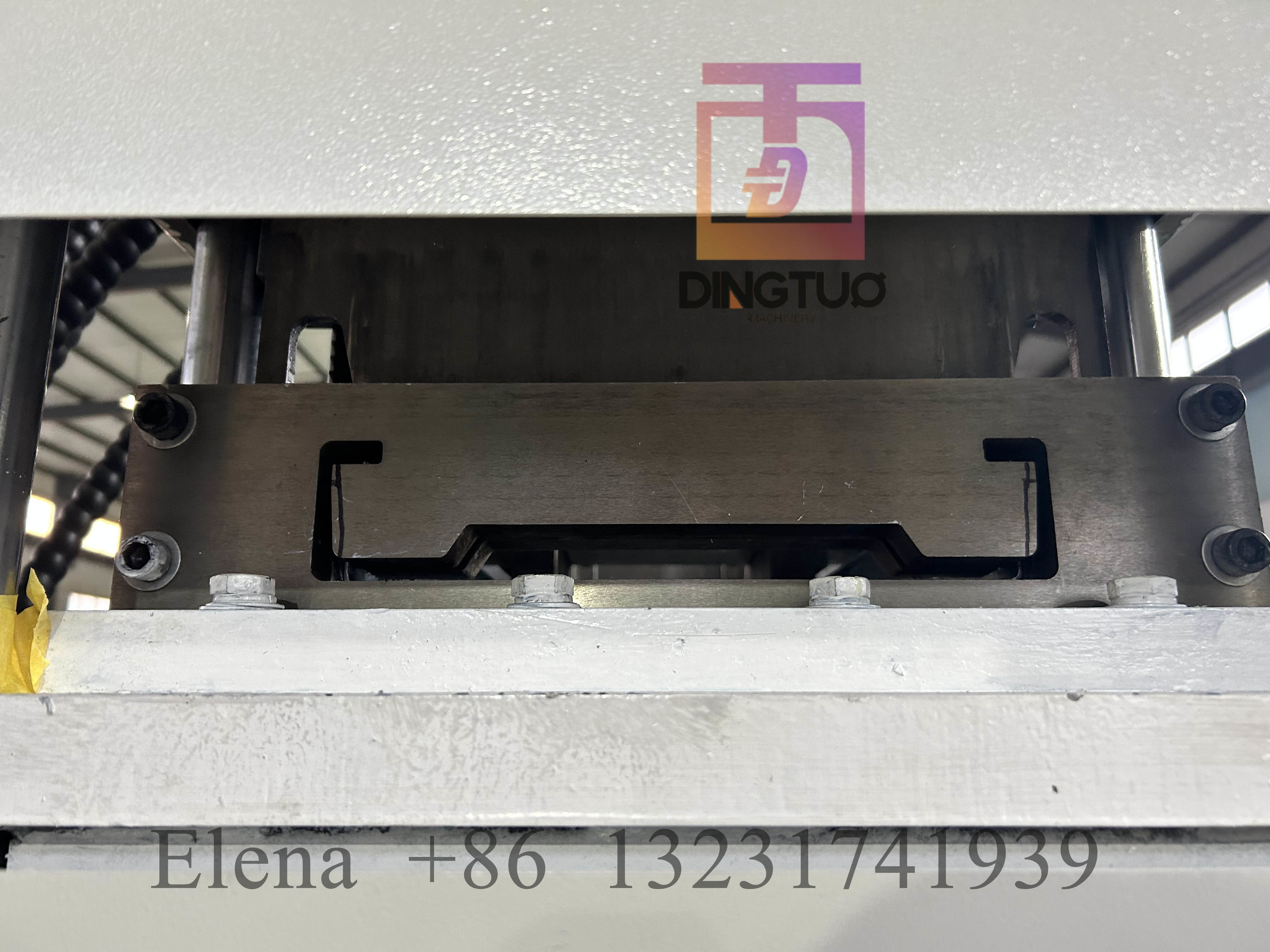

5: Electric Control Cabinet And Cutting Unit

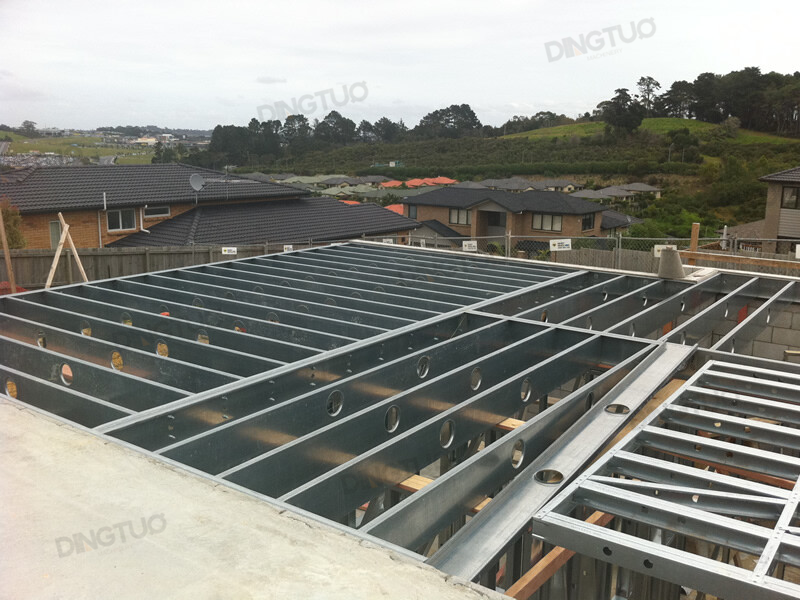

6. Application
Spare Parts
No. |
Name |
Quantity |
1 |
Sealing Rings |
Several |
2 |
Oil Tube |
8 Pieces |
3 |
Punching Head |
2 Pieces |
4 |
Shrink Cylinder |
1 Piece |
5 |
Cutting Cylinder |
1 Piece |
6 |
Wrenches |
Several |
7 |
Screw And Nut Of The Machine |
Several |
8 |
Electromagnetic Valve |
1 Piece |
9 |
Ink Cartridge |
2 Pieces |
10 |
Tool Box |
1 Set |
The MF 300 C140-C300 Floor Joist Machine is an innovative and high - performance piece of equipment.
This machine is specifically designed for fabricating floor joists. It can handle a wide range of sizes, from C140 to C300, providing great flexibility in production. With its advanced technology, it ensures precise shaping and cutting of the joist components.
The MF 300 C140-C300 offers high - speed operation, significantly increasing production efficiency. It is built with durable materials, guaranteeing a long - lasting service life. This not only reduces maintenance costs but also minimizes downtime.
The machine features an intuitive control system, making it easy for operators to use. Even those with minimal training can quickly master its operation. Safety is also a top priority, with built - in safety mechanisms to protect workers during operation.
In terms of quality, the floor joists produced by this machine are of excellent quality. They have accurate dimensions and consistent strength, meeting the strict requirements of construction projects. Whether for residential or commercial building construction, the MF 300 C140-C300 Floor Joist Machine is an ideal choice for efficient and reliable floor joist production.
